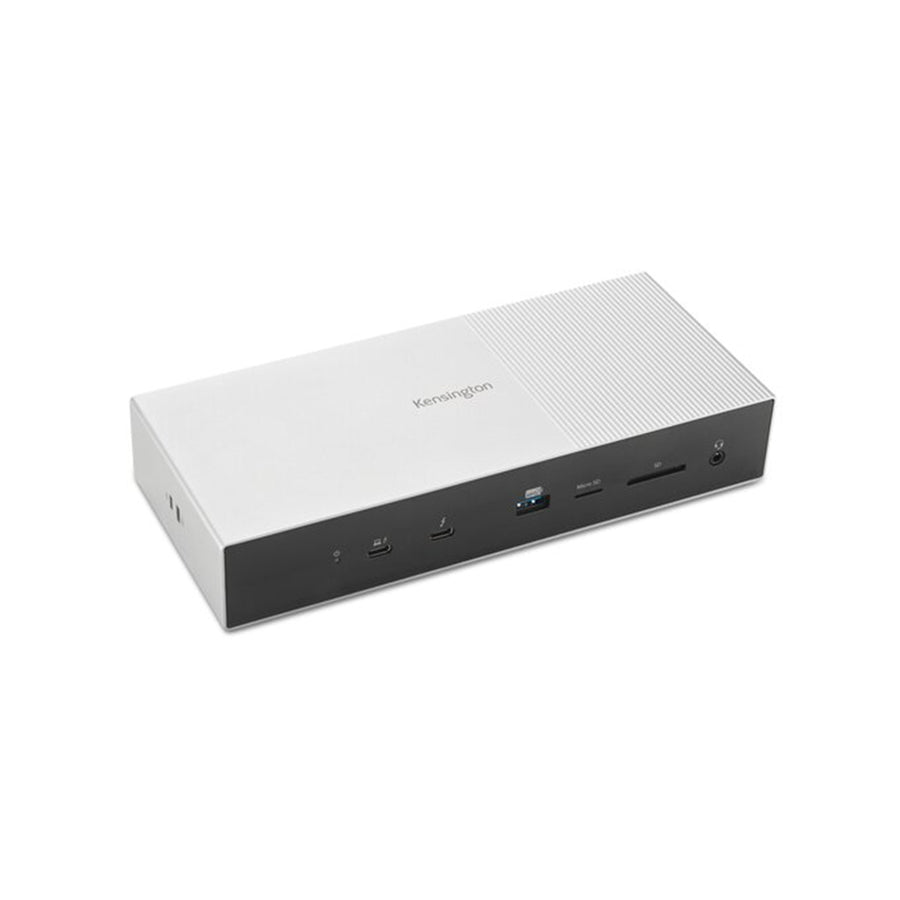

KTG SD5000T5 TB5 TRIPLE 4K PD DOCK
Features
Professionals with premium laptops often struggle to unlock the full potential of their devices. For those wanting to connect multiple high-resolution displays, transfer data at high speeds, and expand connectivity without relying on adapters, the SD5000T5 Thunderbolt™ 5 Triple Video Docking Station is the ultimate powerhouse. Providing a powerful single-cable solution that helps you be more productive, it supports multiple 4K monitors for expanded visual productivity, turbocharged speeds for working with large files, more ports for connecting accessories without using adapters, and amplified charging for meeting the demands of high-power workstations.
- Boost productivity with speeds up to 80Gbps, with Bandwidth Boost providing up to 120Gbps for video-intensive usage.
- Contains 100% post-consumer recycled (PCR) aluminum*- and delivered in Forest Stewardship Council (FSC®) certified packaging. *
- The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
- Supports up to three 4K monitors @ 144Hz or two 8K monitors @ 60Hz.
- Delivers up to 140W Power Delivery to meet the demands of high-power workstations.
- Productive 11-in-1 design provides increased efficiency and seamless connectivity to various setups.
- Built-in SD and Micro SD card readers provide ultra-fast file transfer options.
- Plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
- Zero-Footprint Mounting option to support a tidier workspace.
- Offers security cable lock slots to support device protection.
- Includes free Kensington DockWorks™ software to ensure the best connection, performance, and security from your Kensington dock.
Boost Your Productivity with Thunderbolt™ 5
The SD5000T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.

Recycled Materials
Contains 100% post-consumer recycled (PCR) aluminum*- and delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.

Triple 4K or Dual 8K Support
Supporting up to three 4K monitors @ 144Hz or two 8K monitors @ 60Hz, the SD5000T5 supports uncompromised visual quality and smooth multitasking for a high-performance workspace.

Up to 140W Power Delivery
Perfect for demanding workstations, the single-cable Thunderbolt™ 5 solution ensures seamless power and connectivity with up to 140W Power Delivery.

Productive 11-in-1 Design
3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet for seamless productivity.

Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5000T5 transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.

Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).

Specifications
Technical Specifications
| Connection technology | Thunderbolt™ 5 |
|---|---|
| Driverless | Yes |
| Number of Screen Outputs | 3 |
| Video ports | 3 x Thunderbolt 5 DFP |
| Maximum resolution | 8K |
| Power delivery | Up to 140W |
| Operating system(s) | macOS, Windows |
| Number of USB ports | 3 |
| USB fast charging | Yes |
| Docking station family | The Innovator |
| DockWorks | Yes (for Windows only) |
| Best For | A Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C® PD 3.1 EPR support for up to 140W (28V/5A) charging |
| Compatibility | macOS 14.5 or above, Windows 11 (23H2 or later) |
| Card Reader | SD Cards and Micro SD card slots (UHS-II, SD4.0) |
| Features | EQ |
| USB-A ports | 3 x USB-A 3.2 Gen2 10Gbps |
| Audio | 1 x 3.5mm Combo Microphone & Headphone Port (front) |
| Data transfer speeds | Up to 80Gbps of bidirectional bandwidth, with Bandwidth Boost enabling up to 120Gbps for video-intensive usage |
| Ethernet Speed (Mbps) | 10, 100, 1000, 2500 Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the host computer. |
| Maximum resolution supported | Triple 4K @ 144Hz, Dual 8K @ 60Hz, Single 8K @ 60Hz, or 1080p @ 540Hz |
| Plug & play | Plug & play installation without need for drivers or downloads |
| Security slot compatibility | Kensington Nano Security Slot, Kensington Security Slot |
| System requirements | Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later) |
| Thunderbolt Ports | 1 x Thunderbolt 5 host port 3 x Thunderbolt 5 downstream ports |
| USB-C Power Delivery | Supports USB-C PD 3.1 (Up to 140W of laptop charging) |
| Video output | 3 x Thunderbolt™ 5 DFP |
| 4K support | Yes |
| Brand | KENSINGTON |
|---|---|
| Product Type | Computers & Tablets > Docking Stations |
| Weight | 0.907 kg |
| Warranty |
|---|
