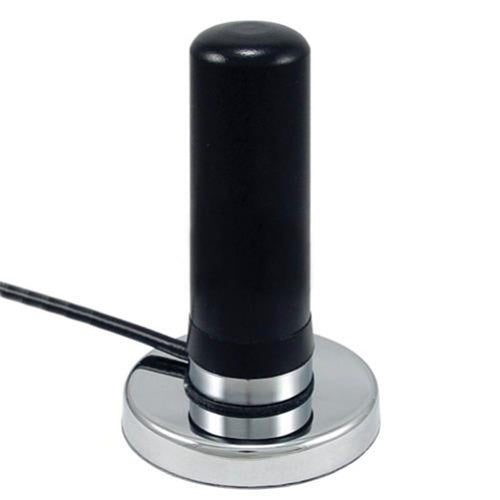

L-com HG72703UR-NMOB Omni DAS Antenna with Magnetic Base - Black - SMA Male Connector - 3dBi 698-960/1710-2700 MHz
$194.78
inc GST ▲
+GST
Features

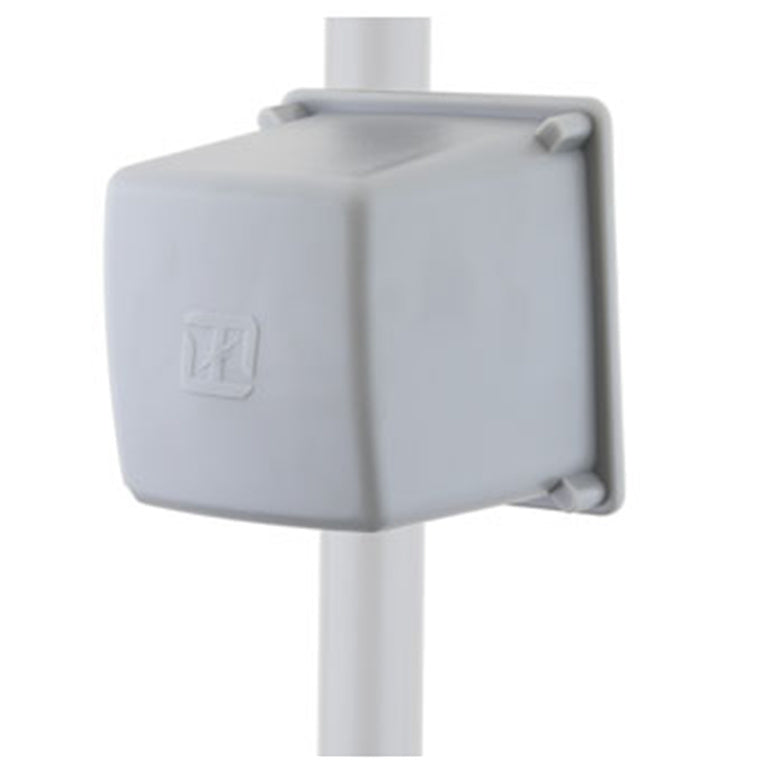

L-com 2.4/5.8 GHz 10 dBi Dual Polarized Mini MIMO Antenna
Specifications
Technical Specifications
| Manufacturer part number | ANT-246 |
|---|---|
| Manufacturer's Product Code | HG2458-10DP |
| Frequency Range | 2400-2500/4900-5850 MHz |
| Polarisation | Vertical and Horizontal |
| Vertical Beamwidth | 57 deg @2.4 GHz/ 42 deg @ 4.9-5.8 GHz |
| Horizontal Beamwidth | 90 deg @ 2.4 GHz/ 70 deg @ 4.9-5.8 GHz |
| Max Power | 50W |
| Impedance | 50 Ohm |
| Isolation | >28dB |
| VSWR | < 2.0 (V-Pol)/ < 2.3 (H-Pol |
| Front to Back Ratio | = 15dB |
| Lightning Protection | DC Ground |
| Connectors | (2) Integral N-Female |
| Mounting | 1 to 1.7 Inch (25.4 to 43.2 mm) dia Masts |
| Vertical Tilt | 0 to 30 deg |
| Radome | UV-Protected ABS |
| Dimensions | 104 x 104 x 90mm |
| Antenna Weight | 1.1 lbs (0.5 kg) |
| Mounting bracket weight | 0.4 lbs (0.18 kg) |
| Operating Temperature | 40 deg C to 60 deg C |
| Rated Wind Velocity | 210 km/h |
| Product type | Network Accessories |
| Weight | 1.2 kg |
| Warranty | 12 months |
| Brand | L-com |
|---|---|
| Product Type | Network Accessories |
| Weight | 1.2 kg |
| Warranty |
|---|
