ANT-98 - L-com 5.8 GHz 22 dBi Cast Reflector Grid Antenna
You May Also Like
RBwAPG-60adkit - MikroTik Wireless Wire 1Gbps 60GHz Wireless Bridge Kit
RBLHGG-60adkitr2 - MikroTik Wireless Wire Dish Preconfigured 60GHz Pair
Cambium Networks C050910C801A - Cambium ePMP 5 GHz Force 300-25 High Gain Radio
Features
HyperLink Technologies ANT-98

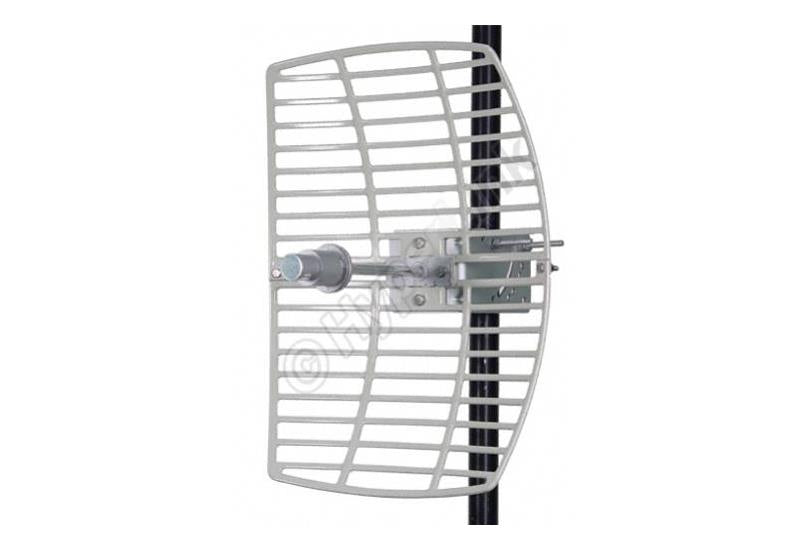

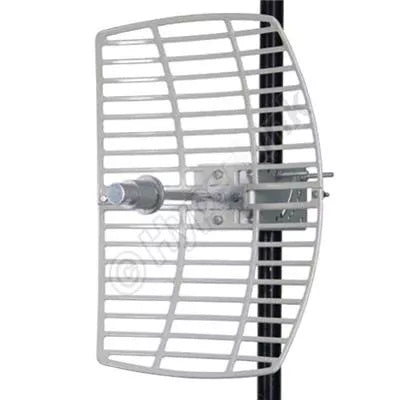

The HyperGain HG5822G 22dBi High-Performance Cast Reflector Grid Wi-Fi Antenna is ideal for long-range highly directional 5.8GHz ISM and UNII band applications. These antennas are ideal for point to point systems, point to multi-point and wireless bridges. Its compact design makes it nearly invisible in most installations, and it can be installed for either vertical or horizontal polarization.
The antennas' construction features a rust-proof cast aluminium reflector grid for superior strength and light weight. The 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics.
The open-frame grid design minimizes wind loading. This antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. They can be adjusted up or down from 0deg to 60deg
Specifications
Technical Specifications
| Frequency Range | 5725-5850MHz |
|---|---|
| Gain | 22dBi |
| Polarisation | Vertical or Horizontal |
| Vertical Beamwidth | 13deg |
| Horizontal Beamwidth | 10deg |
| Connector Type | N-Type Female |
| Dimensions | 300x400mm |
| Pole Mount Diameter | 32-50mm |
| Brand | L-com |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.5 kg |
| Warranty |
|---|
