Laird Connectivity GND-03 - RJ45 20mm Shielded Gigabit Ethernet Connector System

Description

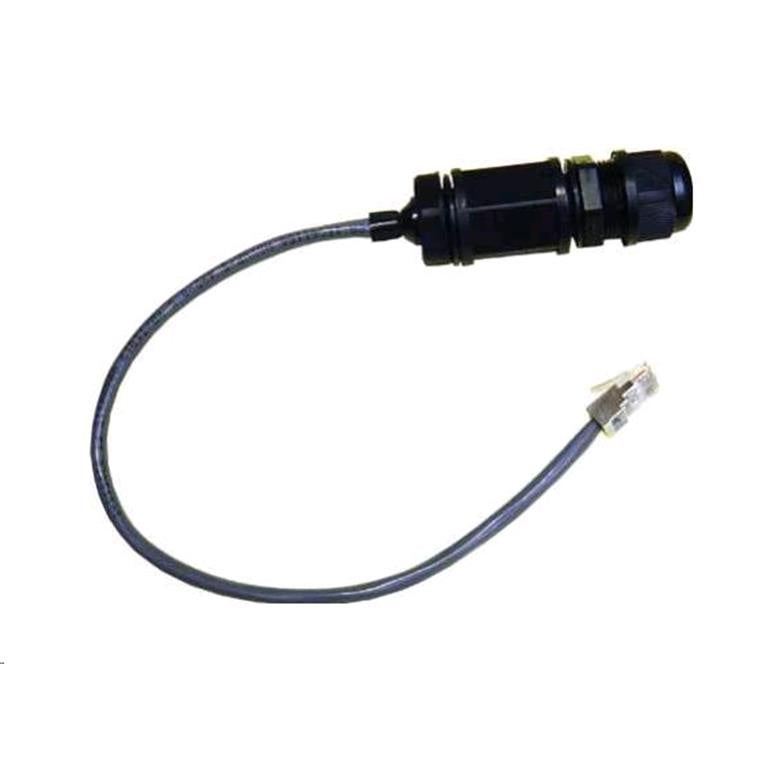

The Patented RJ45-ECS Shielded connector system exclusively from Pacific Wireless is a field replaceable outdoor rated and shielded Ethernet connection system for high speed 10BaseT, 100BaseT and 1000BaseT networks. The system features a shielded RJ45 Receptacle mounted in a UV protected housing and a mating cable gland which passes an RJ45 connector and seals the cable to IP67 requirements. The system provides for quick and easy disconnect and reconnect of equipment. Because of its many unique design features and low cost, the RJ45-ECS is a universal solution for many industries where a sealed and waterproof, yet removable, Ethernet connection is required. These include outdoor applications such as wireless equipment or video surveillance equipment and indoor applications such as equipment used in factory automation or harsh industrial processes.
Features
  • Patented low cost design
  • Field replaceable waterproof connector system for RJ45 shielded or unshielded connectors
  • Constructed of UV protective materials for long life in harsh outdoor environments
  • Seal meets IP67 criteria
  • Shock and vibration resistant
  • Positive locking RJ45 connector
  • 12 in Cat5E Gigabit strain relieved cable

Specifications

Details
Manufacturer's Product Code RJ45-ECS
Data 10BaseT, 100BaseT and 1000BaseT Networks, CAT5e per TIA/EIA 568B, ClassD per ISO/IEC 11801
Mechanical Mating Cycles >500, Positive RJ45 bayonet coupling, Cat5 Cable Strain Relief
Material UV Resistant Nylon 66
Sealing IP67
Salt Spray >1000 h
Flammability UL94VO
Thermal Shock 10 cycles -40 to +100°C
Temperature Range -40°C to +85°C
Installation Hole Dia 0.787 in (20 mm)
Overall Size (L x Dia) 3.75 in x 1.18 in (95 x 30 mm)
Weight 2 oz (57 gm)
