StarTech.com DMFKSLCLCCOUPLER - LC Fiber Coupler LC/UPC Keystone
Features

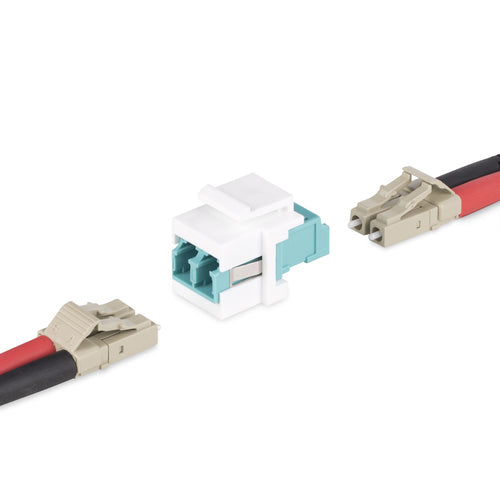

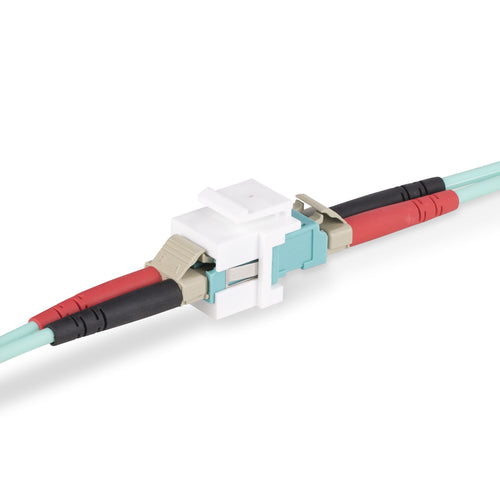

Connect two LC Duplex fiber cables featuring UPC polished ends to extend a network connection, using this LC to LC Keystone Coupler. The female to female fiber coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Compatible with Single Mode and Multimode Fiber Cables
The LC Fiber Coupler supports Single Mode and Multimode LC/LC fiber cables. It is compatible with OS1/OS2 (9/125µm) and OM1/OM2/OM3/OM4/OM5 (62.5/125µm and 50/125µm) fiber core/cladding. The coupler fits securely into the keystone jack which can be installed in a keystone patch panel or wall plate without requiring additional tools.
Durable Construction
The LC/LC Keystone Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
- LC KEYSTONE COUPLER: LC to LC Coupler features a compact design with removable Keystone Jack; Join two LC fiber cables or extend fiber connectivity in a network setup; Ideal for keystone patch panels and wall plate installations
- ROBUST CONSTRUCTION: ABS outer housing enhances durability and wear protection; Ceramic-lined inner sleeves enables precise alignment of fiber ends; Rated for 500 insertion cycles with minimal insertion loss; Includes protective dust covers
- RELIABLE DATA TRANSMISSION: LC coupler supports 1/10/40/100Gbps for reliable transfer rates between devices; Insertion Loss below 0.2dB exceeds TIA 568 B.3 industry standards; Supports both LED and VCSEL sources
- COMPATIBILITY: Versatile compatibility with Single Mode and Multimode fiber; Compatible with OS1/OS2, and OM1/OM2/OM3/OM4/OM5 cables; Supports 9/125µm, 62.5/125µm, and 50/125µm fiber cores; NOTE: Best paired with LC/LC fiber cables with UPC polished ends

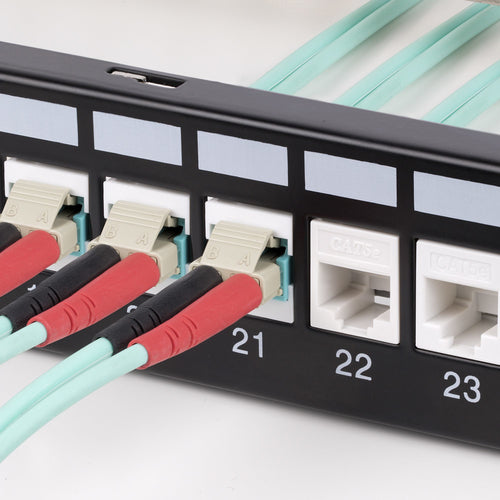

- QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; LC fiber coupler snaps securely into keystone jack with metal tabs; Deploy the coupler to an existing keystone wall plate or patch panel
Specifications
Technical Specifications
| Connector A | 1 - Fiber Optic LC Duplex |
|---|---|
| Connector B | 1 - Fiber Optic LC Duplex |
| Operating Temperature | -20? to 60? (-4°F to 140°F) |
| Storage Temperature | -20? to 60? (-4°F to 140°F) |
| Humidity | 0%~90% |
| Active or Passive Adapter | Passive |
| Ports | 2 |
| Package Height | 0.8 in [2.0 cm] |
| Package Length | 4.9 in [12.5 cm] |
| Shipping (Package) Weight | 0.2 oz [6.0 g] |
| Package Width | 3.5 in [9.0 cm] |
| Package Quantity | 1 |
| Type | Single Mode / Multi Mode |
| Color | White |
| Product Height | 0.9 in [2.2 cm] |
| Product Length | 1.1 in [2.9 cm] |
| Weight of Product | 0.1 oz [4.0 g] |
| Product Width | 0.7 in [1.8 cm] |
| Connector Style | Straight |
| Included in Package | 1 - Duplex Multimode LC to LC Fiber Keystone Jack Coupler |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Fiber Connectivity > Fiber Patch Leads |
| Weight | 0.027 kg |
