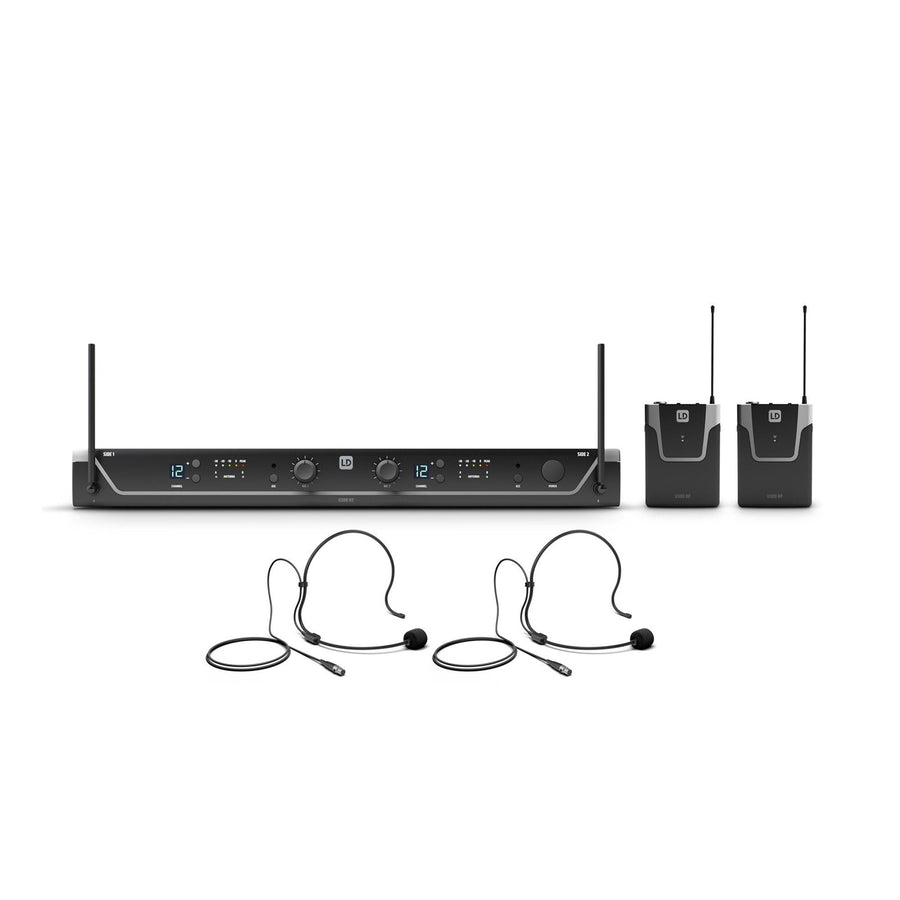

LD SYSTEMS LDU306BPH2INT - LD SYSTEM DUAL WIRELESS MIC SYS 2 X BODY PK & 2 HEAD SETS

SKU: LDU306BPH2INT ● In Stock
$833.33
Free shipping over $299 Genuine product 7-day returns

LD SYSTEMS LDU306BPH2INT - LD SYSTEM DUAL WIRELESS MIC SYS 2 X BODY PK & 2 HEAD SETS

Features

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584-608 MHz, 655-679 MHz, 823-832 MHz + 863-865 MHz, 470-490 MHz or 514-542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

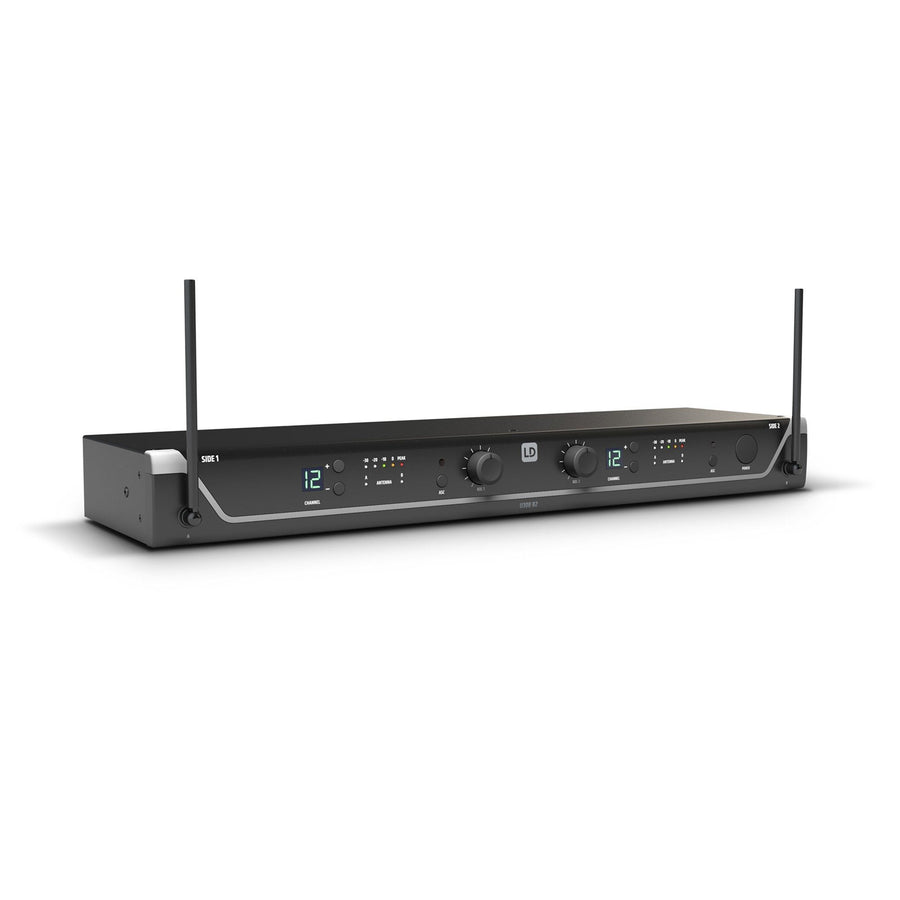

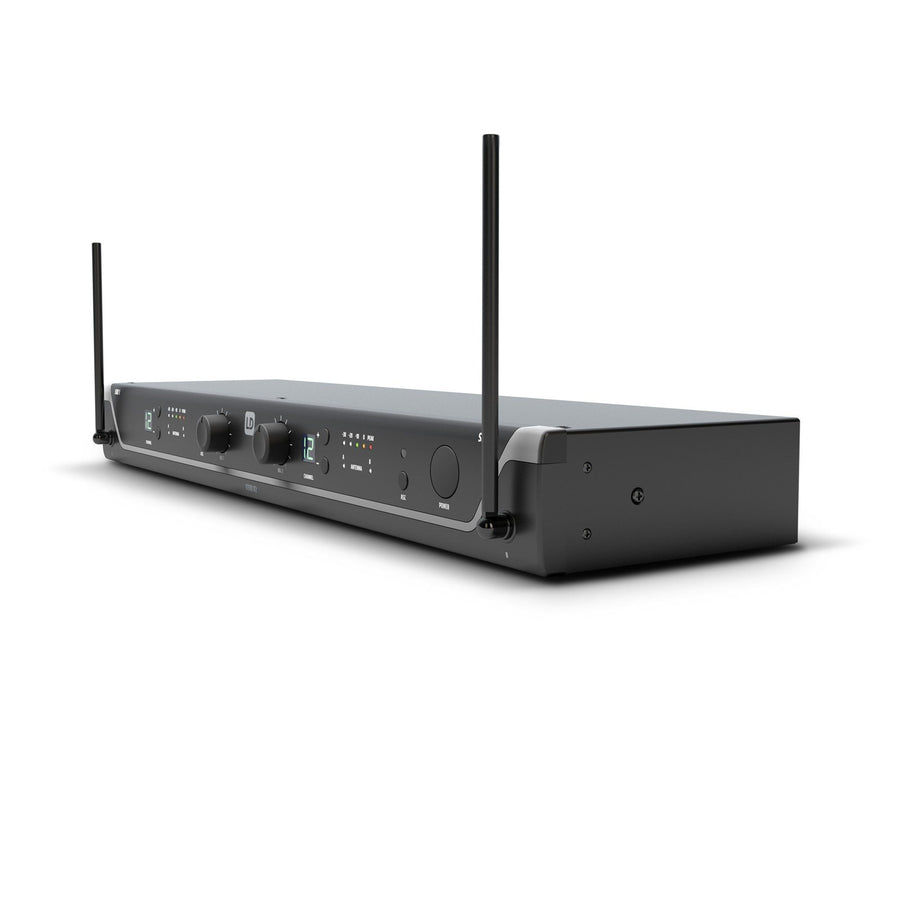

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone's frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack's input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

Specifications

Technical Specifications

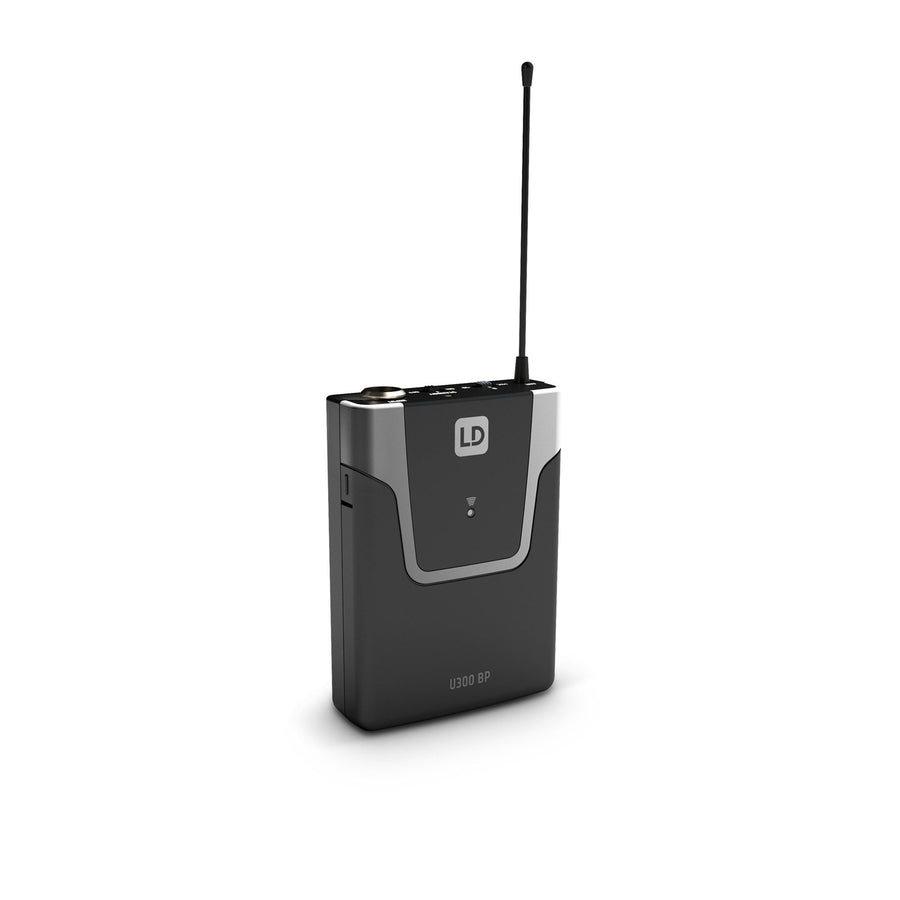

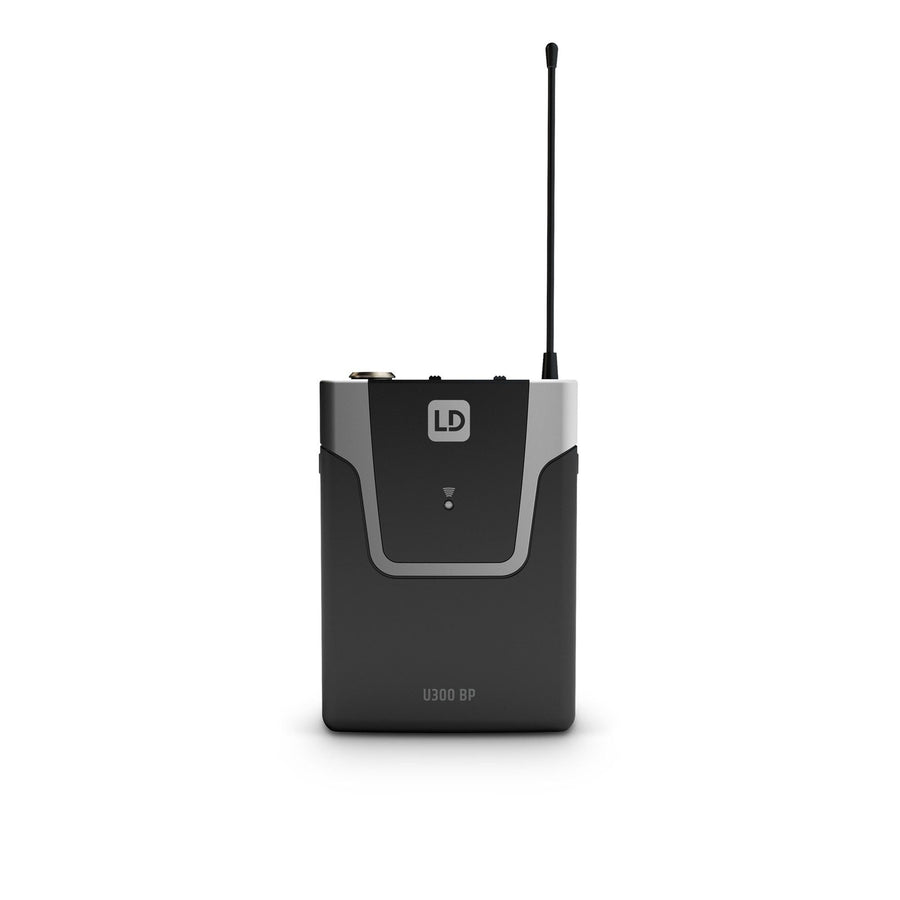

Type Bodypack
Frequency response 25 - 16,000
Transmission frequency range 655 - 679 MHz
Channels 12
Groups 1
Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Rated HF output power 10 mW
Signal-to-noise ratio 104 dB

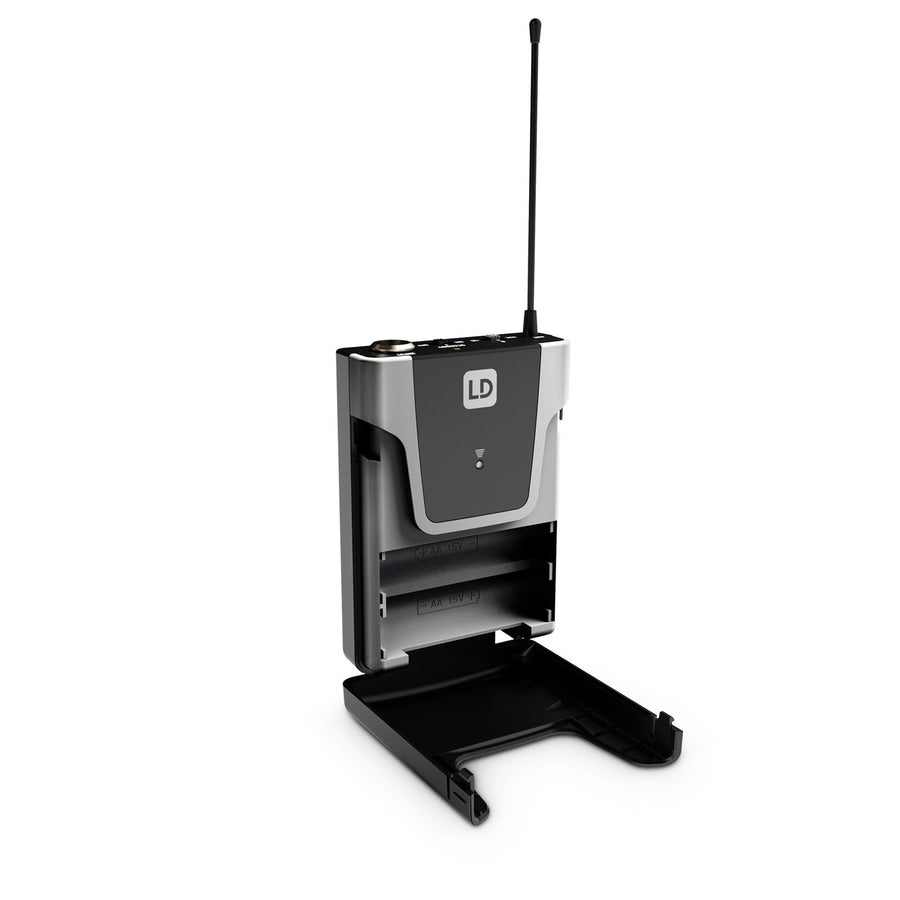

Operating voltage 2 x AA battery
Operating time > 10 h
Weight 0.085 kg

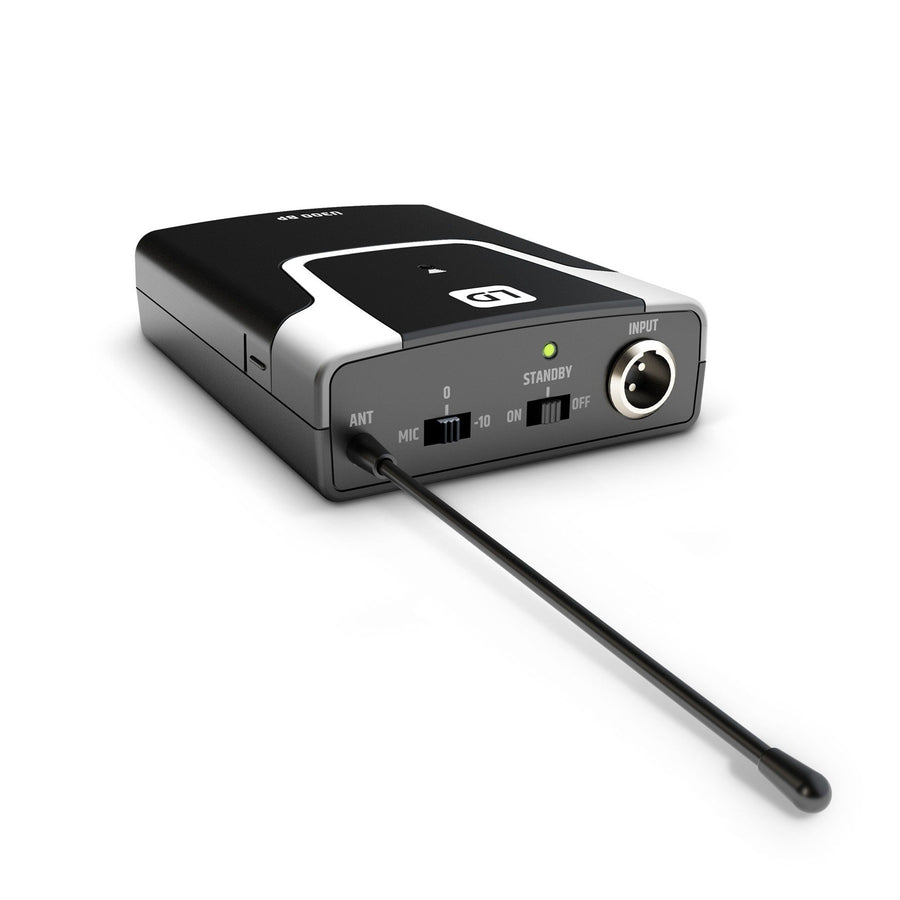

Controls Gain (3-way switch), Power On/Off
Indicators ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Width 65 mm
Height 91 mm
Depth 25 mm

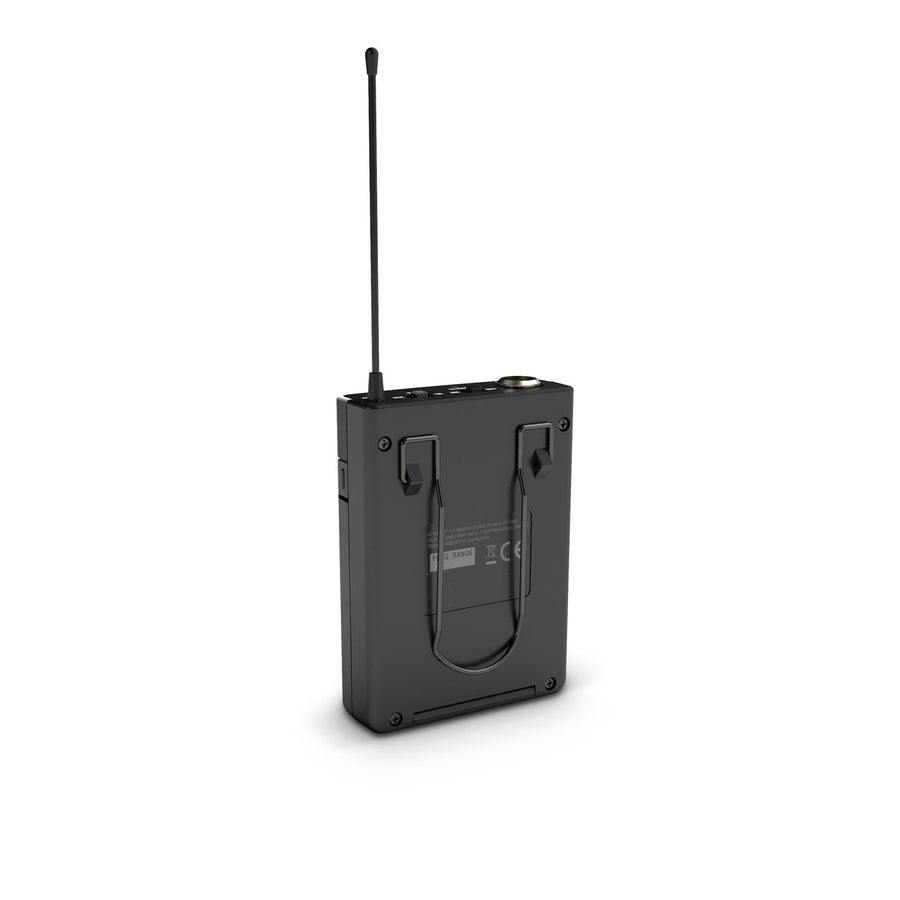

Other features Belt clip, IR frequency synchronisation, Pilot tone

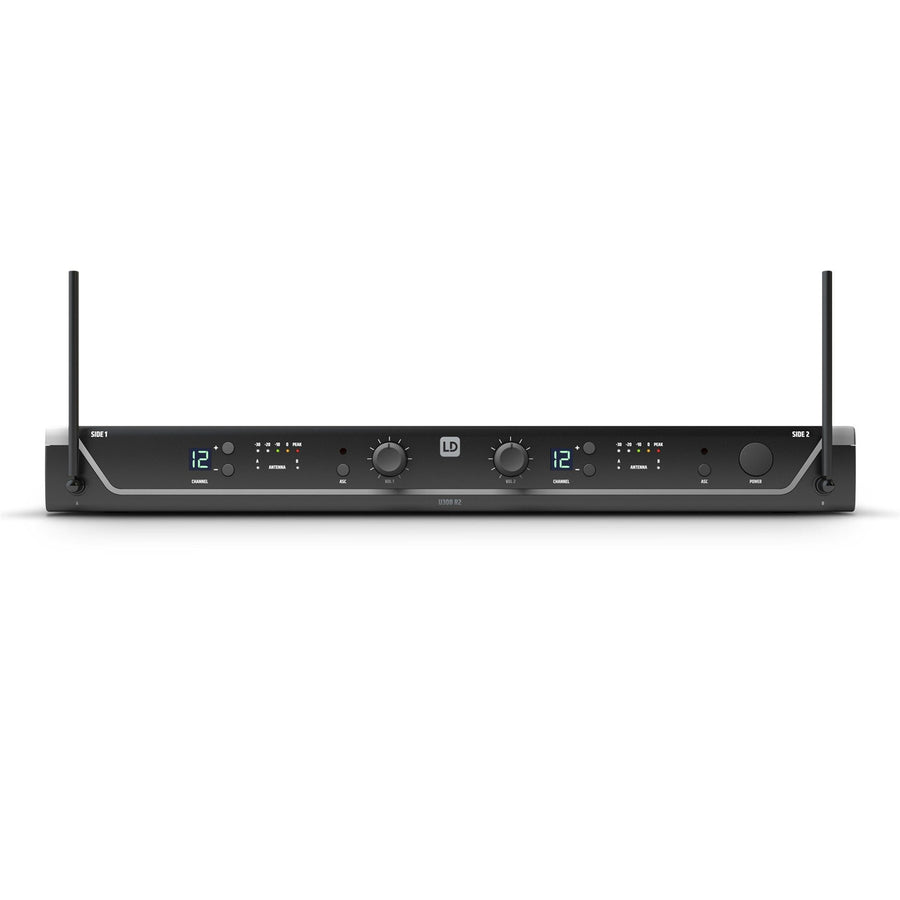

Modulation Type FM
Frequency response 35 - 16000
Transmission frequency range 655 - 679 MHz
Channels 12
Groups 1
Antenna inputs 2 x fixed
Noise reduction Squelch
Transmission optimisation Pilot tone
Total Harmonic Distortion (THD) < 0.3 %
Signal-to-noise ratio 104 dB

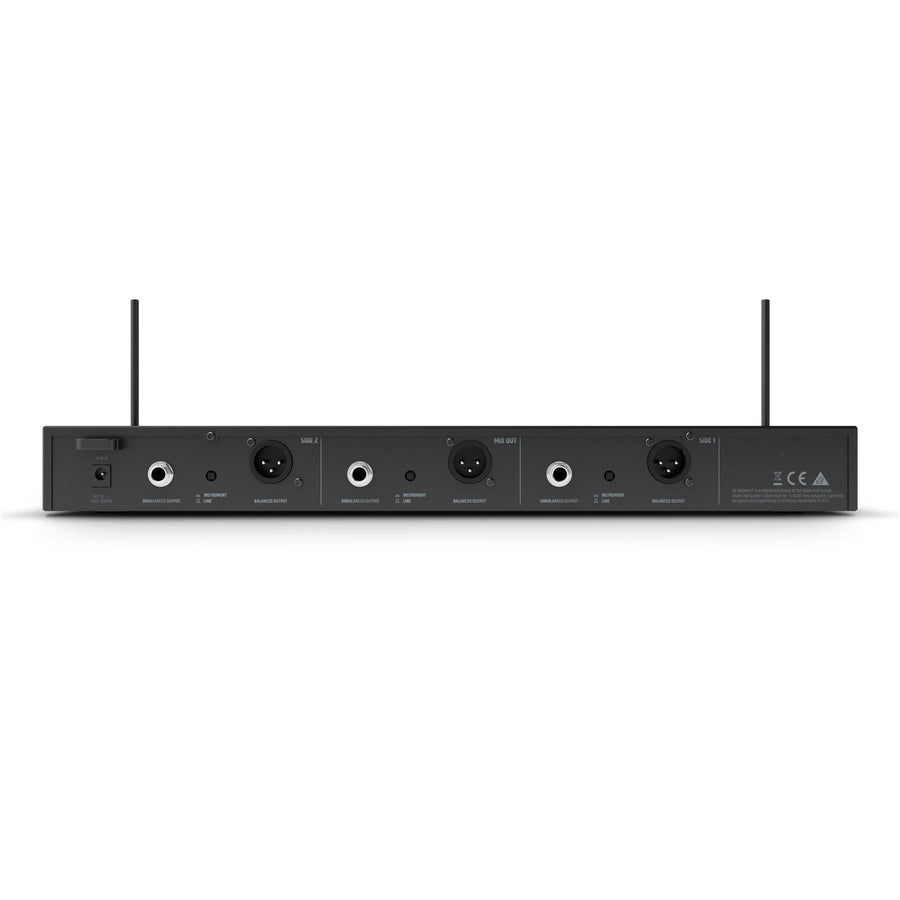

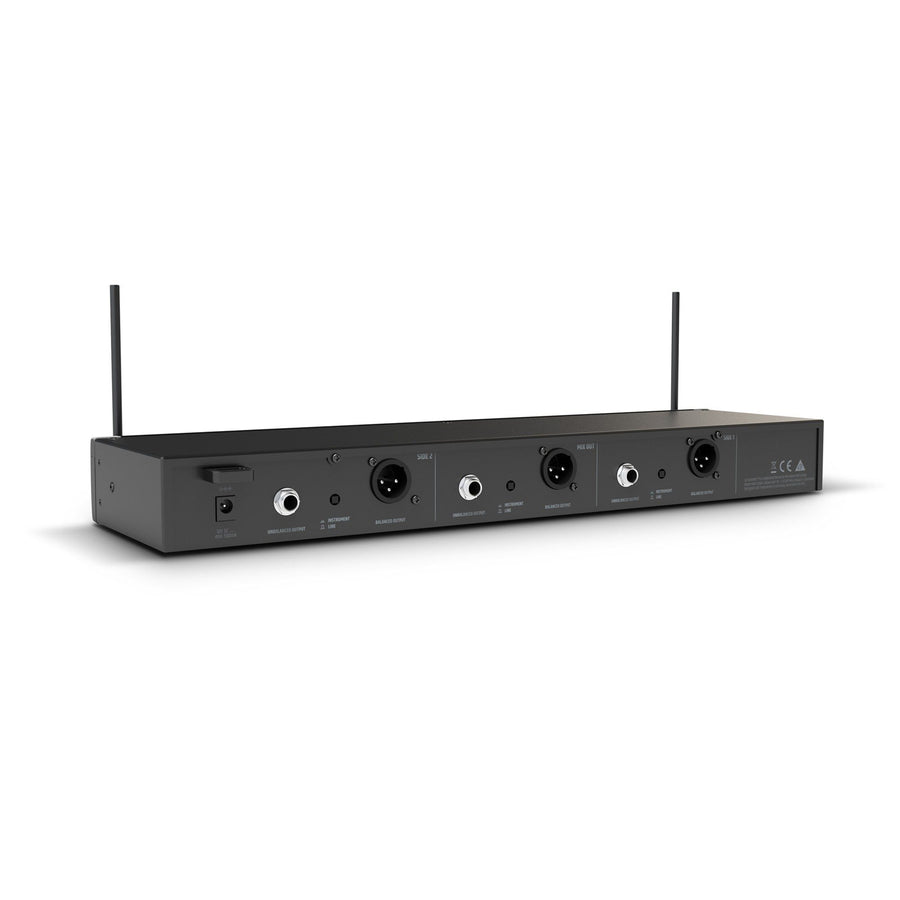

Audio output, balanced 3 x XLR
Audio output, unbalanced 6.3 mm jack, switchable unbalanced output level ( Line/Instrument )
Audio mix output, balanced XLR
Accessories (included) 2 x AA batteries, Power supply
Audio mix output, unbalanced 6.3 mm jack
Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Weight 1,265 kg
Controls 2 x Volume, Channel down, Channel up, Line/Instrument Level, Power On/Off
Indicators 5-LED VU-Meter, Antenna A/B, LC display
Operating voltage 12 V DC, 500 mA
Width 410 mm
Height 43 mm
Depth 120 mm
Other features IR frequency synchronisation, Pilot tone

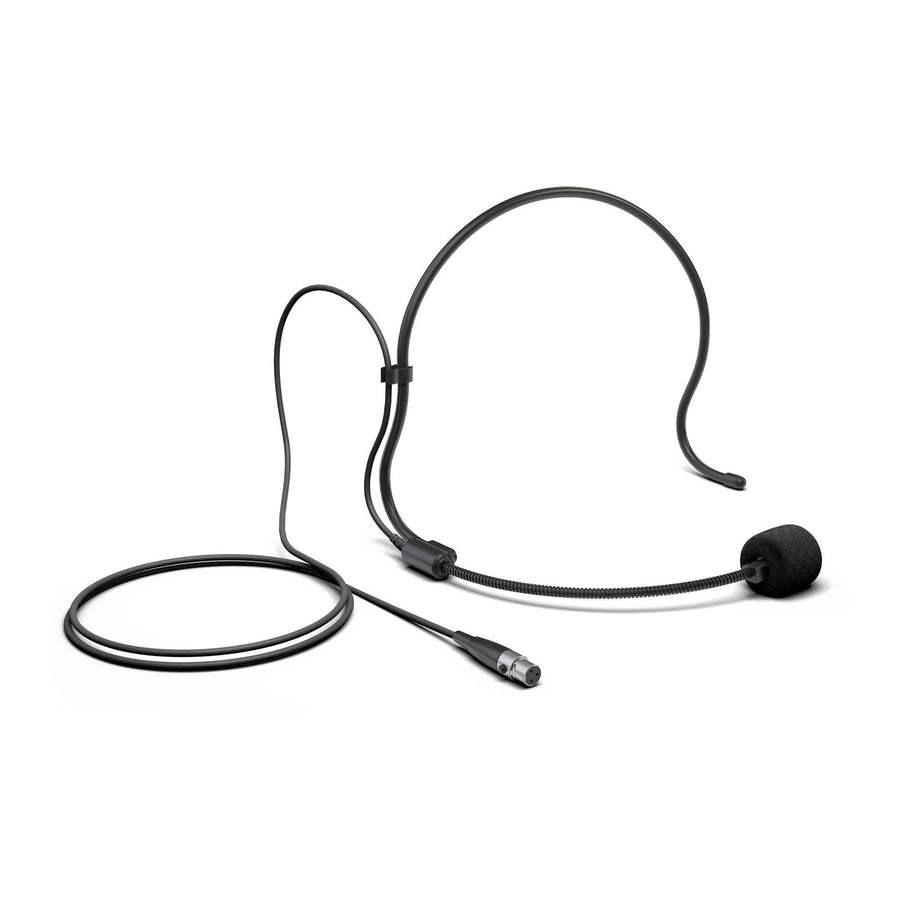

Type Headsets
Frequency response 20 - 20.000
Directivity Cardioid
Nominal impedance 680 Ohm(s)
Phantom power requirements 5 V
Microphone input Mini-XLR (3-pin, female)
Accessories (included) Foam windscreen
Weight 0.049 k
