LENKENG 4K 4x4 Matrix Switch. 4x HDMI 2.0 inputs and outputs. to 18Gbps. IR remote control. 3PinRS232 control. Plug & Play Max Res: 4K 60Hz (4096x2160) Includes Remote Control.
Features
LENKENG 4K 4x4 Matrix Switch. 4x HDMI 2.0 inputs and outputs. to 18Gbps. IR remote control. 3 Pin RS232 control. Plug & Play Max Res: 4K@60Hz (4096x2160) Includes Remote Control.

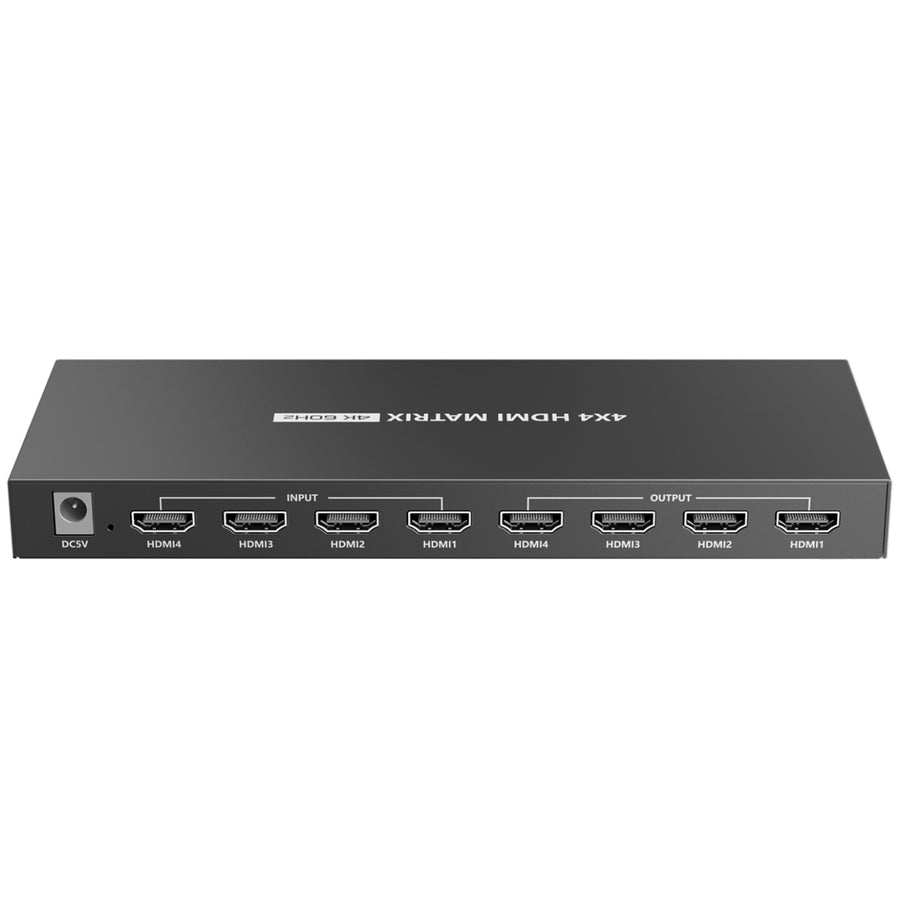

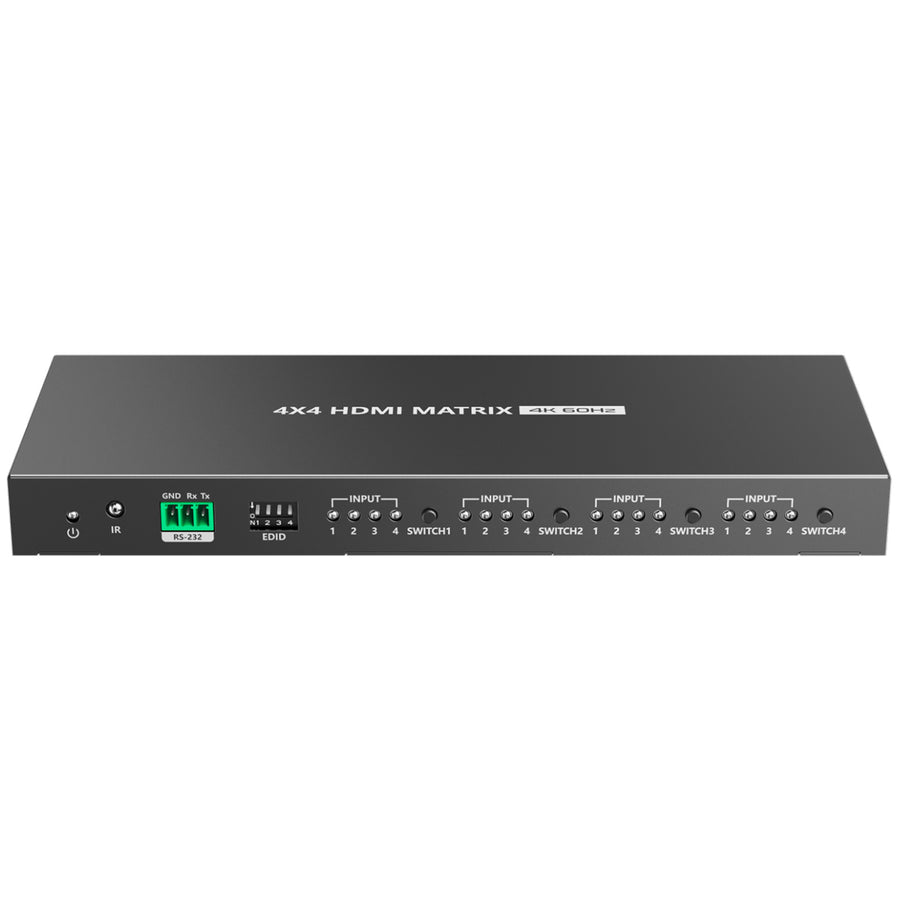

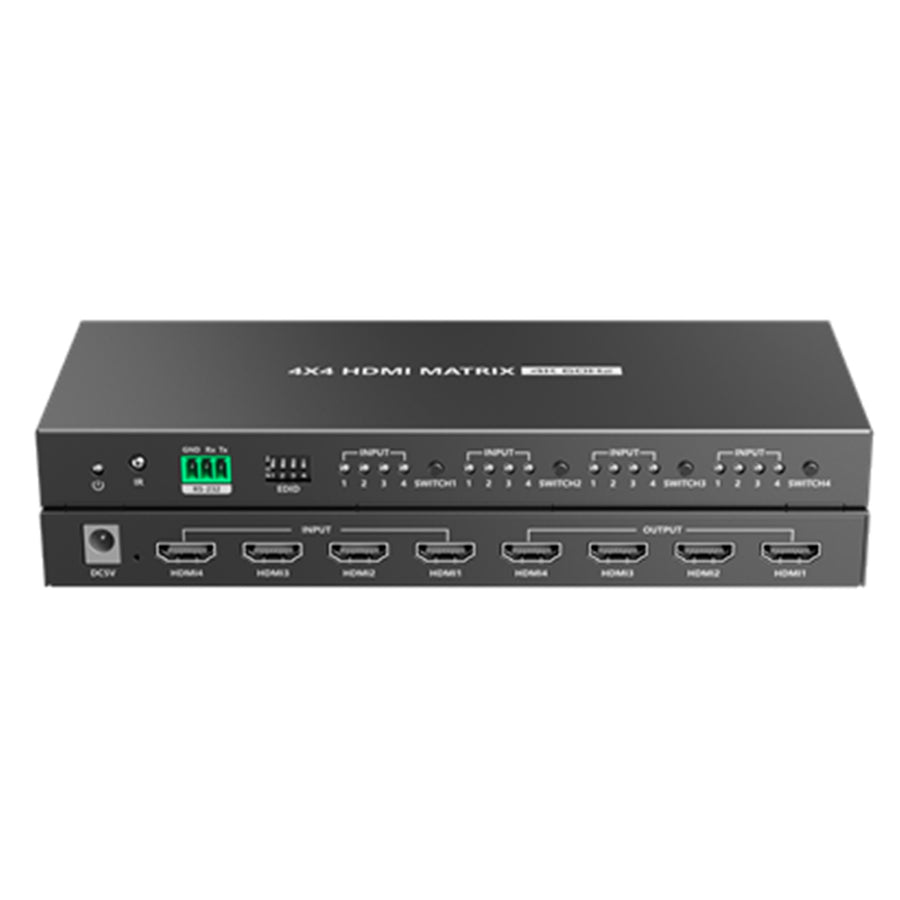

This is a 4 in, 4 out HDMI matrix switch. It can switch 4 HDMI input signals to 4 HDMI displays as needed. It supports up to 4096x2160@60hz HDR UHD resolution, and various switching methods (IR remote control, buttons and RS232) flexibly match input and output devices. Any two of the four HDMI outputs support Auto down-scaling. This unit is a reliable, ultra-high definition video transmission solution widely used in security monitoring, education and training, exhibition and broadcasting, command centre and other scenarios.
- 4K@60HZ HDR
- 4x HDMI Inputs, 4x HDMI Outputs
- Various control methods
- Auto down-scaling
- Multi audio formats
- Lightning, surge and ESD protection
- 2x HDMI outputs with Auto-down scaling
Specifications
Technical Specifications
| HDMI version | HDMI2.0 (HDR, YUV4:4:4)Compatible with HDCP2.2, HDCP1.4 |
|---|---|
| HDMI interface | 4 HDMI input, 4 HDMI output |
| Transmission rate | 18Gbps |
| Bandwidth | 600MHz |
| Resolution | 480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz,3840×2160@24/25/30/60Hz,4096×2160@24/25/30/60Hz |
| Audio format | LPCM/DTS-HD/DTS-Audio/Dolby Digital plus/Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos |
| RS-232 | 3 Pin (GND/Rx/Tx), Band rate 9600 |
| EDID setting | EDID DIP switch (16 gears) |
| IR frequency | 20KHz~60KHz |
| Voltage | DC 5V/1A |
| Power consumption | <4W |
| Working temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C |
| Humidity | 0%~90% RH |
| Housing | Iron |
| Colour | Black |
| Weight | 375g |
| Dimensions | 210.0(L) x 80.0(W) x 21.0(H) mm |
| Protection | ESD protection, 1a Contact discharge level 2 (±4KV), 1b Air discharge level 3 (±8KV), Implementation of the standard: IEC61000-4-2Lightning protection, Surge protection |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals |
