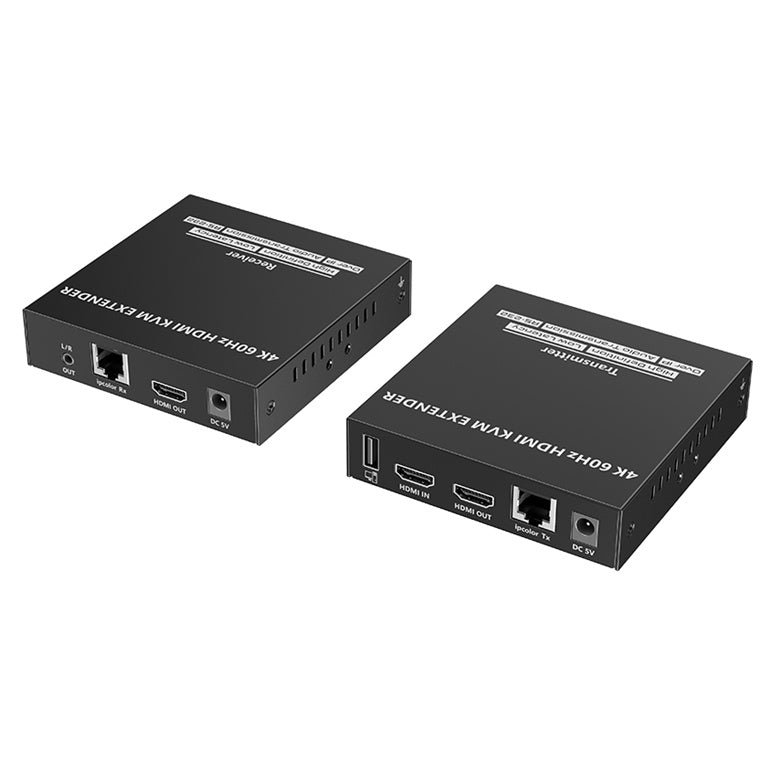

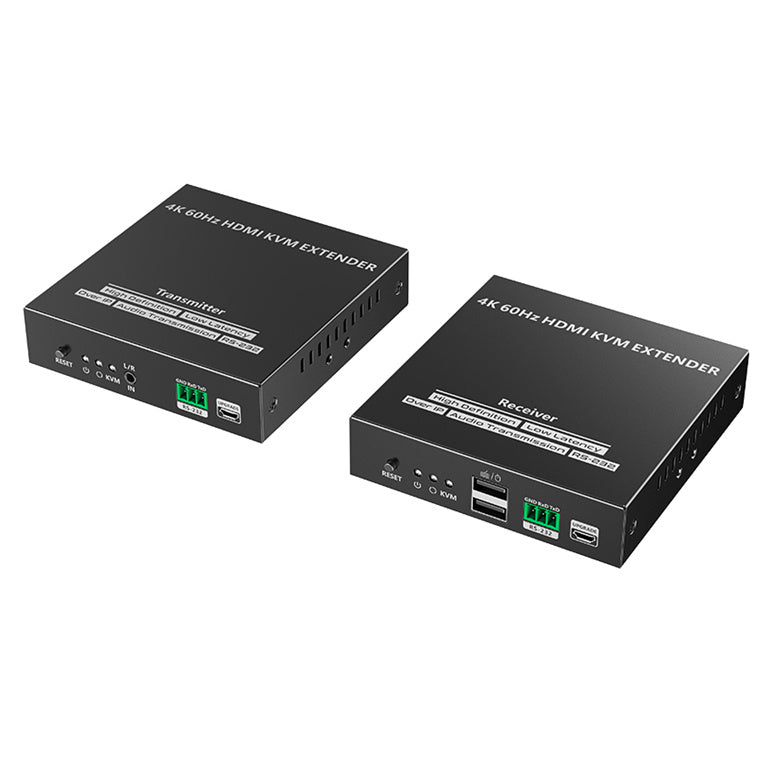

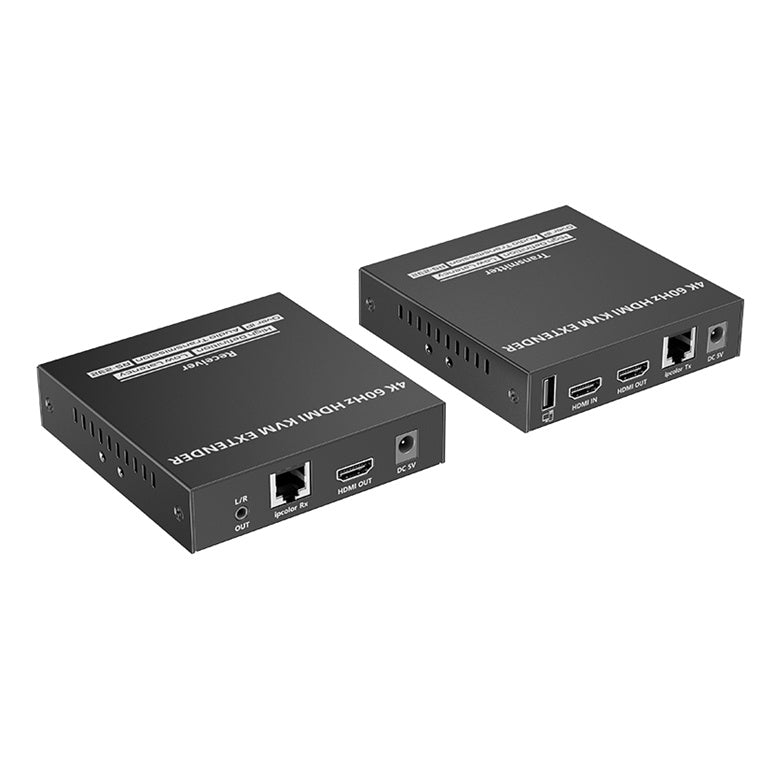

LENKENG HDMI KVM Extender over Network Cable up to 120m - Point to Multipoint/Point toPoint - Supports up to 3840x2160 60Hz

SKU: LKV582KVM ● In Stock
$686.27
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

LENKENG HDMI KVM Extender over Network Cable up to 120m - Point to Multipoint/Point toPoint - Supports up to 3840x2160 60Hz

Specifications

Technical Specifications

HDMI length <= 5m
Maximum transfer rate 18Gbps
Compatibility HDMI 2.0 HDCP 1.4/HDCP 2.2
Resolutions 3840x2160 @ 24/30/50/60Hz, 1080p @ 50/60Hz, 720p @ 50/60Hz, 1920x1200 @ 60Hz, 2560x1440 @ 60Hz, 2560x1600 @ 60Hz
Connection types One-to-one connection One-to-many connection Switch cascading
Transmission distance Cat6/6A/7 <= 120m
Transmission latency 80~140ms
HDMI output LPCM 2.0
3. 5mm L/R output PCM
RS-232 (GND/RXD/TXD) Default baud rate: 115200 Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200
Power Supply DC 5V/2A
Power Consumption TX <= 5.5W, RX <= 4W
Working temperature -20°C~60°C
Storage temperature -30°C~70°C
Humidity 0~90%RH (no condensation)
Housing Iron
Weight TX: 315g RX: 307g
Colour Black
Dimensions 106.0(L)*103.0(W)*20.6(H) mm
Protection ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2
Warranty 12 months
