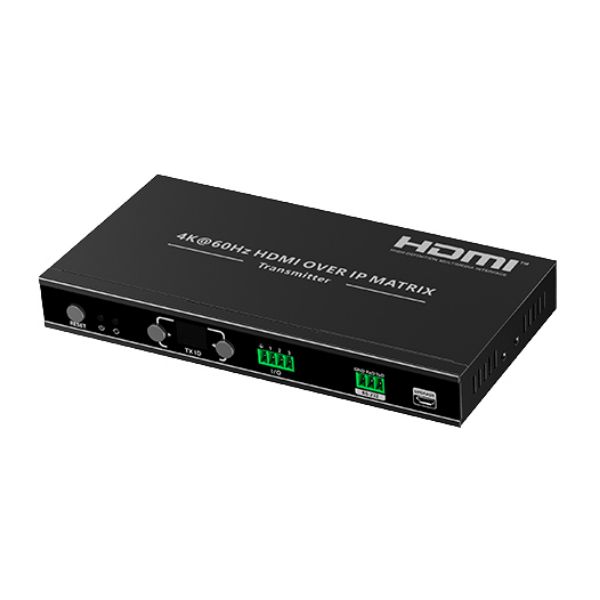

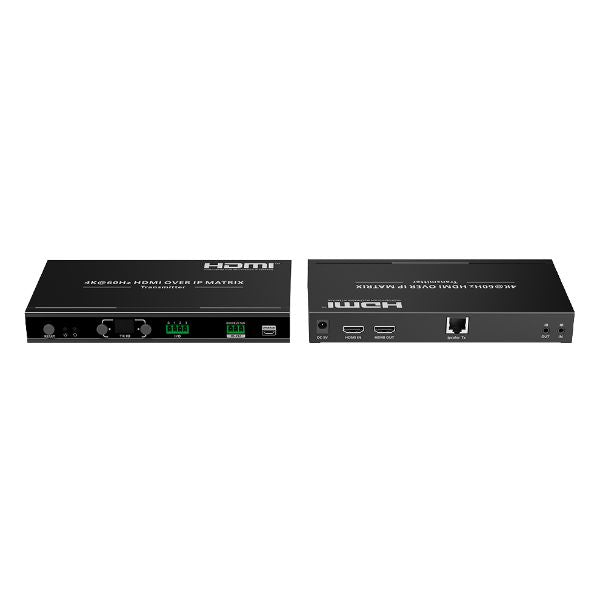

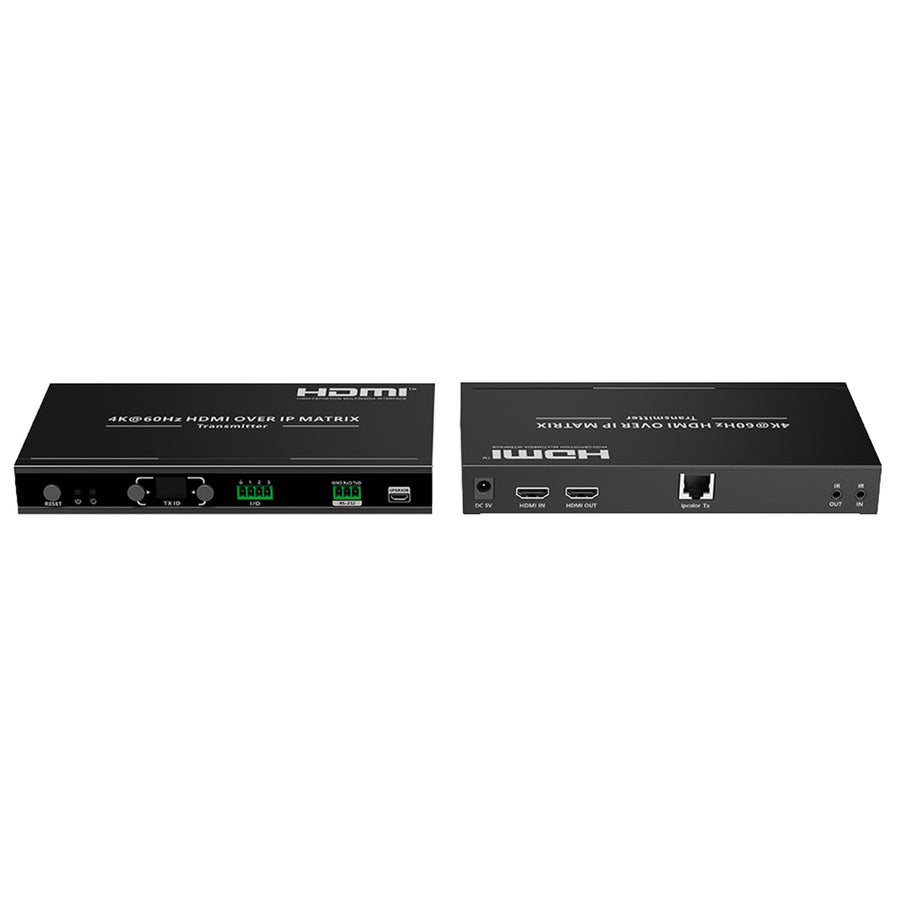

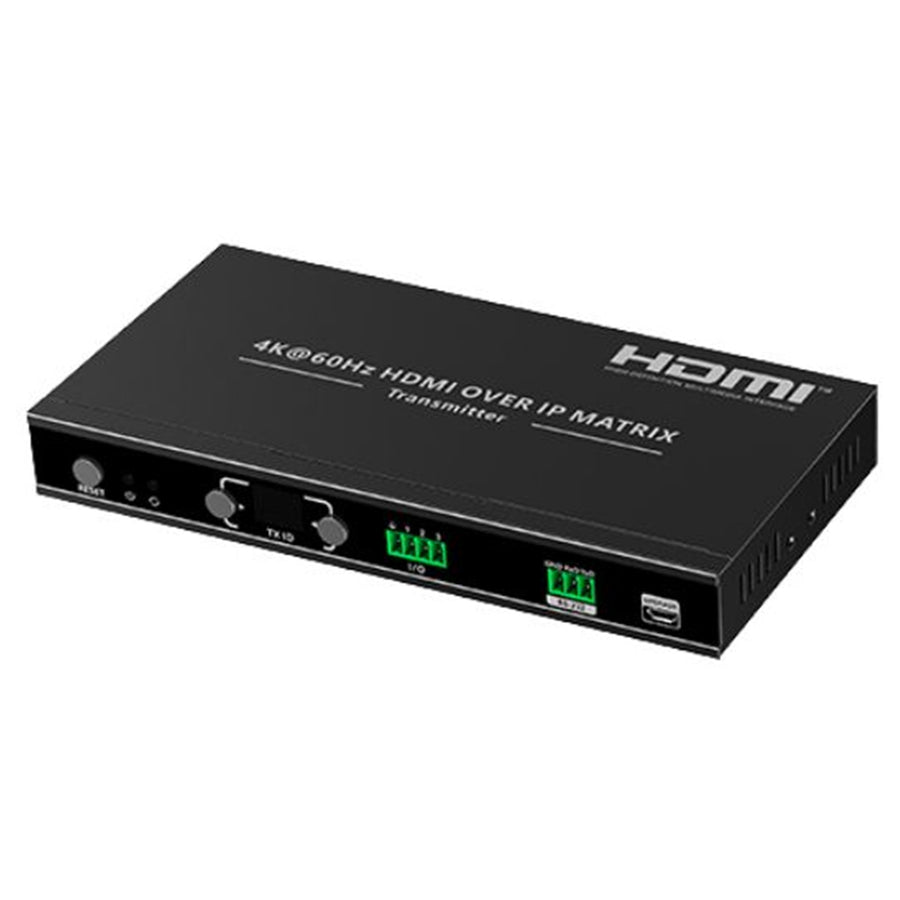

LENKENG IMCS-IM02-TX - HDMI extender over IP (Matrix) supports 4k@60hz.Compatible with Cat5e/6. Up to 120 M (TX)

HDMI extender over IP (Matrix) supports 4k@ 60hz.Compatible with Cat5e/6. Up to 120 M (TX)

This 4K@ 60Hz HDMI over IP matrix transmitter enables switching, extension, & distribution of 4K@ 60Hz audio & video signals via an IGMP switch. Built on ipcolor STREAM technology, it delivers high-definition, low-latency transmission. The system supports up to 256 signal sources & allows switching between up to 256 receiving terminals. HDMI signals can be extended up to 120m over CAT6 or higher network cables, supporting both one-to-one & many-to-many configurations. Equipped with HDMI loop-out, bi-directional IR passback, RS-232 command control, I/O, & PoE support, this solution is ideal for use in audiovisual conferencing, transportation control centers, broadcasting, education, training, & other professional environments.

- Built on IPcolor STREAM technology to deliver high definition & low latency transmission
- Supports up to 3840x2160@ 60Hz resolution
- Compatible with Cat6 or higher networking cables up to 120m
- Supports one to one or many to many connections through the gigabit switch
- Supports RS 232 passthrough & control
- The transmitter supports HDMI loop out
- Supports bi directional IR pass back 20 to 60 KHz IR learning remote & control device by APP
- Supports I O interface control

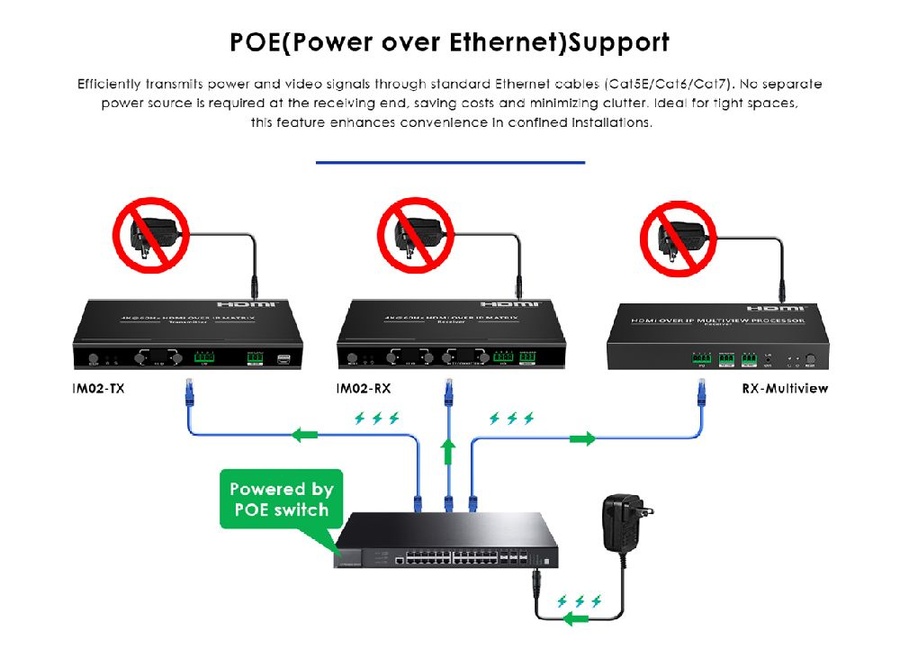

- Supports PoE Power over Ethernet

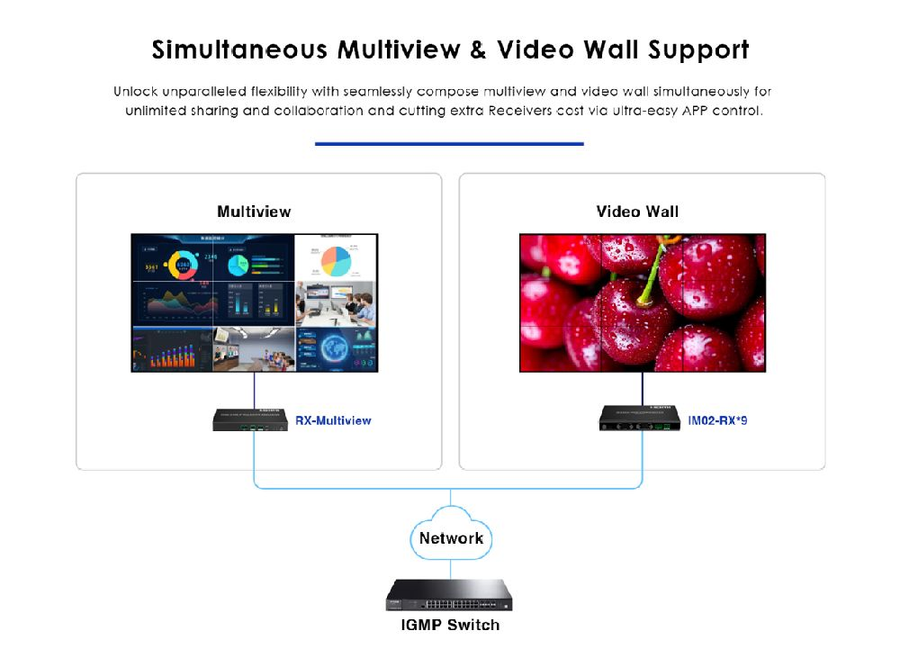

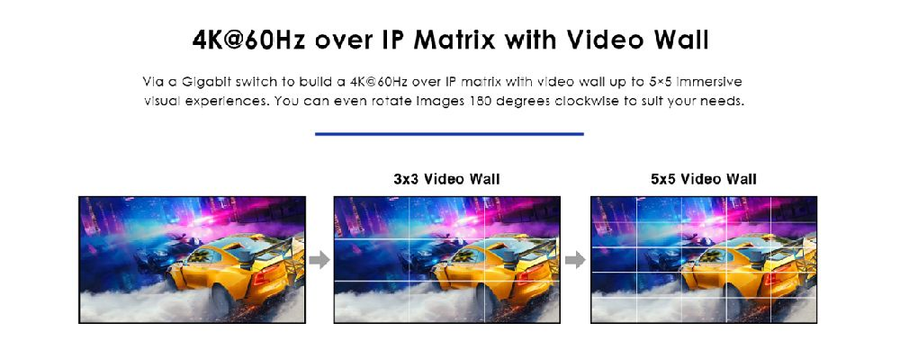

- Creating multi screen splicing with up to 5x5 video wall through the switch & controlled by APP

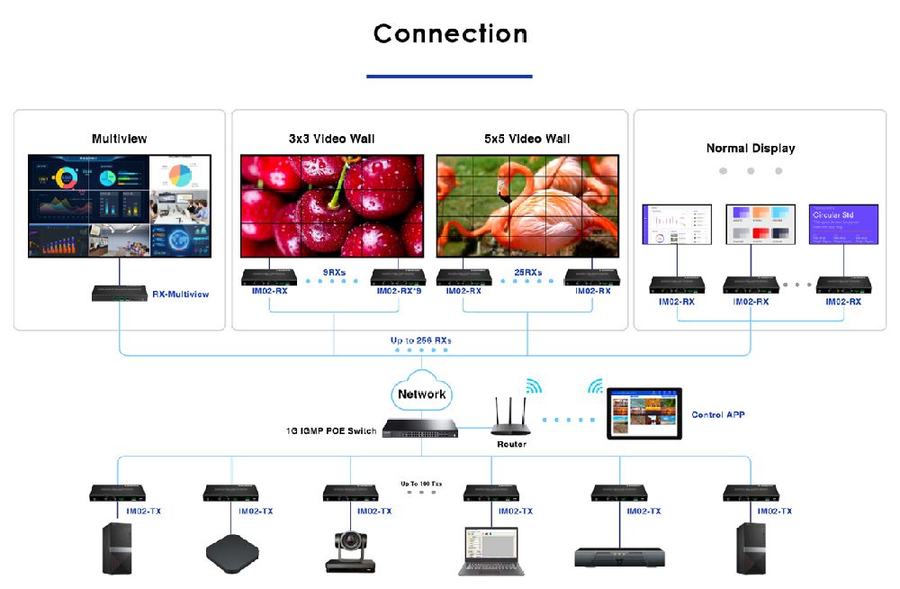

- Supports 256 signal source inputs & 256 signal outputs providing a flexible many to many matrix configuration requires APP control operation while connecting more than 100 TX to RXs
- Firmware upgrading via the Micro USB port
- Lightning surge & ESD protection
- Stable 24/7 operation
