-16%
LENKENG

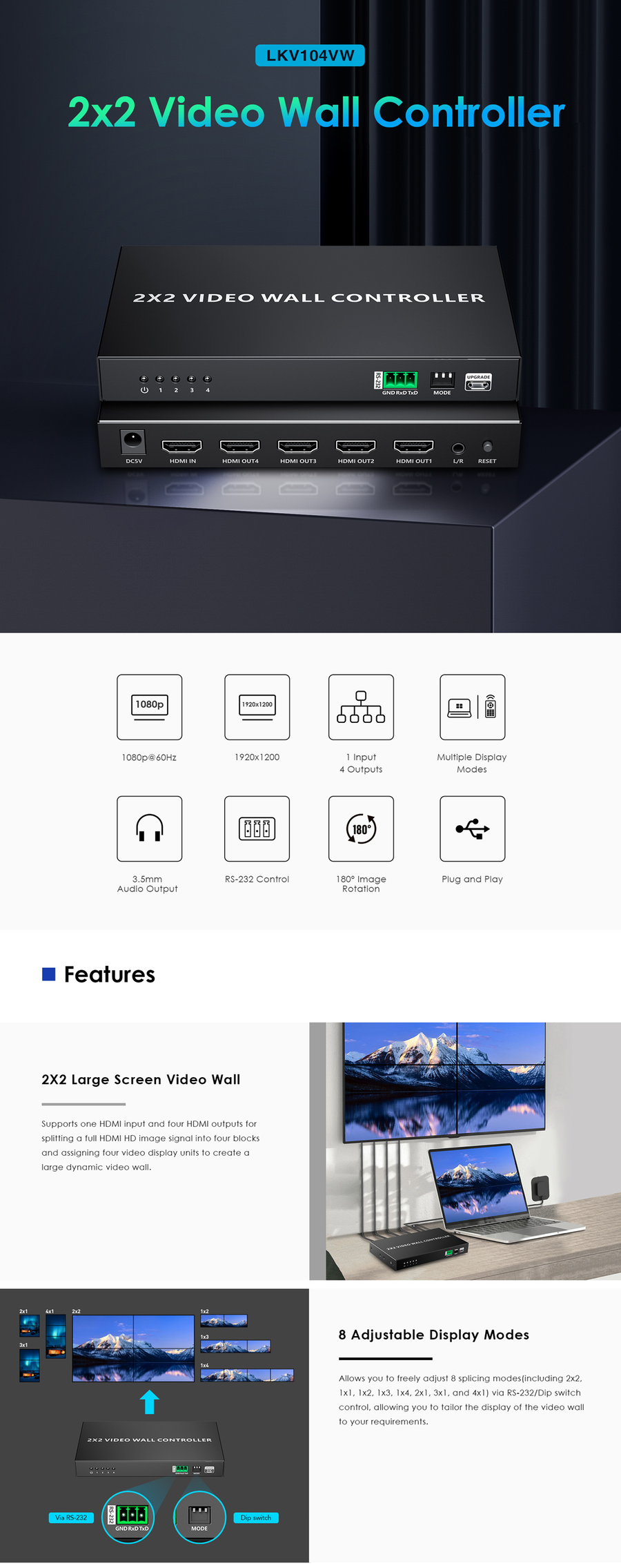

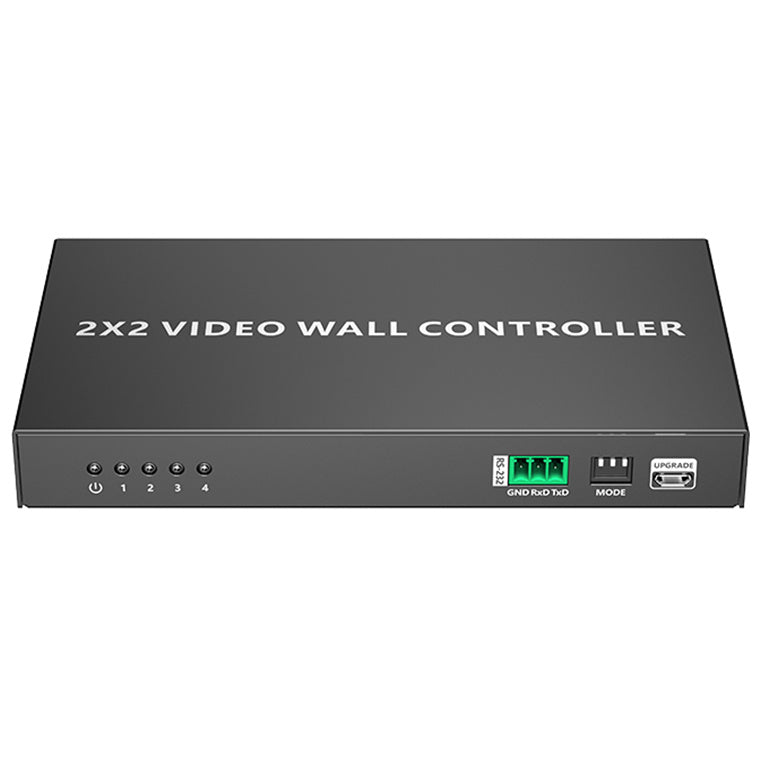

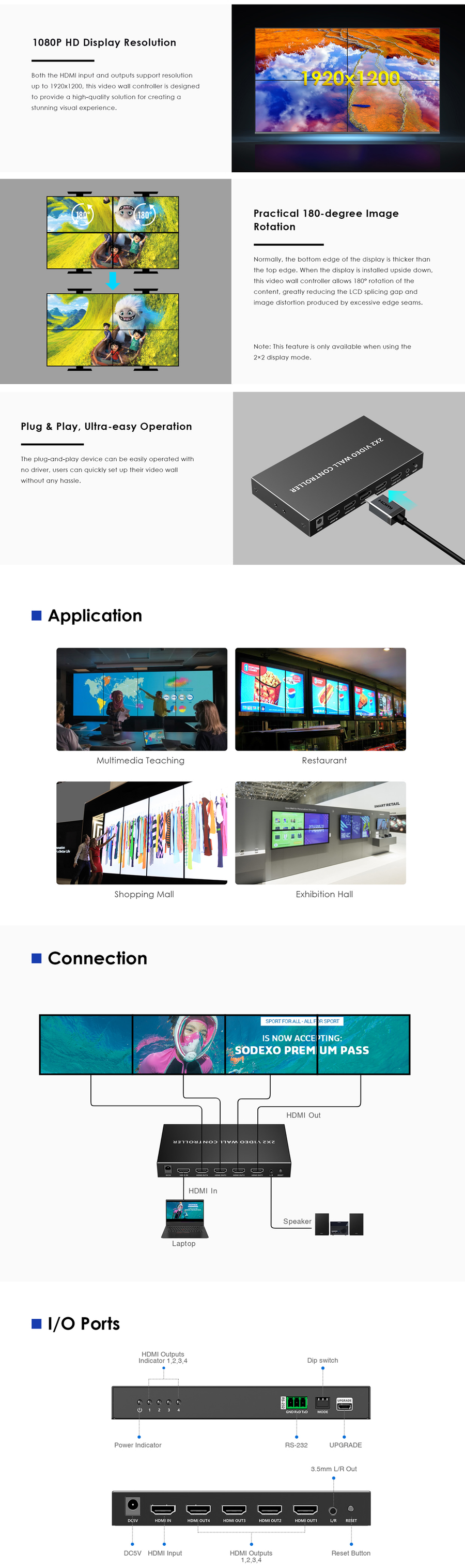

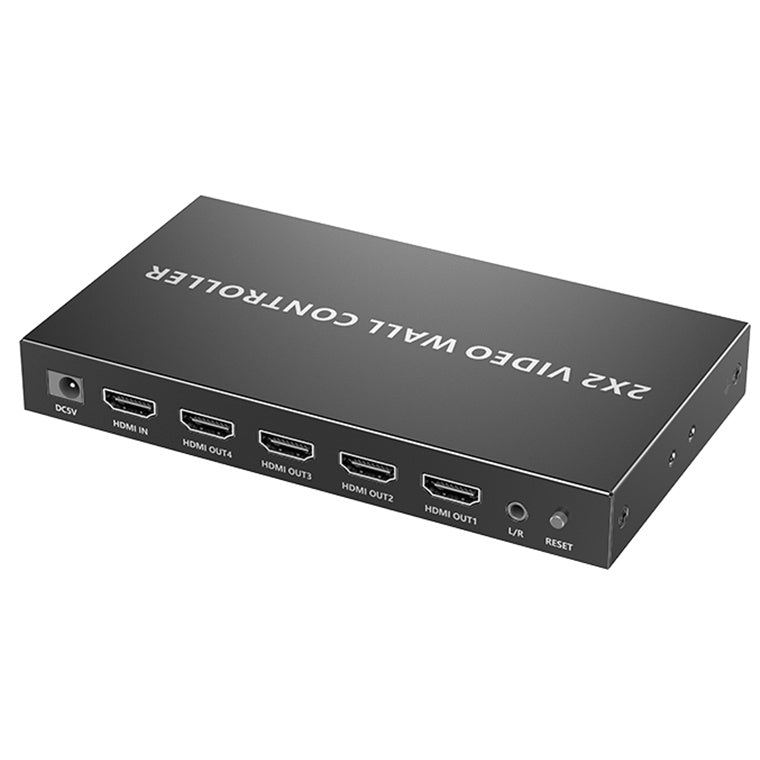

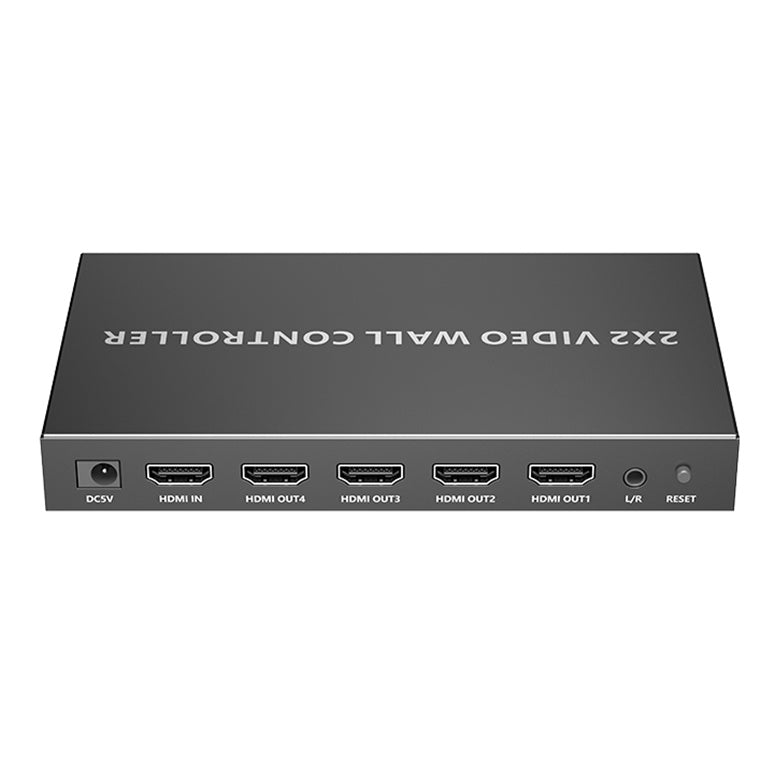

LENKENG LKV104VW - 2x2 HDMI Videowall Controller w/ 1x HDMI In & 4x HDMI Out. 1920x1200@60Hz Res
$249.56$295.41
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
This product is a 1-in-4-out video wall controller, supports one HDMI™I source input and four HDMI™ outputs. Supports 1x1/1x2/1x3/1x4/2x2 splicing modes, which can be set by RS-232 or dip switch. The product can flexibly adapt to different installation requirements, which can be widely used in security monitoring, rail transit, broadcasting, smart cities, home theatre, training and other fields.
Specifications
Technical Specifications
| HDMI Input | 1x HDMI |
|---|---|
| HDMI Output | 4x HDMI |
| Compatibility | HDMI 1.4, HDCP 1.4 |
| Resolutions | 1080P @ 60/50/30/25/24Hz, 720P @ 60/50Hz, 576P @ 50Hz, 480P @ 60Hz, 1920x1200 @ 60Hz, 1680x1050 @ 60Hz, 1600x900 @ 60Hz, 1600x1200 @ 60Hz, 1440x900 @ 60Hz, 1400x1050 @ 60Hz, 1366x768 @ 60Hz, 1360x768 @ 60Hz, 1280x1024 @ 60Hz, 1280x960 @ 60Hz, 1280x800 @ 60Hz, 1280x768 @ 60Hz, 1024x768 @ 60Hz, 800x600 @ 60Hz, 640x480 @ 60Hz |
| 3.5mm Output | PCM |
| HDMI Output | PCM |
| Mode | 1x1/2x1/1x2/2x2/3x1/1x3/4x1/1x4 |
| Splice Settings | DIP Switch |
| RS-232 (GND/ RxD/TxD) | Default baud rate: 9600 Only when the dip switch is set to '111' can the splicing mode be switched by RS-232 instruction |
| Power Supply | DC5V/1A |
| Power Consumption | <4W |
| Working temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C |
| Humidity | 0~90%RH(No condensation) |
| Housing | Iron |
| Weight | 381g |
| Colour | Black |
| Dimensions | 160(L)*90(W)*20.6(H) mm |
| Protection | ESD protection1a Contact discharge level 2 (±4KV)1b Air discharge level 3 (±8KV)Implementation of the standard: IEC61000-4-2 |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > KVM Switches & Cables |
| Weight | 0.249 kg |
| Warranty |
|---|
