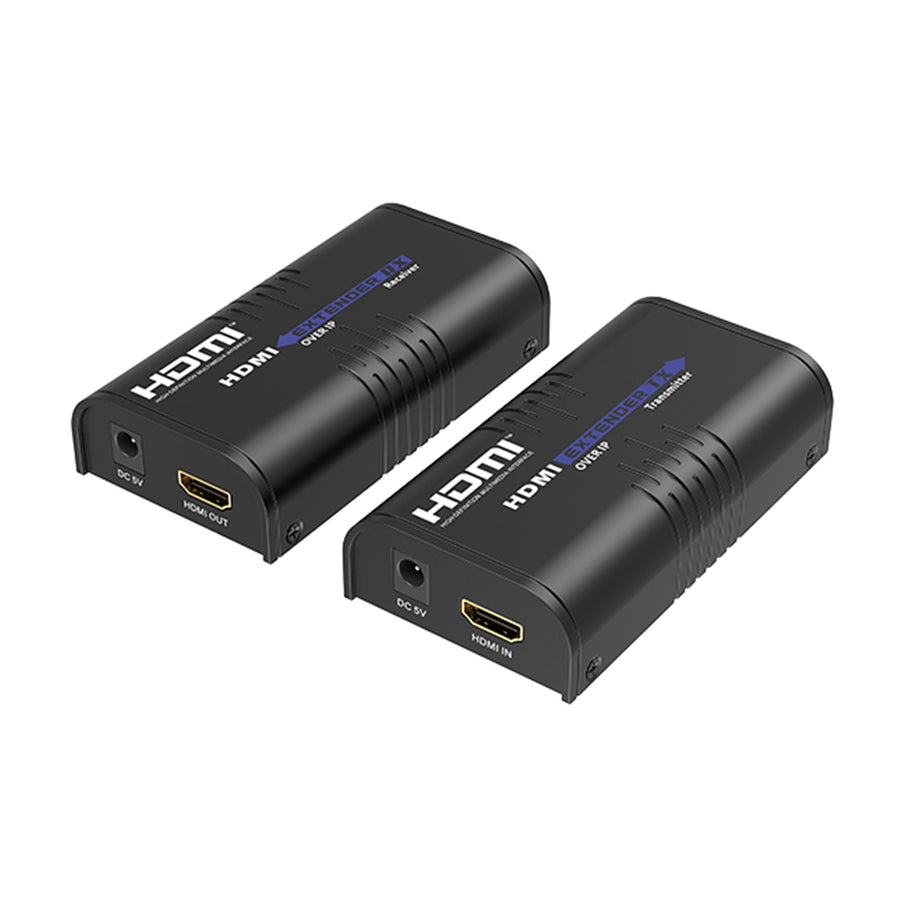

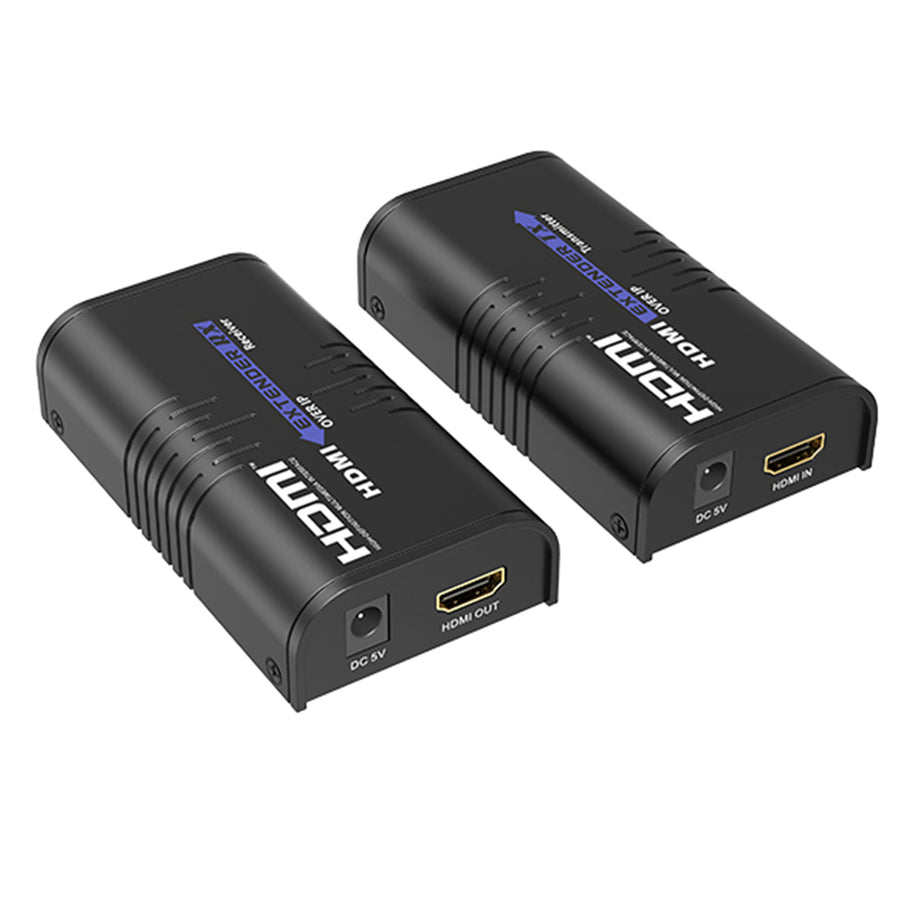

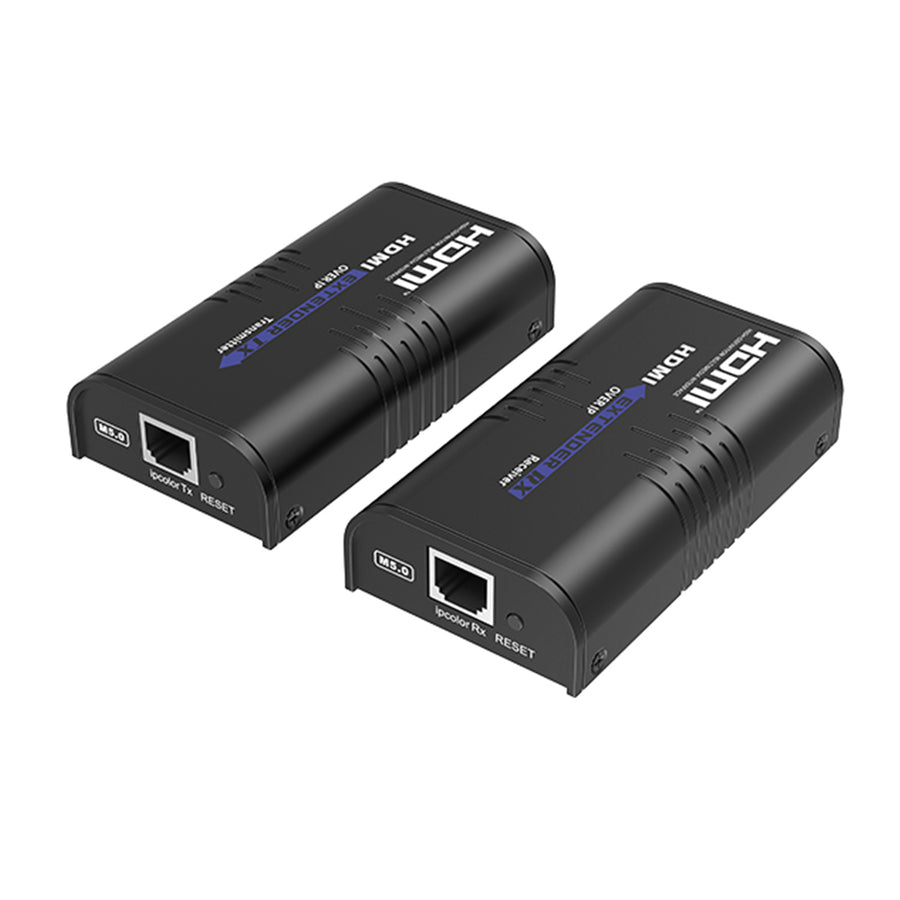

LENKENG LKV373-M5.0 - HDMI Over IP Extender Supports Cat5E/6, Many-to-Many Transmitter & Receiver Kit
LENKENG LKV373-M5.0 - HDMI Over IP Extender Supports Cat5E/6, Many-to-Many Transmitter & Receiver Kit
Features
LKV373-M5.0 HDMI over IP Extender
- Built on ipcolor STREAM technology to deliver high definition and low latency transmission
- Supports up to 1920 x 1200@ 60Hz resolution backwards compatible
- Compatible with Cat5e/6 or higher level networking cables transmission distance of Cat6 cable is 120 meters

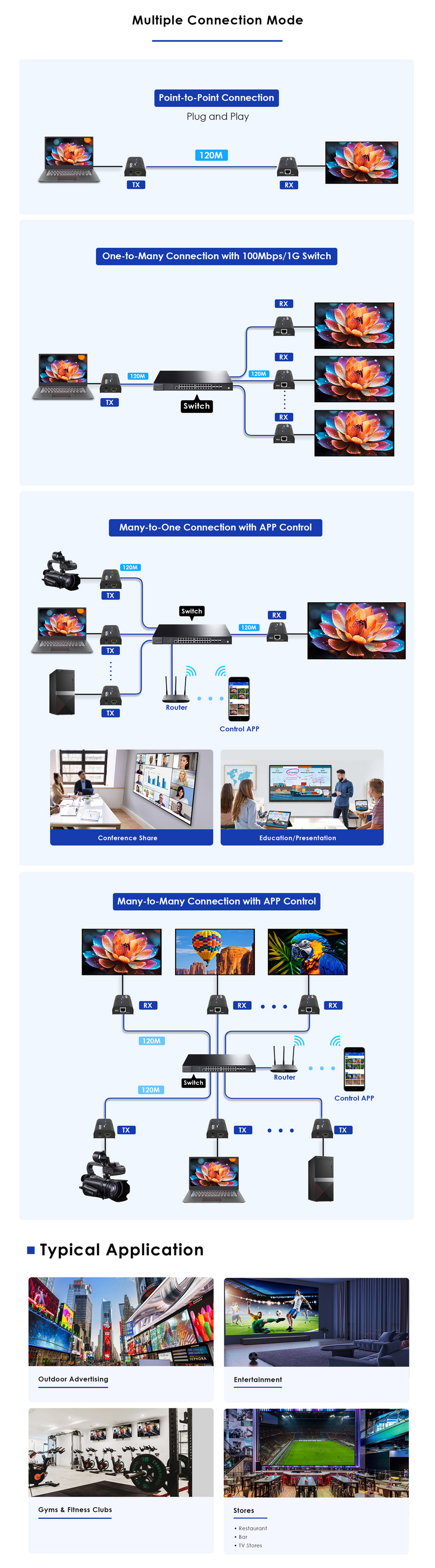

- Supports one to one one to many many to one and many to many connection through the gigabit switch
- Supports 256 signal source inputs and 256 signal outputs

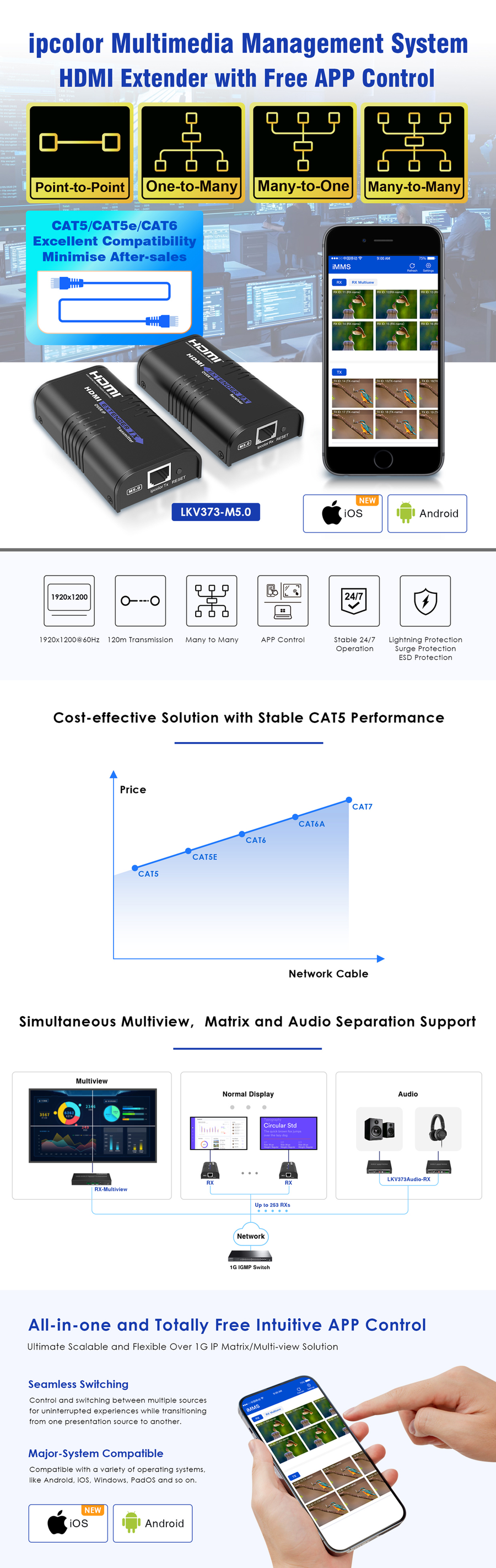

- Signal sources can be switched via the APP for flexible many to many matrix configuration
- Lightning protection surge protection ESD protection
- Supports stable 24/7 operation
Specifications
Technical Specifications
| HDMI length | ≤ 5m |
|---|---|
| Maximum transfer rate | 4.96Gbps |
| Compatibility | HDMI 1.3，HDCP 1.4 |
| Resolutions | 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 |
| Connection types | One-to-one connectionOne-to-many connectionMany-to-one connectionMany-to-many connectionSwitch cascading |
| Transmission distance | CAT5 80m / CAT5E 100m / CAT6 120m |
| Transmission latency | 80~130ms |
| HDMI output | LPCM 2.0 |
| Power Supply | DC 5V/1A |
| Power Consumption | TX ≤ 3.5W，RX ≤ 3W |
| Working temperature | - 20℃~60℃ |
| Storage temperature | - 30℃~70℃ |
| Humidity | 0~90%RH (no condensation） |
| Housing | Aluminium(Top cover); lron(Bottom cover) |
| Weight | TX：160g，RX：160g |
| Color | Black |
| Dimensions | 110.0(L)*58.0(W)*26.0(H)mm |
| Protection | ESD protection1a Contact discharge level 2 (±4KV)1b Air discharge level 3 (±8KV)Implementation of the standard: IEC61000-4-2Lightning protection, Surge protection |
