LENKENG

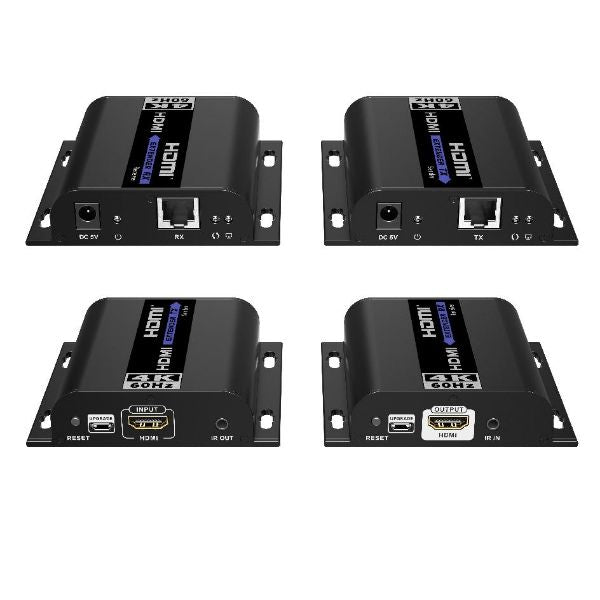

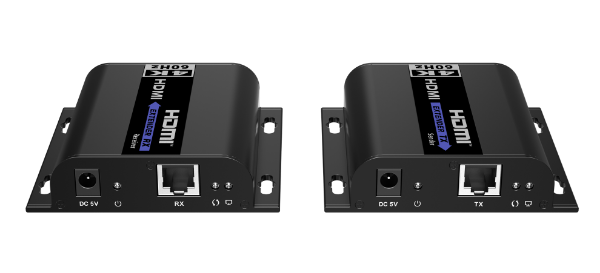

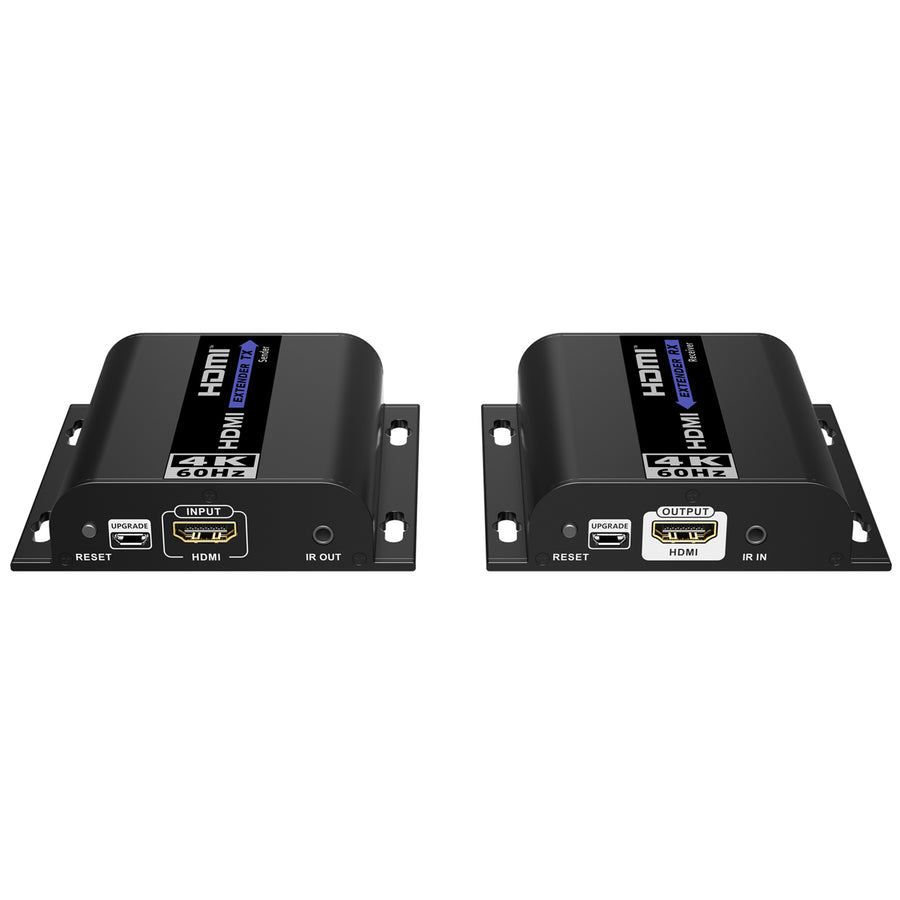

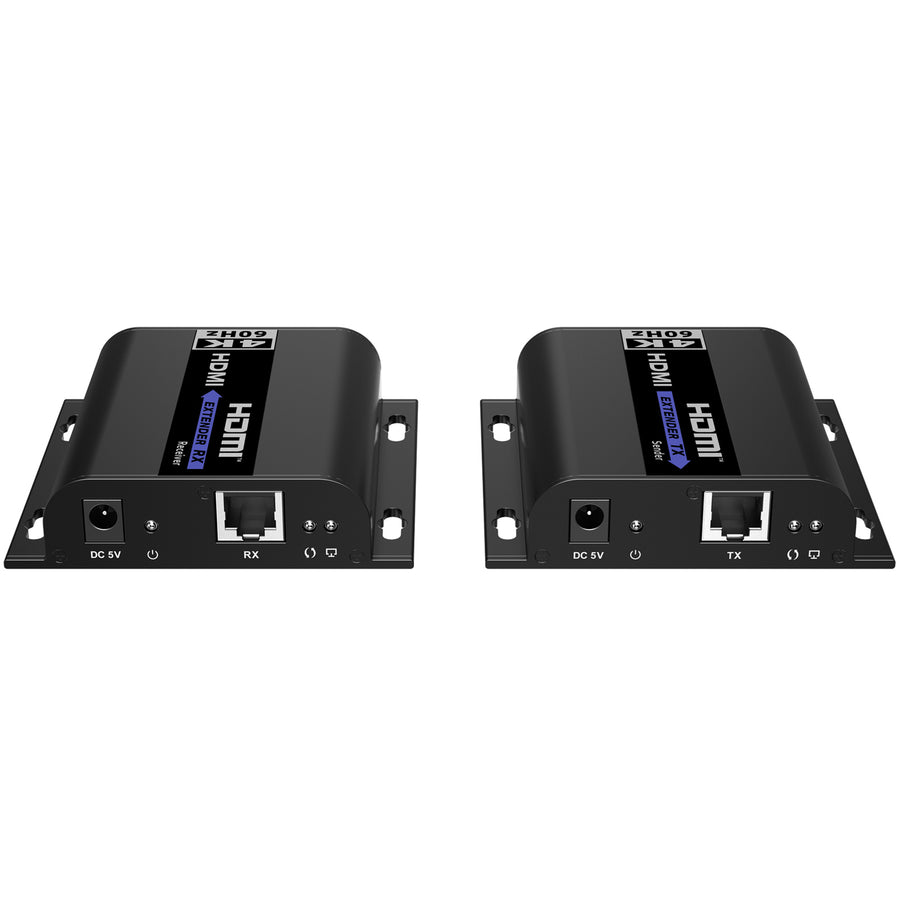

LENKENG LKV483 - HDbitT HDMI Extender over IP CAT5/5e/6 Network Kit Transmitter & Receiver.
$237.38
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features

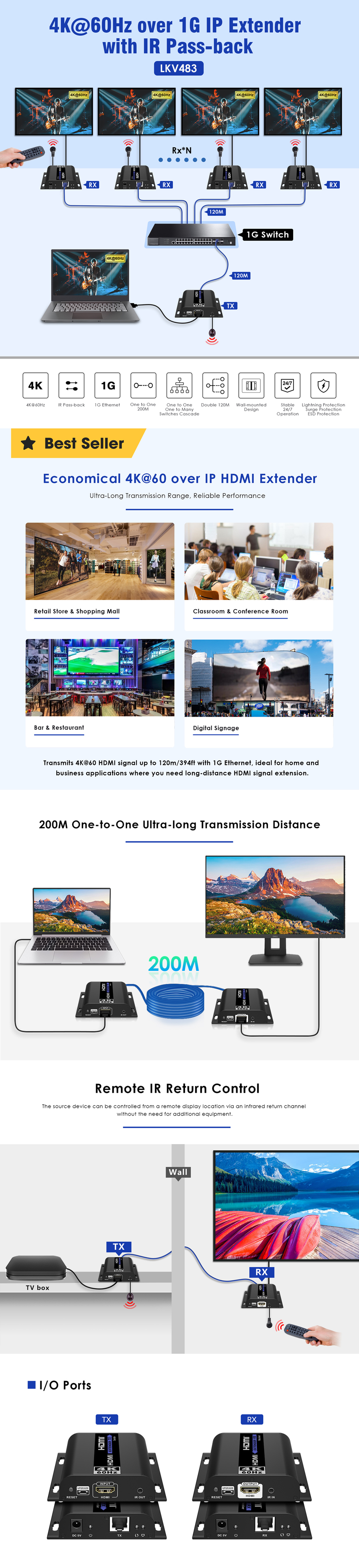

This product is a 4K @ 60Hz HDMI™ extender kit consisting of a sender and a receiver. The 4K @ 60Hz HDMI™ signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports IR passback functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.
Specifications
Technical Specifications
| HDMI length | <= 5m |
|---|---|
| Maximum transfer rate | 18Gbps |
| Compatibility | HDMI 2.0, HDCP 1.4/HDCP 2.2 |
| Resolutions | 4096x2160 @ 24/30/50/60Hz, 3840x2160 @ 24/30/50/60Hz, 1080P @ 24/25/30/50/60Hz, 720P @ 50/60Hz, 576P @ 60Hz, 480P @ 60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 |
| Connection types | One-to-one connectionOne-to-many connectionSwitch cascading |
| Transmission distance | CAT5 80m / CAT5E 100m / CAT6 120m |
| Transmission latency | 1080P: 80~130ms4K @ 60Hz: 150~220ms |
| HDMI output | LPCM 2.0 |
| IR receiving range | <= 5m |
| IR frequency | 20kHz~60kHz |
| Power Supply | TX/RX: DC 5V/1A |
| Power Consumption | TX <= 3.5W, RX <= 2.5W |
| Working temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C |
| Humidity | 0~90%RH (no condensation) |
| Housing | Aluminium |
| Weight | TX: 156gRX: 154g |
| Colour | Black |
| Dimensions | 96.8(L)*94(W)*23.7(H) mm |
| Protection | ESD protection1a Contact discharge level 2 (±4KV)1b Air discharge level 3 (±8KV)Implementation of the standard: IEC61000-4-2Lightning protection, Surge protection |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > KVM Switches & Cables |
| Weight | 5.442 kg |
| Warranty |
|---|
