LENKENG LKV565P - HDMI 2.0 Extender over Cat6/6e Kit w/ PoC for Rx. Supports up to 4K@60Hz. Zero
Features

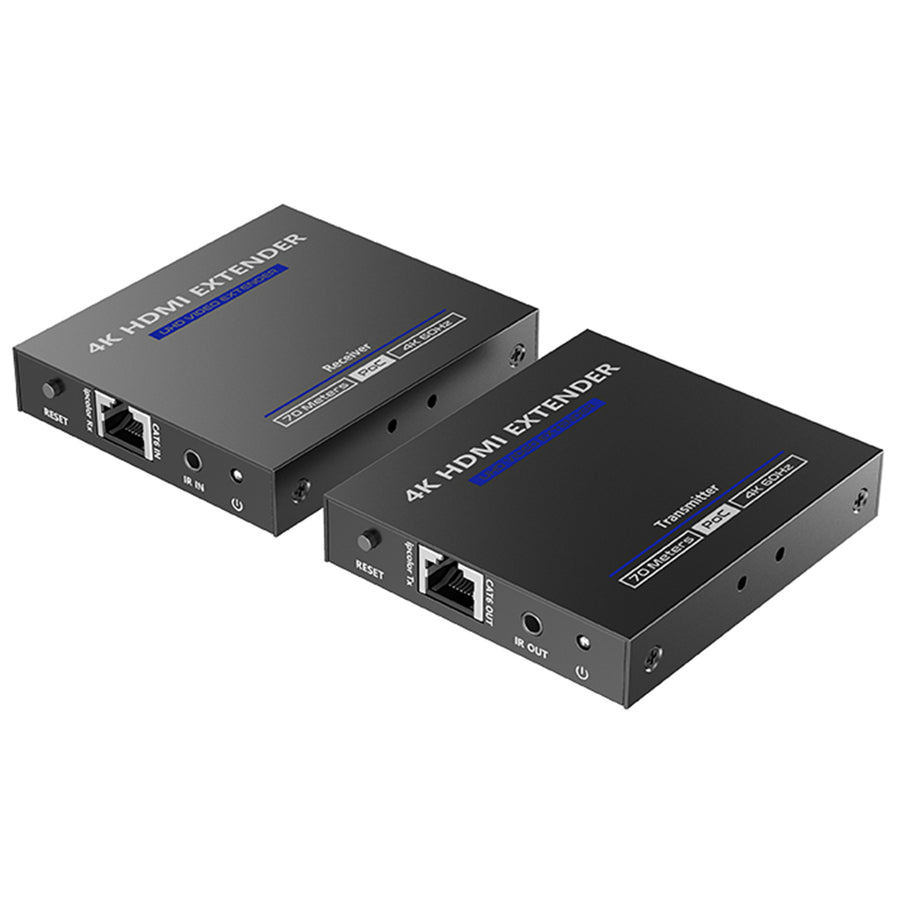

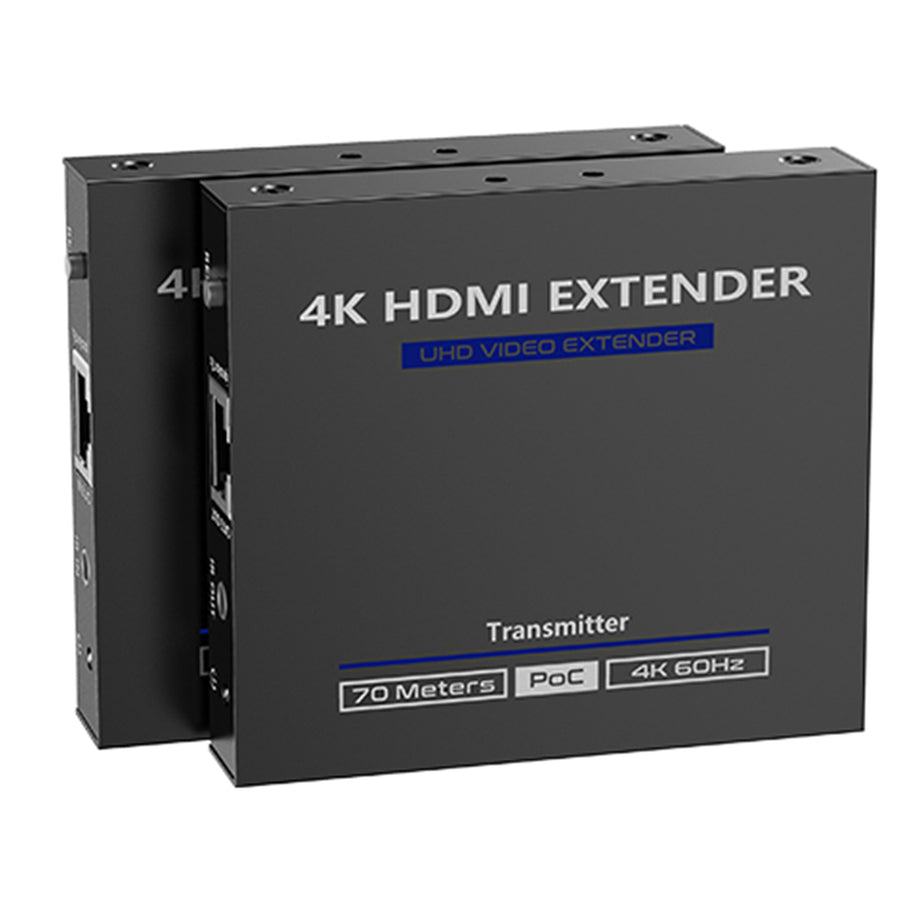

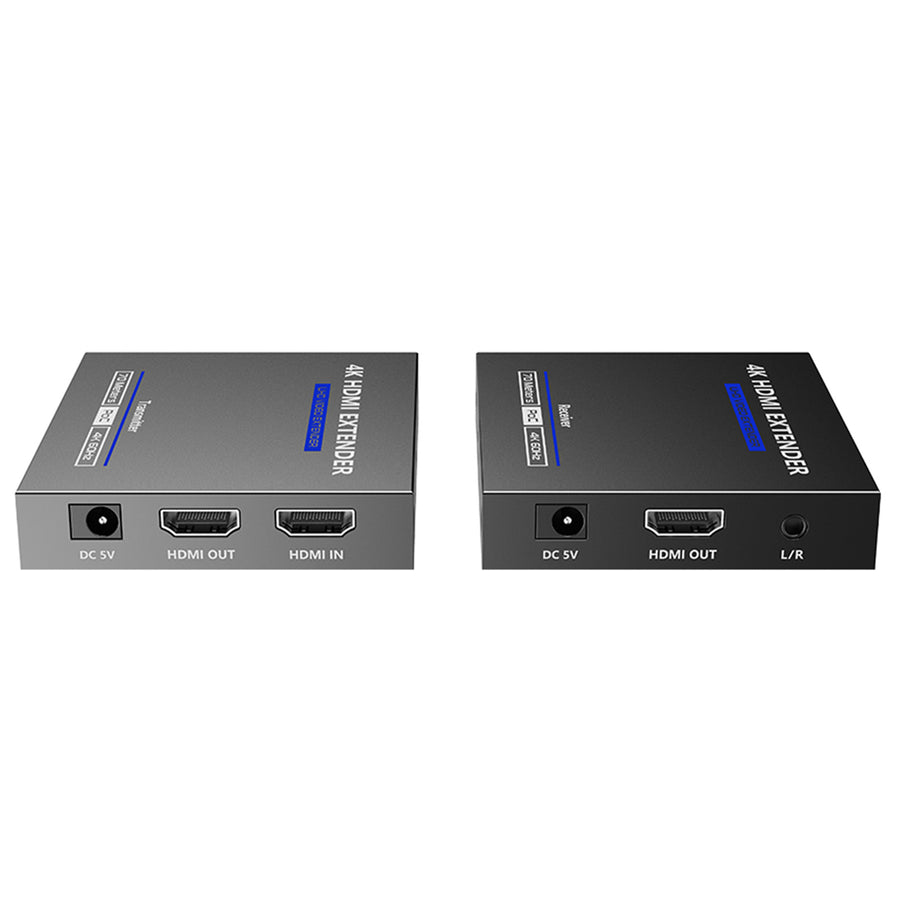

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, IR passthrough, 3.5mm audio output, etc. This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.

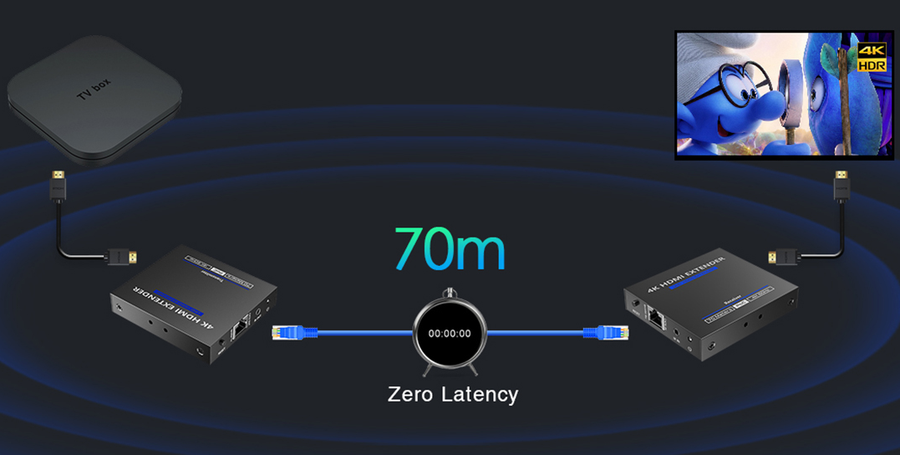

Zero Latency Transmission for 70 Meters
Support CAT6/6A/7 network cable, the maximum transmission distance can reach 70 meters
4k A 60Hz HDR for Visually Lossless Transmission
Support 3840x2160 HDR, with ipcolor IMAGE - a new standard for visually lossless transmission solution, the image can be more clear, higher saturation and show more outstanding details.

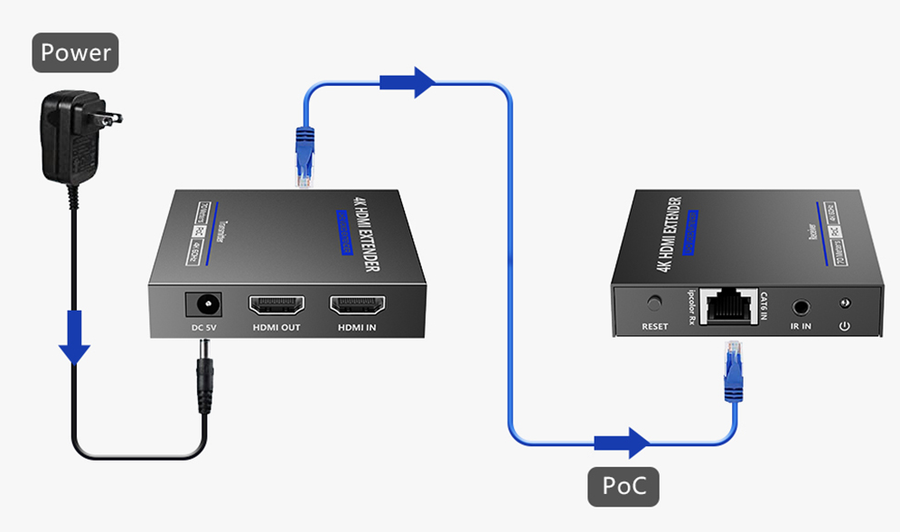

Support PoC-Power over Network Cable
Only TX Power Supply Needed.
Specifications
Technical Specifications
| HDMI Length | =5m |
|---|---|
| Maximum transfer rate | 18Gbps |
| Maximum transmission bandwidth | 600MHz |
| EDID passthrough | Yes |
| Compatibility | HDMI 2.0(Deep color, 4K, HDR, YUV4:4:4)HDCP 2.2 |
| Resolutions | 720p @ 50/60Hz?1080i @ 50/60Hz?1080p @ 50/60Hz? 3840x2160 @ 24/25/30/50/60Hz?4096x2160 @ 24/25Hz? 1280x960?1280x800?1280x768?1680x1050? 1360x768?1366x768?1600x900?1024x768?800x600 |
| Transmission distance | CAT6/6A/7=70m |
| Audio formats | LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos |
| IR interface | TX:1x 3.5mm IR OUT FemaleRX:1x 3.5mm IR IN Female |
| Receiving range= | =5m |
| Infrared frequency | 20KHz~60KHz |
| Power Supply | TX:DC5V/2ARX:DC5V/2A |
| Power Consumption | TX:<4WRX:<4W |
| Working temperature | -20?~60? |
| Storage temperature | -30?~70? |
| Humidity | 0~90%RH(No condensation) |
| Housing | Metal |
| Weight | TX:140gRX:140g |
| Color | Black |
| Dimensions | TX/RX:85.0(L)*75.5(W)*16.5(H)mm |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > KVM Switches & Cables |
| Weight | 6.077 kg |
| Warranty |
|---|
