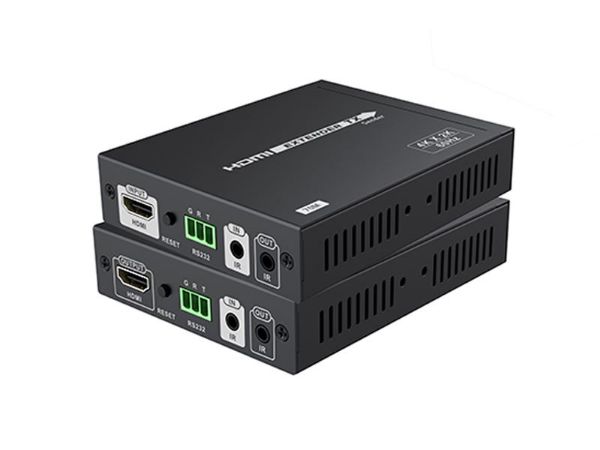

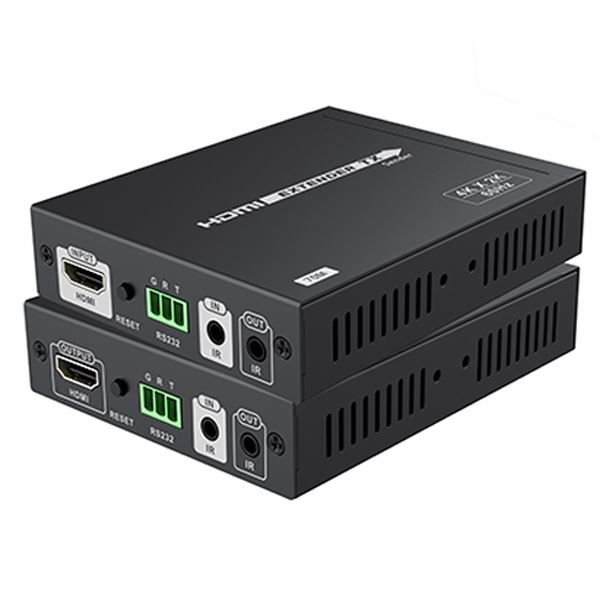

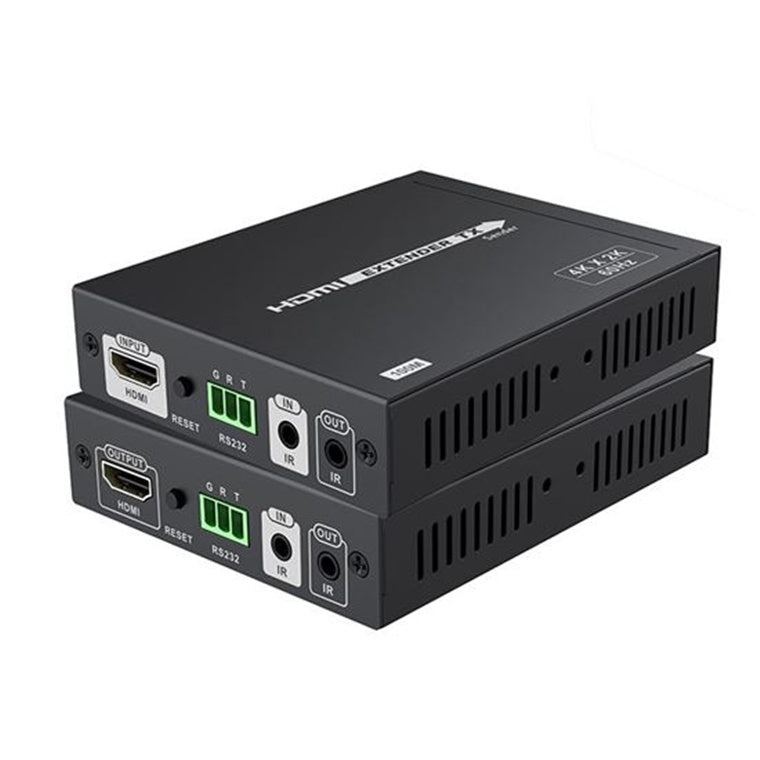

LENKENG LKV675 - HDBaseT HDMI Extender over Single Cat6 cable up to 70m. Extends HDMI & IR.
Features
LKV675
This HDBaseT single network cable extender transmits HDMI signal up to 70meters over cat6 fluently and clearly. It is lossless in signal and supports 3D, 24bits deep color, 4kx2k, CEC, HDCP and ultra HD 4KX2K @ 60Hz. This product supports to power over network cable, just connect the power adapter with the receiver unit, can keep this device working well. It's a perfect solution for audio&video transmission in applications of HD conference system, HD multimedia education system, HD digital advertising and signage etc.
1. Apply HDBaseT extend technology
2. Support bi-directional IR pass back
3. Support bi-directional RS232 control
4. Apply HDBaseT transmission technology
5. Support HDMI2.0 HDCP2.2 ,CEC, 24 deep color
6. Support LPCM DTS-HD and Dolby True HD audio
7. Supported resolution is up to 4Kx2K @ 60Hz ultra HD
8. Transmit 4Kx2K @ 60Hz signal over cat6 up to 70 meters
9. Can be powered by network cable. It only needs to connect
the 12V power on the receiver unit, both transmitter and receiver start work
Specifications
Technical Specifications
| HDMI signal | Support HDMI2.0 HDCP2.2, support CEC and 24bits deep color |
|---|---|
| Resolution Supported | 480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K |
| Audio | LPCM?DTS Digital, Dolby Digital |
| Network cable | CAT6?CAT6A?CAT7 |
| Transmission length | 70m |
| IR control | Support 20~60kHz wide frequency devices and Bi-directional IR transmission |
| Working temperature | 0~55? |
| Storage temperature | -10~70? |
| Humidity | 0~90%(no condensation) |
| Power supply | DC12V/2A x1pcs |
| Power consumption | TX: <6W; RX: <8W |
| Product dimension | 109.49(L)x87.0(W)x23.4(H)mm |
| Material | Iron alloy material |
| Weight | TX:240g RX:250g |
| Color | Black |
| Brand | LENKENG |
|---|---|
| Product Type | TV & Home Theatre > AV Extenders |
| Weight | 4.227 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
