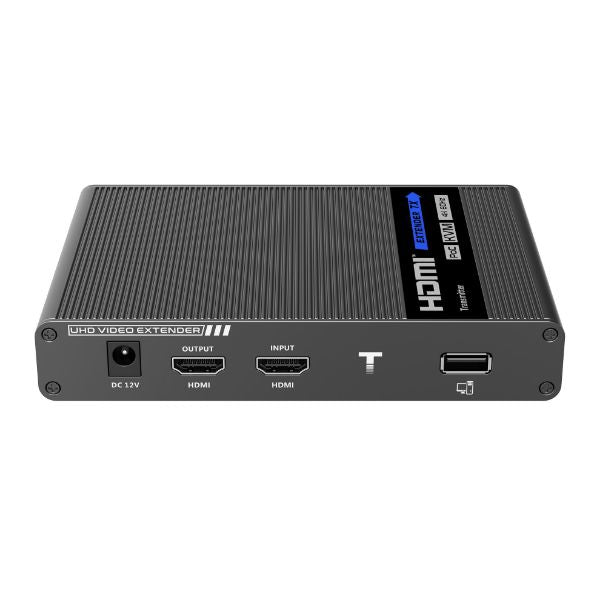

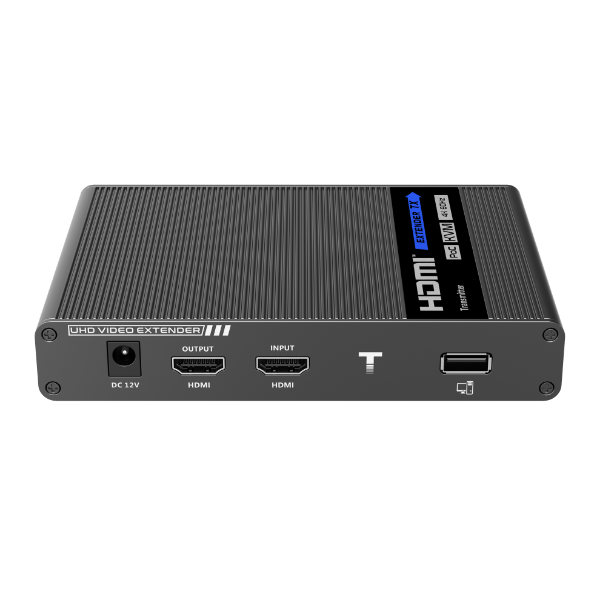

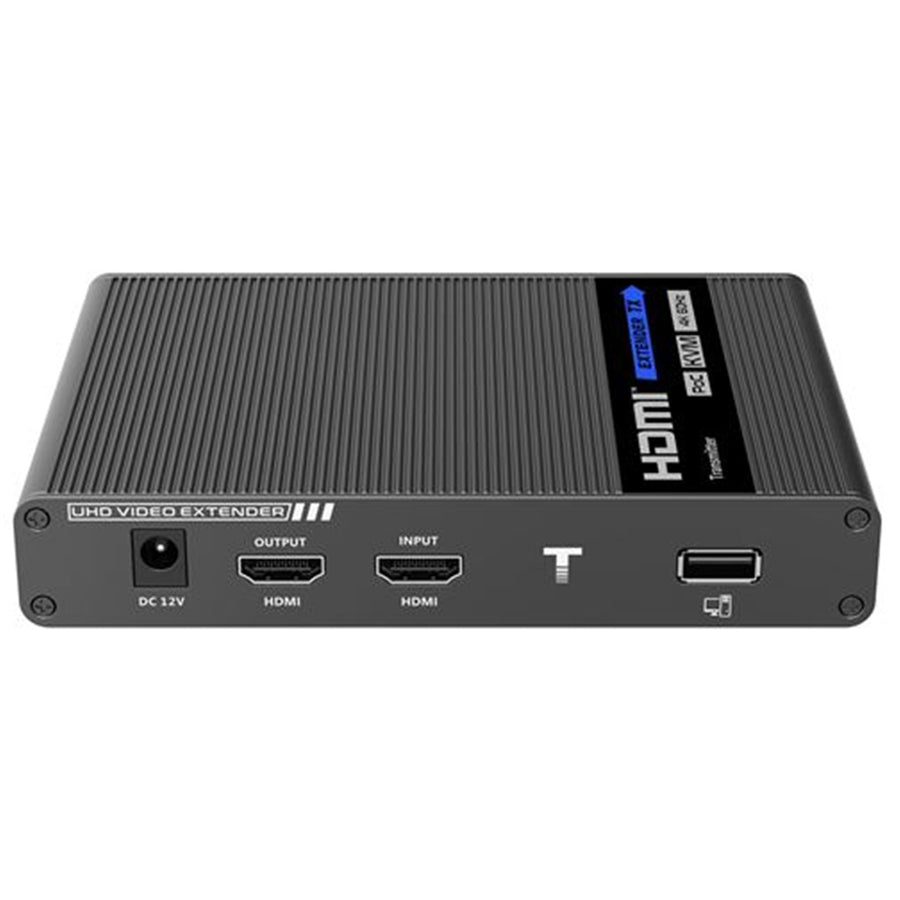

LENKENG LKV676KVM-P - 4K HDMI Extender w/ KVM Support Over Single CAT6/6A Mouse & Keyboard Ext via USB
Features
LENKENG 4K HDMI Extender with KVM Support Over Single CAT6/6A Cable. Supports Mouse & Keyboard Extension via USB. Supports IR Passback. Up to 70m 4Kx2K@60Hz UHD. Supports Power Supply for TX Unit.

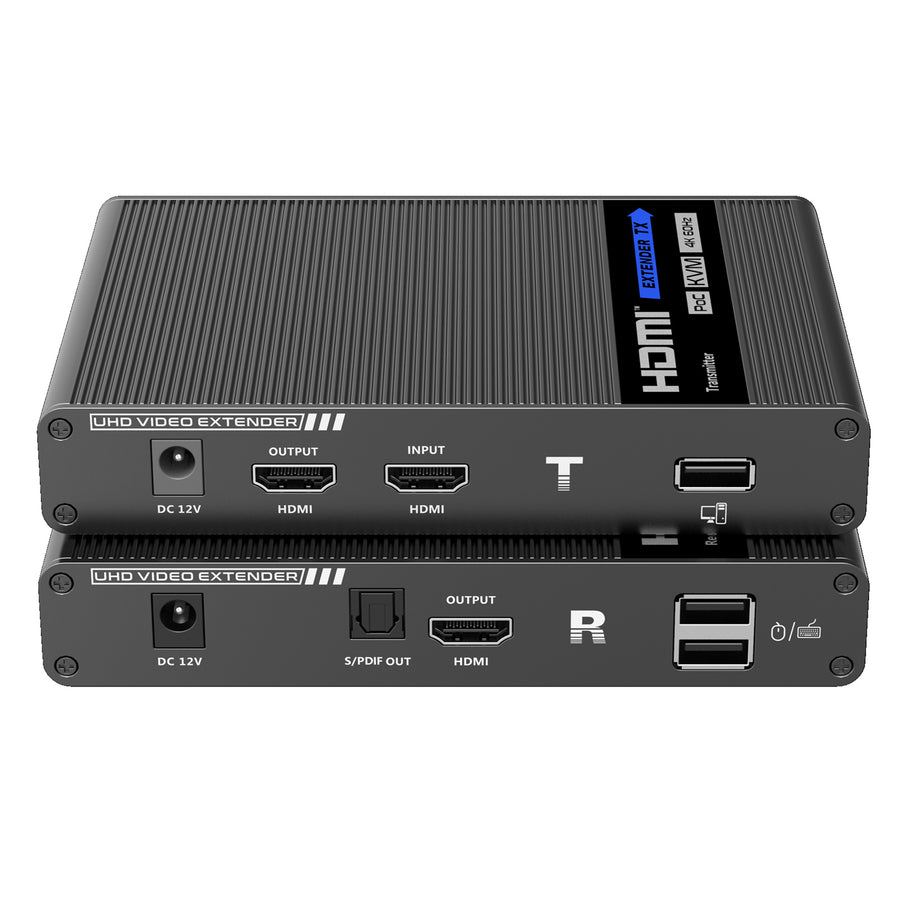

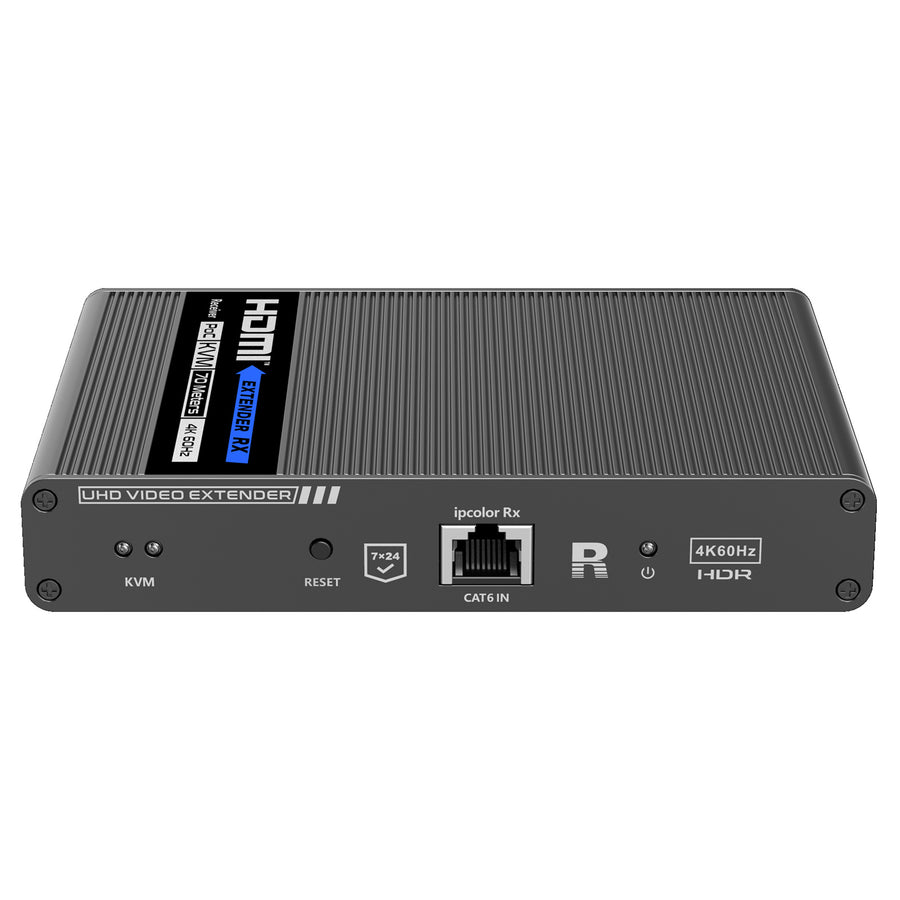

This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor
- Zero latency.
- 4K@60Hz HDMI signal can be transmitted 70 meters through a
- CAT6/6A/7 network cable.
- The receiver can extract the digital audio from the transmitter through
- the S/PDIF port.
- Supports HDR10.
- Supports EDID passthrough, Auto downscaling.
- Transmitter support one HDMI loop-out.
- Support KVM function.
- Lighting protection, surge protection, ESD protection.
- Support bi-drectional
Specifications
Technical Specifications
| HDMI compliance | HDMI2.0,compatible HDMI1.4 |
|---|---|
| HDCP compliance | HDCP2.2,compatible HDCP1.4 |
| Transmission medium | CAT6/CAT6A/CAT7 |
| Transmission distance | =70 meters |
| Video bandwidth | 18Gbps |
| Video support | 1280x960,1280x800,1280x768,1680x1050, 1360x768,1366x768,1600x900,1024x768,800x600480i @ 60Hz,480p @ 60Hz,576i @ 50Hz,576p @ 50Hz, 720p @ 50/60Hz,1080i @ 50/60Hz,1080p @ 50/60Hz,3840x2160@24/25/30/50/60Hz,4096x2160@24/25/30Hz |
| HDR10(YUV4:4:4) | support |
| HDMI Loop-out | support |
| S/PDIF out | support |
| EDID through | support |
| KVM function | Keyboard/Mouse |
| PoC | support |
| Input TMDS signal | 0.7~1.2Vp-p |
| Input DDC signal | 5Vp-p |
| Input | HDMI INx1DC2.1×1USB-A ×1DC2.1×1RJ45×1USB-A×2 |
| Output | HDMI OUT×1RJ45 ×1HDMI OUT×1S/PDIF OUTx1 |
| HDMI connector | Type A 19 Pins,Female |
| Network cable standard | CAT6/CAT6A/CAT7 ,follow IEEE-5688 standard |
| Material | Aluminium alloy material+crystal panel |
| Dimensions(L×W×H mm) | 150.0(L) x 107.0(W) x 28.4(H)mm |
| Net weight | 260g |
| Power supply | 5V/2A |
| Power consumption | 4W |
| Operation temperaure | -20~60? |
| Storage temperature | -30~70? |
| Relative humidity | 0~90%(no condensation) |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > Keyboards > Keyboard & Mouse Combos |
| Weight | 0.236 kg |
| Warranty |
|---|
