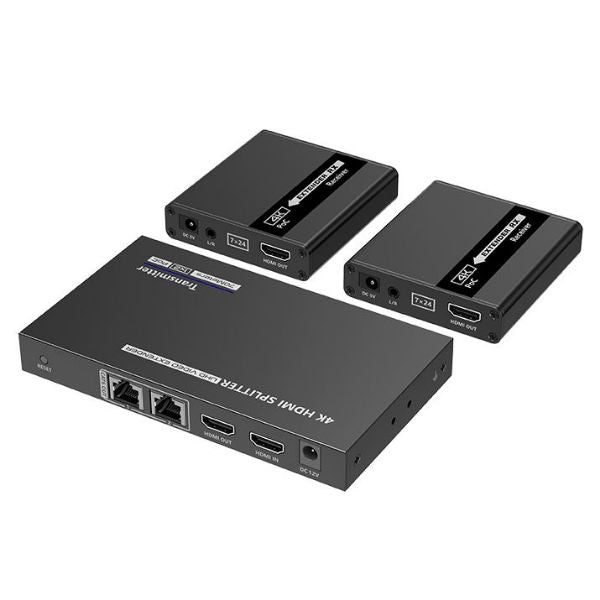

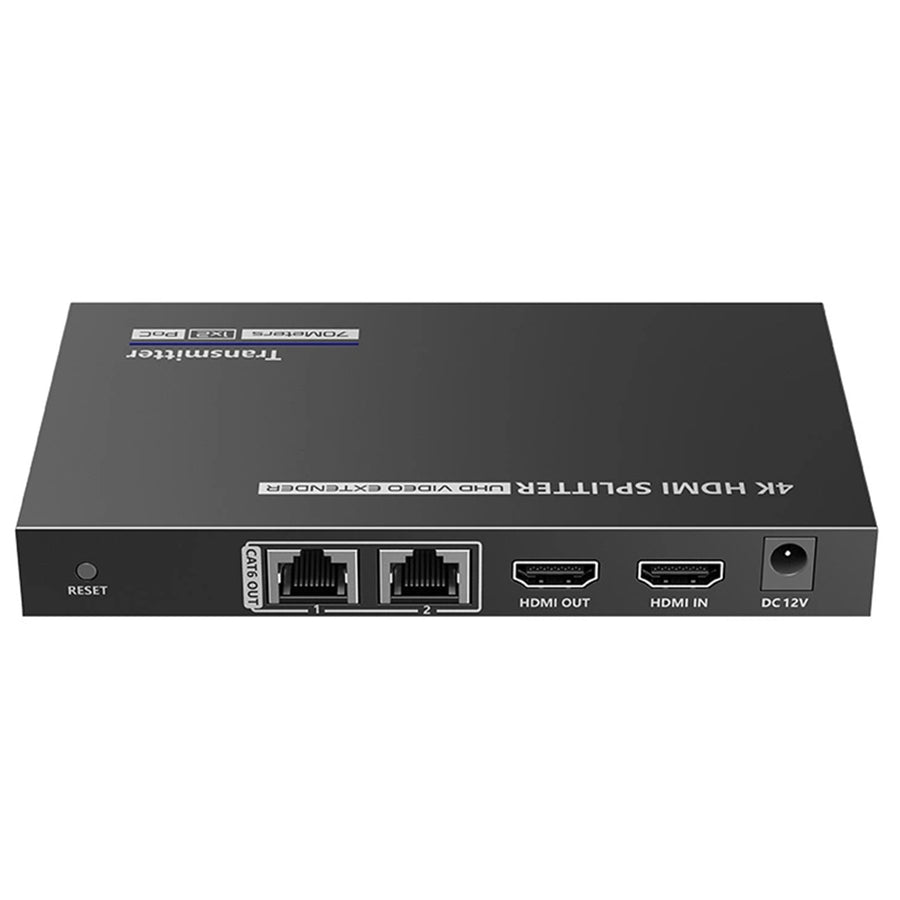

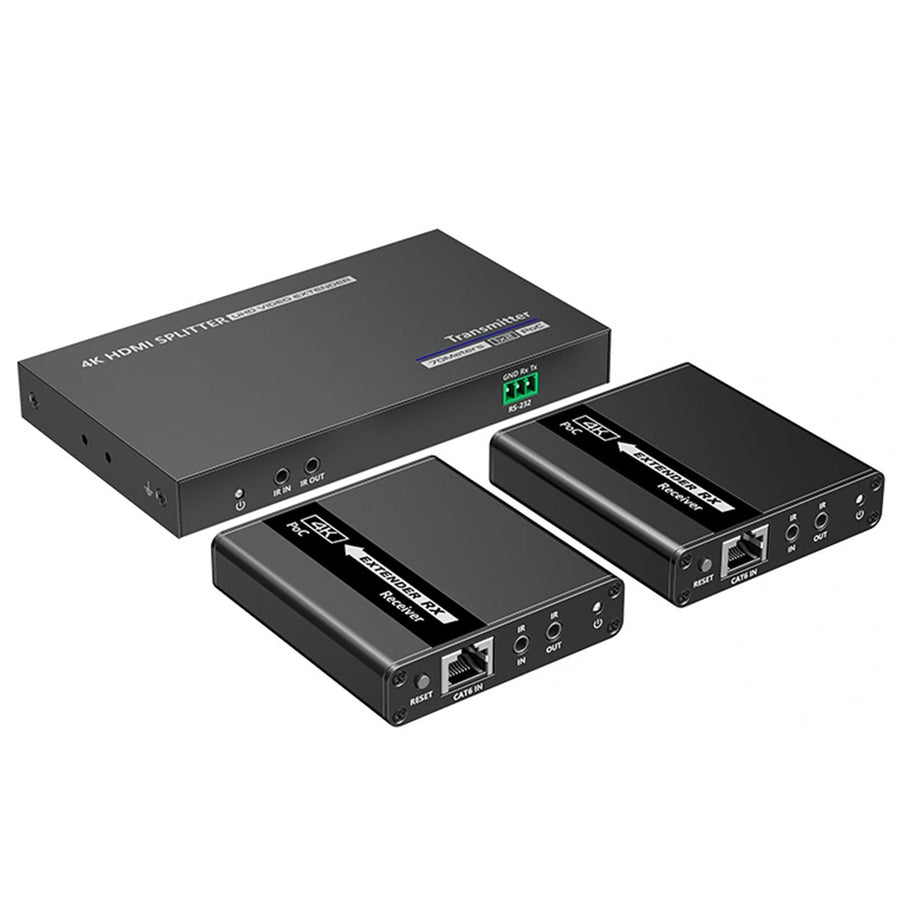

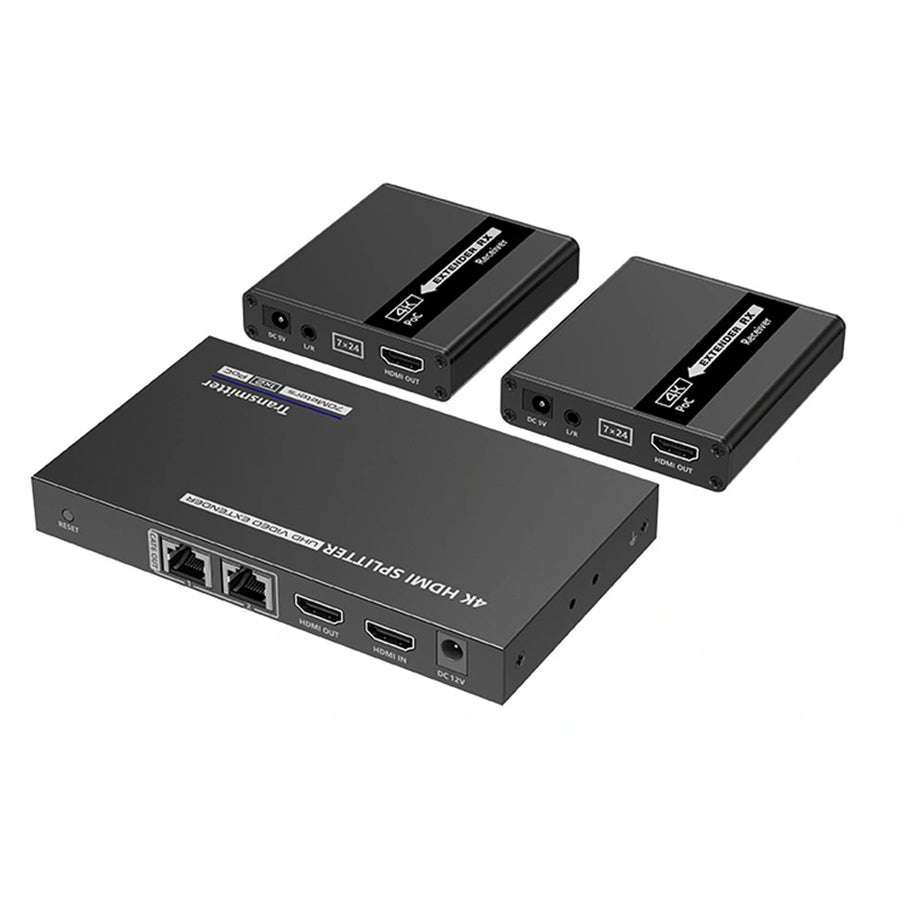

LENKENG LKV722P - 1-In-2-Out 4K@30Hz HDMI Extender 1x HDMI 2x RJ45 out Compatible w/ CAT6/6a/7 Cables
Features
This Lenkeng LKV722P 1-In-2-Out 4K30Hz HDMI Extender is a 1 input 2 outputs splitter extender kit, It distributes 1 HDMI input signal to 2 identical signal outputs, extends these signals up to 70 meters. support 4K30Hz resolution, bi-directional IR passthrough,RS-232 control and 3.5mm L/R audio output functions.It is suitable for outdoor advertising, studios, multimedia classrooms, etc.

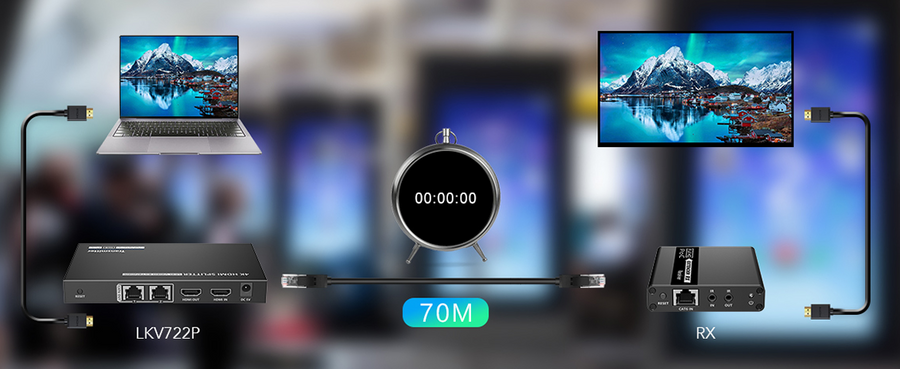

70m and zero latency transmission
Supports CAT6/6A/7 network cable, maximum transmission distance can reach up to 40m for 4K@30Hz signals and up to 70m 1080p@60Hz signals.
4K@30Hz HDR for visually lossless transmission
Supports 4K@30Hz HDR, so the image can be clearer, have higher saturation and show more outstanding details.
Specifications
Technical Specifications
| Splitter | 1 input, 2 output |
|---|---|
| HDMI compliance | HDMI 1.4 |
| HDCP compliance | HDCP 1.4 |
| Transmission medium | CAT6/CAT6A/CAT7 |
| Transmission distance | 1080p@60Hz=70m 4K@30Hz=40m |
| Video bandwidth | 10.2Gbps |
| Video support | 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz ,480p@60Hz ,576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 4K@24/25/30Hz |
| Audio support | PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH |
| PoE | support |
| 1080P HDR10 | support |
| HDMI Loop-out | support |
| EDID through | support |
| RS-232 Control | 3 Pin: GND/RxD/TxD, follow RS-232 levels; Baud rate 9600 |
| Bi-directional IR passback | support |
| Input TMDS signal | 0.7~1.2Vp-p |
| Input DDC signal | 5Vp-p |
| Input | HDMI IN ×1, DC2.1 ×1, 3.5mm jack ×1 (IR) |
| Output | HDMI OUT×1, RJ45 ×2, 3.5mm jack ×1 (IR) |
| HDMI connector | Type A 19 Pins, Female |
| Network cable standard | CAT6/CAT6A/CAT7, follow IEEE-5688 standard |
| Housing | TX: Iron, RX: Aluminium alloy material+crystal panel |
| Dimensions (L×W×H mm) | TX: 151.5(L) x 86.5(W) x 19.0(H)mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm |
| Weight | TX: 280g, RX: 160g x2 |
| Power supply | TX: DC 12V/1A |
| Power consumption | TX<10W, RX<2.5W |
| Operation temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C |
| Relative humidity | 0%~90% (no condensation) |
| Protection | Lightning protection, surge protection, ESD protection |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 4.172 kg |
| Warranty |
|---|
