-17%
LENKENG

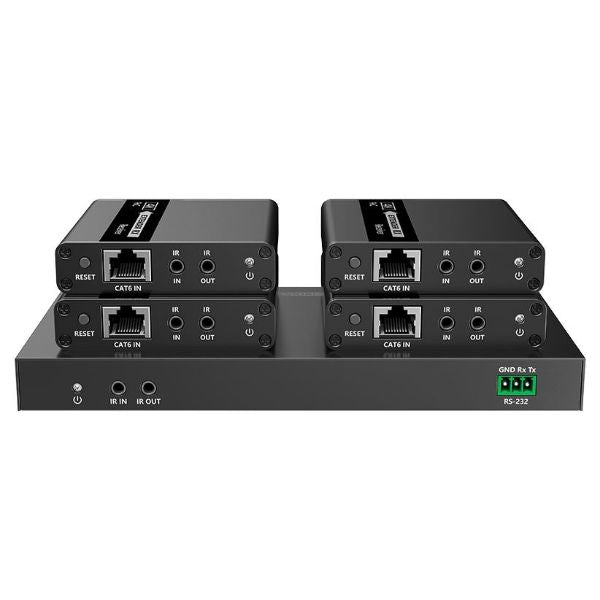

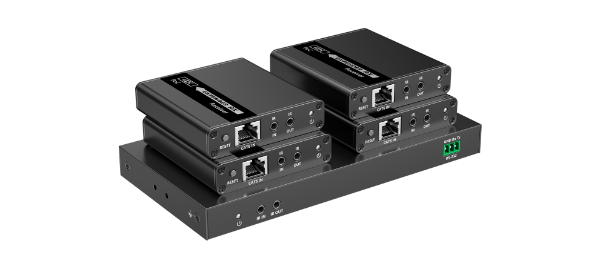

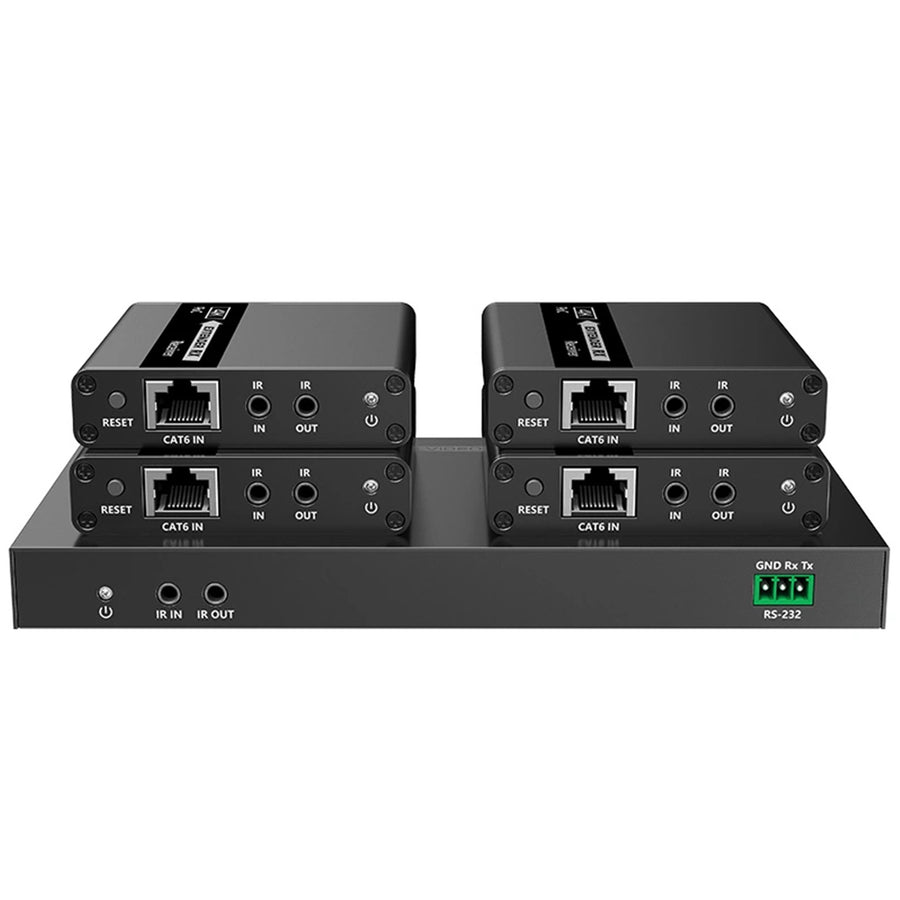

LENKENG LKV724P - 1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI 4x RJ45 out Compatible w/ CAT6/6a/7 Cables
$430.43$518.57
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
LENKENG 1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Rx.

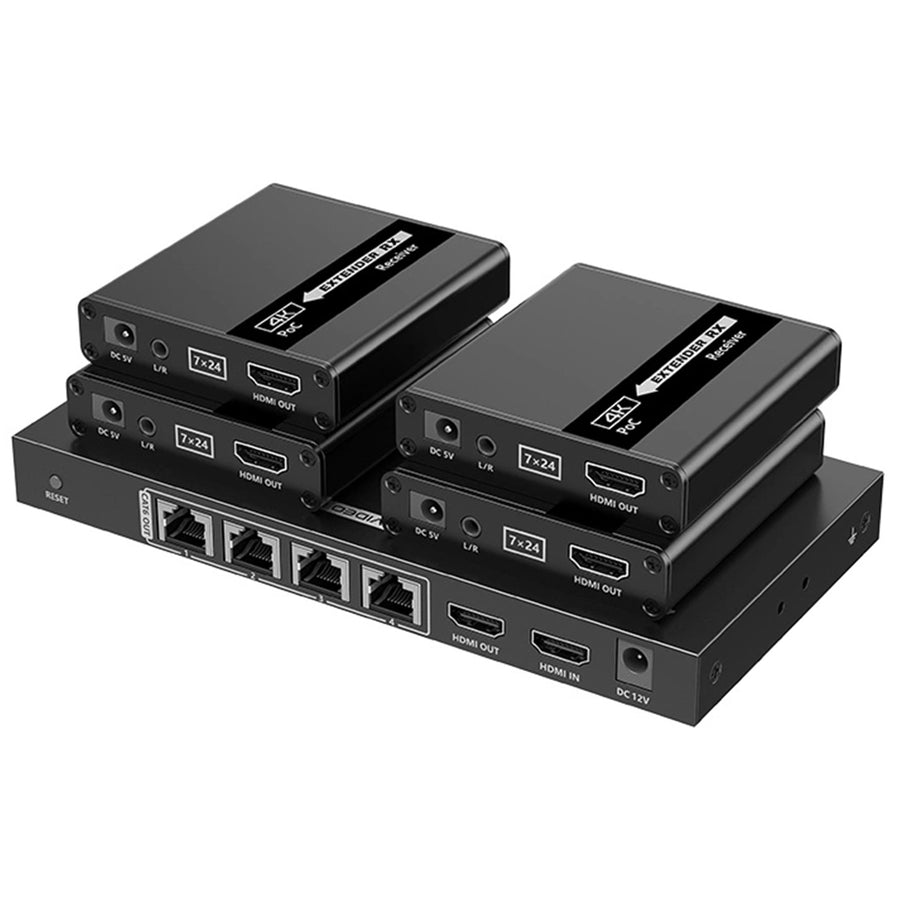

1-In-4-Out 4K@30Hz HDMI Extender. 1x HDMI in & 4x RJ45 out. Compatible with CAT6/6A/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 4x Receiver.

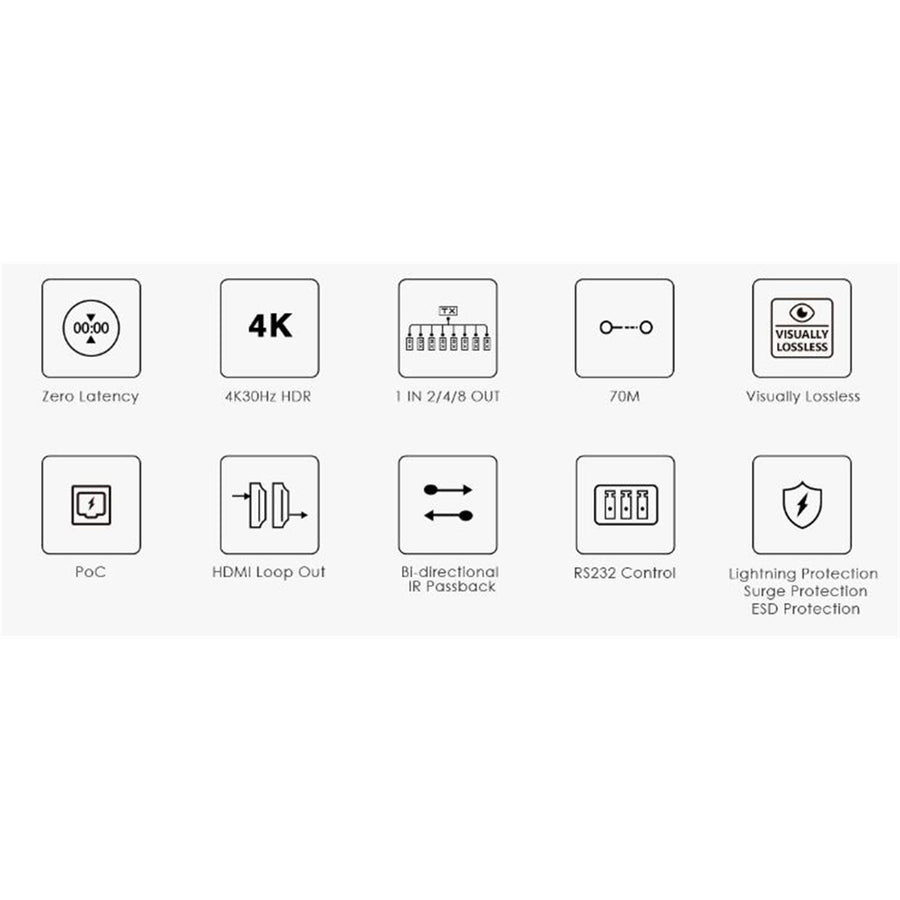

Features:
- Zero latency transmission
- Supports up to 4K@30Hz resolution, downward compatible
- Supports HDR10

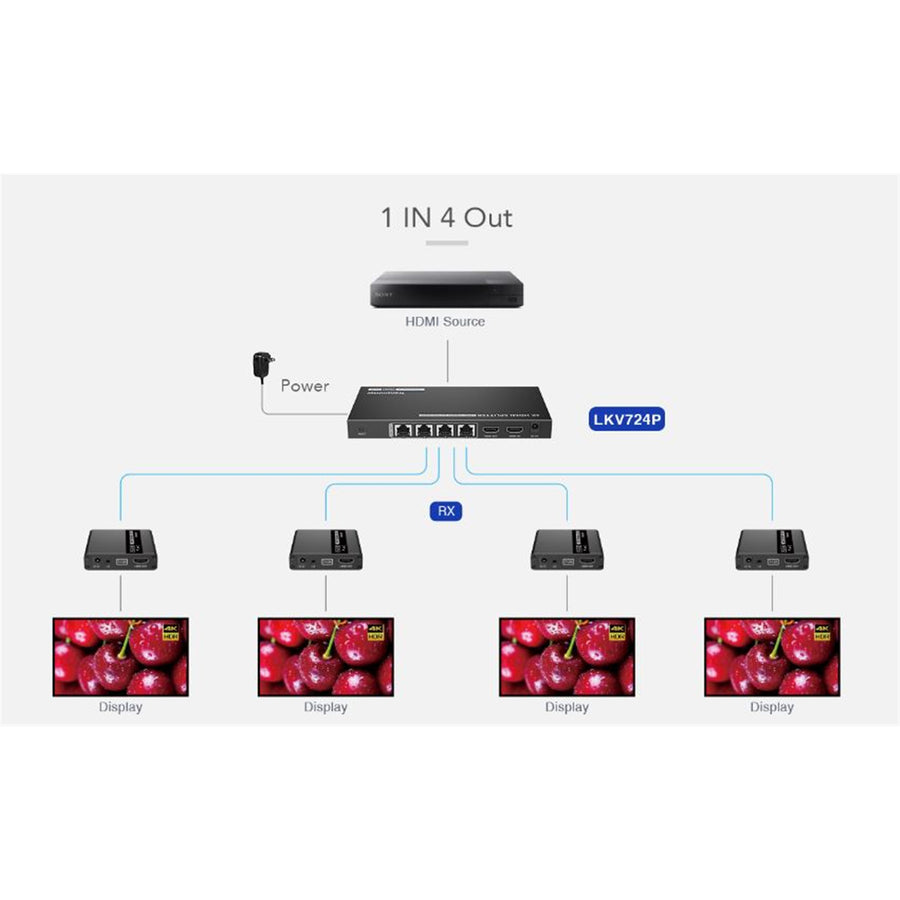

- Distribute 1 HDMI source to 4 displays

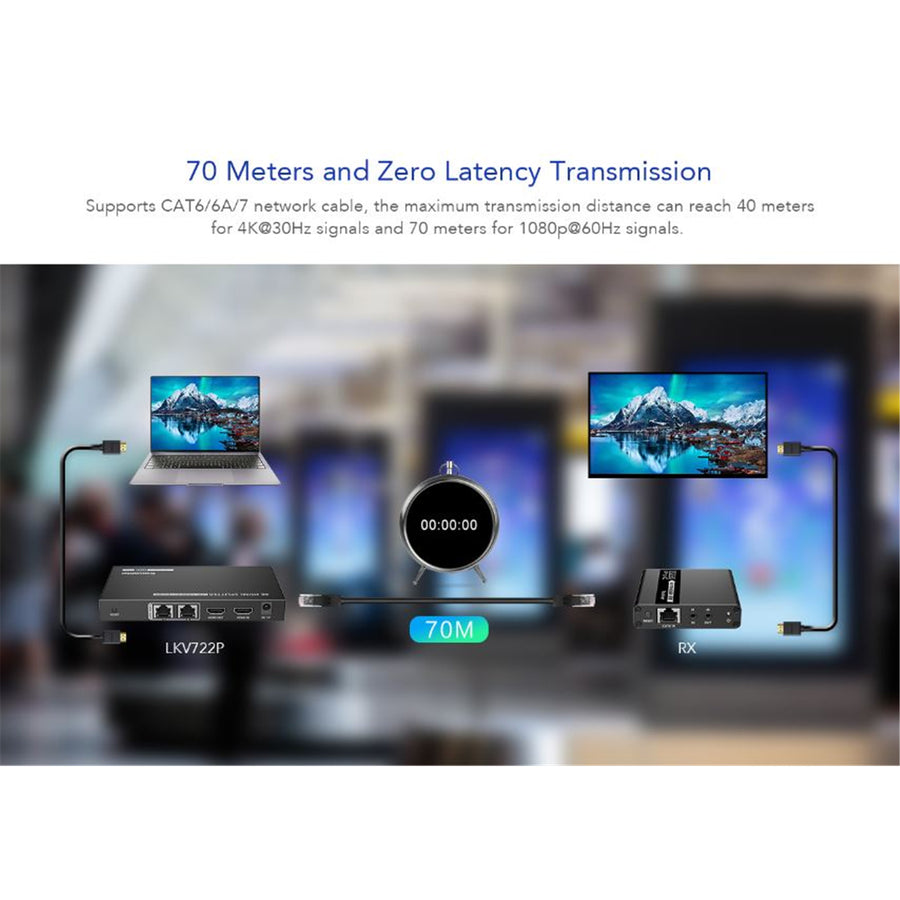

- Support CAT6/6A/7 network cable, which can transmit 1080p signal up to 70m and 4K@30Hz signal up to 40m
- Supports power over a network cable, only the transmitter needs to be powered

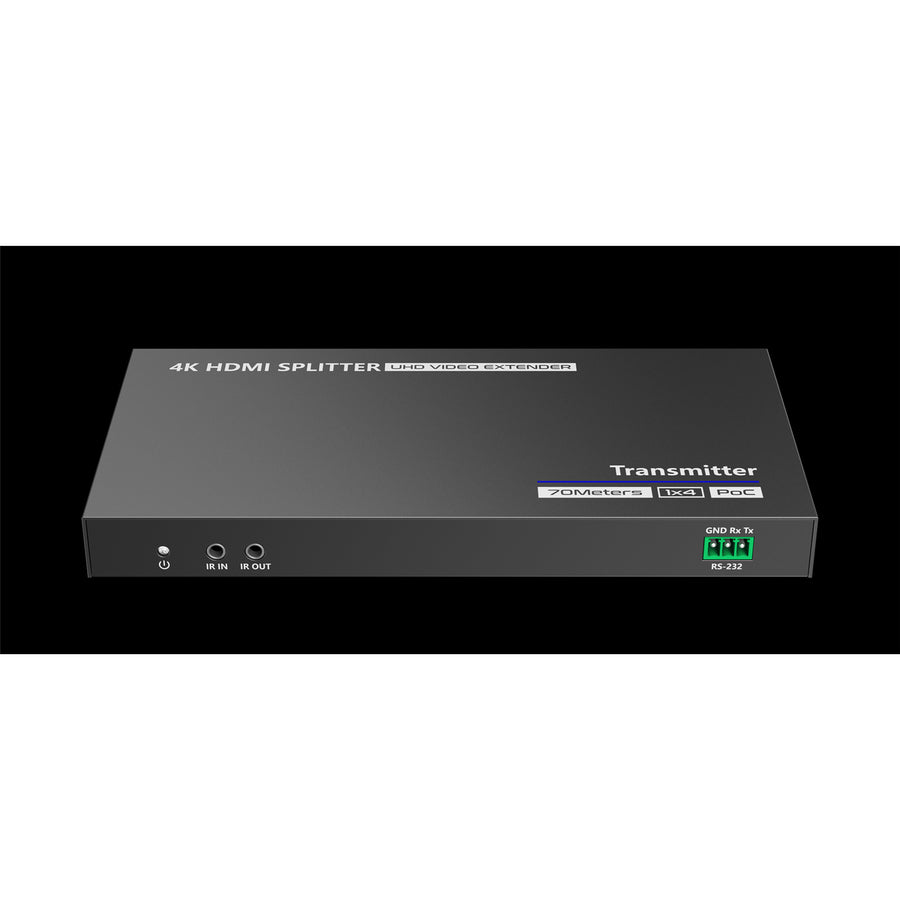

- The transmitter supports HDMI loop out
- Supports bi-directional IR passthrough (20~60KHz)
4K@30Hz HDR for visually lossless transmission
Supports 4K@30Hz HDR, so the image can be clearer, have higher saturation and show more outstanding details.
Specifications
Technical Specifications
| Splitter | 1 input, 4 output |
|---|---|
| HDMI compliance | HDMI 1.4 |
| HDCP compliance | HDCP 1.4 |
| Transmission medium | CAT6/CAT6A/CAT7 |
| Transmission distance | 1080p@60Hz=70m,4K@30Hz=40m |
| Video bandwidth | 10.2Gbps |
| Video support | 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080,480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz,4K@24/25/30Hz |
| Audio support | PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH |
| PoE | support |
| 1080P HDR10 | support |
| HDMI Loop-out | support |
| EDID through | support |
| RS-232 Control | 3 Pin: GND/RxD/TxD, follow RS-232 levels; Baud rate 9600 |
| Input TMDS signal | 0.7~1.2Vp-p |
| Input DDC signal | 5Vp-p |

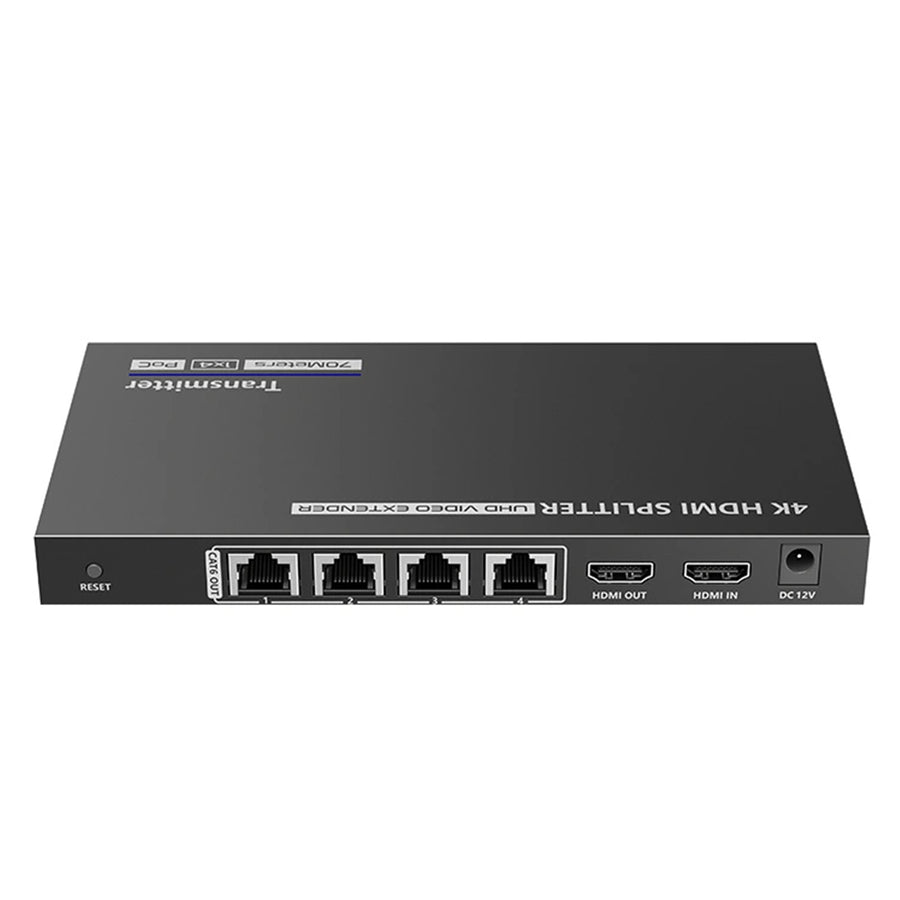

| Input | HDMI IN x1, DC2.1 x1, 3.5mm jack x1 (IR) |
| Output | HDMI OUTx1, RJ45 x4, 3.5mm jack x1 (IR) |
| HDMI connector | Type A 19 Pins, Female |
| Network cable standard | CAT6/CAT6A/CAT7, follow IEEE-5688 standard |
| Housing | TX: Iron, RX: Aluminium alloy material+crystal panel |
| Dimensions (LxWxH mm) | TX: 191.5(L) x 96.5(W) x 19.0(H) mm, RX: 80.0(L) x 75.0(W) x 18.0(H) mm |
| Weight | TX: 435g, RX: 160gx4 |
| Power supply | TX: DC 12V/2A |
| Power consumption | TX: 10W, RX: 2.5W |
| Operation temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C |
| Relative humidity | 0%~90%(no condensation) |
| Protection | Lightning protection, surge protection, ESD protection |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 3.628 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
