LENKENG

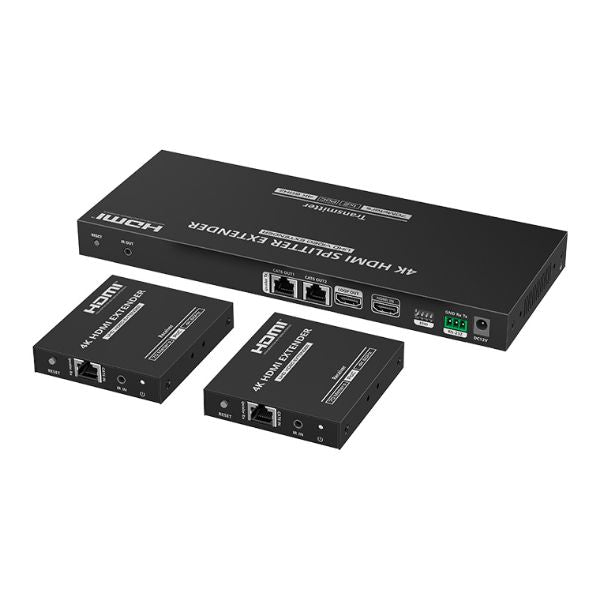

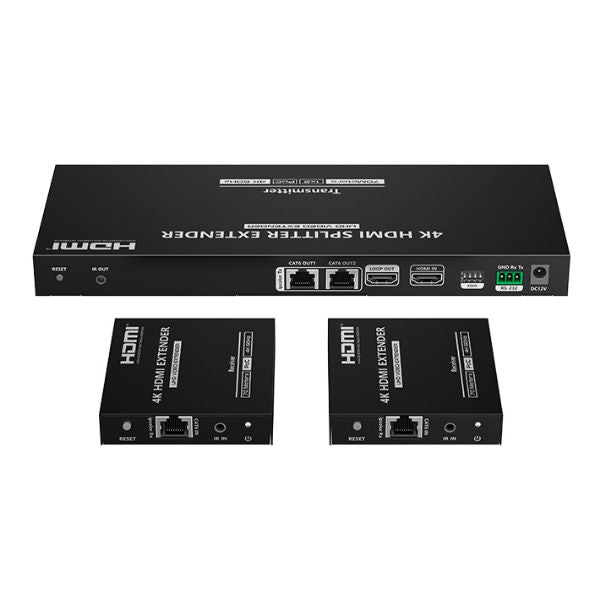

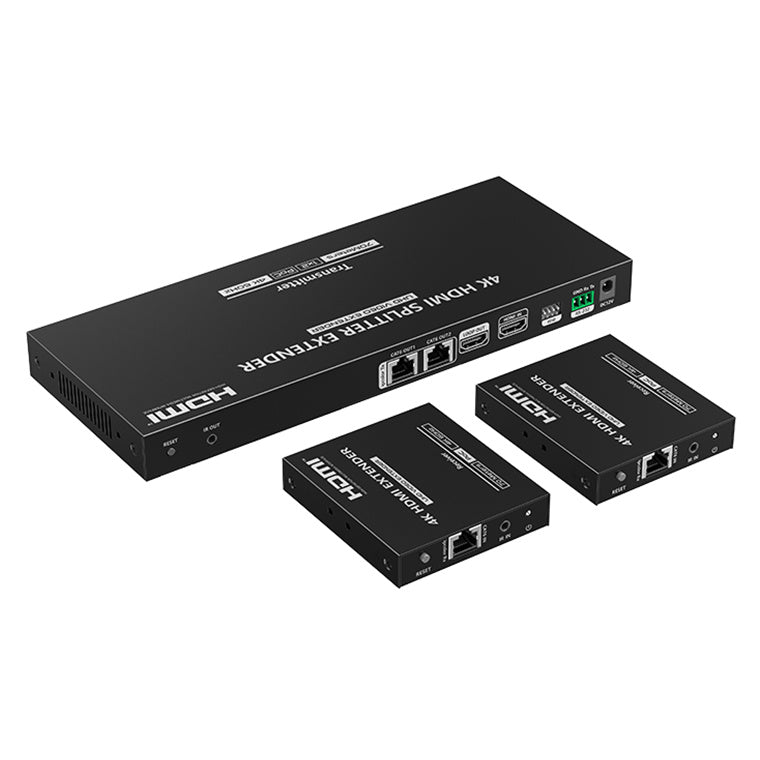

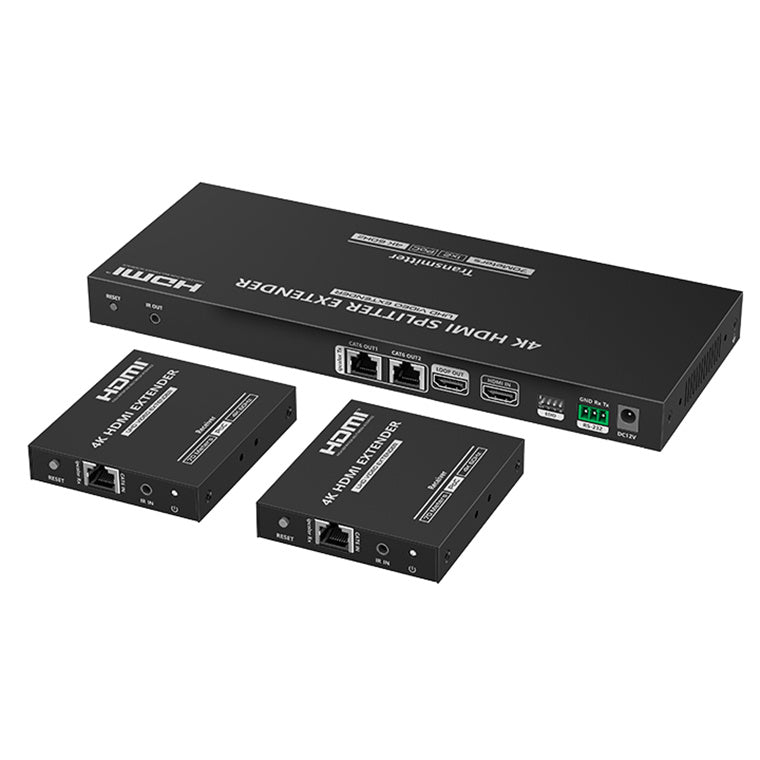

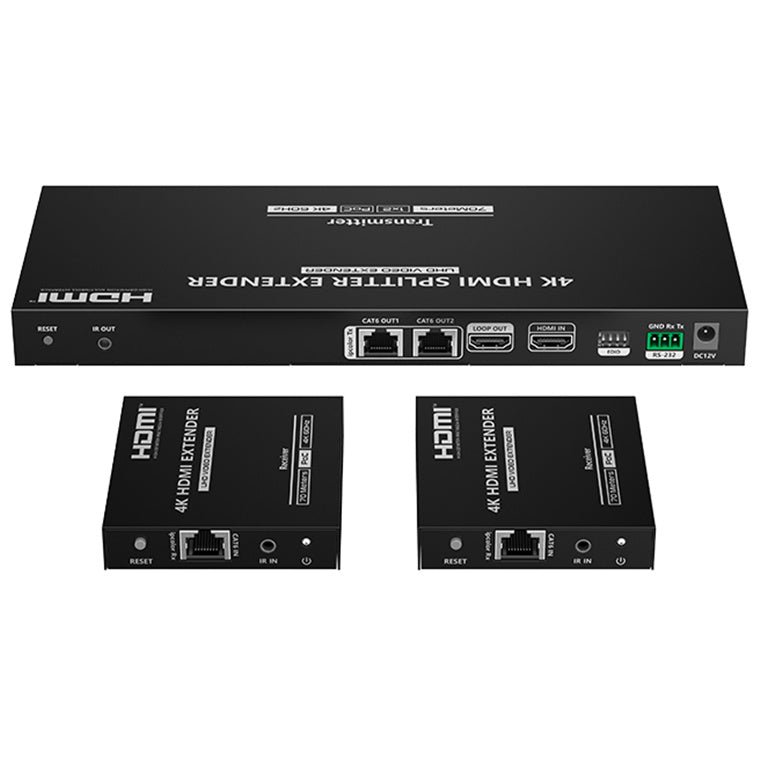

LENKENG LKV822P-N 1-In-2-Out 4K 60Hz HDMI Splitter Extender
$350.43
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
LENKENG 1-In-2-Out 4K 60Hz HDMI Splitter Extender
- Zero-latency transmission
- Split and extend 1 HDMI input signal to 2 identical outputs over CAT6/6A/7 cable
- Supports 4K @ 60Hz resolution, maximum transmission distance up to 70 m
- Supports IR passback (20 kHz-60 kHz)
- Transmitter supports HDMI loop-out
- Receiver supports S/PDIF digital audio output
- Supports EDID passthrough or manual EDID selection via EDID switch
- Surge protection, lightning protection, and ESD protection
- Equipped with rack-mount ears
- PoE supported; only the transmitter requires power
Specifications
Technical Specifications
| Material | Iron |
|---|---|
| Color | Black |
| Transmission protocol | ipcolor |
| Distribution mode | 1 IN 2 OUT |
| Transmission distance | CAT6/6A/7<=70m |
| HDMI signal | HDMI 2.0, HDCP 2.2 |
| HDMI Resolution | 480i @ 60Hz480p @ 60Hz576i @ 50Hz576p @ 50Hz720p @ 50/60Hz1080i @ 50/60Hz1080p @ 50/60Hz1280x960 @ 24/25/30/50/60Hz1280x800 @ 24/25/30/50/60Hz1280x1024 @ 24/25/30/50/60Hz1680x1050 @ 24/25/30/50/60Hz1600x1200 @ 24/25/30/50/60Hz1600x900 @ 24/25/30/50/60Hz1024x768 @ 24/25/30/50/60Hz800x600 @ 24/25/30/50/60Hz1920x1200 @ 24/25/30/50/60Hz3840x2160 @ 24/25/30/50/60Hz4096x2160 @ 24/25/30Hz |
| Audio formats | 4K: LPCM/DTS/Dolby Digital 5.11080P: LPCM/DTS/Dolby Digital 5.1/Dolby Digital plus7.1 |
| IR | Support IR passback function (20KHz~60KHz) |
| RS-232 | 3 pin: TxD-RxD-GND, follows RS-232 levels |
| Protection | ESD protection1a Contact discharge level 21b Air discharge level 3Implementation of the standard: IEC61000-4-2Lightning protectionSurge protection |
| Power supply | TX: DC12V/1A |
| Power consumption | TX+RX＜9W |
| Dimensions | TX: 265.0(L) x 104.0(W) x 23.0(H)mmRX: 85.0(L) x 75.5(W) x 16.5(H)mm |
| Weight | TX: 670g RX: 145g |
| Working temperature | -20~60℃ |
| Storage temperature | -30~70℃ |
| Humidity (no condensation) | 0~90% RH |
| Brand | LENKENG |
|---|---|
| Product Type | TV & Home Theatre > AV Splitters & Switches |
| Weight | 1.0 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
