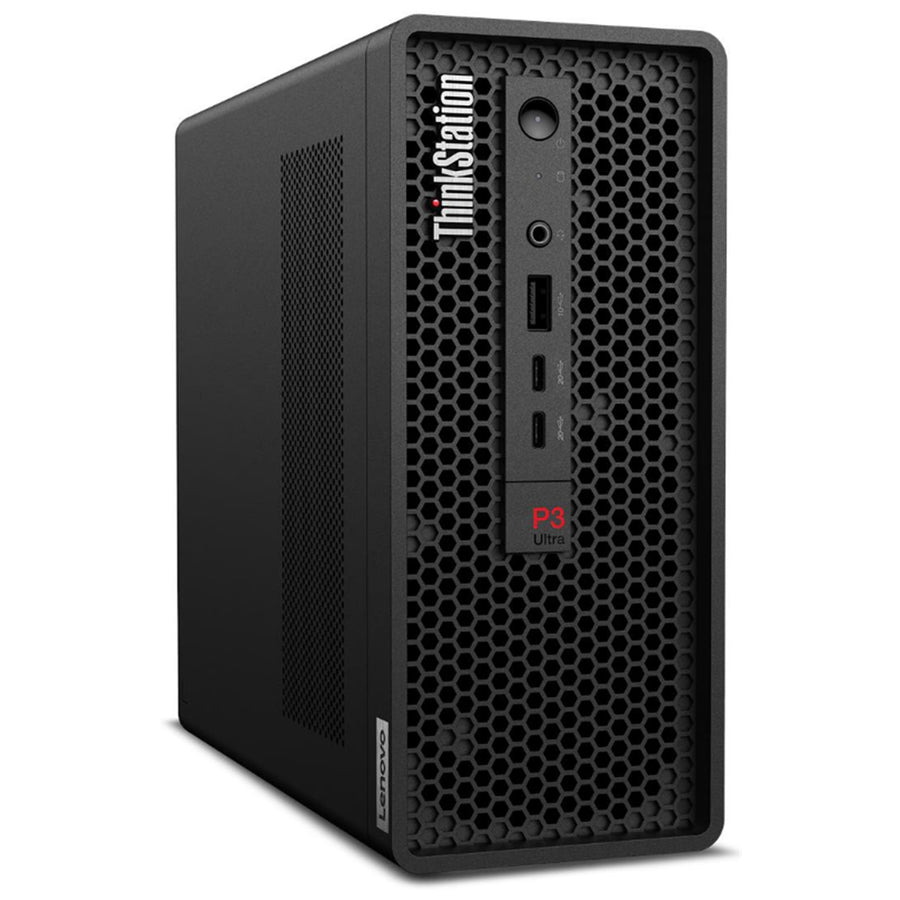

Lenovo P3 USFF U7-265 32GB 1TB A1000-8GB W11P
Lenovo P3 USFF U7-265 32GB 1TB A1000-8GB W11P
Overview
<b>LENOVO THINKSTATION P3 ULTRA SFF GEN 2<br>Redefining the Power of Small</b> <br>Experience extraordinary performance in an intelligently compact design. Powered by Intel® Core™ Ultra (Series 2) processors with Intel vPro®, with integrated NPU and NVIDIA RTX™ graphics, this workstation breaks new ground by delivering AI-optimized performance and ultimate flexibility in a chassis less than 4L in total volume.<br><b><br>POWERFUL COMBINED AI ACCELERATION<br>Experience AI-Enhanced Productivity, Creativity & Security</b><br>The ThinkStation P3 Ultra SFF Gen 2 workstation combines an integrated Intel® NPU with NVIDIA RTX™ 4000 SFF Ada Generation graphics for unparalleled AI inferencing — totalling up to 335 TOPS of AI horsepower with the CPU and GPU. Handle everything from deep learning models to real-time analytics without sacrificing space or energy efficiency.<br><br><b>CREDIBILITY & COLLABORATION<br>Sustainability</b><br>Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.<br><br>Specifications may vary depending upon region / model.
- Windows 11 Pro
- Intel Core Ultra 7 265 (30MB Cache)
- NVIDIA RTX A1000 (8GB GDDR6)
- 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 1000GB SSD
Technical Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 265 |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.3 |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.2 |
| Efficient-core Max Turbo Frequency | 4.6 |
| Performance-core base frequency | 2.4 |
| Efficient-core base frequency | 1.8 |
| Processor cache | 30 |
| Processor cache type | Smart Cache |
| Processor base power | 65 |
| Maximum turbo power | 182 |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Y |
| Windows Studio effects support | Y |
| AI software frameworks supported by NPU | DirectML,OpenVINO,Windows ML,ONNX RT,WebNN |
| Total processor performance up to | 33 |
| NPU performance up to | 13 |
| GPU performance up to | 8 |
| Internal memory | 32 |
| Maximum internal memory | 128 |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 |
| Non-ECC | Y |
| Memory channels | Dual-channel |
| Total storage capacity | 1000 |
| Storage media | SSD |
| Optical drive type | N |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1000 |
| Number of SSDs installed | 1 |
| SSD capacity | 1000 |
| SSD interface | PCI Express 4.0 |
| NVMe | Y |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Discrete graphics card | Y |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Y |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics card memory | 8 |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Graphics card Mini DisplayPort ports quantity | 4 |
| Motherboard chipset | Intel W880 |
| Password protection | Y |
| Password protection type | BIOS,Power on |
| Trusted Platform Module (TPM) | Y |
| Product type | Workstation |
| Trusted Platform Module (TPM) version | 2.0 |
| Built-in speaker(s) | Y |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| Antenna type | 2x2 |
| Bluetooth | Y |
| Bluetooth version | 5.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| DisplayPorts quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Y |
| Power supply | 330 |
| Power supply input voltage | 100 - 240 |
| Chassis type | Mini Tower |
| Volume | 3.9 |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Operating system language | ENG,ENG-US |
| Operating system installed | Windows 11 Pro |
| Bundled software | Lenovo AI Now |
| Display included | N |
| Audio chip | Realtek ALC623-CG |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Operating temperature (T-T) | 10 - 35 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 20 - 80 |
| Storage relative humidity (H-H) | 10 - 90 |
| Operating altitude | 0 - 3048 |
| Non-operating altitude | 0 - 12192 |
| Width | 87 |
| Depth | 223 |
| Height | 202 |
| Weight | 3600 |
| Mouse included | Y |
| Mouse connectivity | Wired |
| Keyboard included | Y |
| Compliance certificates | RoHS |
| Certification | TCO Certified, generation 10 MIL-STD-810H |
| Keyboard connectivity | Wired |
