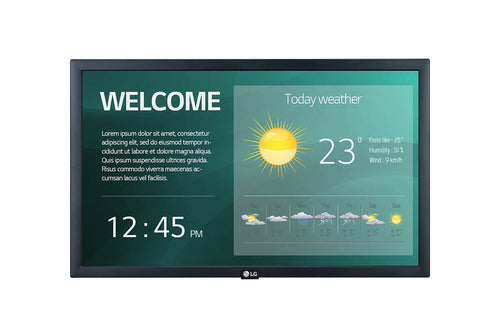

22SM3G-B - LG DIGITAL DISPLAY (SM3G) 22" FHD LED, 250NITS, HDMI, USB 2.0, LAN, WEB O/S,P/L,16/7, 3YR
Features

22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Solution
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.

Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Specifications
Technical Specifications
| Screen Size | 21.5" |
|---|---|
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Refresh Rate | 60 Hz |
| Brightness (Typ., cd/m²) | 250 |
| Contrast Ratio | 1,000 : 1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 14ms (G to G) |
| Surface Treatment (Haze) | 25 % |
| Life Time (Min.) | 30,000 Hrs |
| Operation Hours (Hours / Day) | 16 / 7 |
| Portrait / Landscape | Yes / Yes |
| Input | HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In |
| External Control | RS232C In (Phone-jack), RJ45 (LAN) In, IR In |
| Bezel Color | Black |
| Bezel Width | 16.3 mm (Even Bezel) |
| Weight (Head) | 3.34 kg |
| Packed Weight | 4.74 kg |
| Monitor Dimension (W × H × D) | 510.3 x 302.1 x 53.8 mm |
| Carton Dimensions (W × H × D) | 565.0 x 357.0 x 103.0 mm |
| Handle | No |
| VESA™ Standard Mount Interface | 100 x 100 mm |
| Key Features | Internal Memory 8GBBuilt-in Wi-FiTemperature SensorLocal Key OperationEmbedded CMS (Local Contents Scheduling, Group Manager)USB Plug & PlayFail OverBackground Image (Booting Logo Image, No Signal Image)PIPPBP (2)Screen SharePlay via URLSetting Data CloningSNMPISM (Image Sticking Minimization) MethodControl ManagerCrestron Connected® (Network based control)Smart Energy SavingPM ModeWake on LANBeaconHDMI-CEC (Compatibility may differ by equipment)SI Server SettingwebRTCPro:Idiom |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power Supply | AC 100-240 V~, 50 / 60 Hz |
| Power Type | Built-In Power |
| Power Consumption (Typ. / Max.) | 30 W / 33 W |
| Power Consumption (Smart Energy Saving) | 15 W ± 5 % |
| Speaker | Yes (1 W x 2 ea) |
| Safety | CB / NRTL |
| EMC | FCC Class "A" / CE |
| ErP | Yes (EU Only) |
| ePEAT (US Only) | No |
| OPS Type Compatible | No |
| OPS Power Built In | No |
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign Control / Control+ |
| Signage365Care | Yes (The availability of the "Signage365Care" service differs by region.) |
| Brand | LG |
|---|---|
| Product Type | TV & Home Theatre > Digital Signage |
| Weight | 4.7 kg |
| Warranty |
|---|
