LG

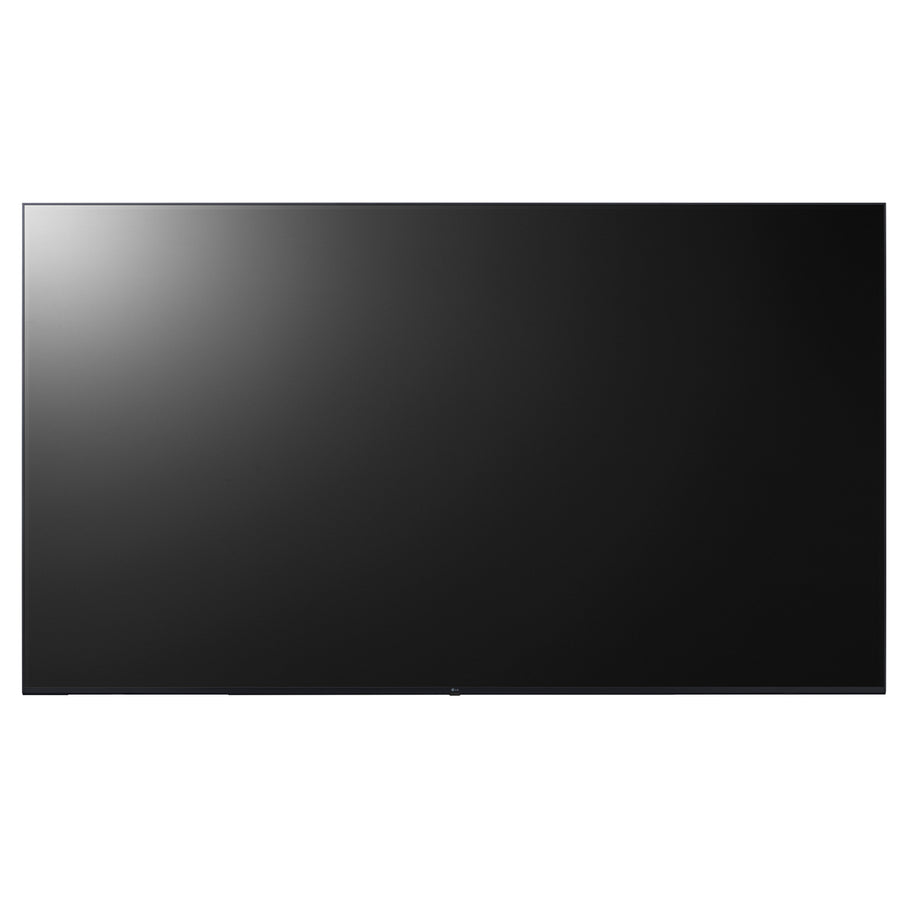

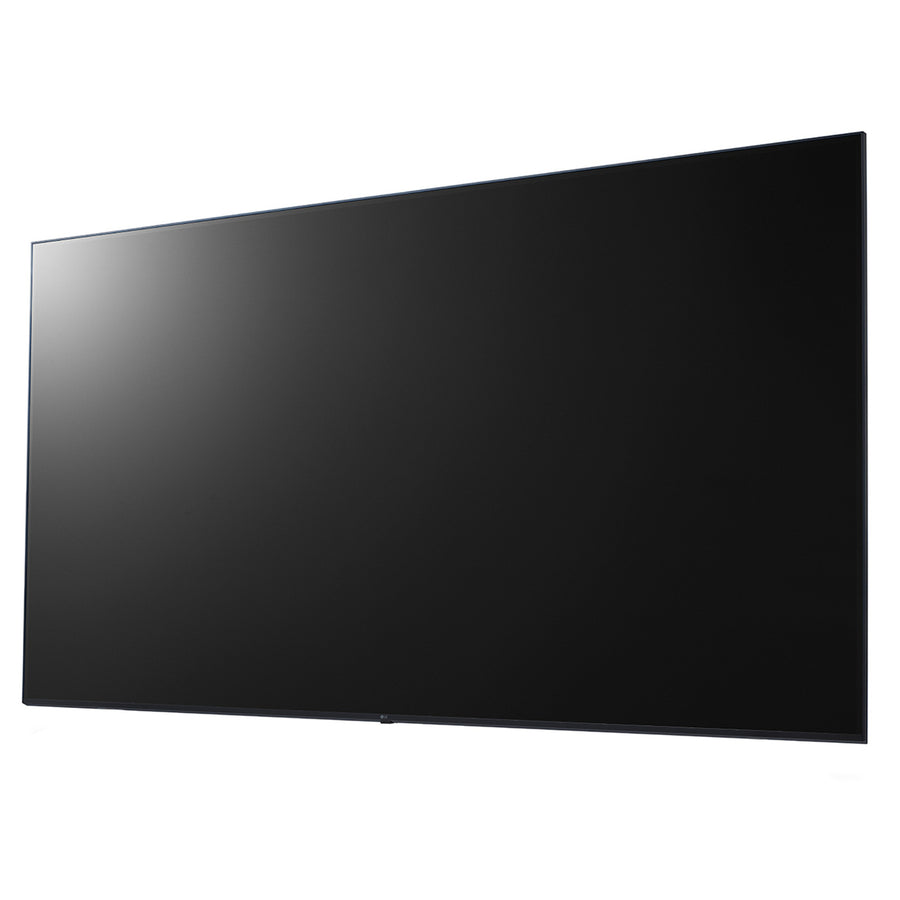

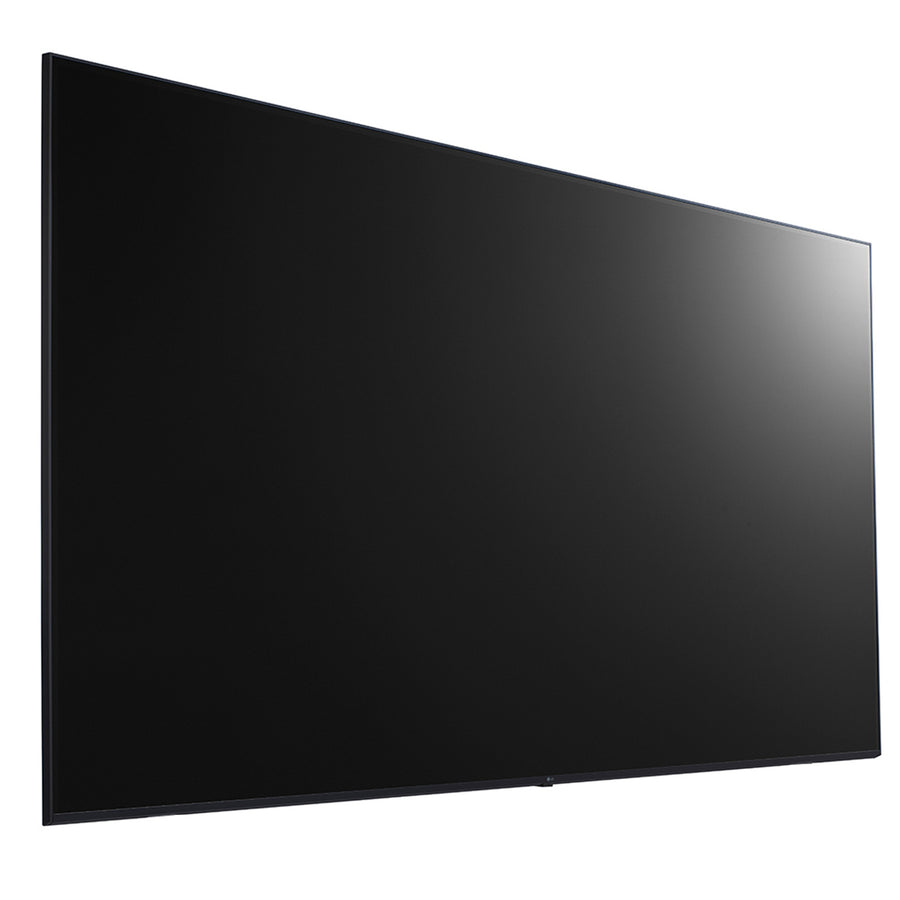

LG DIGITAL DISPLAY (UL3J) 86" UHD LED, 400NITS, HDMI, LAN, PORT/LAND, IP5x, 16H/7D, 3YR

SKU: 86UL3J-N ● In Stock
$7,023.62
Free shipping over $299 Genuine product 7-day returns
  • ✅ Brightness(Typ.) : 330 nits
  • ✅ Resolution : ULTRA HD (3,840 x 2,160)
  • ✅ webOS-based High Performance
  • ✅ Built-in Speaker
  • ✅ Compatible with LG's One:Quick Share
  • ✅ Compatible with AV Control Systems
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle provides clear contents.

Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.

Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

LG’s Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Compatible with AV Control Systems
The UL3J series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

Compatible with Video Conference System
For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control* for a smarter video conference.

Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

Technical Specifications

Panel type ADS
LED backlight Y
LED backlighting type Direct-LED
Display diagonal 86
Display technology LCD
Display resolution 3840 x 2160
Display brightness 330
HD type 4K Ultra HD
Touchscreen N
Native aspect ratio 16:9
Response time 8
Contrast ratio (typical) 1400:1
Contrast ratio (dynamic) 1000000:1
Viewing angle, horizontal 178
Viewing angle, vertical 178
Display number of colours 1.07 billion colours
Panel life 30000
Native refresh rate 120
Haze rate 1
RGB colour space DCI-P3
HDMI ports quantity 3
HDMI version 2.2/1.4
USB port Y
USB ports quantity 1
USB version 2.0
Ethernet LAN (RJ-45) ports 1
RS-232C Y
PC Audio out Y
Built-in speaker(s) Y
Product design Digital signage flat panel
Placement supported Indoor
Colour name Ashed Blue
Orientation Horizontal
Product colour Blue
Screen shape Flat screen
VESA mounting Y
Panel mounting interface 600 x 400
Purpose Commercial
Digital signal format system Not supported
On Screen Display (OSD) Y
Operating hours (hours/days) 16/7
HDCP Y
HDCP version 1.4/2.2
Power consumption (standby) 0.5
Power consumption (off) 0.5
Energy efficiency class (SDR) Not available
AC input voltage 100 - 240
AC input frequency 50/60
Heat dissipation 751
Internal memory 16
Operating system installed WebOS
Operating system version webOS 6.0
Display width 1927
Display depth 59.9
Display height 1104
Display weight 45200
Package width 2115
Package depth 228
Package height 1215
Package weight 57700
Remote control included Y
Batteries included Y
Cables included Power
Operating temperature (T-T) 0 - 40
Operating relative humidity (H-H) 10 - 80
Ambient light sensor Y
Ethernet LAN Y
Wi-Fi Y
Heat dissipation (max) 1024
Warranty period 2
Backlight type Direct LED
Built-in microphone N
Height adjustment N
Built-in camera N
