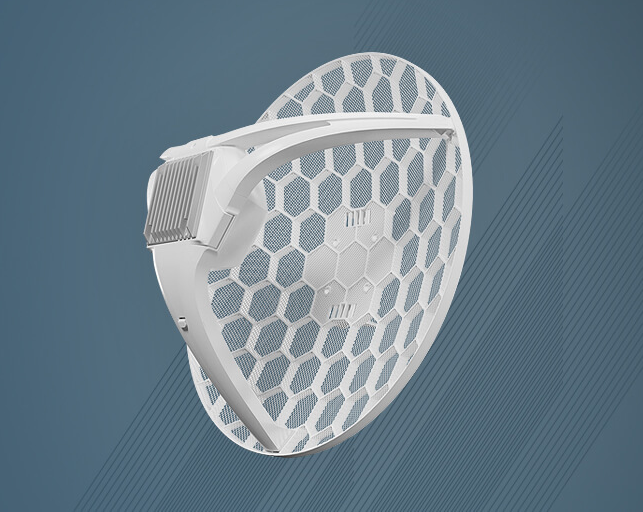

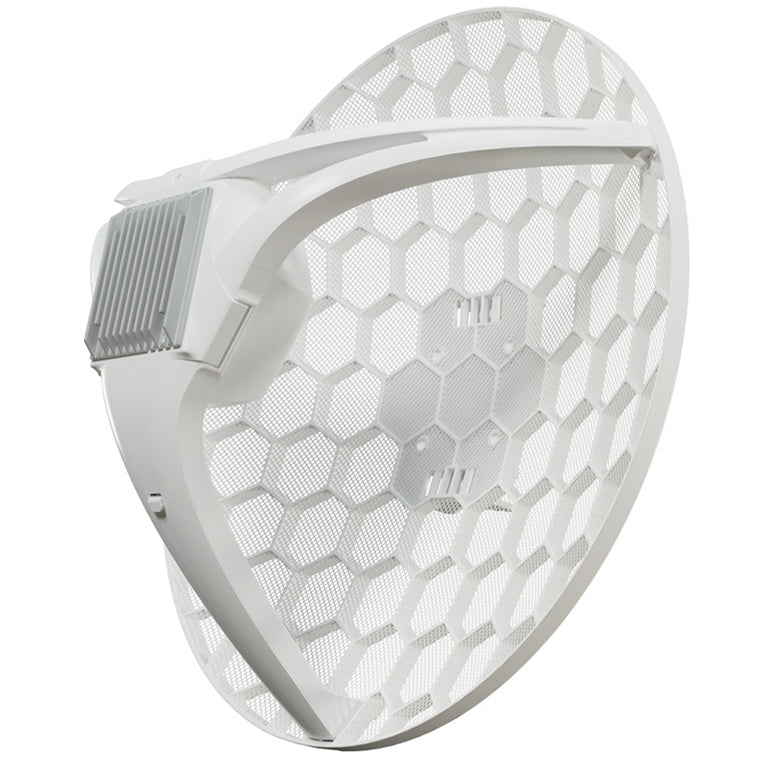

LHGGR&FG621-EA - MikroTik LHGG LTE6 4G/LTE Outdoor Cellular Modem with 17dBi Directional Antenna
LHGGR&FG621-EA - MikroTik LHGG LTE6 4G/LTE Outdoor Cellular Modem with 17dBi Directional Antenna
Features
MikroTik LHGG LTE6 4G/LTE Outdoor Cellular Modem with 17dBi Directional Antenna. The LHGG LTE6 kit steps in as your reliable last-mile-internet solution. Its large 17 dBi antenna and our latest Cat6 LTE modem with the ability to use multiple LTE bands at the same time ensure fast and reliable connectivity when all other options fail. Mount it on a pole, a mast, on your roof or any other tall structure - and always stay connected.
The sleek and unobtrusive weatherproof design has proven its resilience across various climate zones, enduring even the harshest winds effortlessly. This translates to significant time and cost savings on maintenance for you or your team.
The mighty high-gain antenna boasts broad support for a versatile range of LTE bands, spanning from 2.7 GHz to 700 MHz.
- LTE CAT6 300Mbps
- Gigabit Ethernet
- 17dBi 700MHz - 2.7GHz Antenna
- Outdoor Rated
Specifications
Technical Specifications
| CPU | Dual-core 88F3720 800 MHz |
|---|---|
| CPU architecture | ARM 64bit |
| Size of RAM | 256 MB |
| RAM type | DDR3L |
| Storage | 16 MB, Flash |
| Number of 1G Ethernet ports | 1 |
| MiniPCIe slots | 1 |
| SIM slots | 1 Micro SIM |
| LTE modem | R11eL-FG621-EA |
| TAC | 86335904 |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| RF connector type | uUFL |
| Antenna gain | 17 dBi |
| Dimensions | 391 x 391 x 227 mm |
| Operating system | RouterOS v7 only, License level 3 |
| Operating temperature | -40°C to +70°C |
