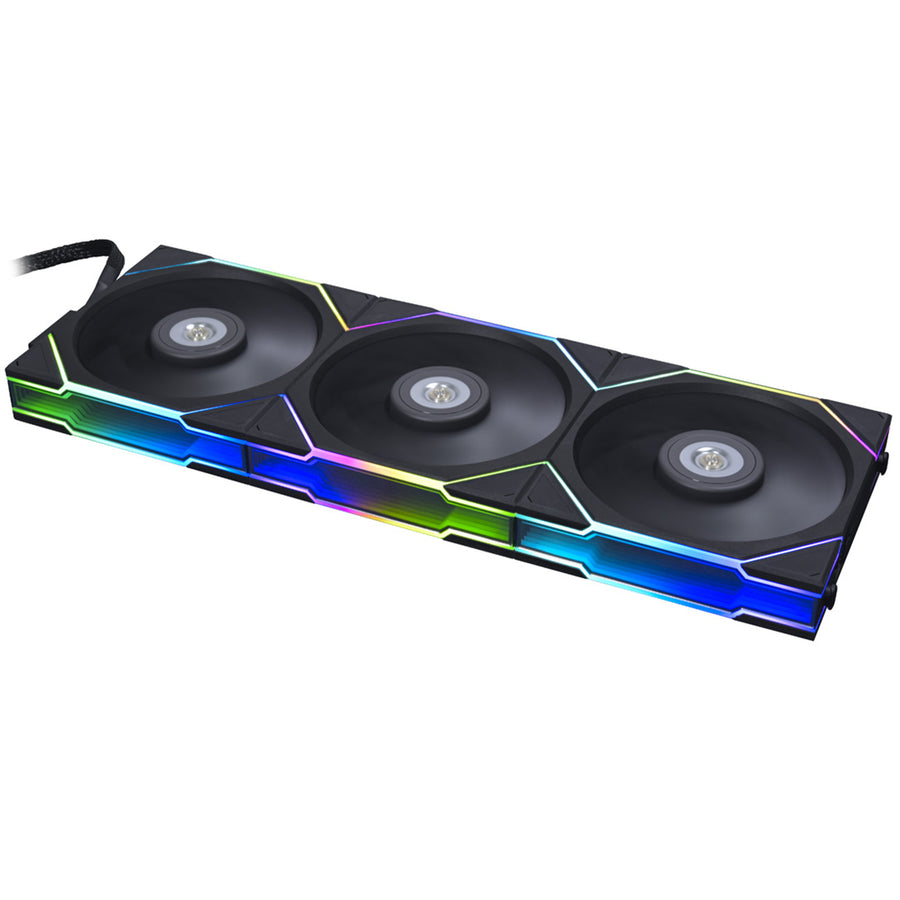

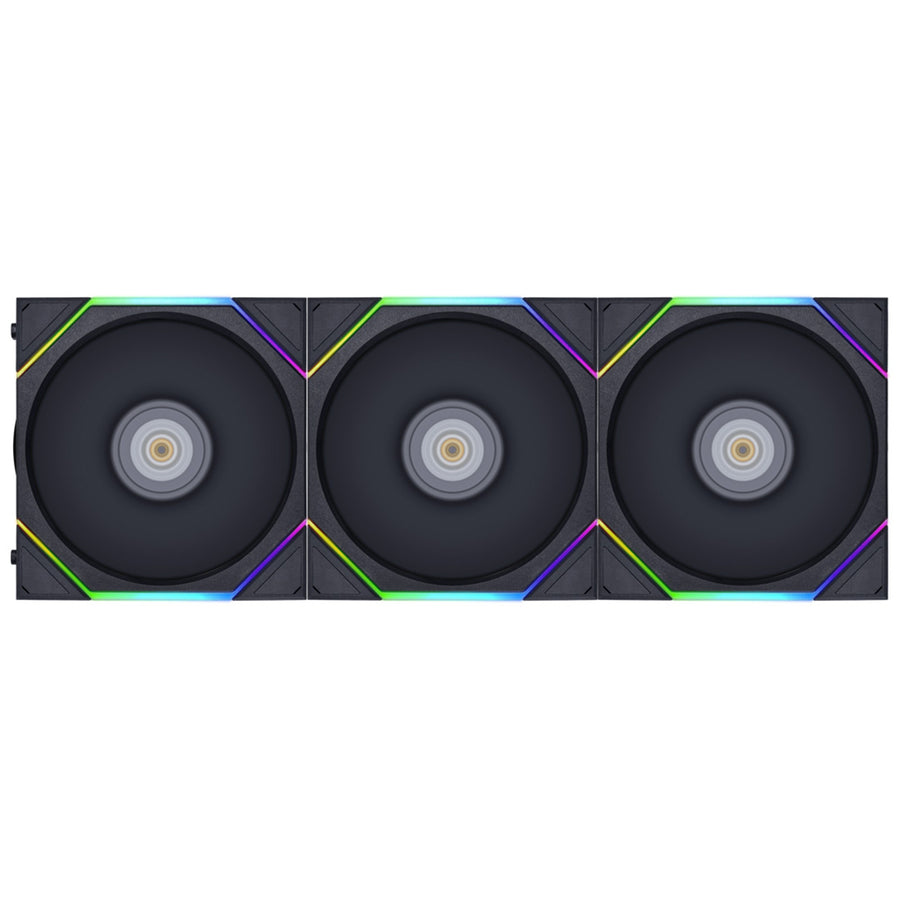

Lian Li UNI FAN TL120 Digital Addressable RGB 120 Fan, 3 Pack, Black

UNI FAN TL

NEXT GENERATION OF UNI FAN

Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level.

1 - Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism, securely holding the fans in place and ensuring a snug fit for easy configuration.

2 - Seamless Connection
Featuring both male and female ends, the cable can be connected to both sides of the fan, providing enhanced flexibility and ease of installation.
Note: To ensure the correct lighting effect direction, set the orientation in L-Connect 3 under Settings > Device.

3 - Well-Adapted for all Configuration
Besides the removing interlocking key, the TL fans includes connection covers the exposed connections at the end to prevent short circuits while improving compatibility.

4 - 10 fans in a Row and up to 16 fans
Enable connection of up to 10 fans to a controller port using the extension cable, which offers ability to create up to 4 clusters in a chain, with each cluster support a maximum of 4 fans for individual customization of fan RPM and lighting, allowing a truly personalized build setup such as having 3 fans on the top, 3 on the side, 3 on the bottom, and 1 on the rear.

5 - Power till the end

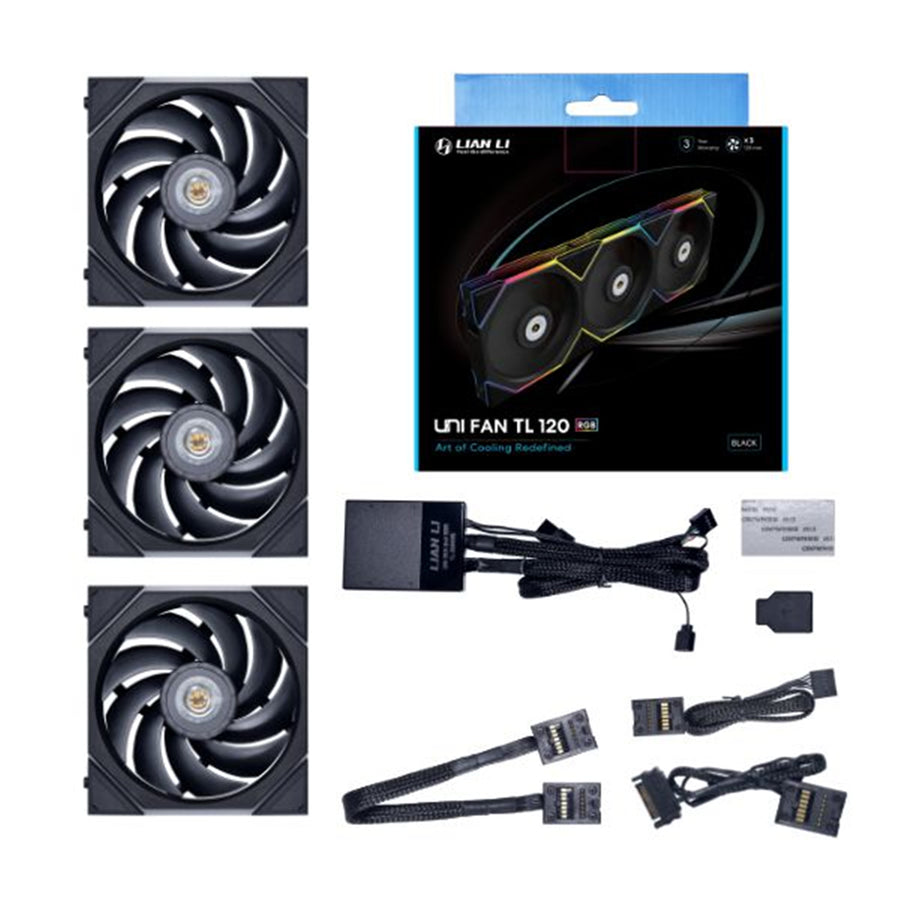

Offering an extra power adapter in triple pack to connect to SATA for consistent fan speed and LED color throughout.
Note: Use when daisy-chaining 6 fans in a row.

ENGINEERED MOTOR, STURDY STRUCTURE

UNI FAN TL is engineered for high performance with minimal friction and vibration, ensuring quiet operation even at high speeds.

1 - LIQUID-CRYSTAL POLYMER (LCP) FAN BLADE
Ensure tolerance for high-speed operation

2 - METAL BEARING SHELL
To securely hold the impeller to the shaft

3 - MAGNETIC FRAME
To provide extra support for fan blades

4 - STATOR
To provide a rotating magnetic field that generates momentum

5 - BRAZZ NUT
To Prevent oil leaks

6 - FLUID DYNAMIC BEARING (FDB)
To effectively reduce the internal friction for improved durability

7 - COPPER SHIELDING
To reinforce the shaft and ensure stability at high-speed operation

8 - THICKER FAN FRAME
28mm thick fan frame helps deliver more airflow and static pressure

9 - RUBBER PADS
To reduce vibrations and maintain extremely low noise levels

ULTIMATE COOLING

Crafted with LCP material, the UNI FAN TL has a larger 9-blade impeller, with tight clearance to the fan frame, which ensures efficient airflow while minimizing acoustic levels for cooling.

CUSTOMISABLE FAN SPEED

Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.

Note: The L-Connect 3 fan speed chart are the same for TL120 and TL120 Reverse, therefore the fan speed of TL120 Reverse reaches the maximum ceiling at approximately 80%.

COMBINATION OF PERFORMANCE AND AESTHETICS

Redefining the visual appeal of high-performance cooling, the UNI FAN TL fans integrate the elements of SL-INF and P28, ensuring a striking look without compromising on performance.

SOPHISTICATED CONTINUOUS RGB LIGHTING

Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.

DAZZLE WITH INFINITY MIRROR

Illuminate your setup with the UNI FAN TL's enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.

INDIVIDUAL LIGHTING EFFECTS

Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.

SMOOTH APPEARANCE

Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.

SEAMLESS SOFTWARE

L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.

Note: Please update firmware at Settings > Device for the first time use.

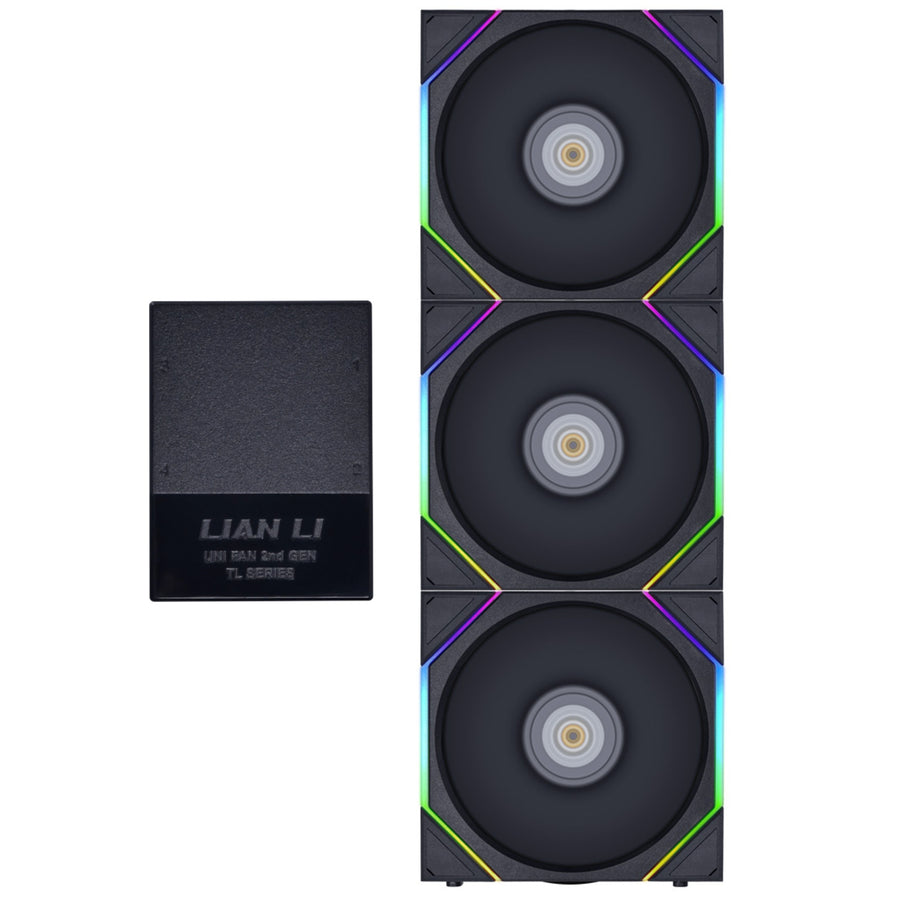

TWO FANS, ONE CONTROLLER

UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 6 TL LCD fans.

Note: TL and TL LCD share the same controller but use different controller cables. Do not mix the controller cables.

Fan Group Signal
Each port supports a maximum of 10 TL fans or 3 TL LCD fans
Note: The 1st port doesn't support TL LCD.

1 - Power PCIe Cable
Power up the connected fans

2 - USB Cable
Plug directly into a motherboard 9-pin USB header
Note: Do not use a splitter; plug directly for a stable signal

3 - 5V ARGB / 4 PIN PWM Cable
Required for motherboard sync function

Note: The controller is available separately or in a triple pack only. UNI FAN TL series fans without the controller will not be functional.
