LENKENG

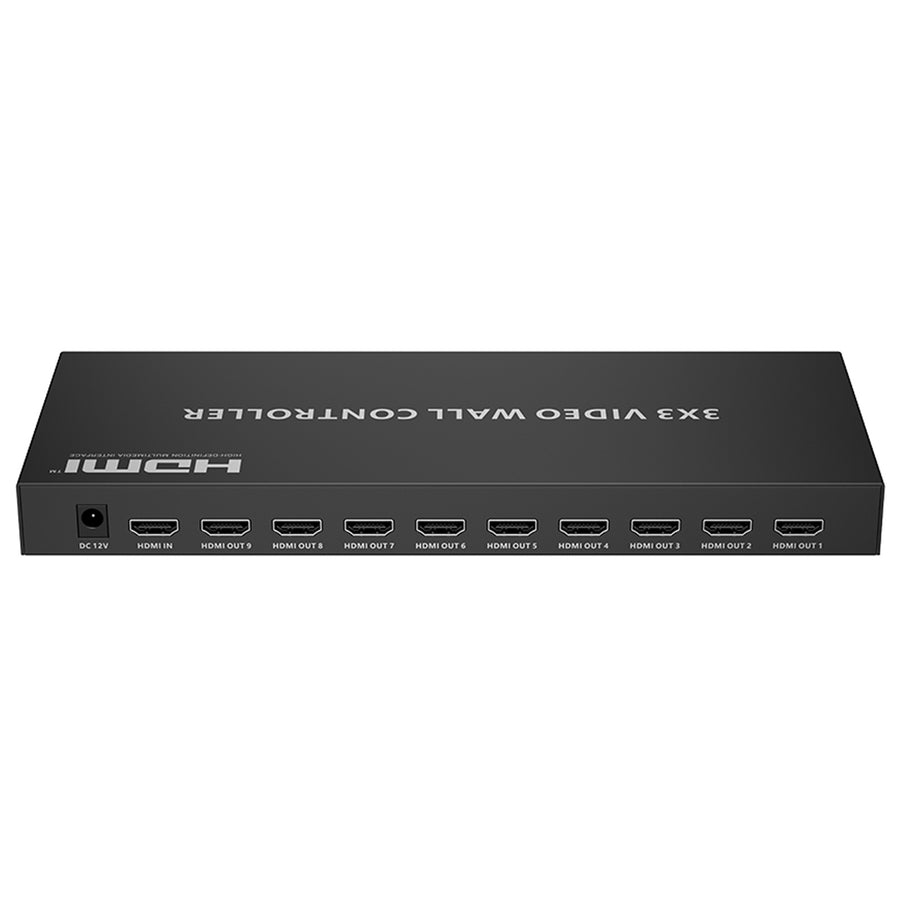

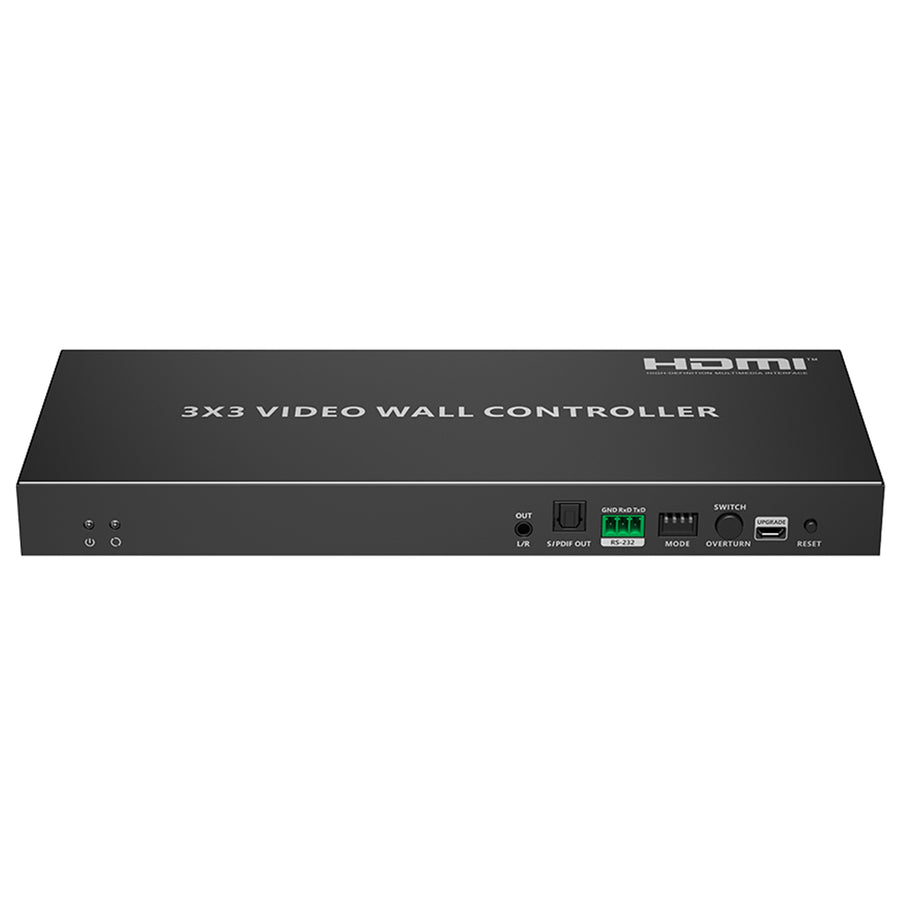

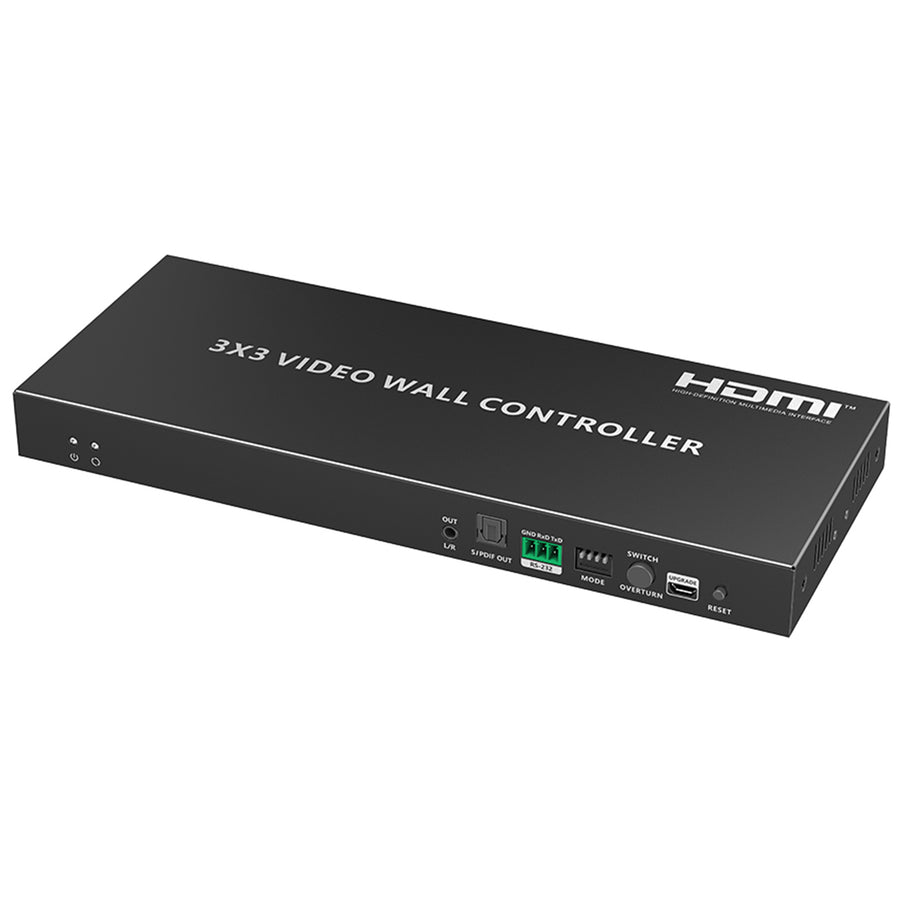

LENKENG LKV109VW-V2.0 3x3 HDMI Videowall Controller with 1x HDMI In & 9x HDMI Out. Up to 4096x2160 60Hz Res Input, Supports 1080P Output. RS-232 Control, 3.5mm L/R Channel and S/PDIF Audio Out, Plug & Play
$916.51
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
LENKENG 3x3 HDMI Videowall Controller with 1x HDMI In & 9x HDMI Out
This product is a 1-in-9-out video wall controller, supports one HDMI source input and nine HDMI outputs. Supports 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/ 3x3 splicing modes, which can be set by RS-232 or dip switch. Equipped with 3.5mm audio output,S/PDIF audio output,180-degree rotation of display image.The product can flexibly adapt to different installation requirements, which can be widely used in security monitoring, rail transit, broadcasting, smart cities, home theatre, training and other fields.
Specifications
Technical Specifications
| HDMI Input | 1x HDMI |
|---|---|
| HDMI Output | 9x HDMI |
| Compatibility | HDMI 2.0HDCP 1.4/HDCP 2.2 |
| Resolutions | Input: 4096x2160@ 24/25/30/50/60Hz, 3840x2160@ 24/25/30/50/60Hz, 3440x1440@ 60Hz, 2560x1600@ 60Hz, 2560x1440@ 60Hz, 2560x1080@ 60Hz, 2048x1536@ 60Hz,1920x1200@ 60Hz, 1080P@ 24/25/30/50/60HzOutput: 1080P@ 30/60Hz |
| 3.5mm Output | PCM |
| S/PDIF Output | PCM |
| HDMI Output | PCM |
| Mode | 1x1, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, 2x2, 2x3, 3x2, 2x4, 4x2 & 3x3 |
| RS-232 (GND/RxD/TxD) | Baud rate: 9600 |
| Working temperature | 20?~60? |
| Storage temperature | -30?~70? |
| Humidity | 0%~90%RH (No condensation) |
| Housing | Iron |
| Weight | 775g |
| Color | Black |
| Dimensions (LxWxH) | 265x105x25mm |
| Protection | ESD protection1a Contact discharge level 2 (±4KV)1b Air discharge level 3 (±8KV)Implementation of the standard: IEC61000-4-2Lightning protection, Surge protection |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals |
| Weight | 4.082 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
