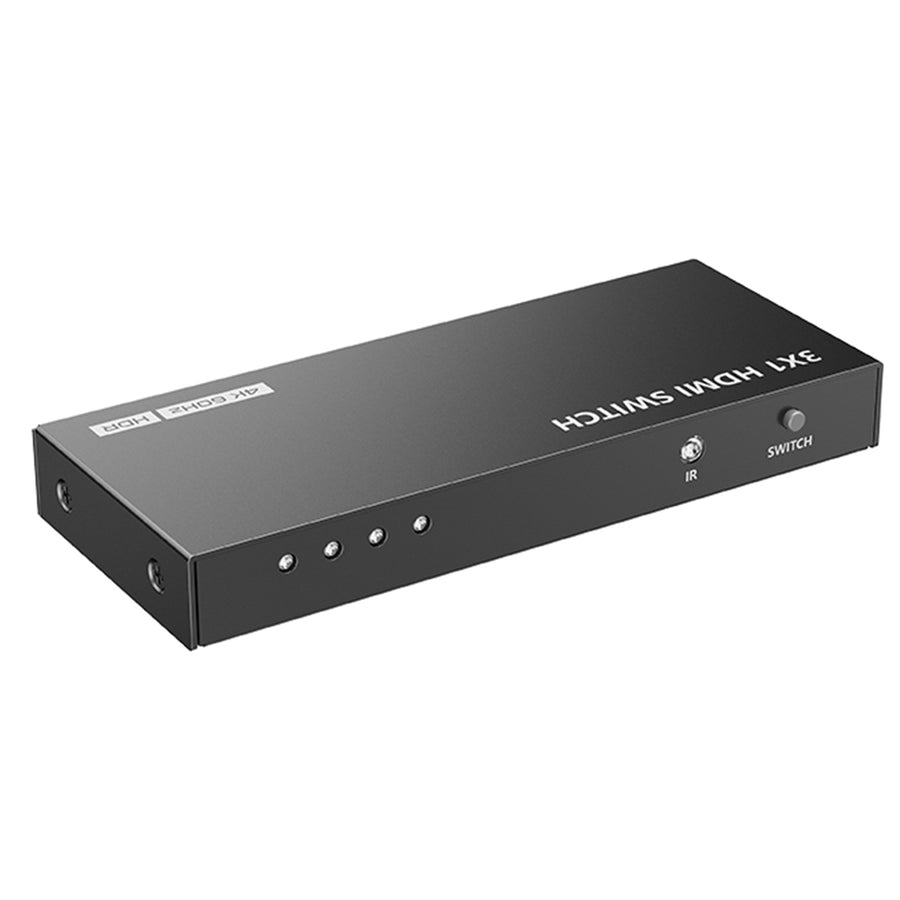

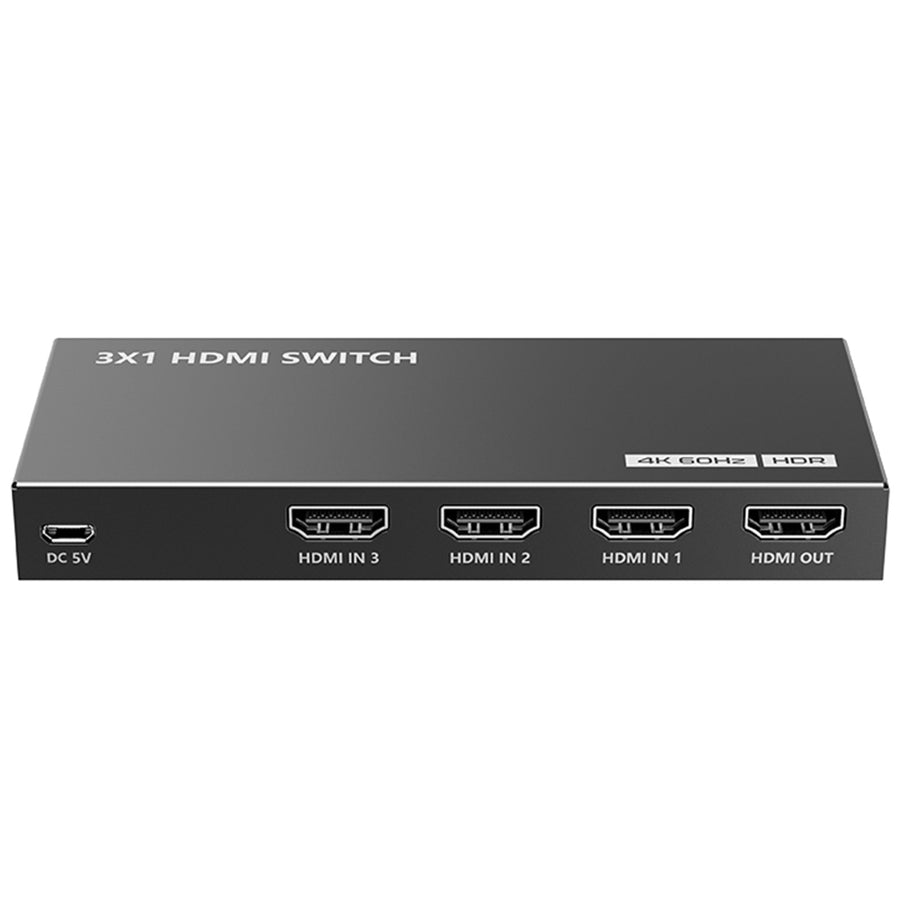

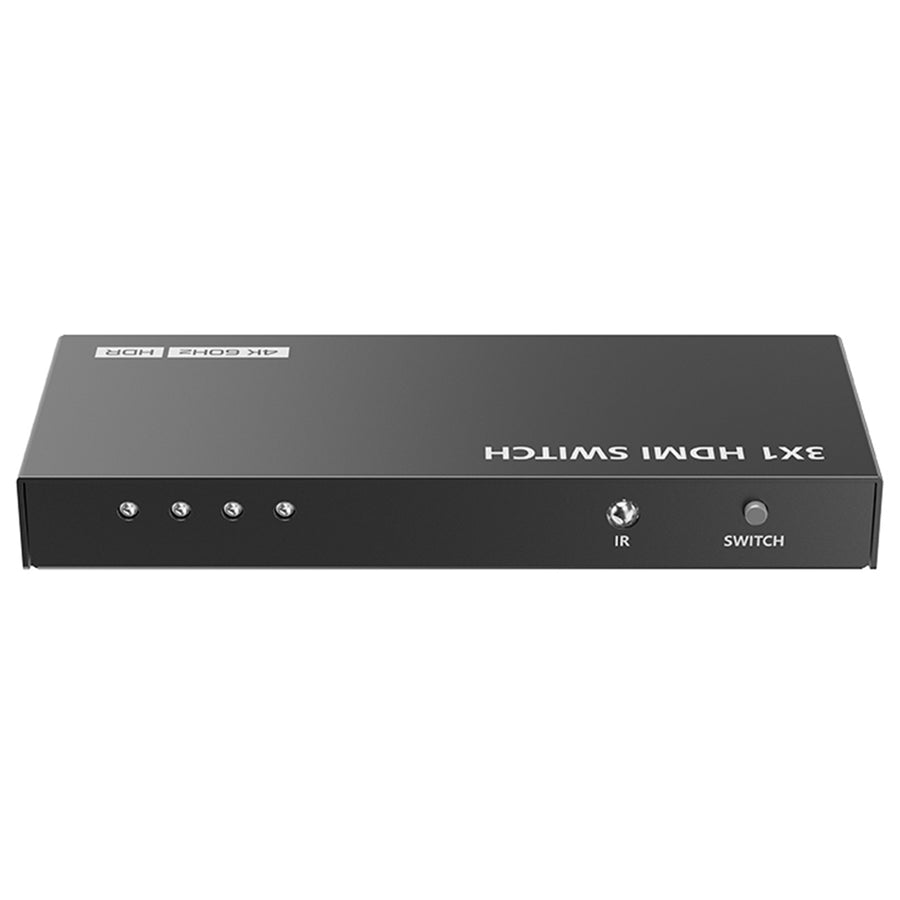

LENKENG LKV301HDR-V3-0 - 4K 3-In-1-out HDMI HDR Switch. Support 12 bit full HD video 3D video & 4K x 2K@30/60
Features
LENKENG 4K 3-In-1-out HDMI HDR Switch
This 3x1 switch routes from 3 different sources at a resolution of up to 4K@60Hz UHD to a single display. The switch has 3 HDMI inputs, which makes this unit ideal for simultaneous connection of multiple HDMI devices. In addition, this switch supports IR control, thus it is easy and flexible to control the input signal as you need. It is perfect for security systems, medium entertainment, conference exhibition centre and digital monitoring system, etc.
- Switch easily among any 3x HDMI sources
- Support resolution up to Ultra HD 4K@60Hz
- Supports highest bandwidth of up to 18Gpbs
- Support HDR
- Support HDMI 3D
- Support IR control
- Plug-and-play, easy to use Power-off memory
Specifications
Technical Specifications
| Input ports | 3x HDMI |
|---|---|
| Output ports | 1x HDMI |
| Power indicator led | 1x LED |
| Signal indicator led | 3x LED |
| HDMI version | Compatible with HDMI 1.4, HDMI 2.0 |
| HDCP version | Compatible with HDCP 1.4, HDCP 2.2 |
| Video format supported | Support 12 bit full HD video, 3D video and 4K@ 30/60Hz ultra HD video |
| I/O TMDS signal | 0.7~1.2V p-p |
| I/O DDC signal | 5V p-p |
| Audio format supported | Support standard audio and DSD (Direct Stream Digital) and HD (HBR) audio |
| HDMI resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1920x1200, 3840x 2160@ 24/25/30/50/60Hz, 4096x2160@ 24/25/30/50/60Hz |
| HDMI length | 4K@ 60Hz HDMI input length =2m, HDMI output length =3m 1080p@ 60Hz HDMI input length =5m, HDMI output length =5m |
| HDR | Yes |
| Working temperature | 0°C~60°C |
| Power supply | DC 5V, 500mA |
| Power consumption | <2.5W |
| Dimension | 130(L) x 54(W) x 16.5(H) mm |
| Weight | 170g |
| Color | Black |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > KVM Switch/Extenders |
| Weight | 4.789 kg |
| Warranty |
|---|
