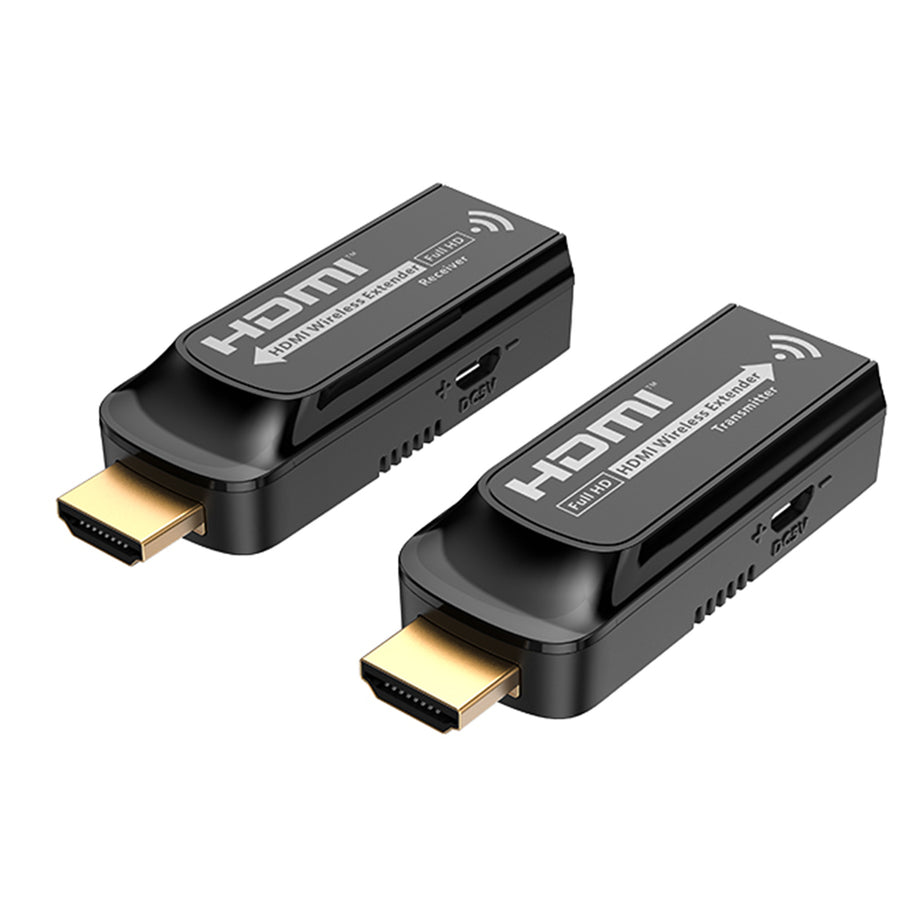

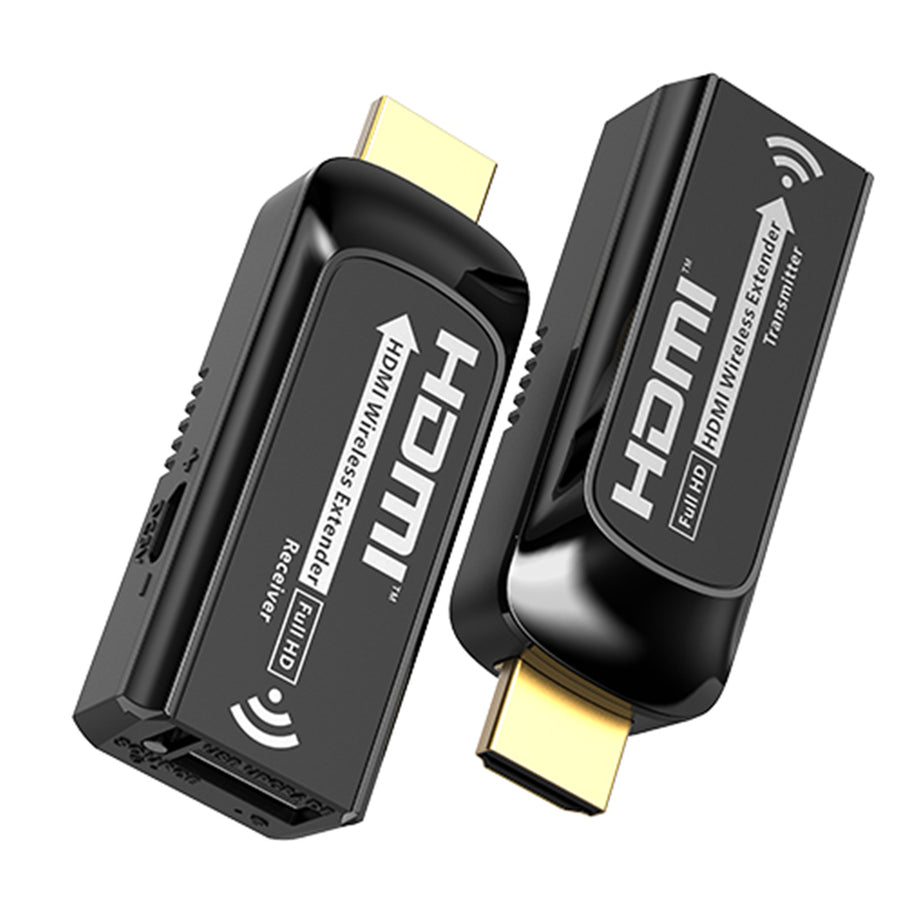

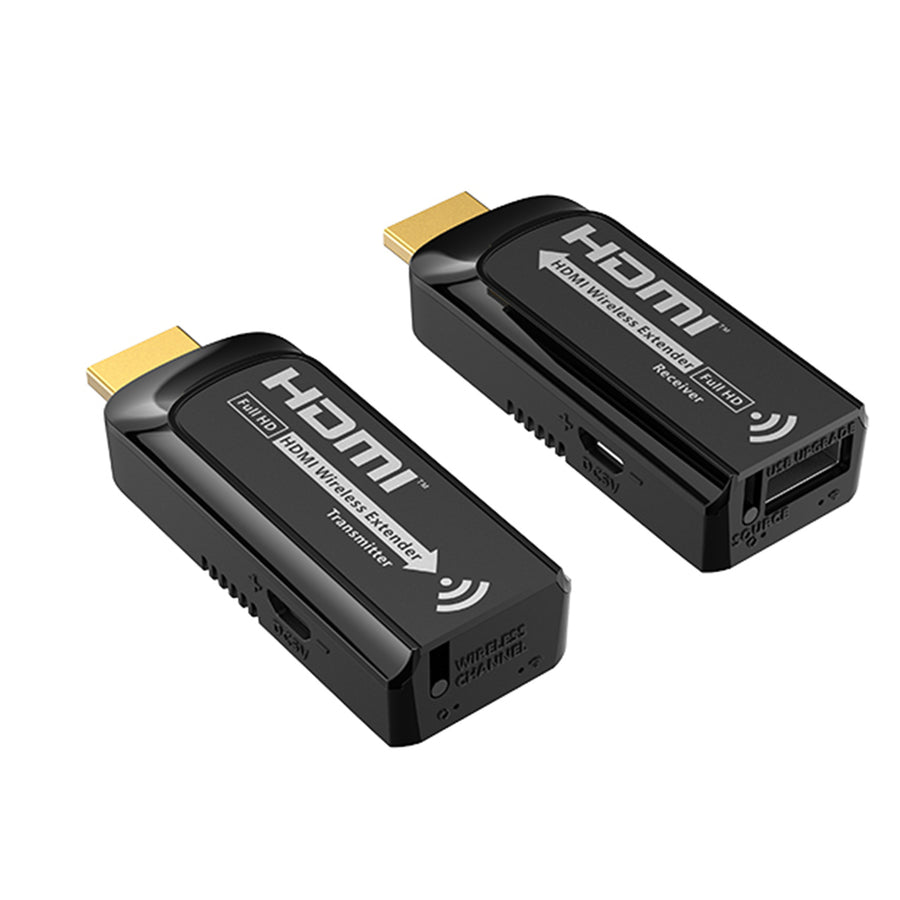

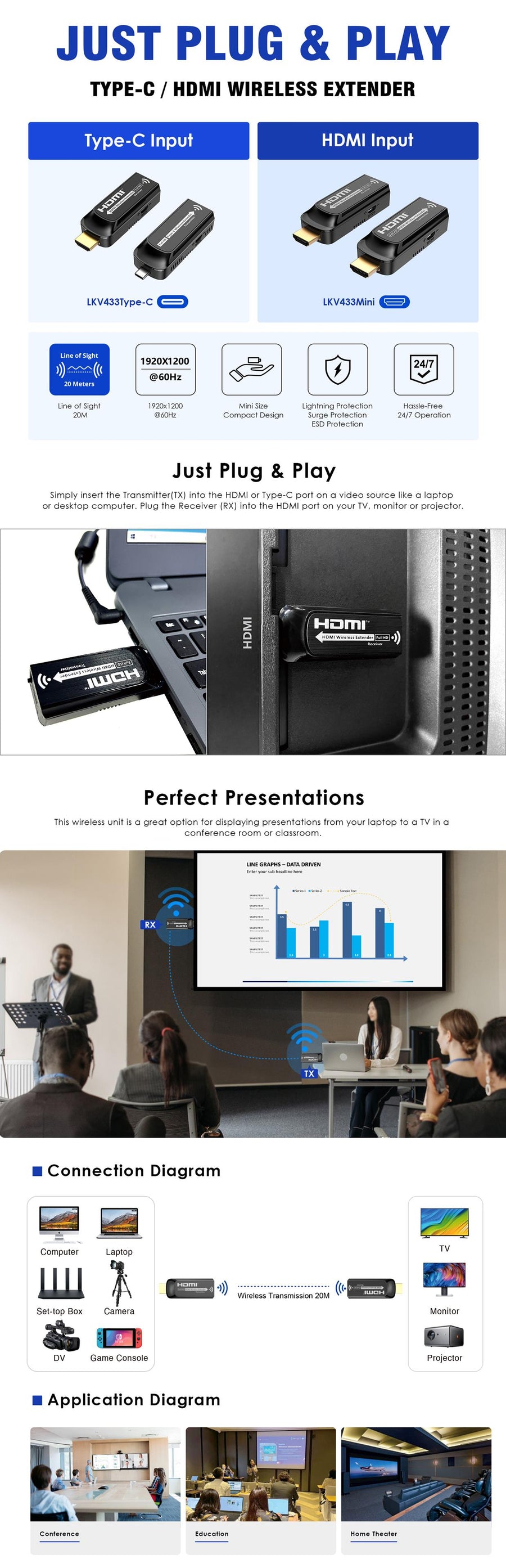

LENKENG LKV433MINI - FHD Mini Wireless HDMI to HDMI Extender up to 20m. Supports up to 1920x1200@60H
Features
The LKV433MINI is a Full HD wireless HDMI extender set, featuring a transmitter and receiver for seamless point-to-point transmission. It delivers high-definition, low-latency video over the 5G wireless frequency band, ensuring stable performance with strong anti-interference and secure signal transmission.
Supporting distances of up to 20 meters (line of sight), the LKV433MINI is the perfect solution for eliminating messy cabling in setups such as video conferencing, home entertainment, and multimedia classrooms.
- High definition and low-latency transmission.
- Supports up to 1920x1200 @ 60Hz resolution, backwards compatible.
- Supports wireless transmission up to 20 meters (line of sight).
- In case of multiple sets of products in the same area, supports SSID pairing and channel switching to avoid interference.
- Supports 5G wireless frequency bands, anti-interference.
- Supports firmware upgrade via Micro USB port.
- Portable design, plug and play.
- Supports stable 24/7 operation.
Specifications
Technical Specifications
| Voltage/Current | Micro USB power supply (5V/1A) |
|---|---|
| Power consumption | TX < 4.5W, RX < 4.5W |
| HDMI version | HDMI 1.3 |
| HDCP version | HDCP 1.4 |
| Resolution supported | 1080P @ 50/60Hz, 720P @ 50/60Hz, 1920x1200 @ 60Hz |
| Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| Wi-Fi Frequency bands | 5.18-5.24 GHz |
| Transmission distance | = 20m |
| Latency | 80~170ms |
| Connection types | One to one |
| SSID pairing | Supported |
| ESD protection | 1a Contact discharge level 31b Air discharge level 3Standard: IEC61000-4-2 |
| Working temperature | -20~50°C |
| Storage temperature | -30~70°C |
| Humidity (no condensation) | 0~90% RH |
| Dimension | TX: 71.4 (L) x 26.0 (W) x 11.1 (H) mm |
| Color | Black |
| Material | ABS |
| Net weight | TX: 18g; RX: 20g |
| Brand | LENKENG |
|---|---|
| Product Type | TV & Home Theatre > AV Extenders |
| Weight | 3.628 kg |
| Warranty |
|---|
