LENKENG
LENKENG LKV582 - 4K HDMI Extender Over 1G IP CAT5e/6/6A/7 Network Cable. Supports Res up to 4K@60Hz.
$373.90
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features

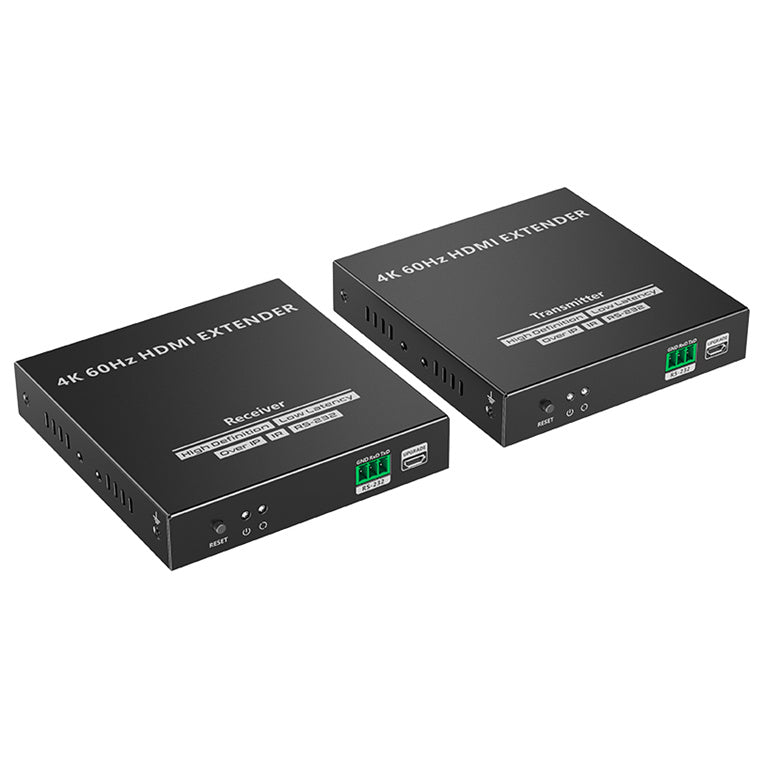

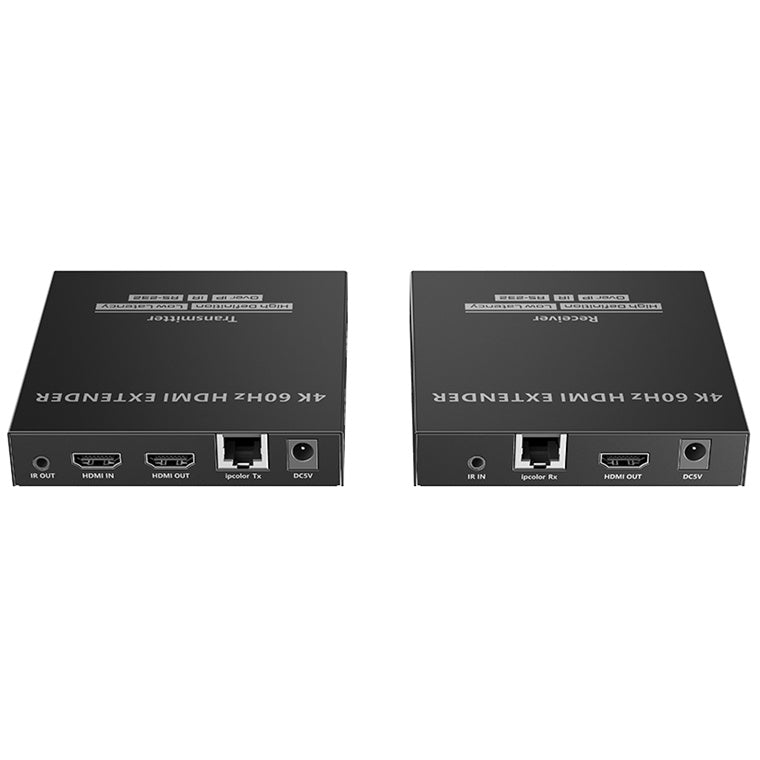

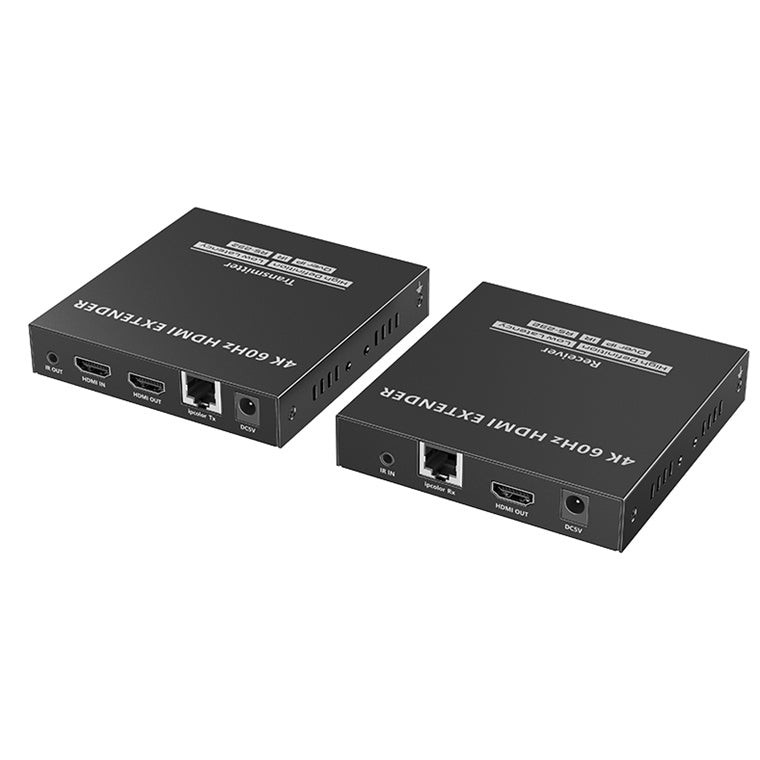

This product is a 4K @ 60Hz HDMI™ extender kit consisting of a transmitter and a receiver, using ipcolor STREAM technology for high-definition, low-latency transmission. The 4K @ 60Hz HDMI™ signal can be extended up to 120m via Category 6 and above network cables, supporting one-to-one connection, one-to-many connections via gigabit switch, or switch cascades. It also supports HDMI™ loop out, IR passback, and RS-232 passthrough functions, and can be widely used in meetings, home entertainment, educational presentations, and other fields.
Specifications
Technical Specifications
| HDMI length | <= 5m |
|---|---|
| Maximum transfer rate | 18Gbps |
| Compatibility | HDMI 2.0HDCP 1.4/HDCP 2.2 |
| Resolutions | 3840x2160 @ 24/30/50/60Hz, 1080p @ 50/60Hz, 720p @ 50/60Hz, 1920x1200 @ 60Hz, 2560x1440 @ 60Hz, 2560x1600 @ 60Hz |

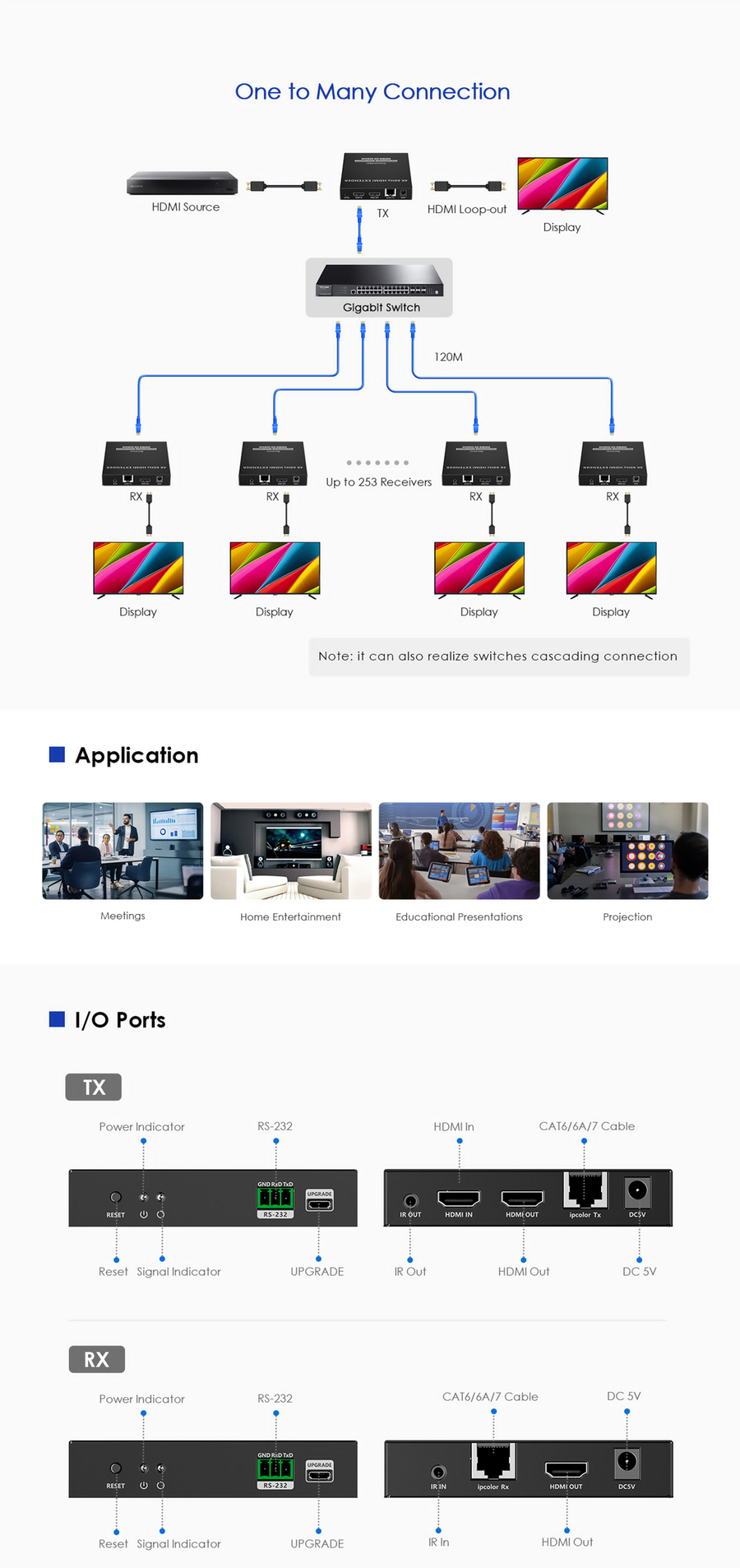

| Connection types | One-to-one connectionOne-to-many connectionSwitch cascading |
| Transmission distance | Cat6/6A/7=120m |
| Transmission latency | 70~180ms |
| IR receiving range | <= 5m |
| IR frequency | 20kHz~60kHz |
| RS-232 (GND/RXD/TXD) | Default baud rate: 115200Supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Power Supply | DC 5V/1A |
| Power Consumption | TX <= 4.5WRX <= 2.5W |
| Working temperature | -20°C~60°C |
| Storage temperature | 30°C~70°C |
| Humidity | 0~90%RH (no condensation) |
| Housing | Iron |
| Weight | TX: 254gRX: 242g |
| Colour | Black |
| Dimensions | 106.0(L)*103.0(W)*20.6(H) mm |
| Protection | ESD protection1a Contact discharge level 2 (±4KV)1b Air discharge level 3 (±8KV)Implementation of the standard: IEC61000-4-2Lightning protection, Surge protection |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 4.082 kg |
| Warranty |
|---|
