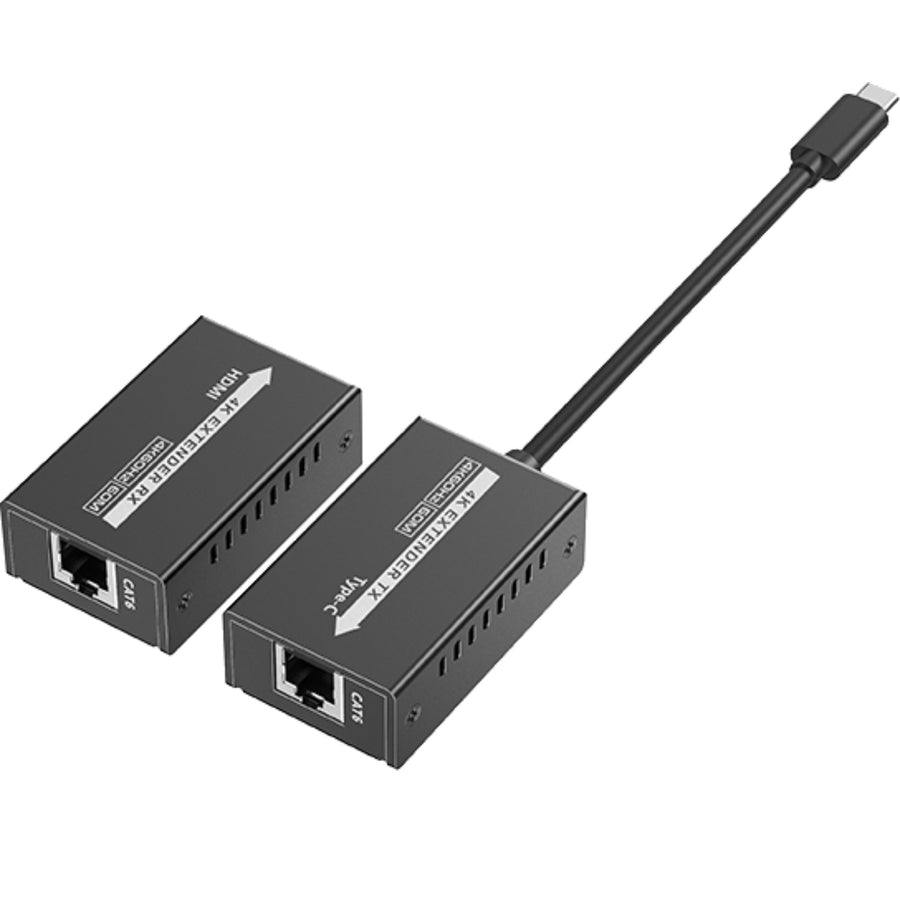

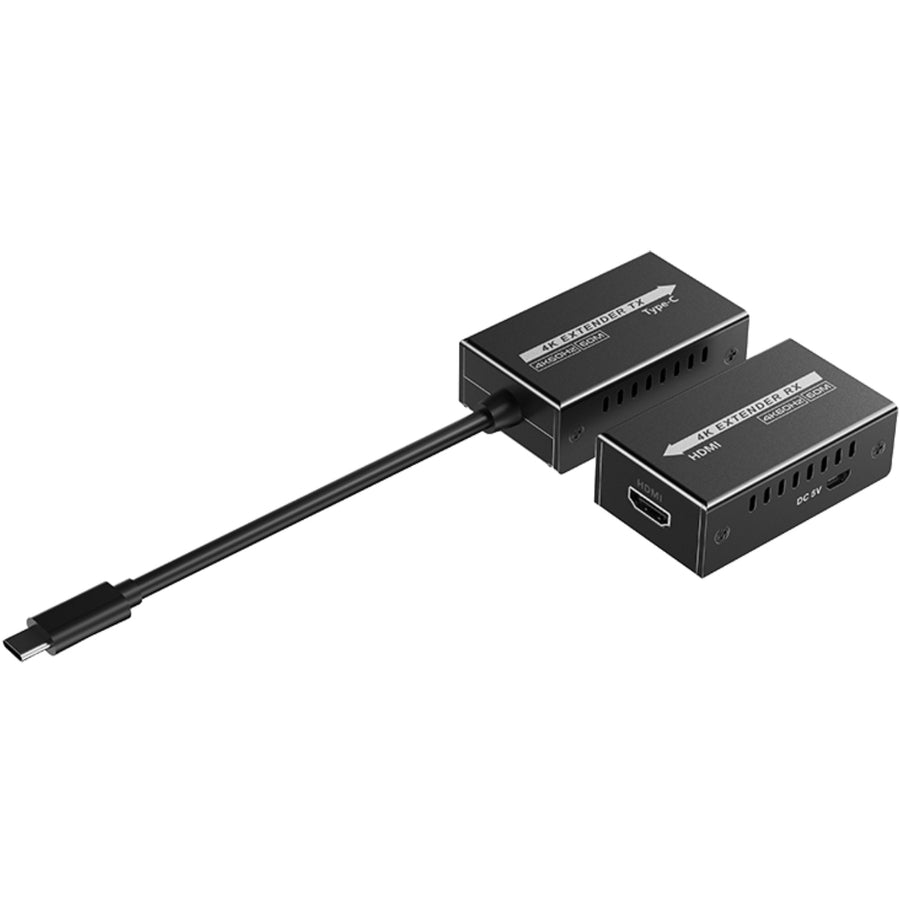

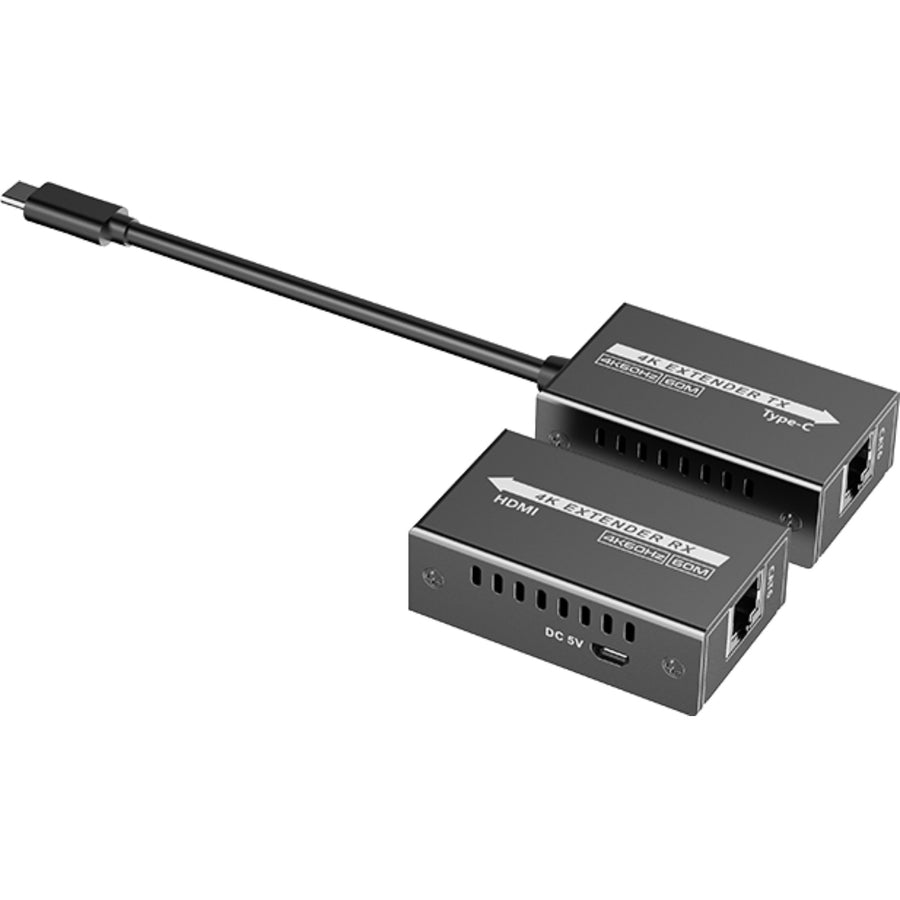

LENKENG LKV600TH-L - USB-C to HDMI Extender Includes both Tx & Rx Units. Supports Res up to 4K@144Hz.

LENKENG LKV600TH-L - USB-C to HDMI Extender Includes both Tx & Rx Units. Supports Res up to 4K@144Hz.

Name: LENKENG LKV600TH-L - B2B - Commercial Displays & AV | KW Tech NZ
Brand: LENKENG
SKU: LKV600TH-L
Price: 238.99 NZD
Availability: InStock

SKU: LKV600TH-L ● In Stock

$207.82

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

Specifications

Technical Specifications

Voltage	TX: Power by the signal sourceRX: DC 5V500mA
Power consumption	TX < 3W, RX < 3W
HDMI version	HDMI 2.0
HDCP version	HDCP 2.2, HDCP 1.4
Max transmission rate	18Gbps
Resolution	1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 1920x1200, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 24/25/30/50/60/,120Hz, 2560x1440 @ 50/60/120/144Hz, 3840x2160 @ 24/25/30/50/60/100/120Hz, 4096x2160 @ 24/25/30/50/60Hz
TMDS signal	0.7~1.2Vp-p (TMDS)
DDC signal	5Vp-p (TTL)
CAT6/6A/7 Transmission distance	4K @ 60Hz=60m2560x1440 @ 120/144Hz =30m4K @ 100/120Hz=25m
Audio formats	PCM, DTS, Dolby
HDR10	Supported
HDMI 3D	Supported
EDID passthrough	Supported, auto downscaling
Working temperature	-20~55?
Storage temperature	-30~60?
Humidity	0~90%RH (no condensation)
Material	ABS
Colour	Black
Dimension	67 (L) x 38 (W) x 21 (H) mm
Weight	TX: 85g ,RX: 72g
ESD protection	1a Contact discharge level 2 (±4KV)1b Air discharge level 3 (±8KV)Implementation of the standard: IEC61000-4-2

Warranty	12 months

Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
