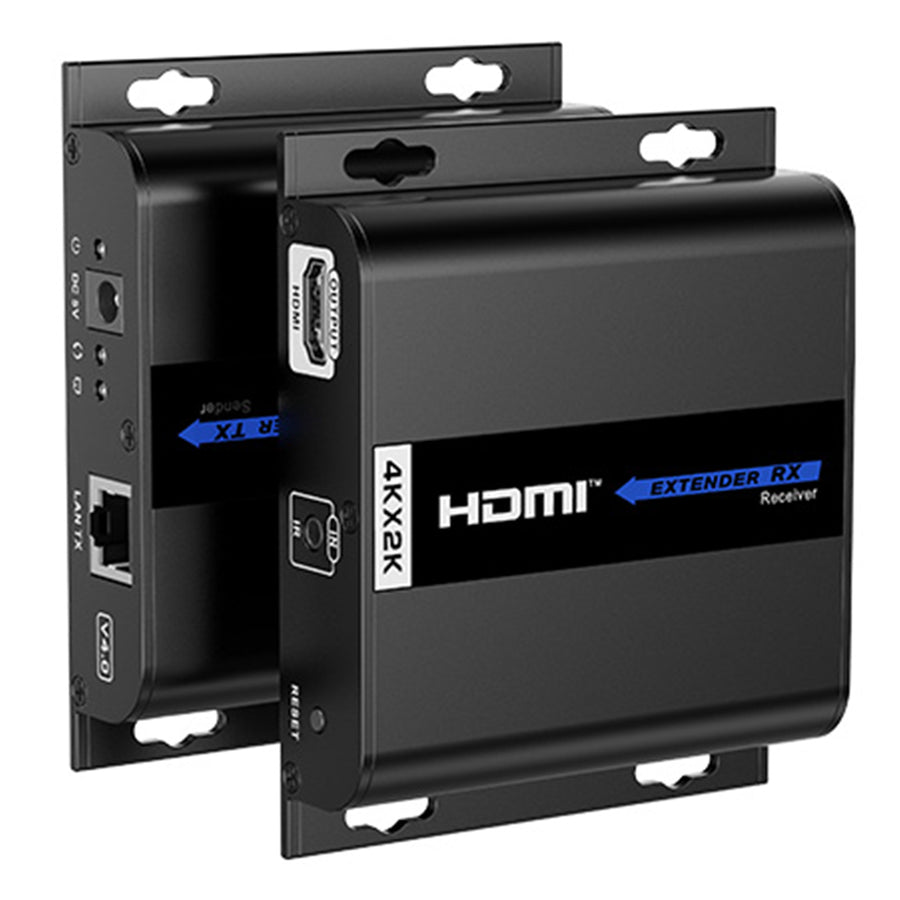

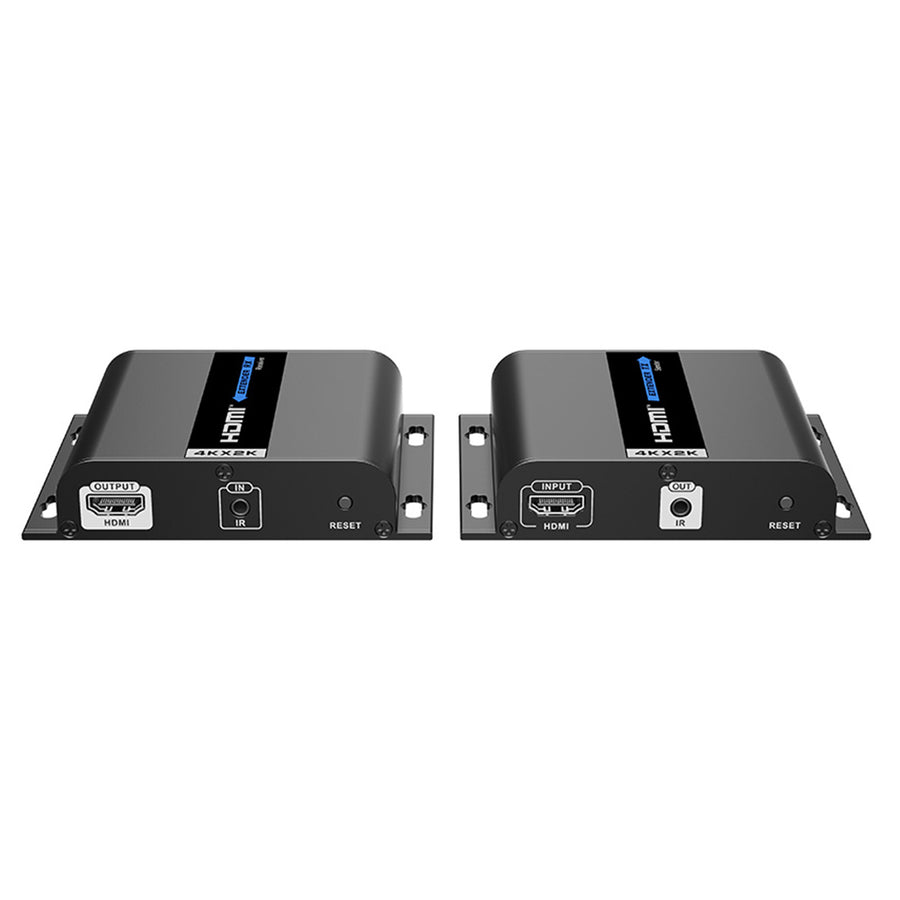

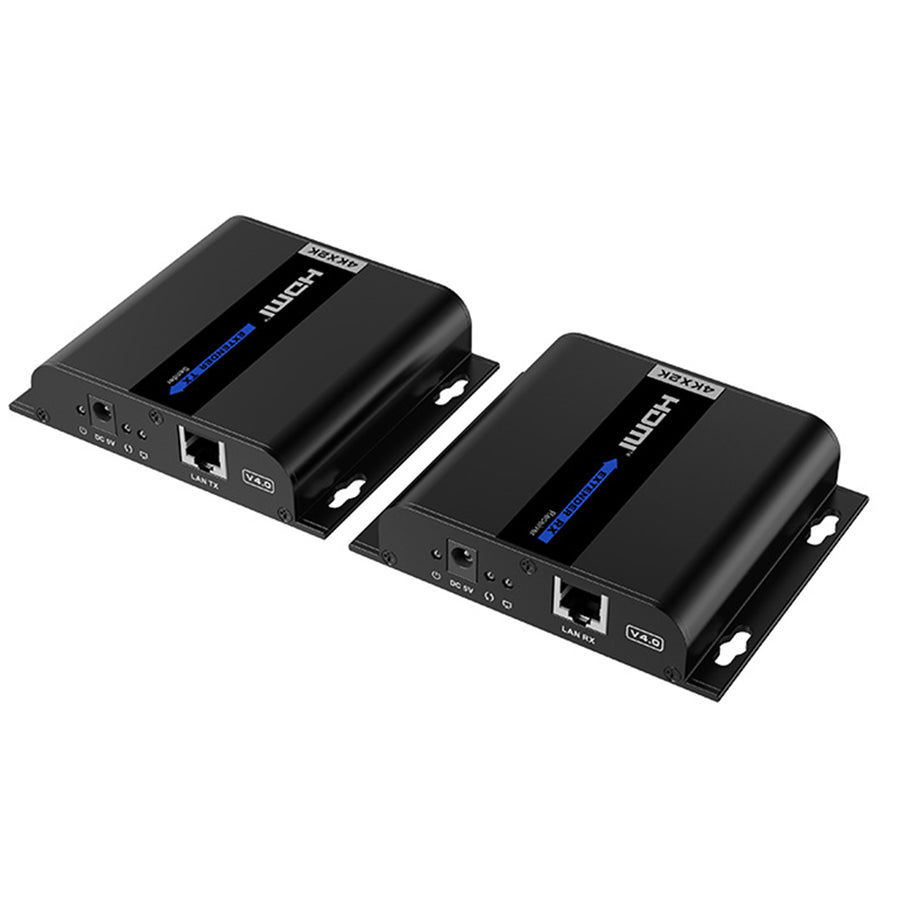

LENKENG 4K2K HDMI Extender Over Single CAT5/5e/6 Cable. Supports Res up to 4Kx2K 30Hz. One-Way IRPass-Through. One to Many Connection. Transmit up to 120m. Receiver unit only
Features
HDMI extender, extend your HDMI video/audio with the resolution of 4K×2K@30Hz up to 120m(394 feet) via CAT6 network cable. Supports IR passback, to control media playback of the signal source device at the display location.
4kx2k @ 30Hz
Support 4kx2k@30Hz video transmission, the image can be more clear,higher saturation and showed more outstanding details.
Upgrading technology, lower latency
Adopt new upgraded transmission technology, with lower transmission dela and better compatibility with display source, signal source and transmission cable.
120m Transmission
Converting HDMI audio and video signals into standard network signals, and the longest transmission distance can reach 120 meters.
IR passback
The receiving end can return 20-60KHz infrared radio frequency signals to the transmitting end , and the remote controller of the signal source can be used to remotely switch content, switch machine and etc.
Multiple Protection
Adopted multiple protections like ESD protection, surge protection, lightning protection to make products safer and more reliable
Specifications
Technical Specifications
| HDMI compliance | HDMI1.4 |
|---|---|
| HDCP compliance | HDCP1.4 |
| Video support | 480i @ 60Hz,480p @ 60Hz,576i @ 50Hz,576p @ 50Hz, 720p @ 50/60Hz,1080i @ 50/60Hz,1080p @ 50/60Hz, 4K @ 24/25/30Hz |
| Network Cable | UTP/STP CAT5E/6 |
| Transmission distance | Up to 120m transmission distance for4K@30Hz, full HD over single CAT6 |
| Input DDC signal | Supports 20~60KHz IR devices |
| Colour | Black |
| Dimensions (L×W×H mm) | 107.3 (W) ×94 (D) × 23.7 (H) mm 2pcs |
| Net weight | TX: 170gRX: 167g |
| Power supply | 5V/2A |
| Power consumption | 6W,4W |
| Operation temperature | 0°C~60°C |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals |
| Weight | 4.308 kg |
| Warranty |
|---|
