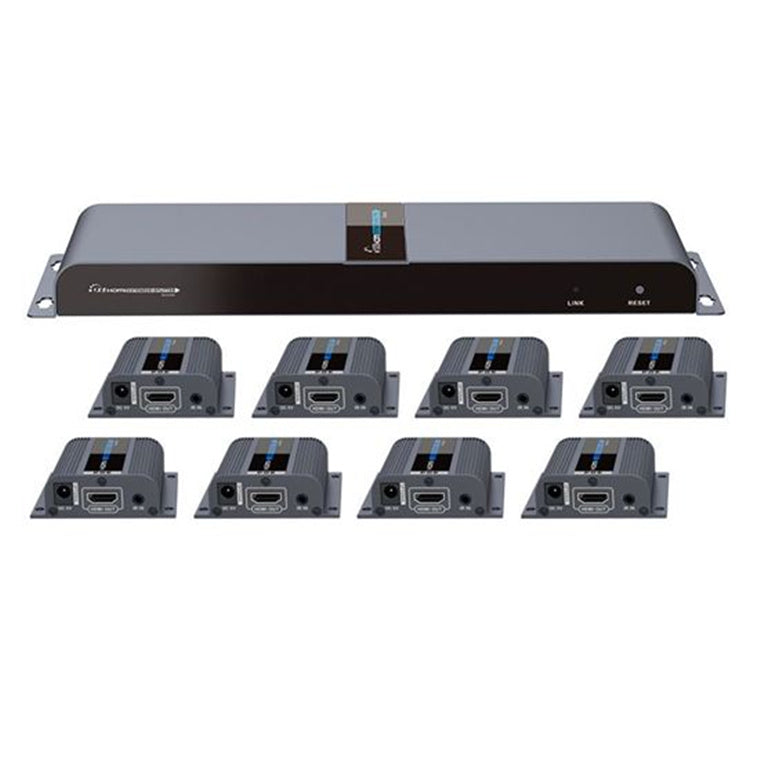

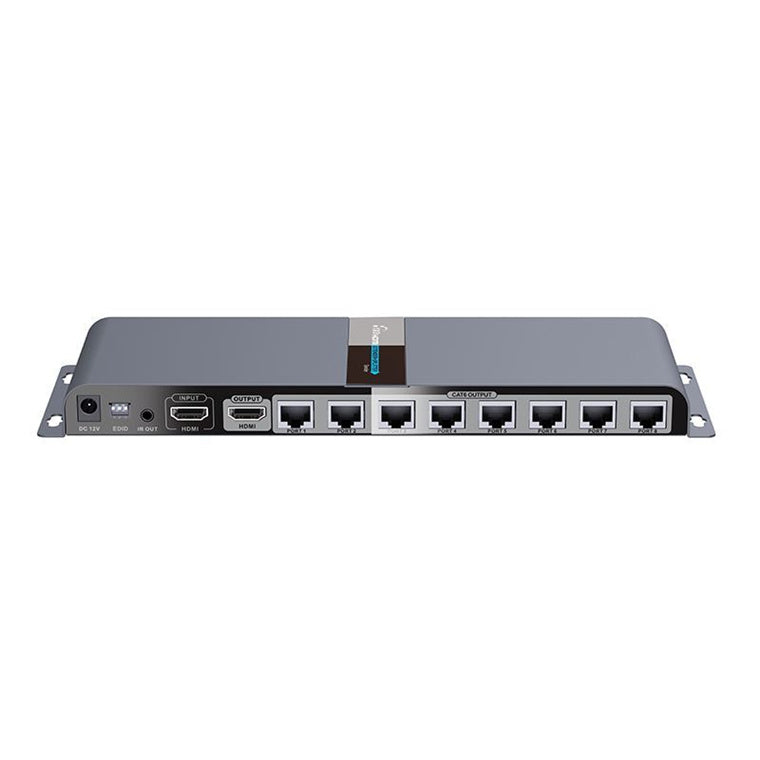

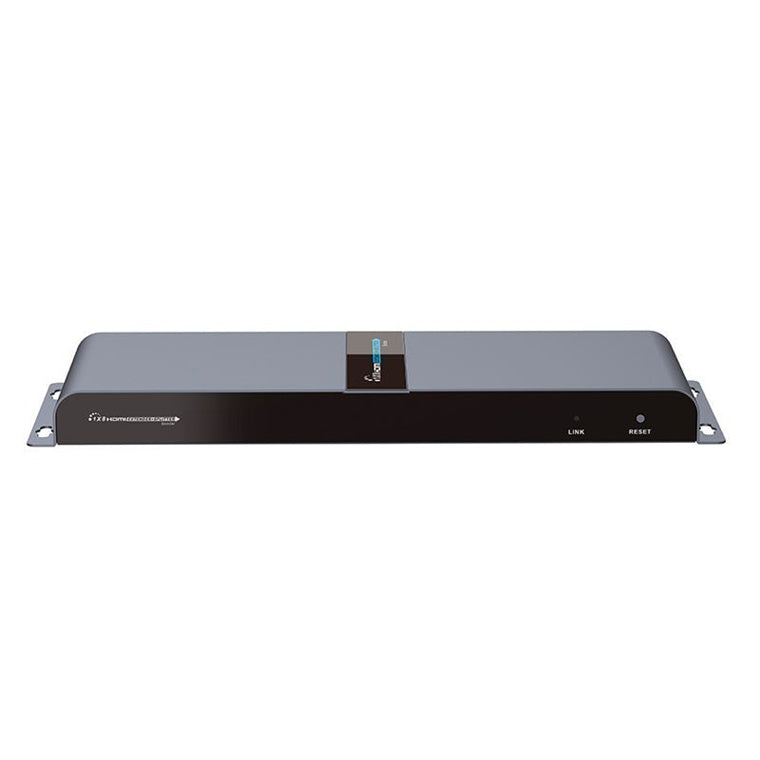

LENKENG LKV718PRO - 1-In-8-Out 1080P HDMI Extender 1x HDMI 8x RJ45 out Compatible w/ CAT6/6a/7 Cables
Features
LENKENG 1 in 8 Out HDMI Extender. 1x HDMI in to 8x RJ45 out. 8x Receivers Included. Supports 1080 @ 60Hz over Cat6 for up to 40m. Remote power receivers from transmitter. With local HDMI out.
This HDMI extender splitter works with 8 x HDMI CAT6 extender receivers to distribute and extend 1 x HDMI source to 8 x HDMI displays over single Cat6/6A cable up to 40m/131ft. The highest resolution supported is 1920x1080 @ 60Hz, supporting IR passback and EDID pass through. The LKV718PRO is the ideal solution for HDMI exhibitions, video conferences and show centres.
Features:
Plug and play
20 ~ 60KHz IR pass back
EDID setting function
One HDMI loop-out
Wall-mounted function, easy installation
Compatible with Cat6/6a network cables
Transmission distance up to 40m/131ft
Resolution up to 1920x1080 @ 60Hz
Power from the transmitter to receiver unit over the Cat6 cable
Distributes 1 x HDMI source to 8 x HDMI displays over network cable simultaneously
Specifications
Technical Specifications
| HDMI signal | HDMI1.3, Compatible with HDCP1.2 |
|---|---|
| Input | 1 x HDMI |
| Output | 8 x HDMI |
| Support resolutions | 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz |
| Transmit distance | Full HD resolution 1080p @ 60Hz up to 40m via Cat6 cable |
| IR signal | Support 20 ~ 60kHz IR device |
| EDID | Support EDID manual setting function |
| Working temperature | 0? ~ 60? |
| Power supply | DC12V/3A |
| Power Consumption | <24W |
| Dimensions | TX: 276(L) x 95.98(W) x 23(H)mmRX: 71.6 x 66.6 x 22.6mm |
| Weight | TX: 620g x 1pcsRX: 80g x 8pcs |
| Colour | Black |
| Brand | LENKENG |
|---|---|
| Product Type | TV & Home Theatre > AV Extenders |
| Weight | 2.127 kg |
