LENKENG

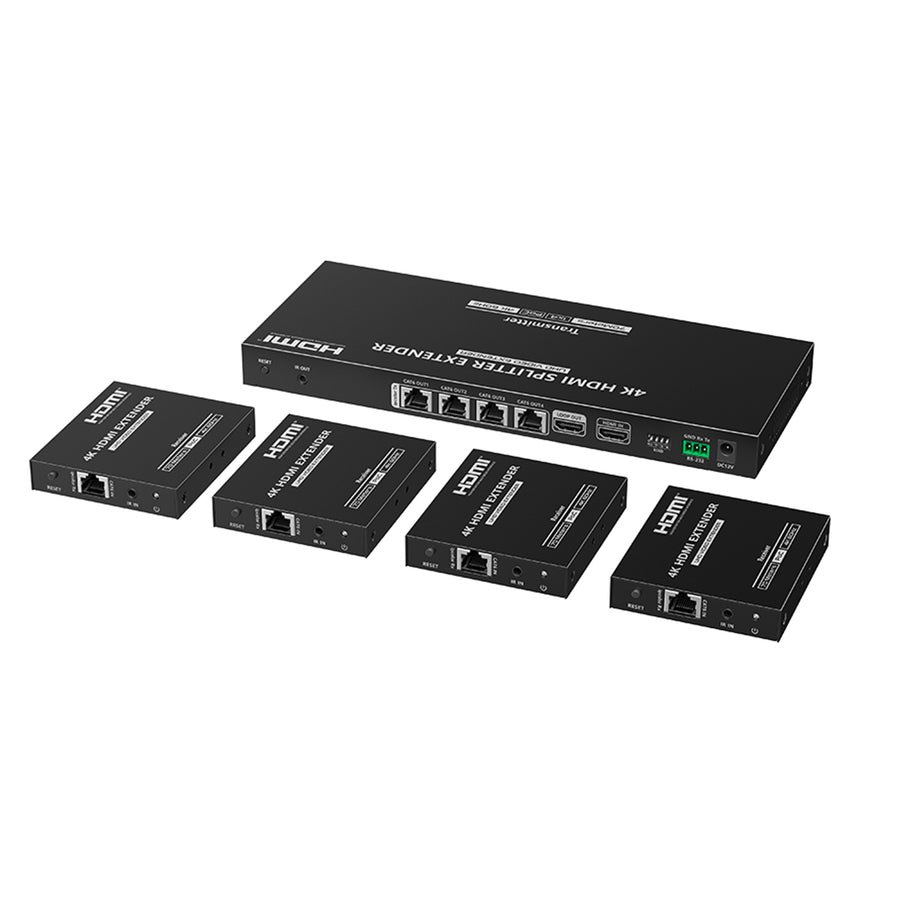

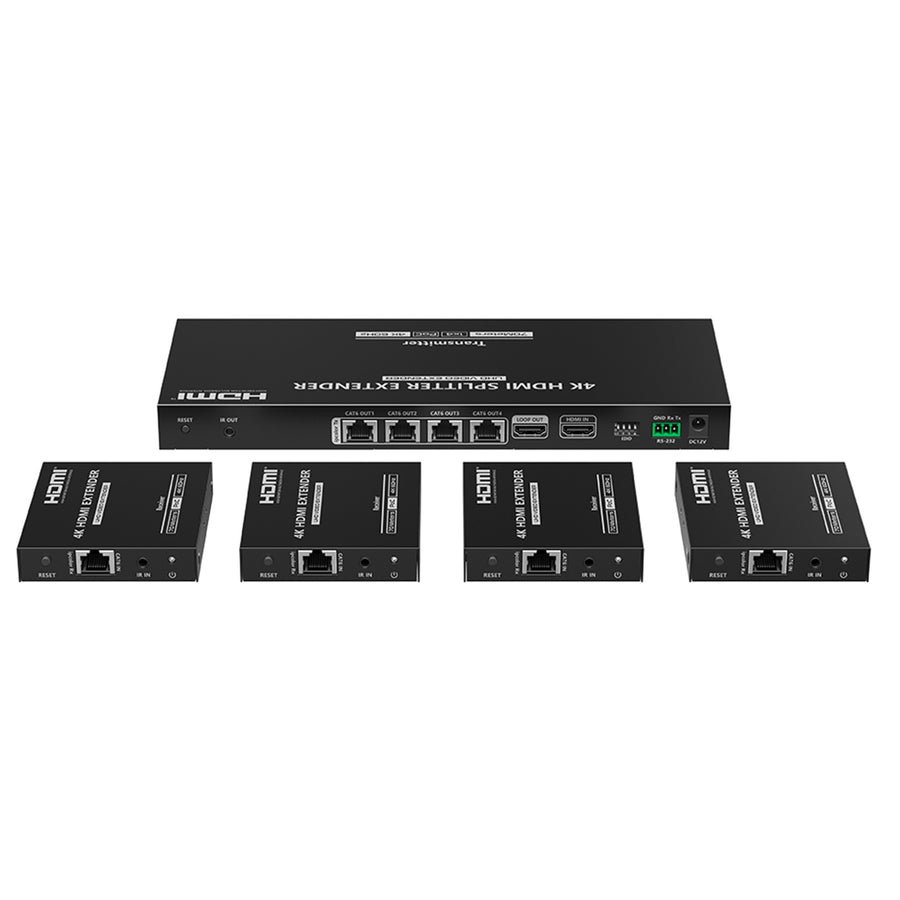

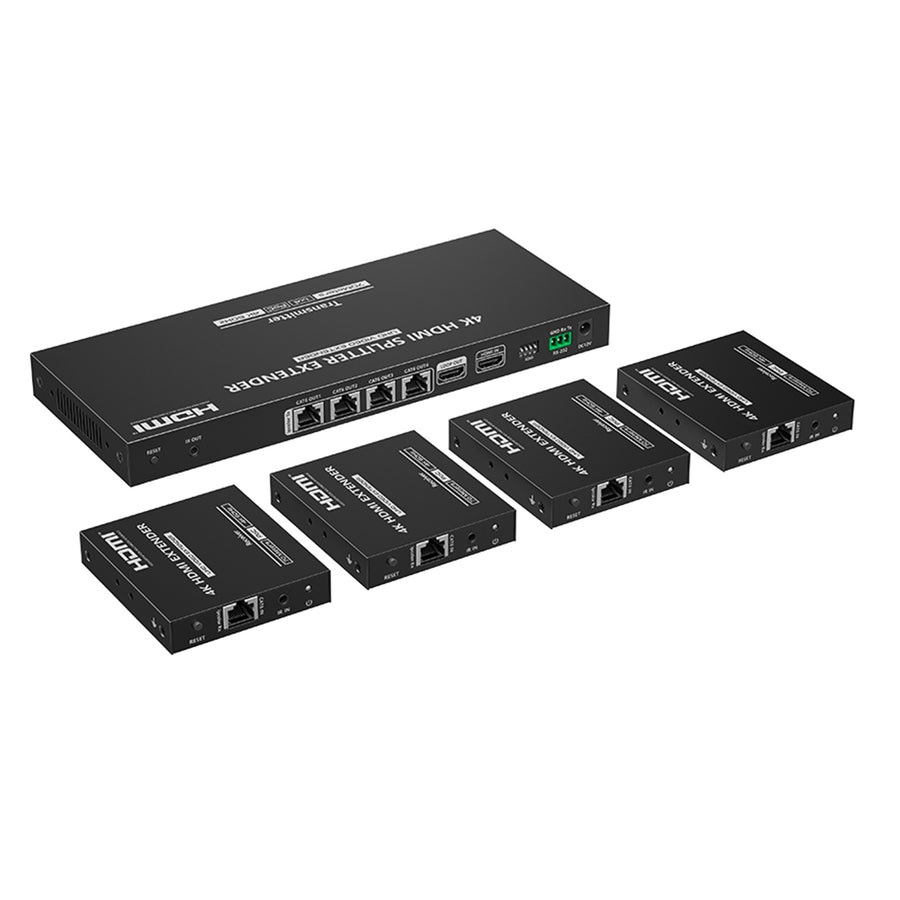

LENKENG LKV824P-N 1-In-4-Out 4K 60Hz HDMI Extender. 1x HDMI 4x RJ45 out PoC. Compatible CAT6 & above
$700.86
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
LKV824P-N 1x4 HDMI Splitter Extender
- Zero latency transmission
- Split and extend one HDMI input signal to four identical network output signals
- Support up to 4K@ 60Hz resolution
- Transmission distance up to 70 meters by using Cat6/6A/7 cables
- Support IR passback (20KHz~60KHz)
- The transmitter supports HDMI loop out
- The receiver supports 3.5mm stereo output
- Support EDID switch for setting
- Support RS-232 command control
- Surge protection lightning protection ESD protection
- Equipped with rack mount ears
- Support PoC only the transmitter is required to supply power
- Supports stable 24/7 operation
Specifications
Technical Specifications
| Transmission protocol | ipcolor |
|---|---|
| Distribution mode | 1 IN 4 OUT |
| Transmission distance | CAT6/6A/7≤70m |
| HDMI signal | HDMI 2.0, HDCP 2.2 |
| HDMI Resolution | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280x960, 1280x800, 1280x1024, 1680x1050, 1600x1200, 1600x900, 1024x768, 800x600, 1920x1200， 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25/30Hz |
| Audio formats | 4K: LPCM/DTS/Dolby Digital 5.1；1080P: LPCM/DTS/Dolby Digital 5.1/Dolby Digital plus7.1 |
| IR | Support IR passback function (20KHz~60KHz) |
| RS-232 | 3 pin: TxD-RxD-GND, follows RS-232 levels |
| Working temperature | -20~60℃ |
| Storage temperature | -30~70℃ |
| Humidity (no condensation) | 0~90% RH |
| Protection | ESD protection1a Contact discharge level 21b Air discharge level 3Implementation of the standard: IEC61000-4-2Lightning protectionSurge protection |
| Power supply | TX: DC12V/2A |
| Power consumption | TX+RX＜11W |
| Material | Iron |
| Color | Black |
| Weight | TX: 672g ，RX: 145g |
| Dimension | TX: 265.0(L) x 104.0(W) x 23.0(H)mmRX: 85.0(L) x 75.5(W) x 16.5(H)mm |
| Brand | LENKENG |
|---|---|
| Product Type | PC Peripherals > KVM Switch/Extenders |
| Weight | 2.0 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
