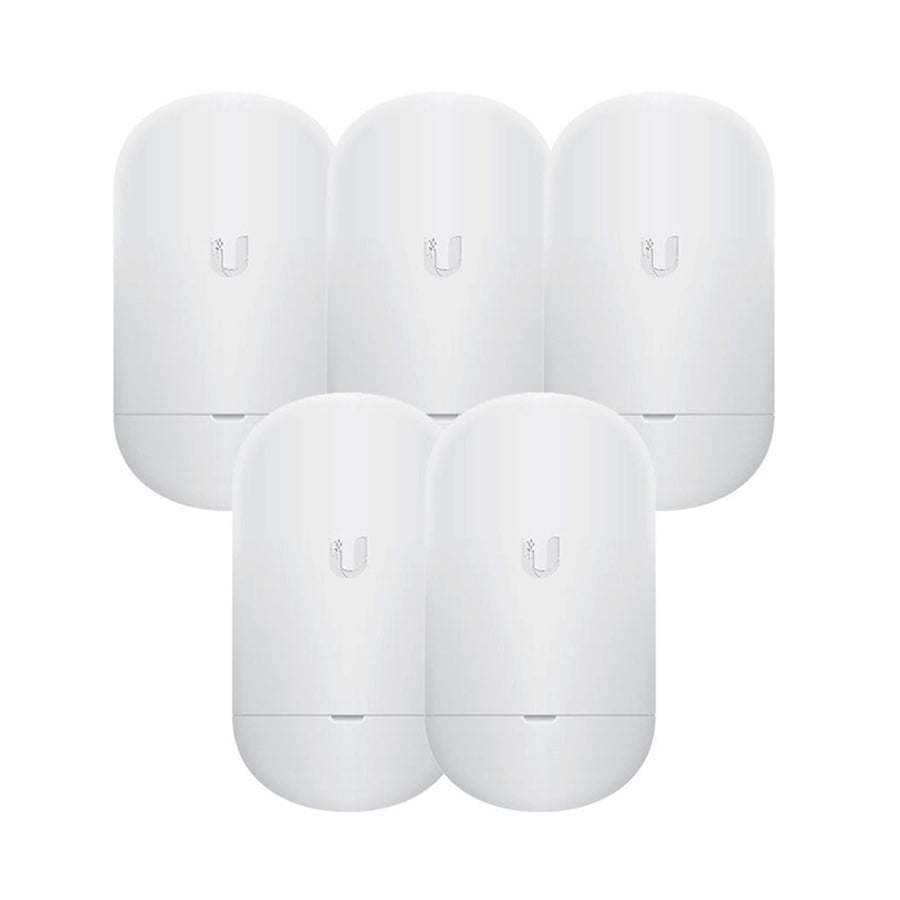

LOCO5AC-5 - Ubiquiti NanoStation 5AC Loco 300mW 13dBi CPE/Bridge Radio 5 Pack
LOCO5AC-5 - Ubiquiti NanoStation 5AC Loco 300mW 13dBi CPE/Bridge Radio 5 Pack
Features
NanoStation AC 5 GHz airMAX® ac CPE
The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.

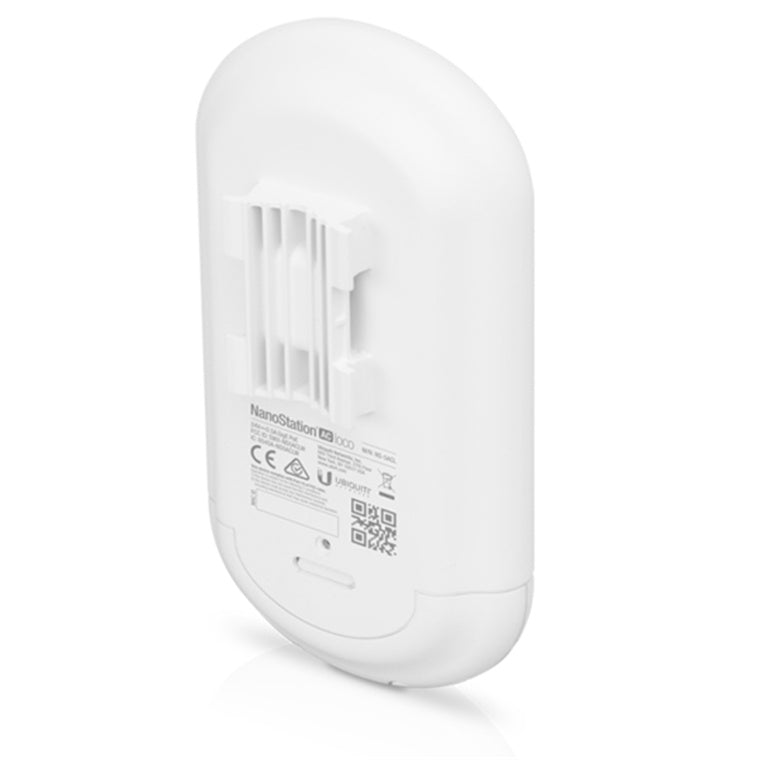

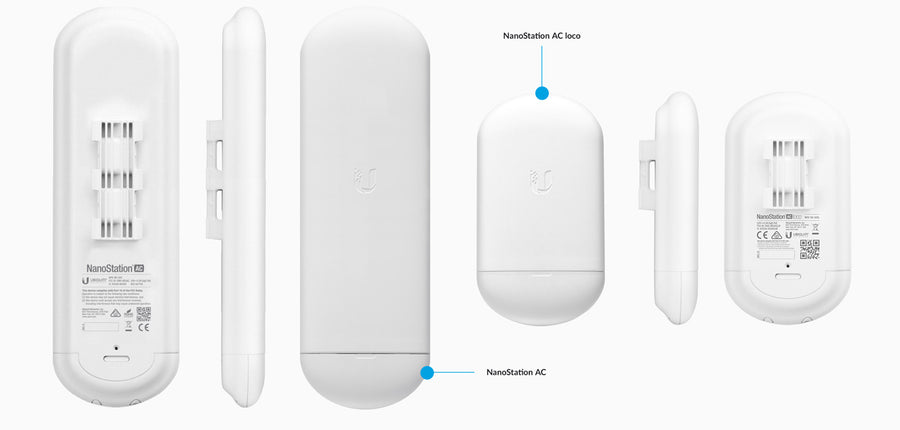

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

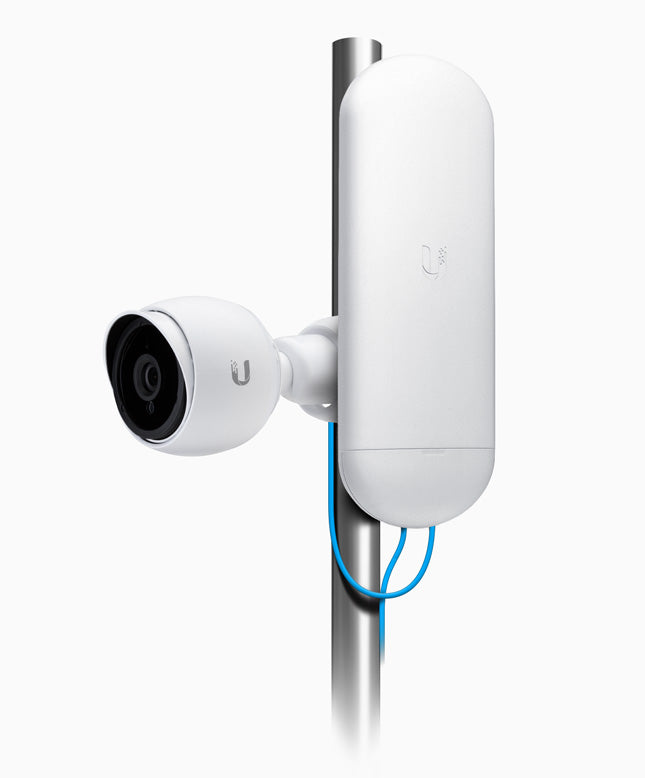

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

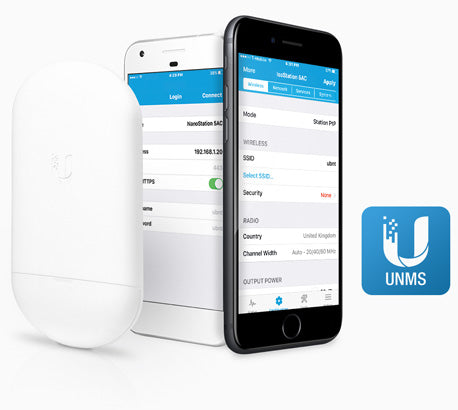

Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

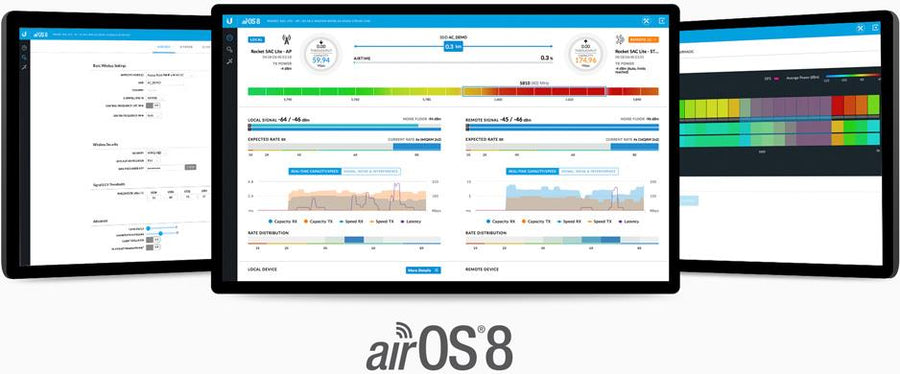

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications
Technical Specifications
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
|---|---|
| Weight | 180 g (6.35 oz) |
| Power Supply | 24V, 0.3A Gigabit PoE Supply* |
| Max. Power Consumption | 7W |
| Power Method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
| Gain | 13 dBi |
| Networking Interface | 10/100/1000 Mbps Ethernet Port |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| LEDs | (1) Power |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| ESD/EMP Protection | ±24kV Contact/Air |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
| Worldwide | 5150 - 5875 |
| USA | U-NII-1: 5150 - 5250U-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 |
| Worldwide | 2412 - 2472 |
| USA | 2412 - 2462 |
