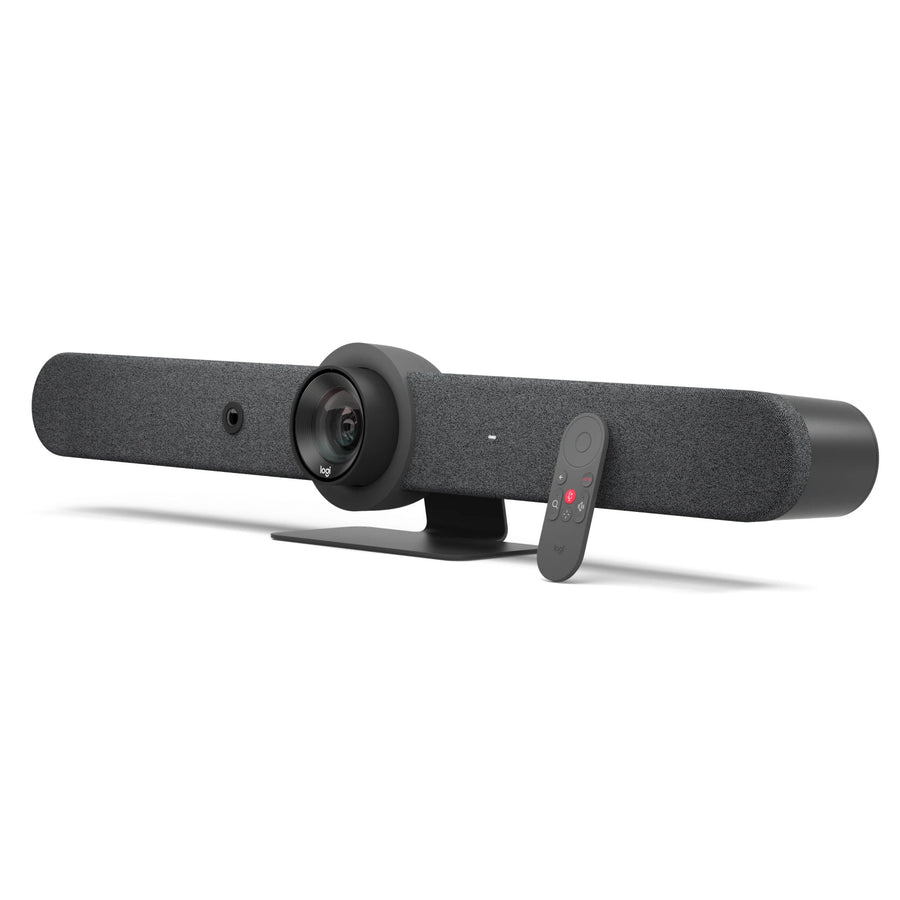

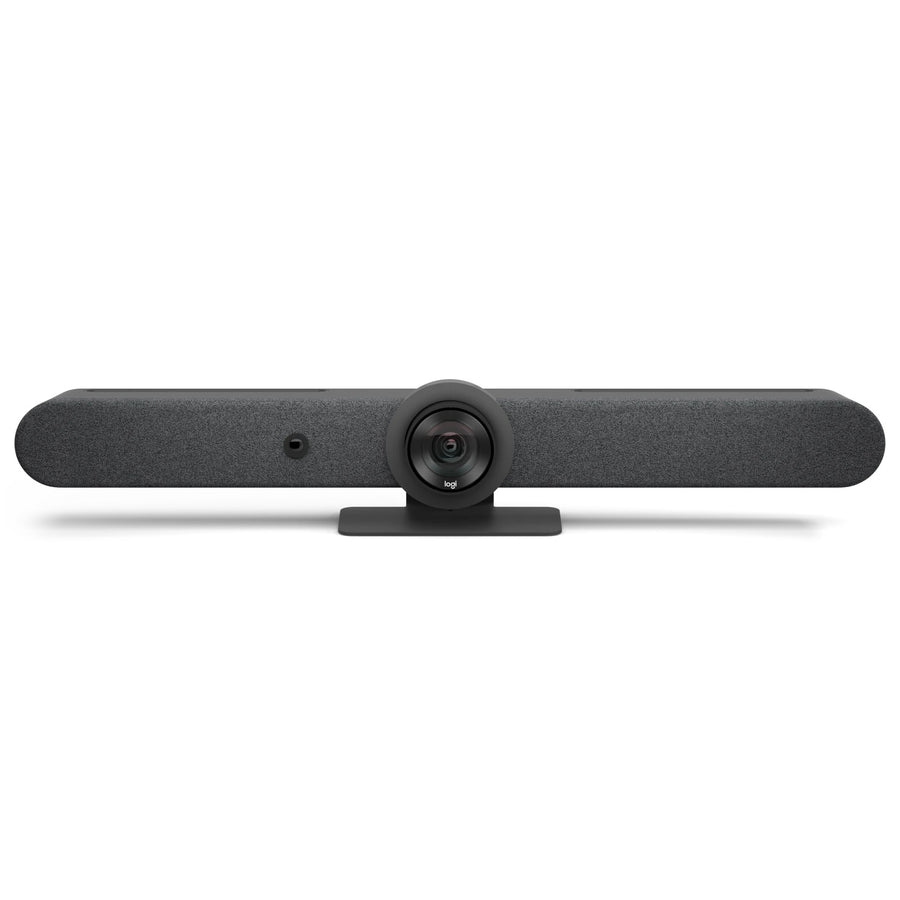

Logitech RALLY BAR - GRAPHITE
Features
ALL-IN-ONE VIDEO BAR FOR MEDIUM AND LARGE ROOMS
Discover a remarkably simple all-in-one video conferencing setup with brilliant optics, AI-based audio, remote management with Logitech Sync, and more.
EXPAND THE CONVERSATION
Add up to four Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.
ENSURE EVERYONE IS SEEN AND HEARD
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.
MANAGE REMOTELY WITH SYNC
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.
CERTIFIED FOR BUSINESS
Leverage the video conferencing platforms and features you already use. Rally Bar is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet.
A CHOICE YOU WILL FEEL GOOD ABOUT
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.
MADE WITH RECYCLED PLASTIC
The plastic parts in the Graphite version of Rally Bar include 40% certified post-consumer recycled plastic. We're giving a second life to plastic from consumer electronics to help reduce our carbon footprint.*
*Excludes cables, PWA, and packaging. Measured by weight.
Specifications
Technical Specifications
| Dimensions | Height: 164 mmWidth: 910 mmDepth: 130.5 mmLens Depth: 28.8 mmWeight: 7.08 kg |
|---|---|
| Certifications & Compatibility | For the latest information on certifications and compatibility, visitwww.logitech.com/support/vc-certificationsMicrosoft Teams Rooms on Android*Microsoft Teams Rooms on Windows**For medium sized rooms |
| Built-in Components | 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform |
| Enclosure | All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference |
| Device Management | Logitech Sync |
| Displays Supported | 2 |
| Display Resolution | Up to 1080p |
| Network Protocol Support | IPv4, IPv6 |
| Proxy Support | IP based Proxy, FQDN based Proxy, Proxy using PAC file |
| Resolution | 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps |
| Pan | Motorized ±25° |
| Tilt | Motorized ±15° |
| Zoom | 15X HD zoom (5X optical and 3X digital) |
| Diagonal Field of View | 90° |
| Horizontal Field of View | 82.1° |
| Vertical Field of View | 52.2° |
| Total Room Coverage (field of view + pan and tilt) | 132.1° Horizontal x 82.2° Vertical |
| Drivers | 2x 70 mm |
| Sensitivity | 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter |
| Rated Power | 8W |
| THD | 1kHz < 2% at 1W |
| Speaker Sampling Rate | 48 kHz |
| Impedance | 4 Ohms |
| Frequency Response | 90Hz - 16kHz |
| Sensitivity | >-36dBFS +/-1 dB @ 1Pa |
| Microphone data rate output | 48KHz |
| Pickup Range | Up to 7 m |
| Beamforming Elements | 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams |
| Audio processing | AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) |
| Noise suppression | AI based de-noising algorithm |
| Add-on Mics | Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms |
| RightLight | Renders natural skin tones for each participant |
| RightSight | Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room |
| RightSound | Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo |
| Grid View | Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview |
| HDMI Out | 2 (up to 1080p) |
| HDMI In | 1 |
| USB | 3x Type A, 1x Type C |
| Network | 10/100/1G Ethernet |
| WiFi | 802.11a/b/g/n/ac |
| External Mic Input | Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable) |
| Remote Control | Bluetooth® Low Energy |
| Power supply | Auto-sensing |
| Operating Voltage/Power | 100-240V, 19V, 4.74A |
| Power Supply Dimensions | 127 mm x 51 mm x 30 mm |
| DC Cable | 1.5 m |
| AC Cable | 1 m |
| HDMI 1.4 Cable | 2 m |
| USB A to USB C 3.0 Cable | 2.2 m |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 10 to 95% |
| BTU/hr | 57 idle, 64 in meeting |
| Full Disk Encryption | AES-128 |
| Data Encryption | Symmetric Keys, PKI |
| Device Identity | Protected by device attestation |
| Device Access | Authenticated using API |
| Key Protection | Arm TrustZone, RPMP |
| Mounts | Wall Mount for Video Bars, TV Mount for Video Bars |
| Audio | Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable |
| Connectivity | Logitech Strong USB (10m, 25m, 45m) |
| Touch Controller | Logitech Tap and Tap IP 3Compatibility may vary, seewww.logitech.com/support/tap-compatibilityfor the latest information |
| Compatibility | Internet Connection: Wired or wirelessUSB Mode: Windows 11, Windows 10, the two most recent versions of macOSAppliance Mode: Room solution software license (not included) |
| In the Box | Rally BarPower supplyAC power cordHDMI cableUSB cableRemote controlLens caps for main camera and AI ViewfinderUser documentation |
| Brand | Logitech |
|---|---|
| Product Type | UC & Video Conferencing > Video Conferencing |
| Weight | 10.6 kg |
