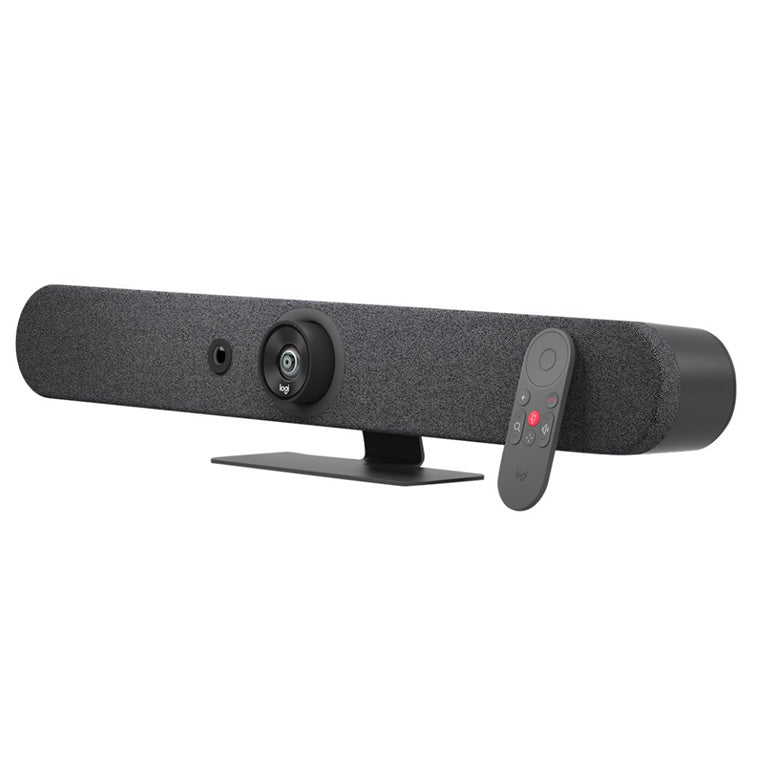

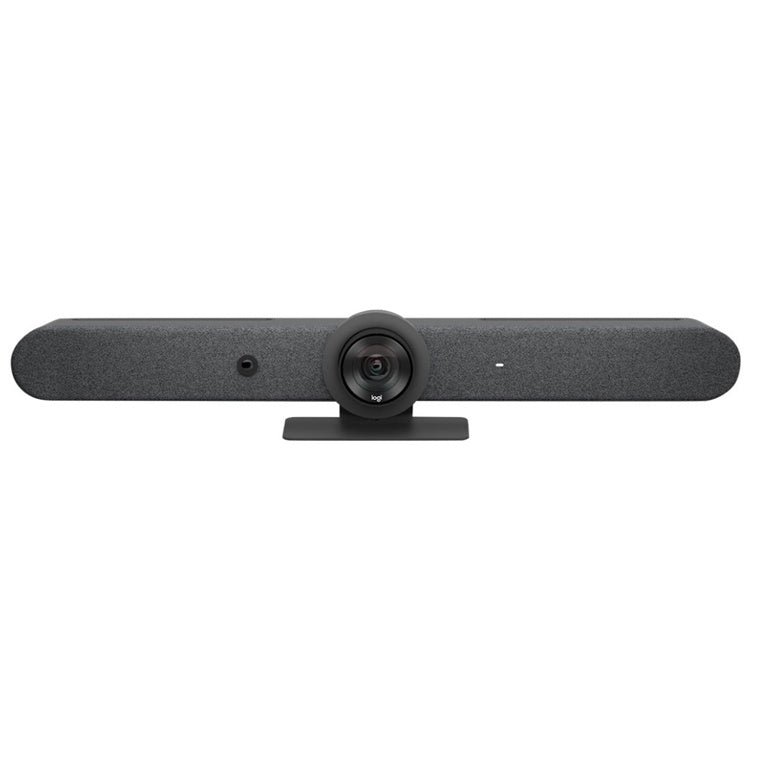

Logitech Rally Bar Mini 4K PTZ All-in-one Conference Video Bar - Graphite
Features
RALLY BAR MINI
Premier all-in-one video bar for small rooms
USB Mode
Connect via USB to virtually any PC or Mac with no additional software needed.
*Shown with optional PC and Logitech Tap.
Appliance Mode
Run supported video conferencing applications - such as Zoom®, Microsoft Teams®, and others - directly on the device with no computer or laptop required.
*See specs section for full list of supported appliance partners
SIMPLE TO USE
Start your meeting with just one touch, seamlessly connecting Rally Bar Mini to your preconfigured room solution.*
*Shown with optional Logitech Tap
LOOKS TRUE-TO-LIFE
Upgrade your meeting experience with razor-sharp video, outstanding color, and full room coverage.
SOUNDS AWESOME
Rally Bar Mini's advanced audio engineering delivers rich, natural sound and makes sure every voice is clearly heard.
*This diagram is not an exact replica of Rally Bar Mini's interior. The color is intended to highlight features.
EXPAND THE CONVERSATION
Easily accommodate any small room or huddle space, starting with a 4.6 m mic pickup range (varies by environment) and the option to add up to 2 Rally mic pods.
SUPER SMART
Keep the focus on meeting participants with AI Viewfinder, which uses scene awareness to optimize RightSight™ auto-framing and camera control.
DEVICE MANAGEMENT TECHNOLOGY PARTNERS
Our integration with partner solutions and dashboards means you can easily manage your devices in other platforms.
AN ALL-IN-ONE SERVICE PLAN
Logitech Select is a comprehensive service plan that delivers reliability, continuity, and peace of mind for each room you designate. Select provides 24/7 support, a dedicated Customer Success Manager*, accelerated RMA, onsite spares*, and advanced Sync analytics including customizable alerts through ServiceNow integration.**
*Available with purchase of a service plan with 50 or more rooms.
**Available for users of Logitech Sync.
YOUR SUSTAINABILITY ALLY
Our commitment to creating a more sustainable world starts with our 1.5°C Climate Pledge, 100% renewable electricity goal, and a portfolio of video collaboration solutions that help reduce your carbon footprint.
WELCOME TO THE FAMILY
Explore Logitech's beautifully simple, next generation of small, medium, and large room solutions that can be deployed in PC or appliance mode.
Specifications
Technical Specifications
| Built-in Components: | 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform |
|---|---|
| Enclosure: | All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference |
| Device Management: | Logitech Sync |
| Displays Supported: | 2 |
| Display Resolution: | 1080p |
| Network Protocol Support: | IPv4, IPv6 |
| Proxy Support: | IP based Proxy, FQDN based Proxy, Proxy using PAC file |
| Resolution: | 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps |
| Pan: | Motorized ±25° |
| Tilt: | Motorized ±15° |
| Zoom: | 4X HD digital zoom |
| Diagonal Field of View: | 120° |
| Horizontal Field of View: | 113° |
| Vertical Field of View: | 80.7° |
| Total Room Coverage (field of view + pan and tilt): | 163° horizontal x 110° vertical |
| Driver: | 70 mm |
| Sensitivity: | 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter |
| Rated Power: | 8W |
| THD: | 1kHz <2% at 1W |
| Speaker Sampling Rate: | 48KHz |
| Impedance: | 4 Ohms |
| Drivers: | 2 x 43 mm |
| Sensitivity: | 84 dB SPL @ 1W/1M |
| Rated Power: | 4W |
| THD: | 1kHz <2% at 1W |
| Speaker Sampling Rate: | 48KHz |
| Impedance: | 4 Ohms |
| Frequency response: | 90Hz - 16kHz |
| Sensitivity: | >-36dBFS +/-1 dB @ 1Pa |
| Microphone data rate output: | 48 kHz |
| Pickup Range: | 4.5 m |
| Beamforming Elements: | Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams |
| Audio processing: | AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) |
| Noise suppression: | AI based de-noising algorithm |
| Add-on Mics: | Supports up to 2 additional Rally Mic Pods |
| RightLight™: | Renders natural skin tones for each participant |
| RightSight: | Maintains persistent room awareness and detects human figures to auto-frame participants |
| RightSound: | Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo |
| HDMI Out: | 2 |
| HDMI In: | 1 |
| USB: | 3x Type A, 1x Type C |
| Network: | 10/100/1G Ethernet |
| WiFi: | 802.11a/b/g/n/ac |
| External Mic Input: | Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable) |
| Remote Control: | Bluetooth® Low Energy |
| Power supply: | Auto-sensing |
| Operating Voltage/Power: | 100-240V, 19V, 4.74A |
| Power Supply Dimensions: | 127 mm x 51 mm x 30 mm |
| DC Cable: | 1.5 m |
| AC Cable: | 1 m |
| HDMI 1.4 Cable: | 2 m |
| USB A to USB C 3.0 Cable: | 2.2 m |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -40 to 70°C |
| Humidity: | 10 to 95% |
| BTU/hr: | 57 idle, 64 in meeting |
| Full Disk Encryption: | AES-128 |
| Data Encryption: | Symmetric Keys, PKI |
| Device Identity: | Protected by device attestation |
| Device Access: | Authenticated using API |
| Key Protection: | Arm TrustZone, RPMP |
| Items included | Rally Bar MiniPower supplyAC power cordHDMI cableUSB cableRemote control Lens caps for main lens and AI ViewfinderUser documentation |
| Certifications: | Zoom Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications. |
| Compatibility: | Plug and play USB connectivity with virtually any video conferencing application |
| Appliance mode: | Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances |
| * | Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms. |
| Height: | 91.4 mm |
| Width: | 719 mm |
| Depth: | 101 mm |
| Lens Depth: | 18.5 mm |
| Weight: | 4.03 kgs |
| Brand | Logitech |
|---|---|
| Product Type | UC & Video Conferencing |
