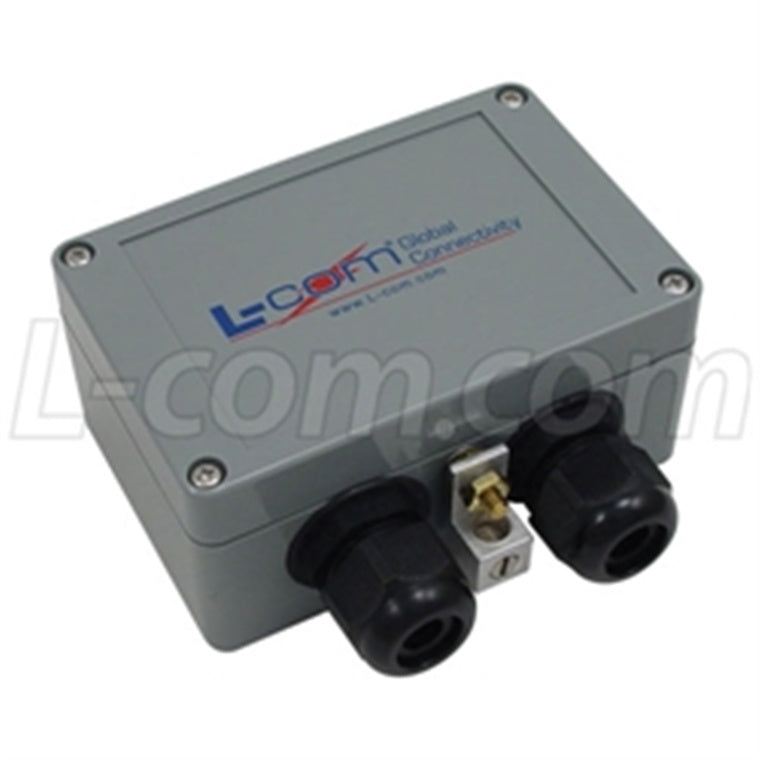

LP-37 - L-COM Compact Weatherproof Cat6 Gigabit Ethernet Lightning Protector

The ALS-CAT6HPW Lightning Protector provides superior lightning and surge protection for indoor 10/100/1000 Base-T Ethernet networks. The unit has low line to line and line to ground capacitance to minimize distortion of high-speed signals. The design provides protection for both common and differential mode surges.

This protector has been designed to meet the GR-1089 Intra-Building surge protection requirements for 10/100/1000 Base-T Ethernet lines. In addition, the unit is compatible with 802.3af/at Power-over-Ethernet (PoE) devices. This device supports PoE mode A and B for power. The ALS-CAT6HPW shielded RJ45 jacks are isolated from the safety ground. This minimizes the chance of a ground loop being introduced.

This unit features a weatherproof ABS enclosure with gasketed cover and concealed mounting holes. PG16 cable glands are provided on the enclosure as well as an external ground clamp to provide a tie point for earth ground. The PG16 cable glands are large enough to pass an un-booted RJ45 connector through so pre-terminated cables can be used.


Features

- For mounting to masts up to 2 inches in diameter, the HGX-PMT24 mast mounting kit is available (sold separately)
- CAT6, CAT5e and CAT5 compatibility
- GR-1089 Intra-Building rated
- Cable shield isolated from safety ground
- IEEE 802.11af/at Power-Over-Ethernet (PoE) compatible
- Weatherproof ABS enclosure with gasketed cover and shielded RJ45 jacks
