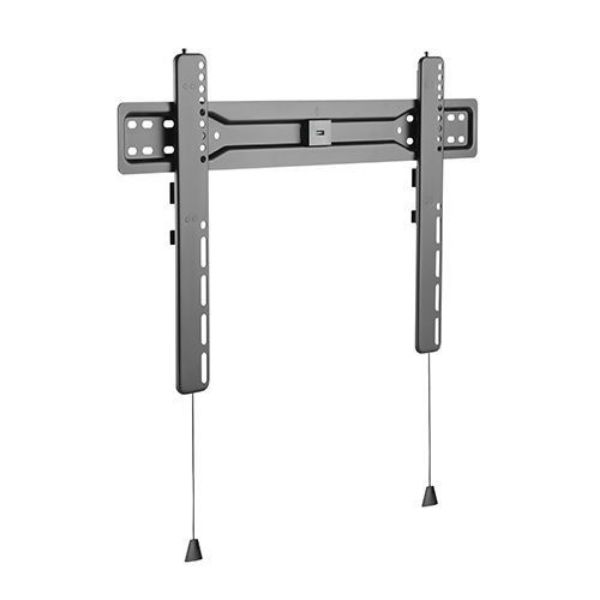

LP57-46F - BRATECK LP57-46F - 37''-70'' Ultra-Slim wall bracket Max load: 35kg VESA support up to: 600x400.
Features
BRATECK 37-70" Ultra-Slim TV Wall Bracket. TV to Wall 18mm. MAX VESA 620x420mm. Max Weight 35kg. Solid wall or double stud.
The new LP57-46F takes the ultra-slim TV mount to a new level. With a distance of 18mm (0.71") to the wall, it nearly turns your TV into a picture on the wall. The innovative fine-tuning design allows for easy post-installation positioning.Also, the magnetic design in the bracket and the strap end also add a modern look to your house!
FEATURES:
- Ultra-slim profile for space saving & easy storage
- Automatic spring locks with quick release cords
- Built-in level adjustment ensures perfect positioning
- Lateral shift brackets enable fast alignment
- Magnetic strap end hides when not in use.
- Auto-locking magnetic design firmly holds the TV in 0 gap position.
- Integrated bubble level assures alignment
Specifications
Technical Specifications
| By Function: | Fixed |
|---|---|
| Product Category: | TV wall mount |
| Rank: | Standard Series |
| Mounting Hole Pattern: | Universal |
| Material: | Steel, Plastic |
| Pipe Size: | No |
| Surface Finish: | Powder Coating, Electrophoresis, Electroplate |
| Colour: | Black |

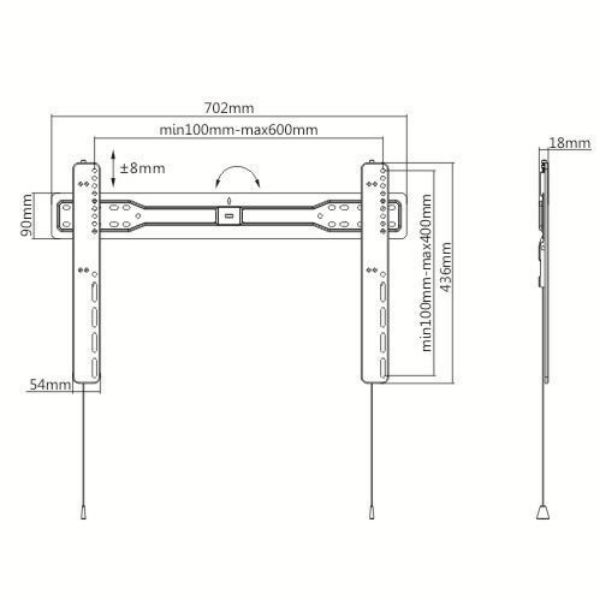

| Product Size With Open Position: | 30x702x450mm |
| Fit Screen Size: | 37"-70" |
| Installation: | Solid wall, Double Stud (406mm/450mm/600mm) |
| Weight Capacity: | 35kg |
| Strength-Tested: | 4 times approve |
| Max. VESA: | 620x420mm |
| VESA Compatible: | 200x200, 300X200, 300X300, 400x200, 400X300, 400x400, 600x400 |
| Screen Level: | ±8mm |
| Profile: | 18mm |
| Bubble Level Mount: | Assembly |
| Anti-theft: | No |
| Cable Management: | No |
| Wall Plate Type: | No |
| Panel Type: | Yes |
| AV Component Shelf: | No |
| Screen Freely Tilting: | No |
| Freely Height Adjustable: | No |
| Instruction Manual Included: | Yes |
| Magnetic: | No |
| Brand | BRATECK |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 6.667 kg |
| Warranty |
|---|
