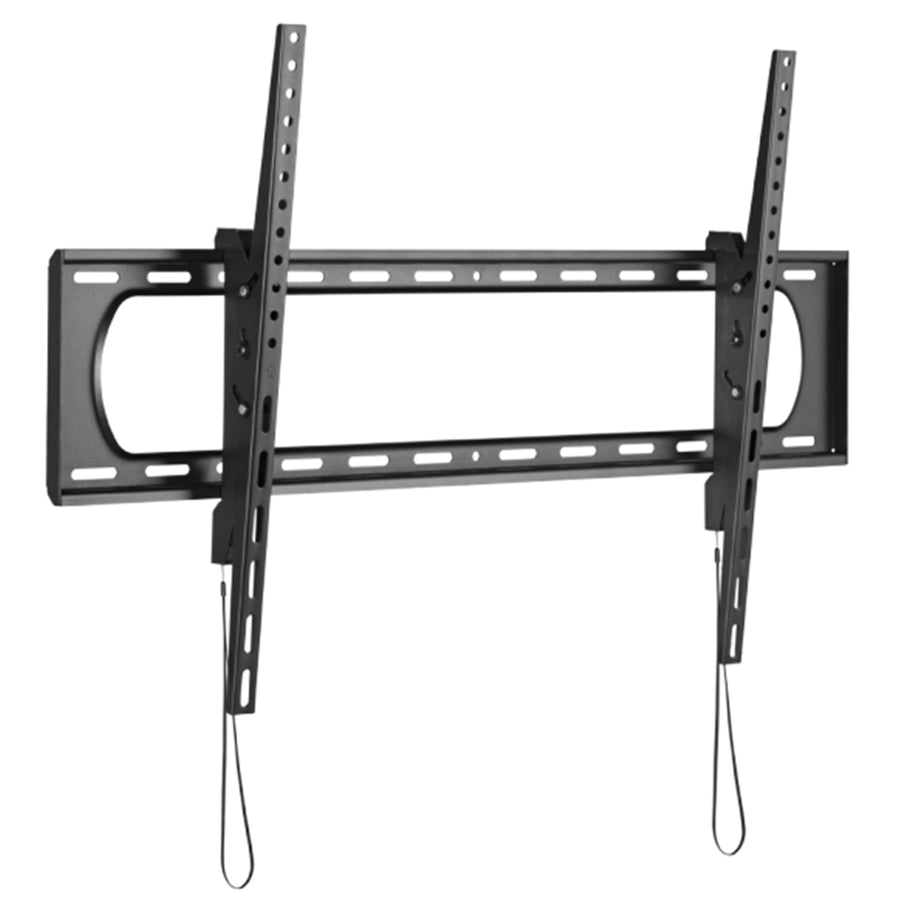

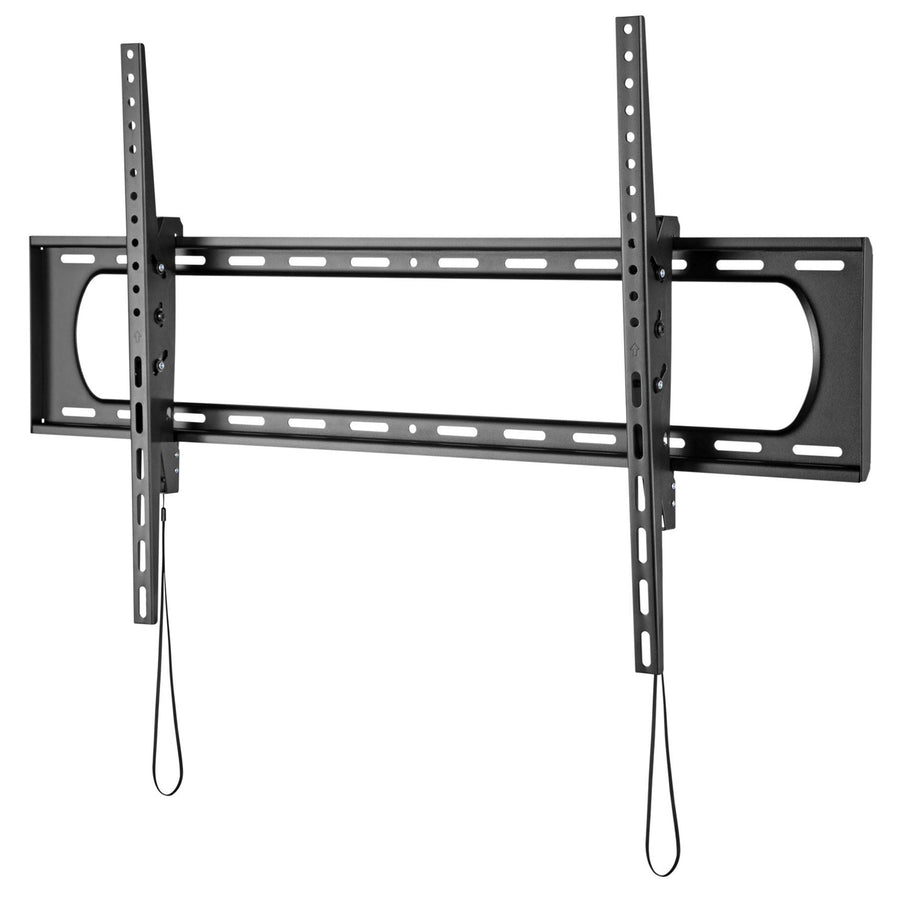

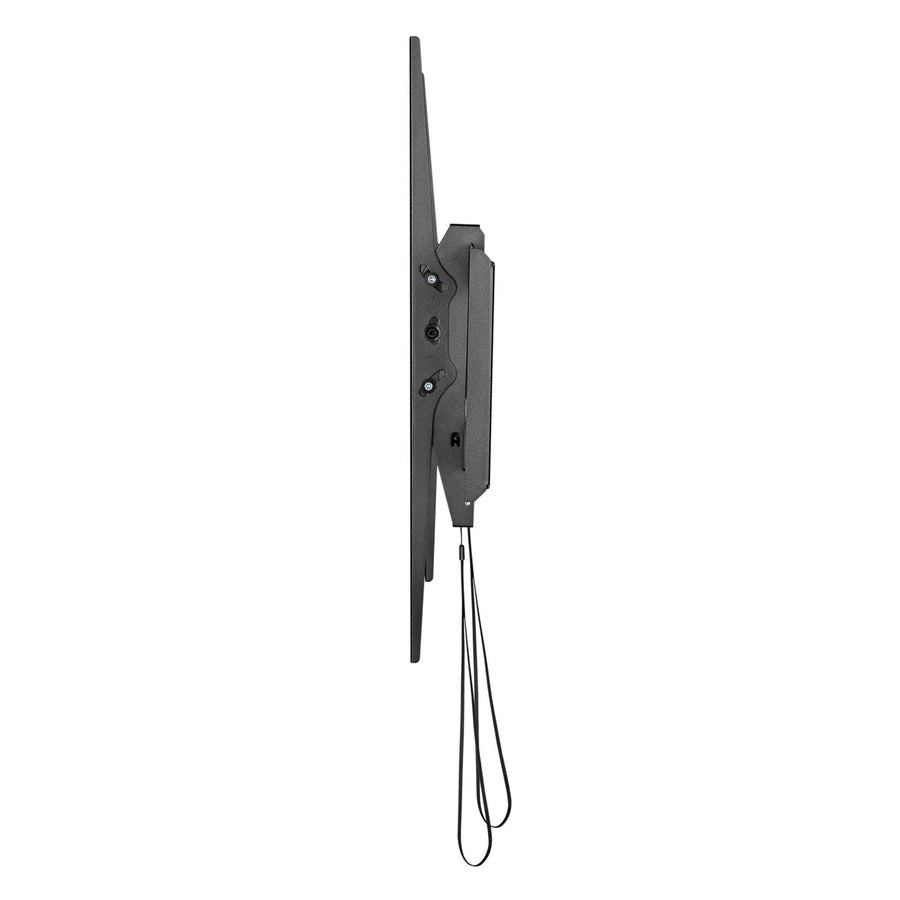

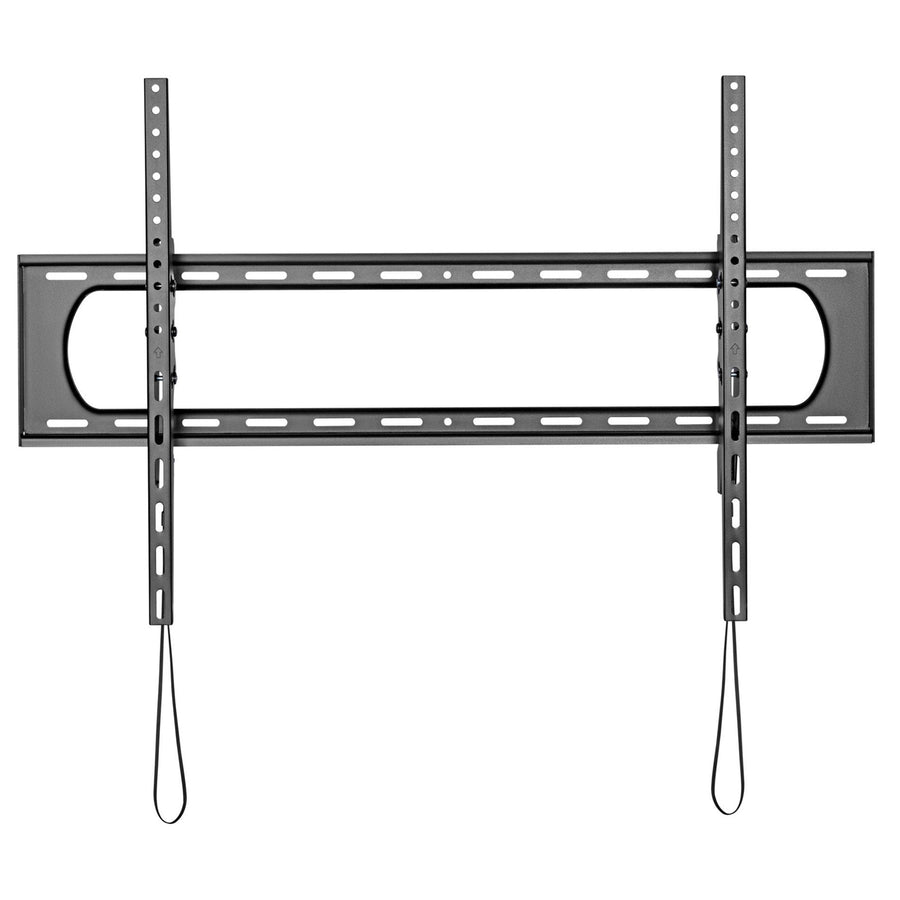

BRATECK LP73-69T - 60-120'' Heavy Duty Tilt TV Wall Mount Bracket Supports Max Load 120kgs
Features
Brateck 60-120" Heavy Duty Tilt TV Wall Mount Bracket

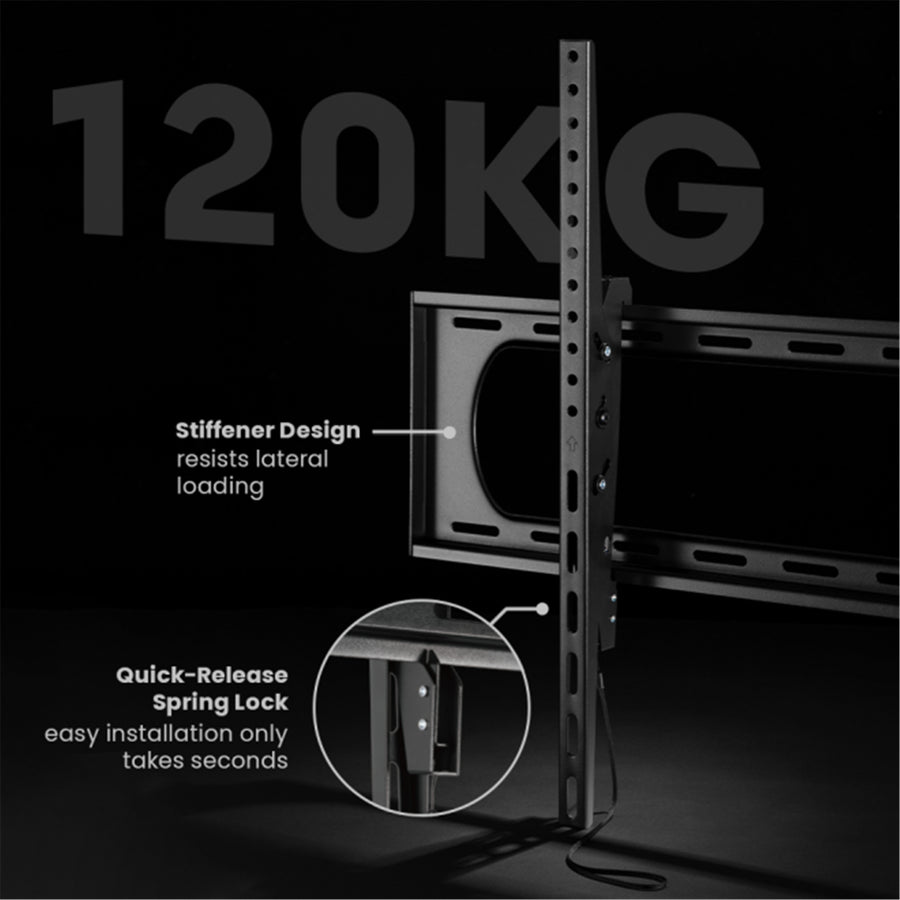

To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the LP73-69T Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 120kg to firmly hold 60"~120" TVs. Ample space in the centre is perfect for installing the socket outlet and concealing all the messy cables. +10°~-10° toolless tilting mechanism provides the perfect viewing angle. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install.
- Heavy-Duty Steel Construction: provides extra strength and durability
- Toolless Tilt: allows for effortless positioning
- Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
- Open Architecture: provides increased ventilation and easier access to wires
How to Install
Specifications
Technical Specifications
| Manufacturer | Brateck |
|---|---|
| MPN | LP73-69T |
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet) |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |

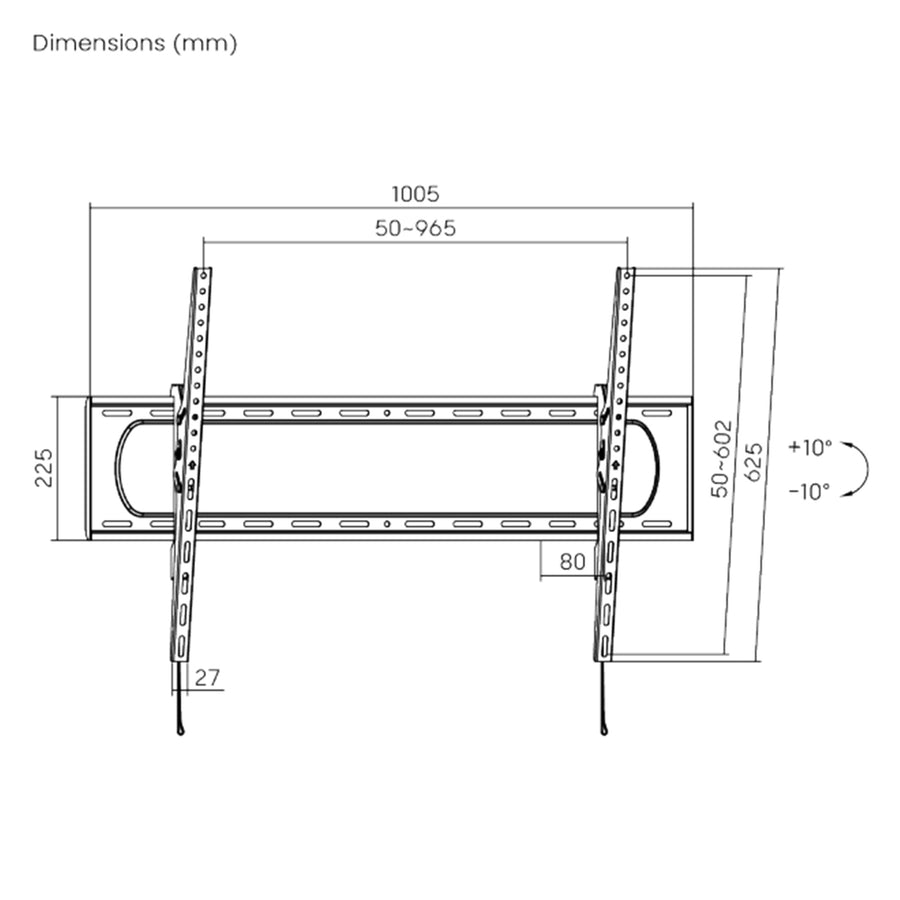

| Dimensions | 80x1005x602mm (3.1"x39.6"x23.7") |
| Fit Screen Size | 60"-120" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,400x600,600x400,700x400,800x400,600x600,800x500,800x600,900x600 |
| Max. Mounting Hole | 965x602mm |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 80mm (3.1") |

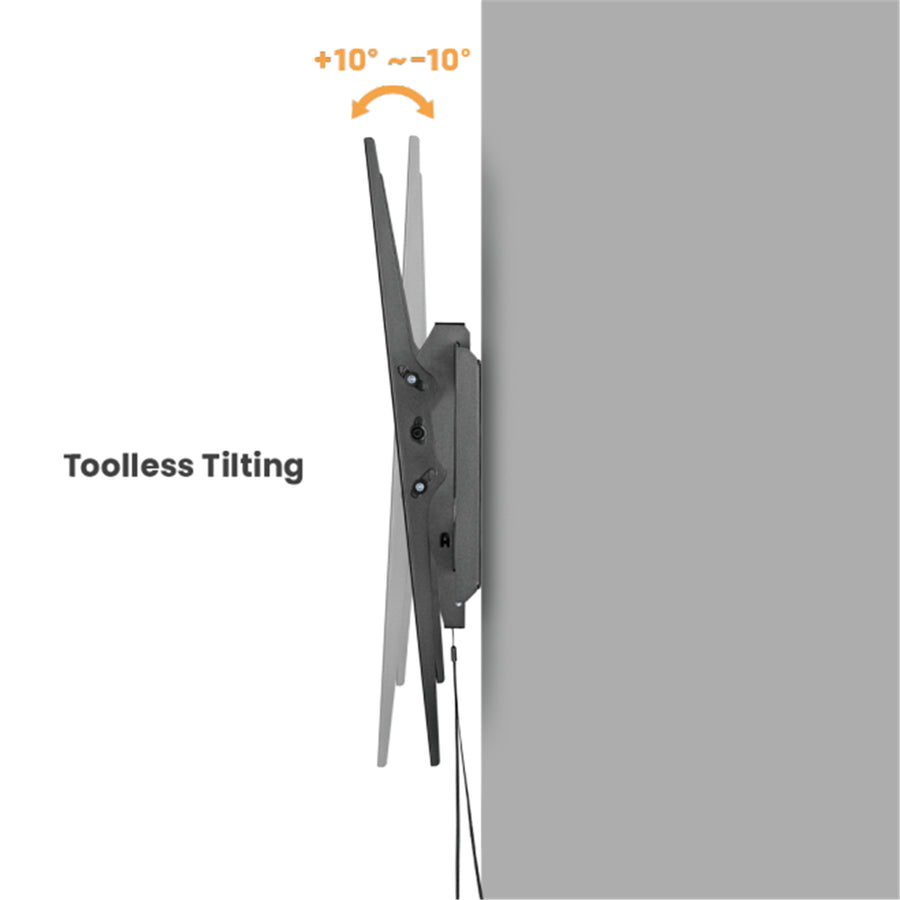

| Tilt Range | +10°~-10° |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Hook-on Bubble Level(Included in Components Package) |
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |
| Certification | UL |
| Silk Screen | Can be silkscreen printed |
| Brand | BRATECK |
|---|---|
| Product Type | TV & Home Theatre > TV Mounts & Accessories |
| Weight | 4.9 kg |
| Warranty |
|---|
