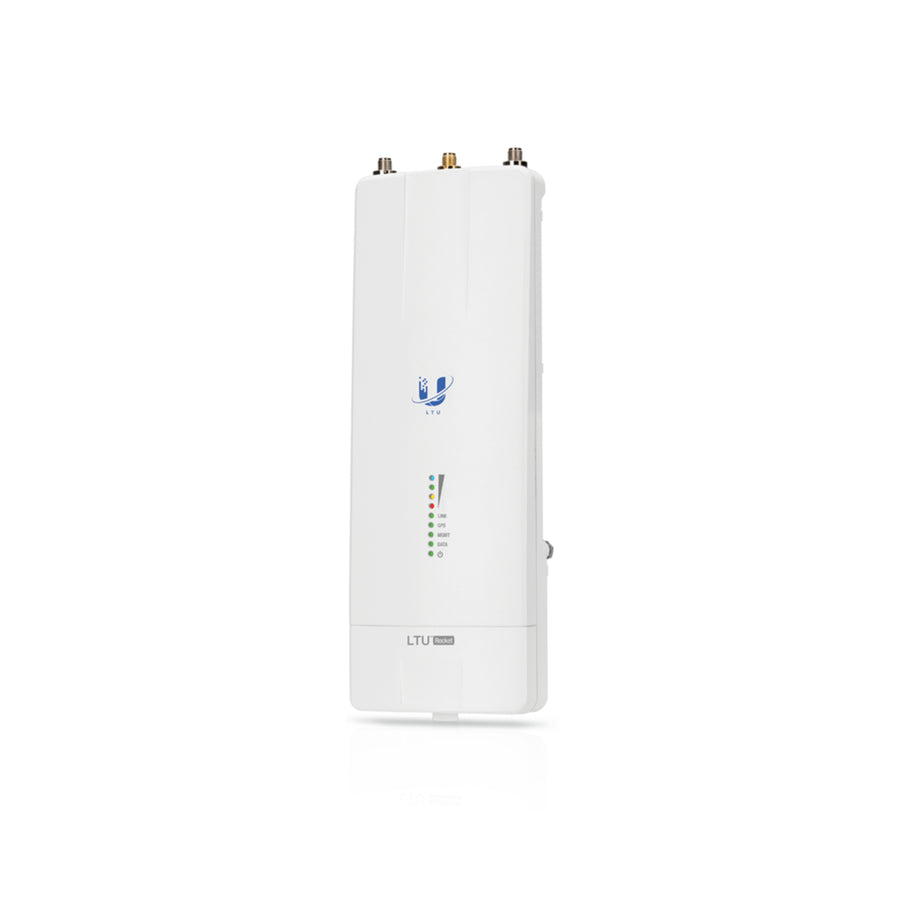

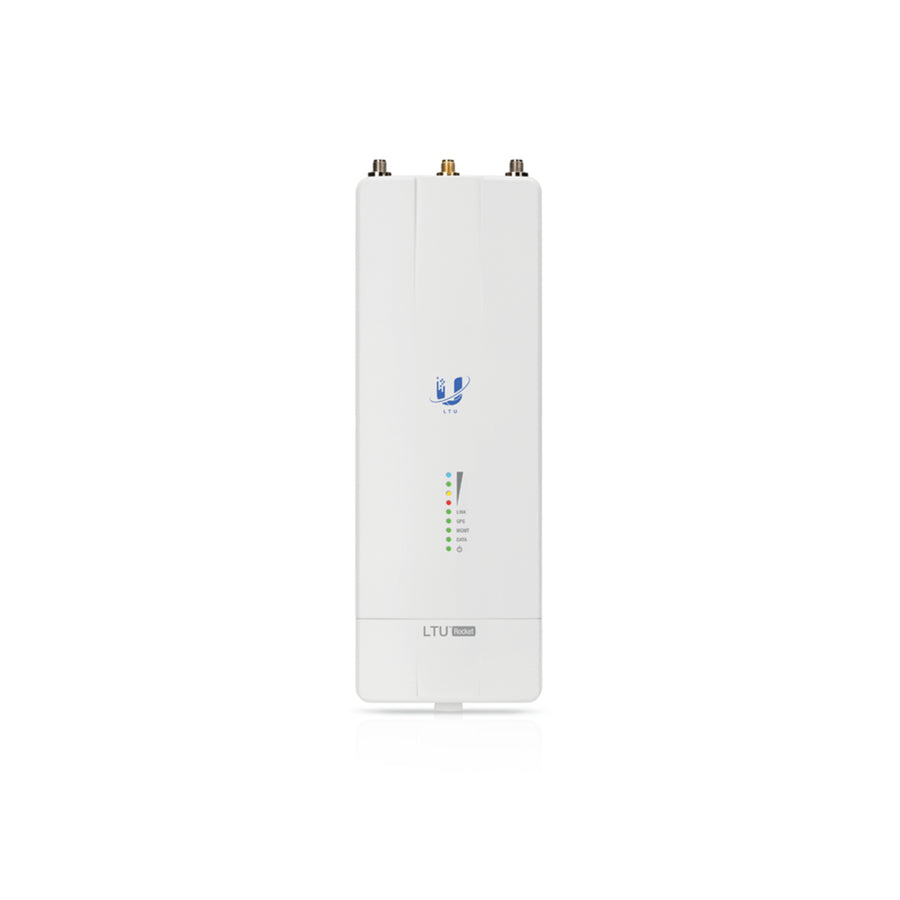

LTU-Rocket - Ubiquiti LTU-Rocket 5GHz PTMP LTU Connectorised Access Point
LTU-Rocket - Ubiquiti LTU-Rocket 5GHz PTMP LTU Connectorised Access Point
Features
Incorporating Ubiquiti's proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.
Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.

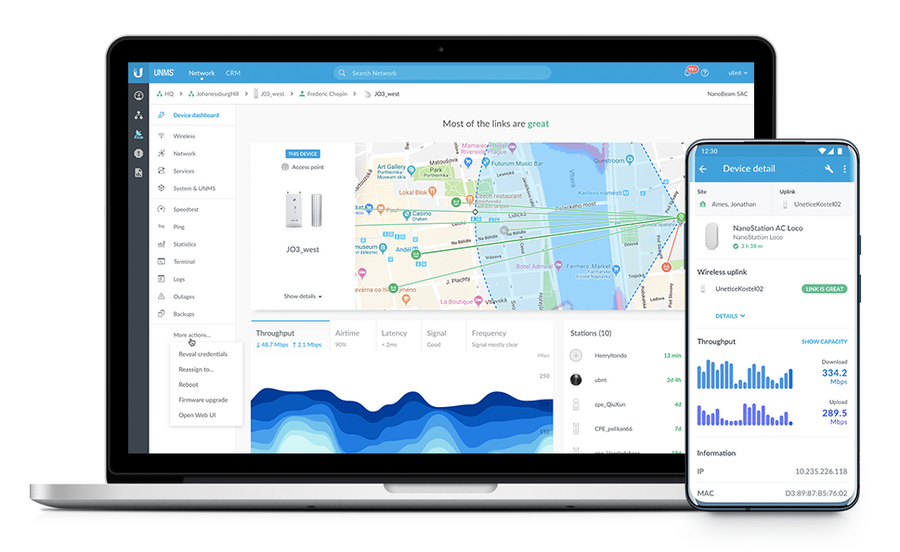

Works with UNMS Network Controller
- Manage your networks from a single control plane
- Intuitive and robust configuration, control and monitoring
- Remote firmware upgrade
- Automatic client shaping
- Customer billing

Specifications
Technical Specifications
| Dimensions | 244 x 82 x 48 mm(9.61 x 3.23 x 1.89") |
|---|---|
| Weight | 0.468 kg(16.5 oz) |
| Enclosure | Diecast Aluminum and Polycarbonate |
| RF Connectors | (2) RP-SMA Weatherproof (CH0, CH1)(1) SMA Weatherproof (GPS) |
| GPS Antenna | External Magnetic Base |
| Power Supply | 24V, 1A Gigabit PoE Adapter (Included) |
| Power Method | Proprietary 4-Pair Passive PoE |
| Pins | 1, 2; 4, 5+ and Pins 3, 6; 7, 8- |
| Max. Power Consumption | 15W |
| Voltage Range | +18 to +54VDC* |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Mounting | Integrated Pole Mount (Included)Rocket Mount CompatibleGPS Pole Mount (Included) |
| Operating Temperature | -40 to 55° C(-40 to 131° F) |
| Weatherproofing | IP672** |
| Certifications | FCC Part 15.407CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
| Maximum Throughput | 675.84 Mbps ***, **** |
| Maximum Range | 100+ km*** |
| Packets per Second | 2+ Million |
| Encryption | WPA2-PSK (AES) |
| Forward Error Correction | LDPC |
| Uplink/Downlink Ratio | 25/75, 33/67, 50/50 |
| OS | airOS LTU |
| Wireless Modes | AP |
