LW-PTP-5-N-PRO - LigoWave PTP-5-N-PRO MIMO Long Range Wireless Bridge

- 220 Mbps capacity
- 60,000 PPS
- 4.780 - 6.100 GHz support
- High output power 28 dBm (per chain) radio
- Integrated 23 dBi directional panel antenna
- Powerful OS
- W-jet 2  - protocol optimized for point-to-point scenario
- External OLED screen for antenna alignment and throughput testing
- Weather proof (IP-67 rated) design
- Integrated surge protection (IEC standards rated)
- Free NMS (WNMS - Wireless Network Management System)
- Professional articulating mounting bracket


W-jet 2

A proprietary protocol optimized for PTP links to maximize throughput and packets per second while minimizing latency.


OLED screen

External OLED screen for antenna alignment and link testing.

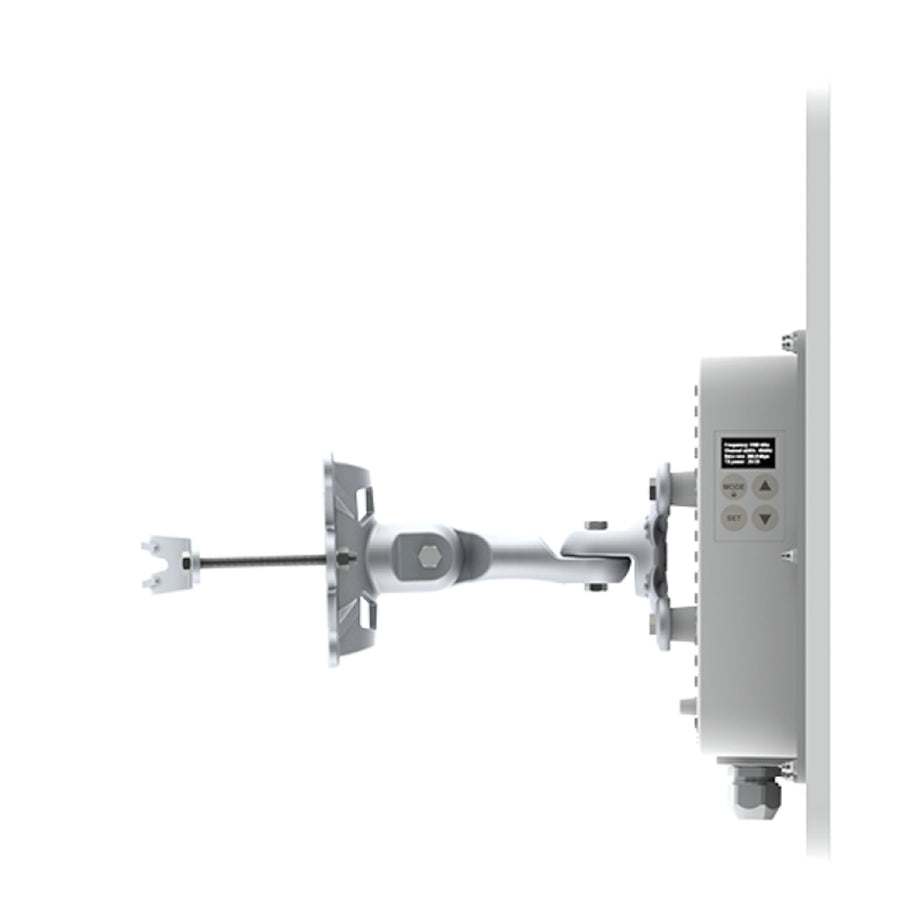

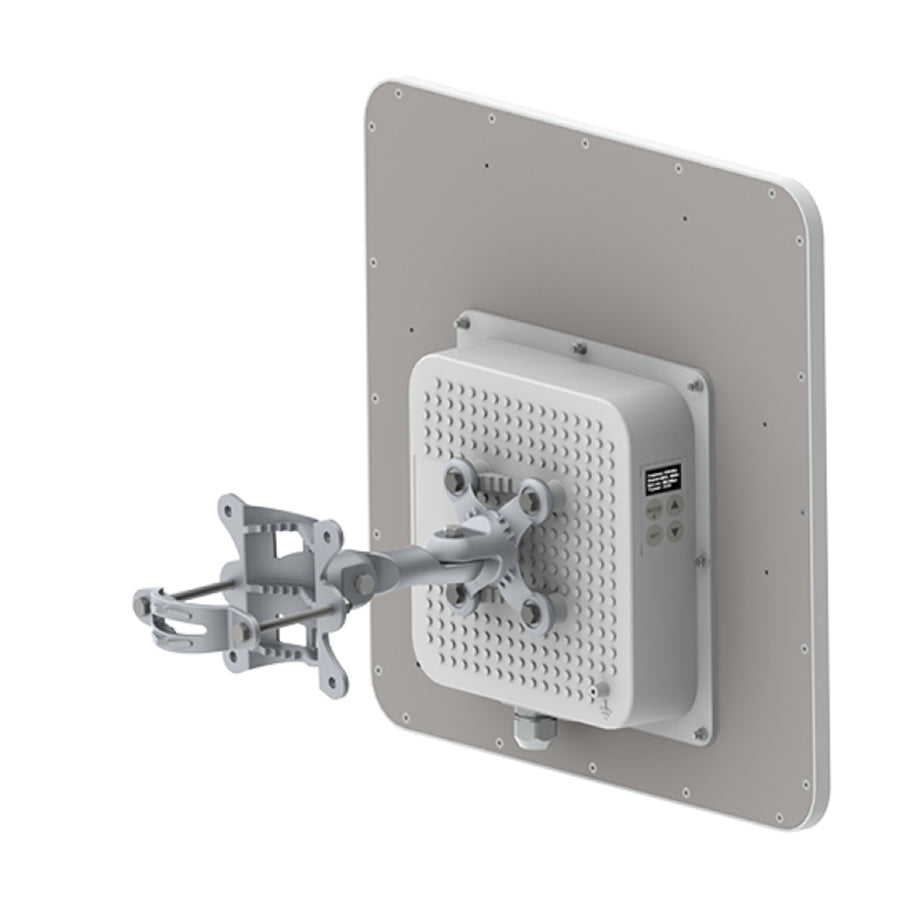

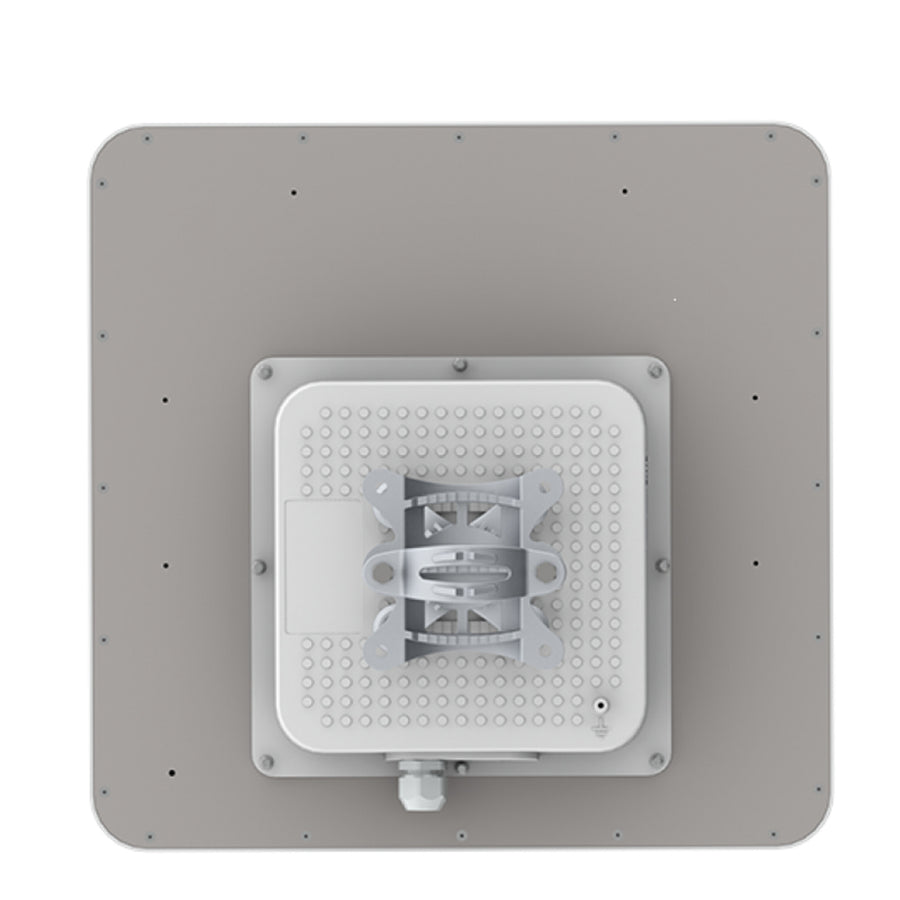

Professional design

Weather-proof (IP-67) standards rated die-cast aluminum enclosure with an articulating mounting bracket.

QoS

Allows prioritizing mission critical data on the LigoPTP links on L2 and L3.


Carrier grade surge protection

LigoPTP devices have an integrated surge protector made according to IEC standards that is isolated from the main circuitry.

Spectrum analyzer

An integrated GUI tool to check the noise floor of the environment where the link is being installed.


LigoWave OS

The LigoOS is a feature-rich, easy to use and professionally developed operating system made for wireless backhaul equipment. The W-Jet proprietary, wireless transmission protocol maximizes the performance of the powerful radios to maximize capacity and PPS (Packet Per Second rate) while reducing latency to a mimimum. The easy to use interface also has a variety of tools like spectrum analyzer, site survey, antenna alignment, and delayed reboot to make the installation straightforward and fast.
