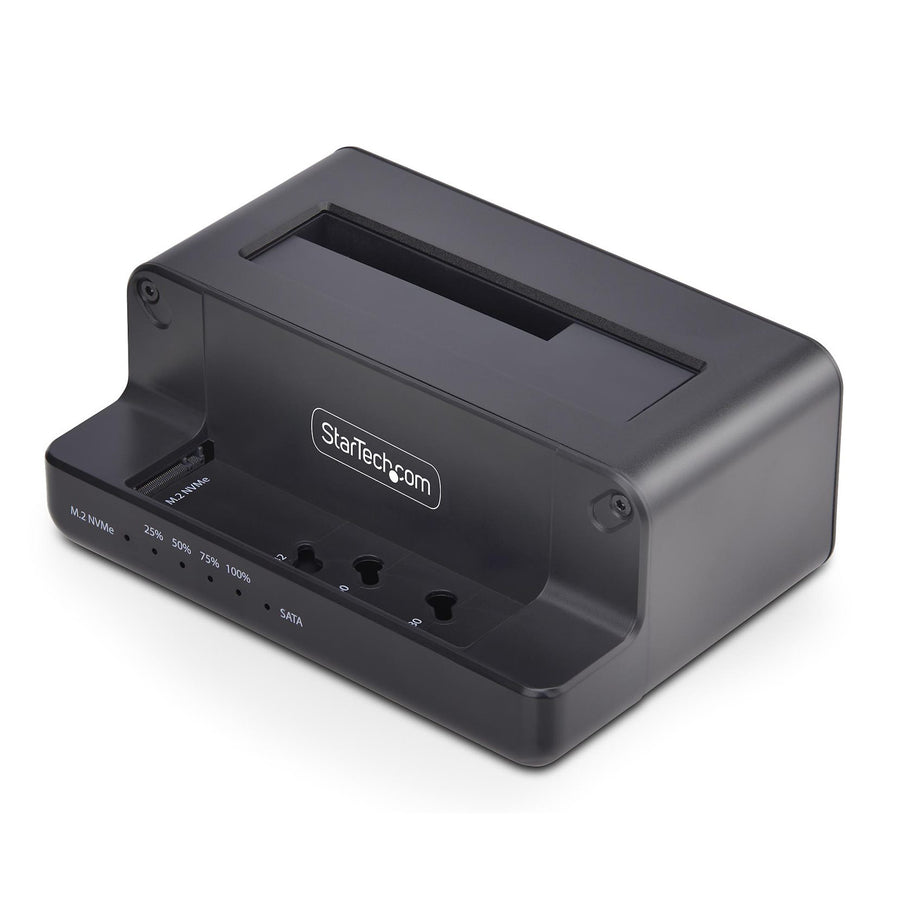

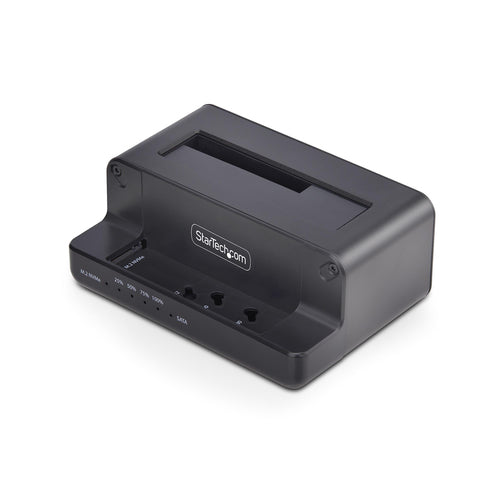

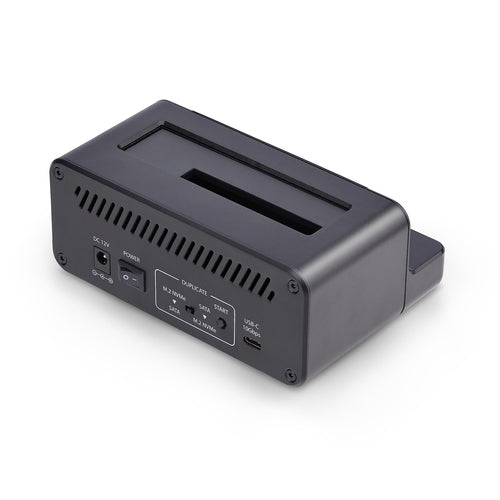

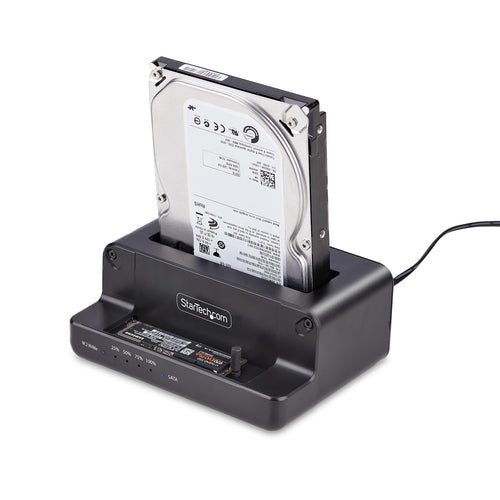

StarTech.com N2-M2-SSD-DUPLICATOR - M.2 NVMe to 2.5/3.5IN SATA Duplicator
Features

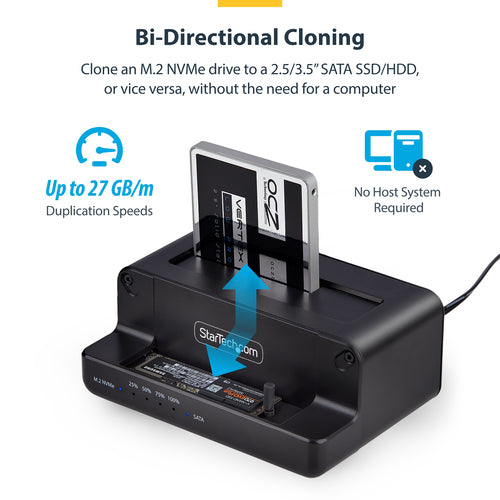

STANDALONE BIDIRECTIONAL CLONING
Perform bidirectional cloning between M.2 NVMe and 2.5/3.5" SATA SSDs/HDDs without a computer, using this M.2 NVMe to SATA Drive Duplicator. The standalone sector-by-sector duplication supports SATA III (6Gbps) and works with any file format.
- Copy an M.2 NVMe drive to a 2.5/3.5" SATA SSD/HDD, or clone from a SATA drive to M.2 NVMe without the need for a computer
- Up to 27GB/min sector-by-sector duplication copies the entire drive
- Works with any file format

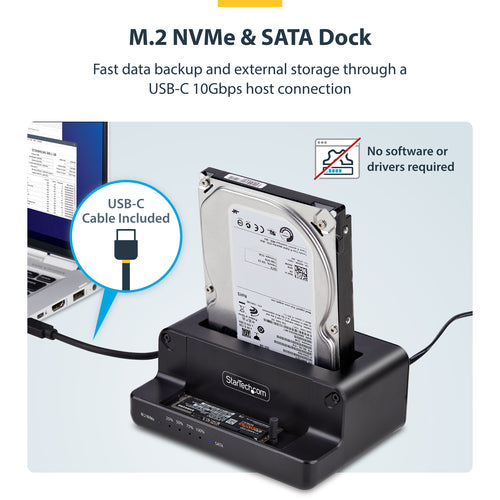

M.2 NVME AND SATA DOCK

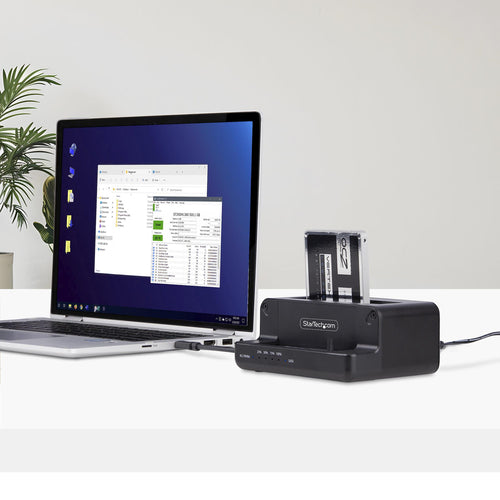

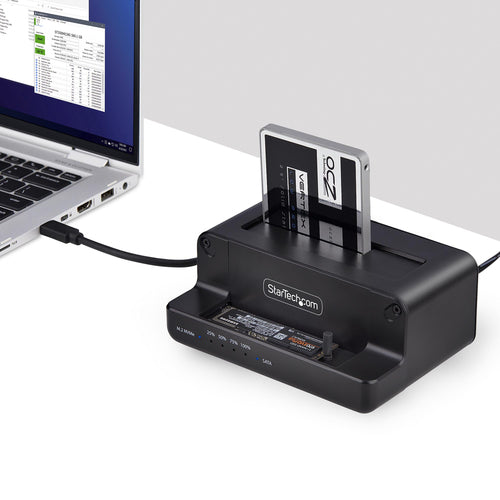

The USB 3.2 Gen 2 (10Gbps) host connection provides external access to both M.2 NVMe and SATA drives, facilitating data transfer between systems without the need to install the drives internally.
- USB 10Gbps (USB 3.2) host connection enables external access and storage for M.2 NVMe and SATA SSD/HDDs
- Perform data transfer without installing the drives internally
- Supports up to SATA III (6Gbps) and PCIe Gen3x2 (7.8Gbps)

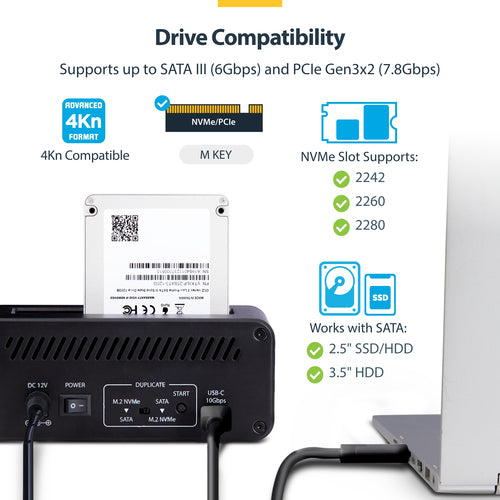

WIDE COMPATIBILITY
Clone an M.2 NVMe drive to a 2.5"/3.5" SATA SSD/HDD or vice versa. This solution is ideal for hardware upgrades, system imaging, or routine maintenance. The Duplicator Dock supports 2240, 2260, and 2280 M.2 NVMe sizes and fits all standard SATA drives, seamlessly combining both legacy and modern storage solutions.
- No drivers or software required
- Toaster-style SATA drive bay fits all standard 2.5/3.5" SATA drives

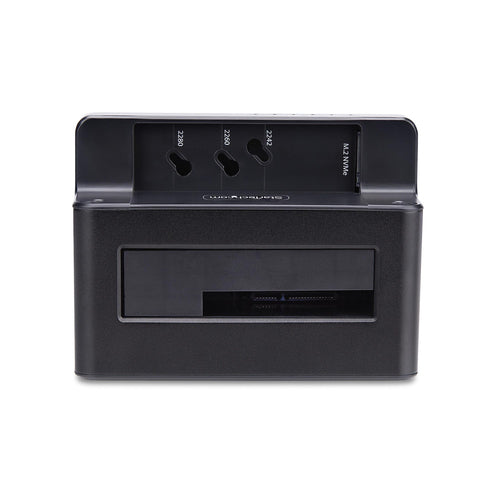

- M.2 NVMe slot supports 2242, 2260, & 2280 types
- Supports 4Kn sector sizes
- Target disk must be equal to or larger than source disk
COMPACT & USER-FRIENDLY
The Standalone M.2 NVMe to 2.5/3.5in SATA Cloner is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals when troubleshooting on-site, with the ability to re-image and re-deploy M.2 NVMe and SATA SSDs/HDDs without the need for a dedicated cloning station.
The SSD Cloner Dock features a top-loading design to promote passive airflow for consistent temperatures during peak performance. The Standalone Duplicator supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.
- Small form factor requires minimal desktop or storage space

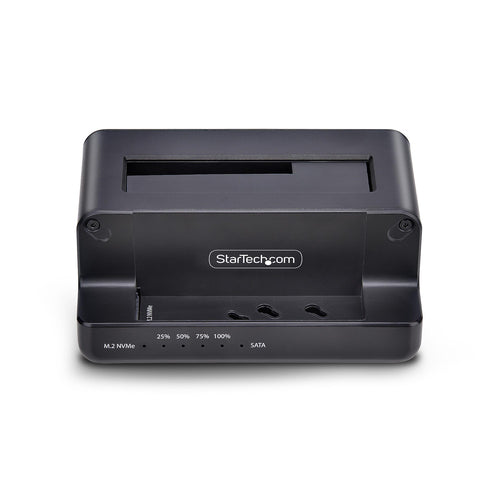

- LEDs indicate power, drive activity, and progress
- Top-loading design promotes greater passive cooling for optimal performance
APPLICATIONS
- Seamlessly clone data from legacy SATA drives to M.2 NVMe
- Backup data from M.2 NVMe to a SATA SSD/HDD
- Ideal for hardware upgrades, IT system imaging and deployments, support tasks, and routine maintenance

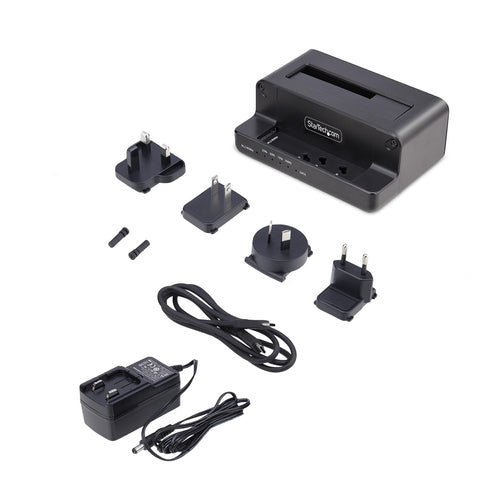

- USB-C Cable is included
Specifications
Technical Specifications
| Fan(s) | No |
|---|---|
| Bus Type | PCI ExpressUSB-C |
| Number of Drives | 2 |
| Drive Size | 22 mm - M.2 NVMe |
| Compatible Drive Types | M.2 (PCIe, NVMe, M-Key, NGFF)SATA |
| Drive Installation | Removable |
| Number of external 5.25 inch bays | 1 |
| Supported Drive Height(s) | 224222602280 |
| Chipset ID | JMS581D |

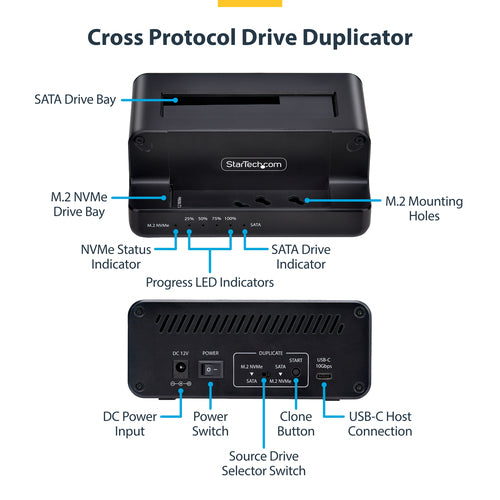

| LED Indicators | 4 - Progress LEDs: Indicates 25%, 50%, 75%, and 100% progress during the duplication process2 - Drive LEDs:Solid: Indicates the M.2 Drive is detectedOff: There is an error reading the M.2 Drive or the M.2 Drive was removed during duplication |
| Type and Rate | USB 3.2 Gen 2 - 10 Gbit/s |
| UASP Support | Yes |
| 4Kn Support | Yes |
| Type and Rate | SATA III (6 Gbps) |
| Duplication Modes | Sector by Sector (Whole Drive) |
| Hot Swap Capability | Yes |
| Color | Black |

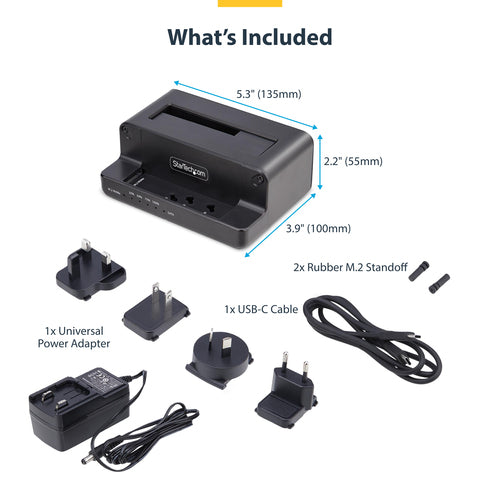

| Product Height | 2.2 in [5.5 cm] |
| Product Length | 5.3 in [13.5 cm] |
| Weight of Product | 10.9 oz [308 g] |
| Product Width | 3.9 in [10.0 cm] |
| Material | ABS |
| Cable Length | 39.4 in [100 cm] |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 1.5A |
| Output Voltage | 12V DC |
| Output Current | 3A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 0.1W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 10% ~ 85% RH |
| OS Compatibility | OS Independent - No Drivers or Software Required |
| Note | For duplication, the target drive must be of equal or greater size than the source drive.Actual duplication speed will vary based on drive model, algorithm, and other factors. Results may vary. |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > Internal SSDs |
| Weight | 0.289 kg |
| Warranty |
|---|
