Features
The Magewell Pro Convert AES67 is a versatile, multi-format IP audio converter and capture device designed to bridge analog audio, software, and IP standards seamlessly. It supports protocols such as AES67, NDI®, SRT, and more, making it an ideal solution for mixed-technology local and remote production workflows, as well as ProAV installations.
Comprehensive Input and Output Capabilities

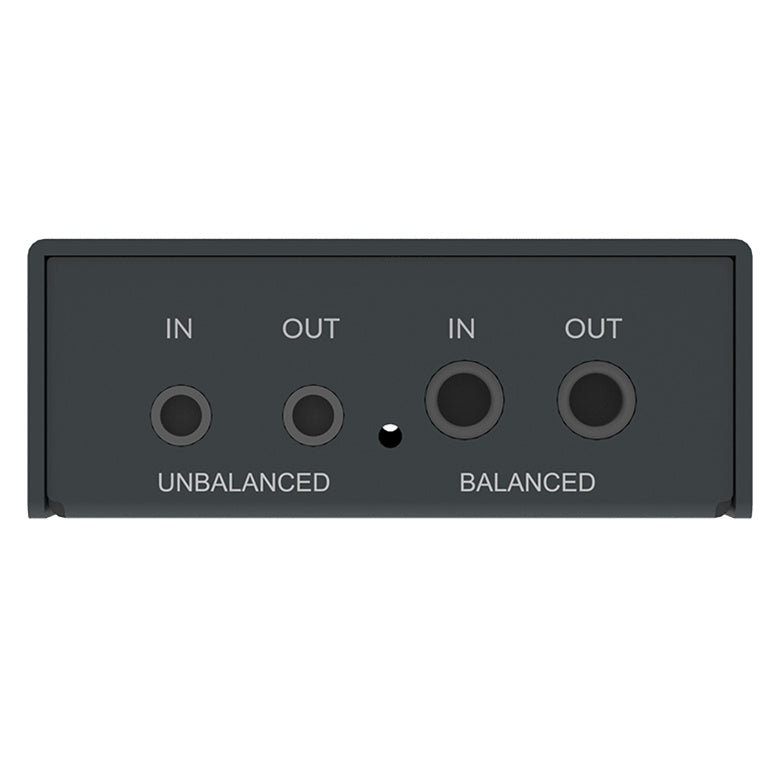

This device offers extensive input and output options to accommodate various audio sources and destinations. It features a 2-channel 3.5mm unbalanced input and output, a 2-channel 4.4mm balanced input and output, and a 4-channel 24-bit/48kHz USB Audio Class (UAC) input and output. Additionally, it can receive up to four 8-channel 24-bit AES67 streams, both multicast and unicast, and optionally receive a 4-channel 16-bit stream via SRT, NDI®, or Icecast protocols.
Flexible Audio Routing and Mixing
The Pro Convert AES67 provides a flexible, virtual audio matrix that allows routing or mixing of any analog or IP-based input channel to any output. This functionality is accessible through a web-based user interface, enabling users to configure and control the device remotely. The device also supports plug-and-play operation as a UAC device, offering comprehensive real-time information regarding the device and signals.
Advanced Features and Protocol Support
In addition to AES67, the Pro Convert AES67 supports multiple streaming protocols, including Secure Reliable Transport (SRT) and NDI®, facilitating low-latency audio transport with precise synchronization using PTP (IEEE 1588). The device's built-in web interface allows for easy configuration, monitoring, and firmware updates, ensuring optimal performance and adaptability to various production environments.
Compact Design and Power Options

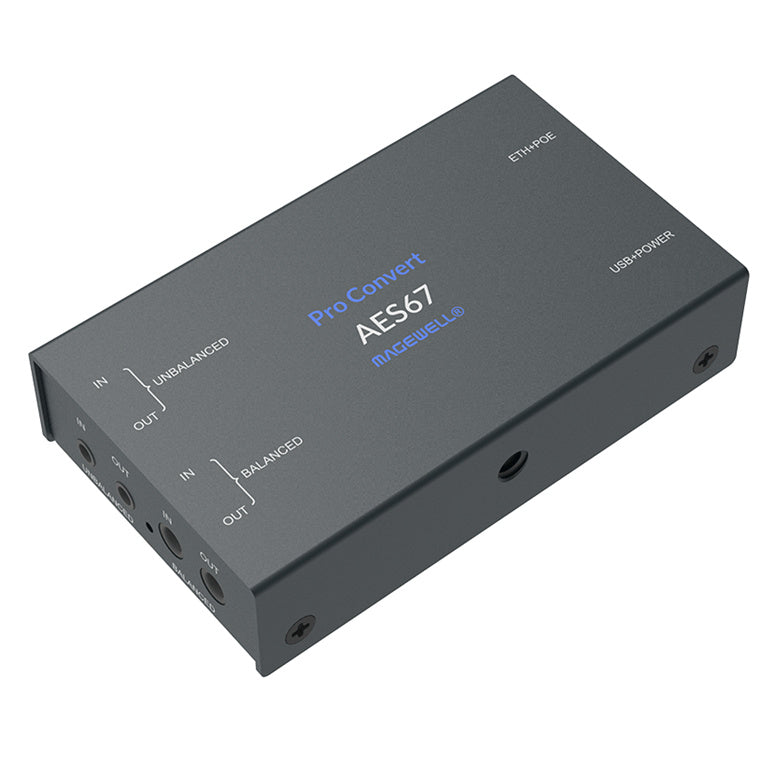

Housed in a compact and robust metal enclosure, the Pro Convert AES67 is suitable for both rack and field deployments. It offers flexible power options, supporting Power over Ethernet (PoE) or USB-C power input, catering to diverse operational requirements. The device's dimensions are 100.9mm (L) x 60.2mm (W) x 23.3mm (H), making it a portable and efficient solution for various audio conversion needs.
Specifications
Technical Specifications
| Brand | Magewell |
|---|---|
| Receiving/Input Features | Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)1 x 4-channel 24-bit/48k USB Audio Class inReceiving 4 x 8-channel 24-bit AES67 (compatible with SMPTE ST 2110-30) streams both multicasted and unicastedReceiving 1 x 4-channel 16-bit Network audio stream with Icecast, SRT, or NDI protocol, via EthernetFrequency Response 20Hz ~ 20kHz (-/+0.5dB)Dynamic range > 100dBSignal to noise ratio > 100dBTotal harmonic distortion < 0.01% @ +4dBuSupport for PTP master/slave (AES67)Max signal level: unbalanced at 12dBu, balanced at 24dBuDevice buffer at 0.125 ~ 64 ms (controlled via WebUI, 1 to 16 packets with packet time at 0.125/0.25/0.333/1/4 ms) |
| Sending/Output Features | Support for sample rates of 96/48/44.1 KHz, and 16/24bit sample depth1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)1 x 4-channel 24-bit/48k UAC outMulticast (IGMPv2) and unicast up to 8 x 8-channel 24-bit AES67 (SMPTE ST 2110-30 compliant) streamsEncoding and transmitting 1 x 4-channel 16-bit audio stream with Icecast, SRT, and NDI protocolSupport for PTP master/slave (AES67)Total harmonic distortion < 0.01% @ +4dBuFrequency Response 20Hz ~ 20kHz (-/+0.5dB)Dynamic range > 100dBSignal to noise ratio > 100dBMax signal level: unbalanced at 12dBu, balanced at 18dBu |
| Configuration Management | Registration with Control HubRemote control via WebUI and Control HubProvision of comprehensive information regarding the device and signals in real-timeConfiguration of how an input is processed and encoded, including sampling, packets, PTPv2(IEEE 1588-2008), channel adjustment, audio mixing, buffer, as well as the network connectionSupport for updating firmwareSupport for USB RNDIS/ECMSupport for IE/Edge/Firefox/Chrome/Safari/Opera web browsersProvision of HTTP APIs |

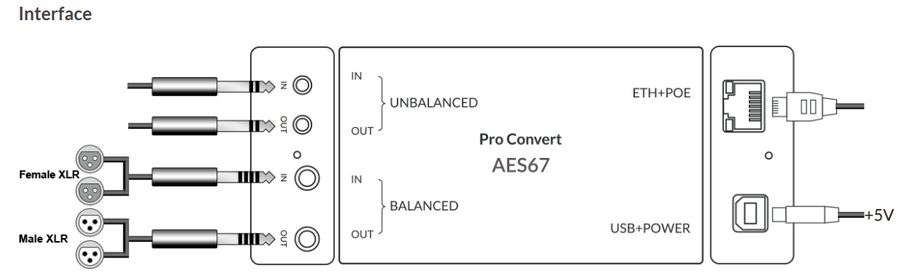

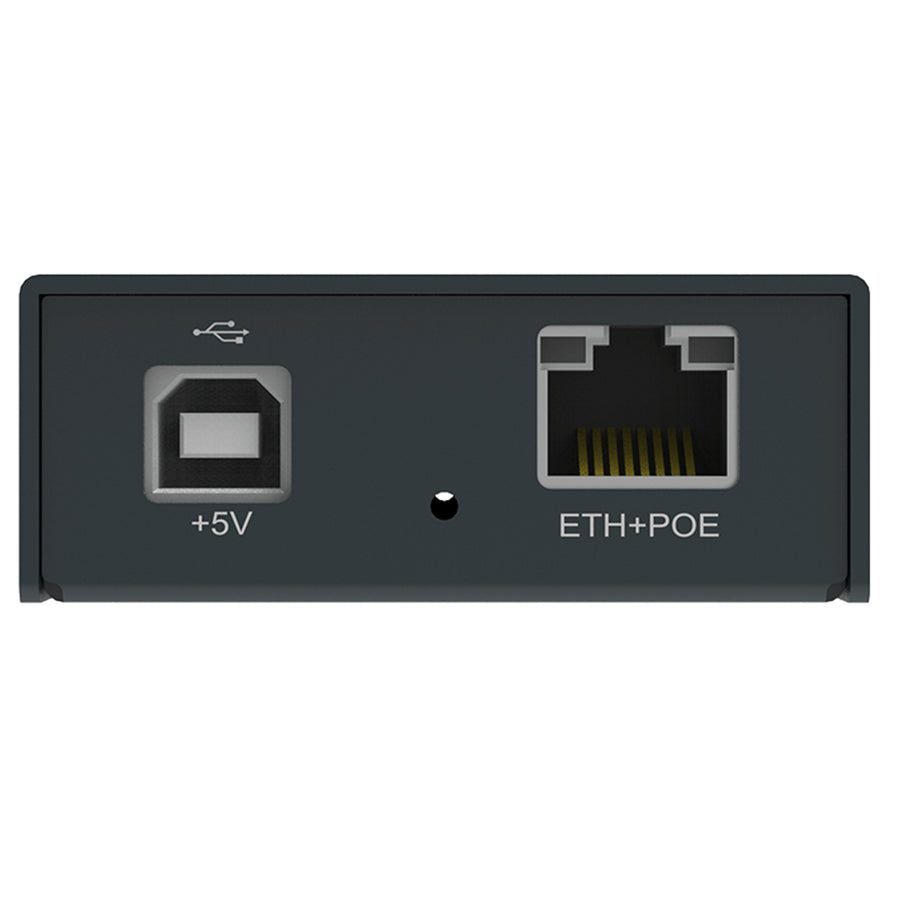

| Interfaces | 10/100/1000Mbps with PoE (IEEE 802.3af)USB2.0 Type B5V/2.1A power supplyUSB NET3.5mm TRS unbalanced IN/OUT4.4mm TRRRS balanced IN/OUT |
| LED Indicators | Power LED indications:on: power onoff: power offPTP LED indications:on: syncedoff: not syncedblinking: syncing |
| Form Factor | 100.9smm (L) x 60.2mm (W) x 23.3mm (H) |

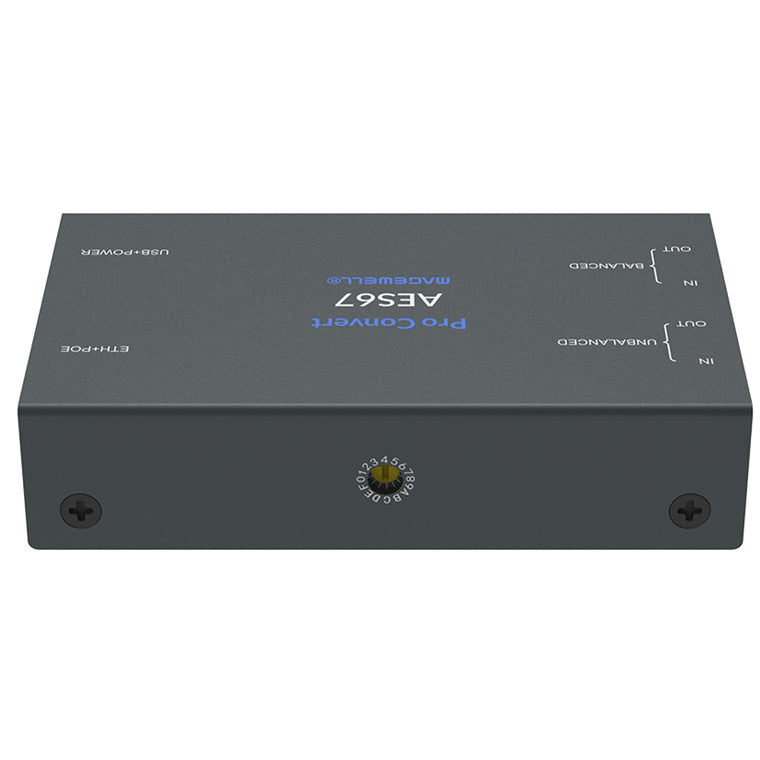

| On-board Control Buttons | 16 Position Rotary DIP Switch: sets board-index from 0 to F |
| Screw Mounting Hole | 1/4-20 threaded hole |
| Power Consumption | 5V max current: ~ 1 AMax power consumption: ~ 5 W |
| Working Environment | Operating temperature: -10 to 50 deg CStorage temperature: -20 to 70 deg CRelative humidity: 5% to 90% non-condensing |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Magewell |
|---|---|
| Product Type | B2C - Lifestyle & Other |
| Weight | 0.227 kg |
