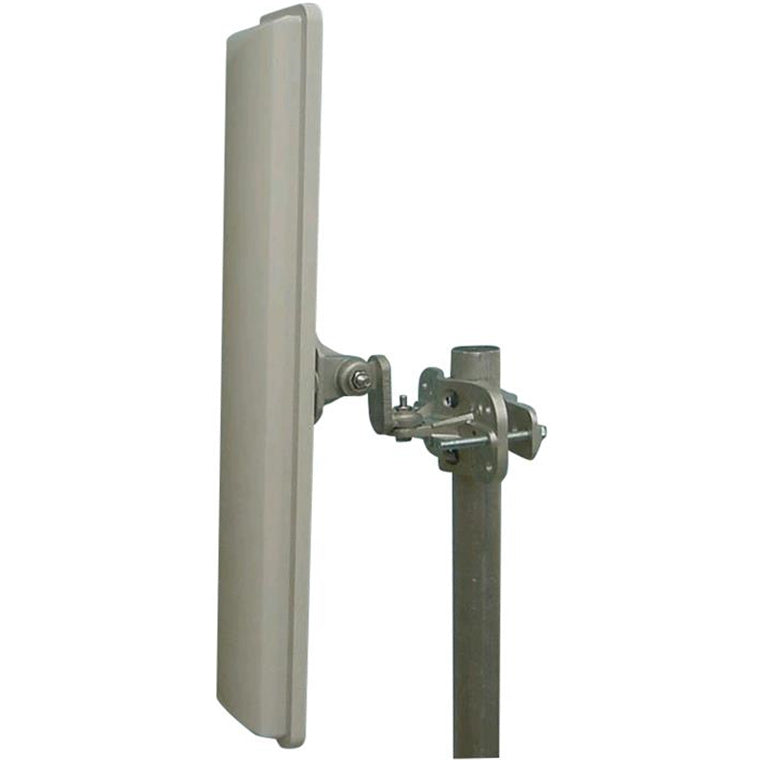

Mars Antennas ANT-130 - MARS 16dBi 90deg 4.9GHz - 6.1GHz Sector Antenna
Mars Antennas ANT-130 - MARS 16dBi 90deg 4.9GHz - 6.1GHz Sector Antenna
Features
The MARS MA-WD55-16 90° Broadband Sector Antenna provides a cost effective solution for large scale WLL, WLAN, H-LAN, ISM, UNII, Public Safety, Municipal MESH Networks and Point-to-Multi-Point applications.
- Waterproof 5 GHz Vertical broadband sector Antenna
- Azimuth/Elevation Adjustable Mount MNT-22
- Efficient and stable performance
- Highest range of ETSI Standards - TS3, TS4, TS5
- UV protected radome allowing for harsh weather installations
- Easy mounting allowing for Az/El adjustment
- Carrier class construction
- Expected 10 year working life span
- Includes heavy duty mount MNT-22 for poles up to 2.5" (63.5mm)
Specifications
Technical Specifications
| Frequency Range | 4.9-6.1GHz |
|---|---|
| Gain | 16dBi |
| Polarisation | Vertical |
| Vertical Beamwidth | 8deg |
| Horizontal Beamwidth | 90deg |
| Connector Type | N-Type Female |
| Dimensions | 573 x 95 x 53 mm |
| Pole Mount Diameter | 30-63mm |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Mars Antennas |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.5 kg |
