Maxhub CVTE

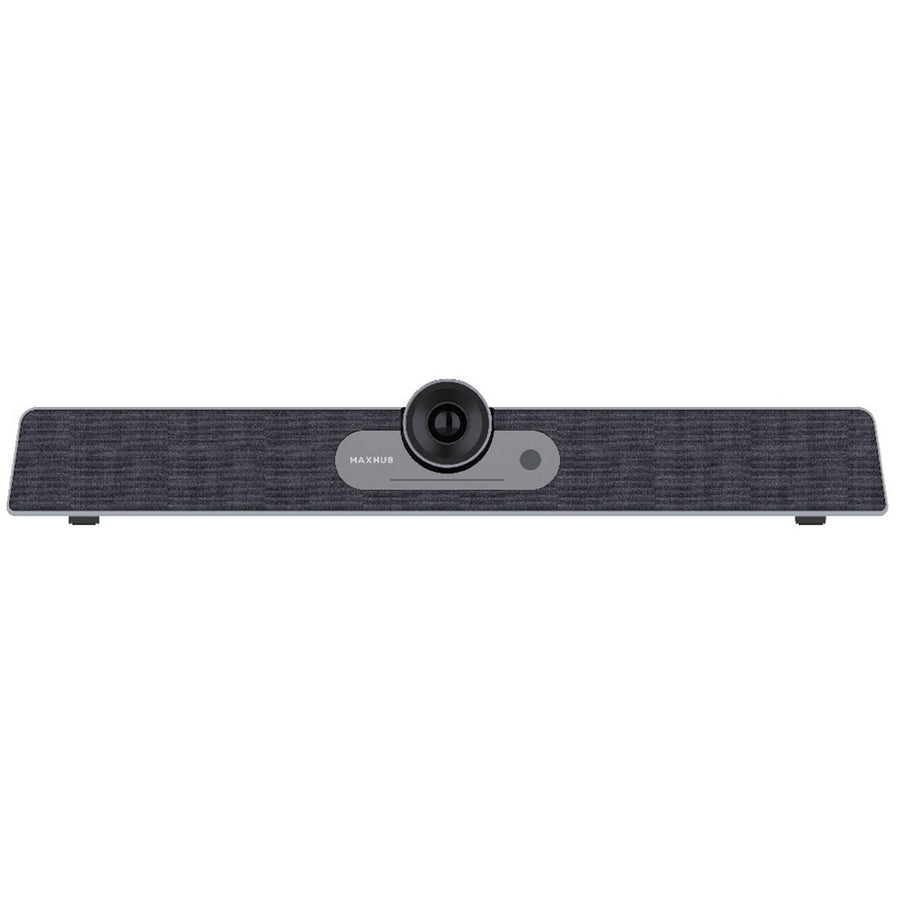

Maxhub CVTE MAXHUB UC S07 4K Microsoft Teams Rooms Videobar Microsoft Teams Rooms Certified 1/2.3" Sony CMOS, 12MP 4K Camera, DFOV 120° 6 microphone array 8W+3W speaker USB-C 2.0

SKU: UCS07 ● In Stock
$1,242.53
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

MAXHUB UC S07

All-in-one Ultra-HD USB Videobar with 8-meter Voice Pick-up Range for Small and Medium-sized Rooms

- Intelligent plug and play with all-in-one USB BYOD
- Hear and be heard everywhere with microphones featuring 8m voice pickup
- Always see and be seen with UHD 4K video and built-in AI functions

Make Space

For meetings in huddle rooms for 2 to 8 people, UC S07 features exceptional integrated capabilities in a compact USB camera bar.

2 people

5 people

8 people

Intelligent Plug and Play

All-in-one
Perfect for a BYOD (Bring Your Own Device) environment, this plug and play camera bar features an integrated camera, microphone, and speaker.

Easy set up
All you need is two cables-one for the power supply (PoE) and a Type-C USB cable.

Hands-free activation
Thanks to the PIR sensor and hands-free function, the device automatically turns on when movement is detected within a 3m range. It enters standby mode when no movement is detected in a 30-minute timeframe, reducing energy consumption.

Tracking you wherever you are

Ensure better conversation with the 6 intelligent beam-forming microphones featuring 8m voice pickup. With speaker tracking and voice location locking, you and your colleagues can always get your point across loud and clear. AGC maintains constant and stable voice output regardless of the speaker's distance from the microphone.

Filter noise for what really matter

Keep the attention on you by filtering out distracting background noises like tapping, typing, or doors closing.

Hear clearly

Whether your meeting is a conversation between two people or a larger gathering of up to 8, you'll hear everyone clearly thanks to the studio-quality Hi-Fi speaker with 8 W+3 W output power. Plus, the tweeter and woofer design deliver an immersive sound experience to every corner of the room.

See every detail

UHD 4K video offers crystal clear video images.

Razor-sharp focus from wide-angle to close-up

See everyone in the meeting room simultaneously using the wide-angle view or see a close-up of an individual attendee. The 5x digital focus is ideal for use in huddle rooms.

Easily auto-frame participants

Auto-Framing with intelligent face detection seamlessly tracks the active speaker to keep participants engaged.

Manage flexibly

Device management flexibility means onsite IT administrators can manage the device through a USB cable via MAXHUB ALIGN (software), however, remote teams can also access the device via the cloud-based MAXHUB Pivot.

Device Management at Your Fingertips

Use MAXHUB ALIGN to update and optimize the status of your video meeting devices, and fine-tune camera performance to look your best on video calls. Device can be managed remotely for your hybrid meeting needs through the MAXHUB Pivot.

Specifications

Technical Specifications

Pixel 12M
Sensor 1/2.3-inch 12MP Sony sensor
H.264/MJEPG (1) 3840 x 2160   (2) 2560 x 1440   (3) 1920 x 1080(4) 1280 x 720   (5) 1024 x 576   (6) 960 x 540(7) 800 x 600   (8) 640 x 480   (9) 640 x 360(10) 480 x 270   (11) 352 x 288   (12) 320 x 240
YUY2 (1) 640 x 480 (2) 640 x 360 (3) 480 x 270(4) 352 x 288 (5) 320 x 240 (6) 320 x 180(7) 160 x 120
ZOOM 5x digital zoom
Output Format MJPG; YUY2; H.264
Field Of View 120° (D)
Adjustable Angle ± 15° (V)
Focus Mode Fixed-Focus
Focus Distance 1m
Preset Accuracy 0.1°
Special Features Auto Framing: automatic adjustment FOV to fit in all participants Speaker Tracking: voice triggered people tracking 2 Zooming Pre-sets for instant setting up
Power Requirements 12V
Overall Power(Max.) 10W
POE Power Yes (IEEE 802.3af or 802.3at)
Dimension(Lx Hx D) 462 x 76 x 93 mm (18.2 x 3.0 x 3.7 inch)
Dimension(package)(Lx Hx D) 1pcs 538 x 160 x 169 mm (21.2 x 6.3 x 6.7 inch)
Maximum Sound Pressure 80dBSPL @ 1m
Net Weight 1.05Kg/37.04oz
Gross Weight 1pcs 2.55kg/90oz
Sound Channel 1.1
Output Power 8W + 3W
Microphone Quantity 6
Voice Pickup Range 8m
Special Features Noise Reduction,Echo Cancellation,Anti-Reverberation,Built-in AGC Algorithm
USB 3.0 Type-C Connect USB host, upgrade system, etc.
Audio Out Used for external audio equipment
DC 2.0 Used for 12V power input power supply
RJ45 Only support POE power supply
Operation Temperature 0? - 40?
Operation Humidity 10% - 90%RH
Storage Temperature -20? - 60?
Storage Humidity 10% - 90%RH
Altitude Below 5000 meters
included 1 x USB Cable (1.8m/70.9 inch),1 x Remote Control ,1 x Power Adapter, 1 x Wall-mounted Components, 1 x Peeping Cover
PIR Sensor In power-on mode, it will automatically enter standby state If no moving object is detected within 3 meters within 30 minutes, minimizing energy consumption; In standby mode, it automatically starts up when detecting moving objects within 3 meters, simplifying the setup process.
