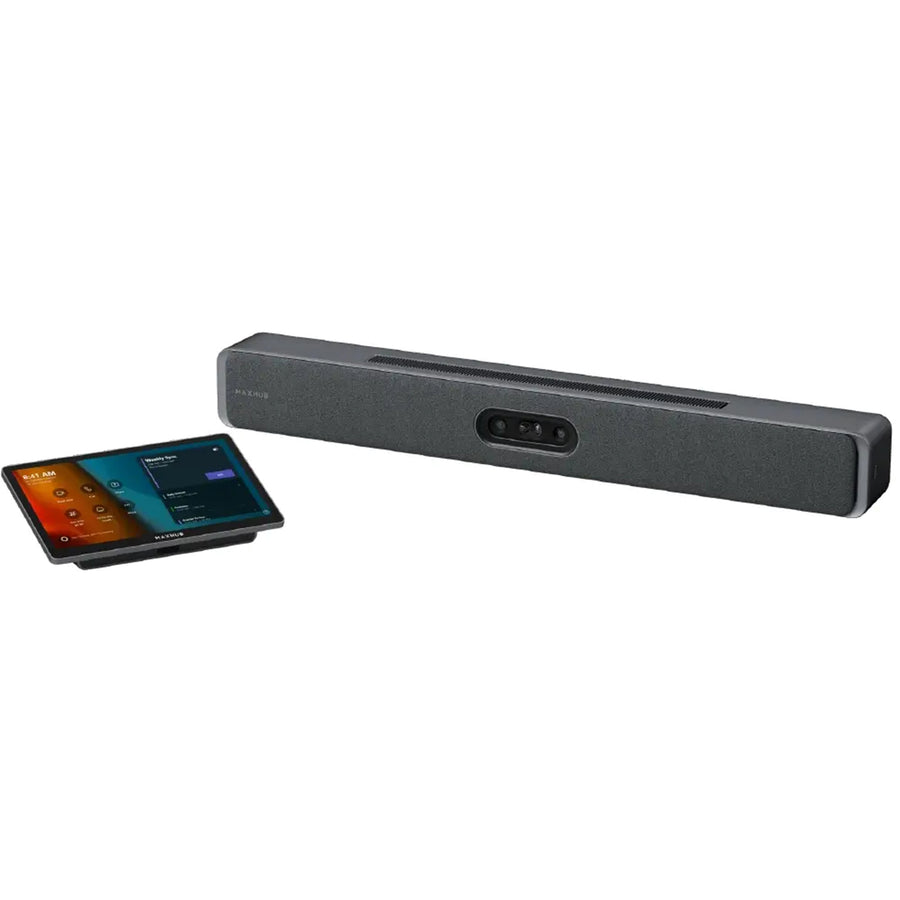

Maxhub CVTE MAXHUB V70 MTR Videobar with Touch Console - Android Large Sized Meeting Room
Features
MAXHUB XBar V70 Kit For Microsoft Teams Rooms
The MAXHUB XBar V70 is an all-in-one Android-based videobar designed for premium medium to large meeting rooms. Equipped with a 200MP quad-camera system and studio-grade dual speakers, it delivers exceptional audiovisual performance. Enhanced by AI noise reduction, the built-in 16-microphone array ensures crystal-clear audio experience. It can eliminate background interference like keyboard clicks or air conditioning.
Featuring a dedicated AI chipset, the XBar V70 supports advanced functionalities including Auto Framing, Speaker Tracking, Intelligent Focus and Smart Gathering. Its plug-and-play deployment simplifies installation and remote maintenance, while design for Microsoft Device Ecosystem Platform (MDEP) ensures seamless integration.
200MP Camera System
Ultra-high-resolution camera system redefines image clarity and spatial adaptability
Quad Sight Lens
Ultra-wide 125° HFOV
Dual telephoto lens for close-up tracking
AI-Powered Technology
Auto Framing
Speaker Tracking
Smart Gathering
Intelligent Focus
AI Noise Reduction
Noise Reduction
Echo Cancellation
Anti-Reverberation
AGC Algorithm
Extended Capability
Can connect to both third-party device and exclusive MAXHUB device
Studio-Grade Dual Speakers
Dual 20W
Stereo Sound
Full Frequency
Quad Passive Radiator
BYOD Mode
Connect to your PC with a single
USB cable for BYOD meeting
Cloud Device Management
Remotely monitor device status
through cloud-based service
(MAXHUB Pivot) via an internet connection
Specifications
Technical Specifications
| Package Contents | XBar V70 (With Accessories) × 1Panel AP30 (With Accessories) × 1 |
|---|---|
| Package Dimension (L×W×H) | 985 × 290 × 275 mm / 38.8 × 11.4 × 10.8 in |
| Gross Weight | 11.7 kg / 25.79 lb |
| Control and Management | Microsoft Device Management Platform (Microsoft Teams Admin Center/Intune/Pro management portal)MAXHUB Pivot |
| Teams (In Meeting) | 1080p@30 |
| Local Sharing (Type-C) | 4K@30 |
| Local Sharing (HDMI) | 4K@30 |
| Operating Temperature | 0°C ~ 40°C / 0°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 10% ~ 90% RH |
| Storage Humidity | 10%~ 90% RH |
| Altitude | Below 5000 m |
| Camera Quantity | 4 |
| Pixel | 50MP × 4 |
| Sensor | 1/1.55 inch |
| Aperture | F/2.4 |
| Resolution & Frame Rate | H.264 / MJPEG: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720, 1024 × 576, 960 × 540, 800 × 600, 640 × 360.YUY2: 1920 × 1080, 1280 × 720, 640 × 360 |
| ZOOM | 8x hybrid Zoom |
| Wide Camera | 130° (D), 125° (H), 50° (V) |
| Telephoto Camera | 52° (D), 42° (H), 32° (V) |
| Privacy Shutter | Electric and automatical lens shutter |
| AI Feature | Auto FramingSpeaker TrackingIntelligent FocusSmart GatheringVideo Fence |
| Speaker Quantity | 2 |
| Sound Channel | 2.0 |
| Total Power (Max.) | 20W + 20W |
| Sound Pressure (Max.) | 88dB (+/-2dB) SPL@1W/ 1/2meter |
| Frequency Range (Speaker) | 80 Hz ~ 20 KHz |
| Microphone Quantity | 16-mic array |
| Pickup Range | 10 m |
| Frequency Range (Mic) | 20 Hz ~ 16 KHz |
| Sensitivity | -36 ± 1 dBFS |
| Sampling | 48 KHz |
| Expansion | Supports 2 expansion microphones |
| AI Feature | Noise ReductionEcho CancellationAnti-ReverberationAGC AlgorithmFull-Duplex |
| MDEP Supported | Yes |
| OS | Android 13 |
| Wi-Fi | Wi-Fi 6, 2×2 MIMO |
| Wi-Fi Protocol | 802.11 a/ b/ g/ n/ ac/ ax |
| Working Band | 2.4 GHz + 5 GHz |
| Bluetooth | 5.2 + BLE |
| Network | 1000 Mbps |
| Power Adapter | AC 100-240 V Input and DC 19V/4.5A Output |
| USB-A (2.0) × 1 | For firmware update and debug. |
| HDMI In × 1 | Up to 4K@60Hz |
| HDMI Out × 2 | Up to 4K@60Hz, CEC supported |
| USB-B 3.0 (Device) × 1 | For BYOD Mode |
| DC In × 1 | For 19V power supply. |
| Audio In × 1 | To connect third-party device for audio input. |
| RJ45 (Internet) × 1 | For network connection. |
| RJ45 (M Link) × 1 | To connect to the panel. |
| RJ45 (Ext) × 1 | To connect MAXHUB exclusive accessories (microphone, camera, etc.) |
| USB-A (3.0) × 1 | For firmware update and debug. |
| Audio Out × 1 | To connect third-party device for audio output. |
| Product Dimension (L×W×H) | 840.6 × 117.6 × 104 mm / 33.1 × 4.6 × 4.1 in |
| Package Dimension (L×W×H) | 962 × 169 × 246 mm / 37.9 × 6.7 × 9.7 in |
| Net Weight | 4.3 kg / 9.7 lb |
| Gross Weight | 7.0 kg / 15.4 lb |
| Power Adapter | × 1 |
| AC Cable (1.5 m / 4.9 ft) | × 1 |
| HDMI Cable (3 m / 9.8 ft) | × 2 |
| Ethernet Cable (3 m / 9.8 ft) | × 1 |
| Mounted Components | × 1 |
| Size | 11.6 inch |
| Resolution | 1920 × 1080 |
| Frequency Refresh Rate | 60 Hz |
| Backlight Unit | ELED |
| Brightness With Glass | 250 nits (Min.)300 nits (Max.) |
| Life Time | ≥ 20000 hours |
| Type | Capacitive touch |
| Surface Treatment | Anti-fingerprint, Anti-glare |
| Type-C Cable (1.5 m / 4.92 ft) | × 1 |
| Ethernet Cable (7.5 m / 24.61 ft) | × 1 |
| Screwdriver | × 1 |
| Power Adapter | × 1 |
| AC Cable (1.5 m / 4.9 ft) | × 1 |
| RJ45 (Internet) | × 1 |
| RJ45 (Ext) | × 1 |
| DC In (Power) | × 1 |
| Type-C (Ingest) | × 1 |
| USB 2.0 (Pairing Wireless Dongle) | × 1 |
| Motion Sensor | PIR sensor for automatic wake-up |
| Power Input | 19V DC 4.5A |
| Power Output | Type-C PD 65W (Max.) |
| Product Dimension (L×W×H) | 278 × 164 × 82.4 mm / 11 × 6.4 × 3.2 inch |
| Product Weight | 1.16 kg / 2.56 lb |
| Package Dimension (L×W×H) | 1 pcs: 570 × 246 × 101 mm4 pcs: 590 × 440 × 280 mm |
| Package Weight | 1 pcs: 3.12 kg |
| MDEP Supported | Yes |
| OS | Andriod 13 |
| Brand | Maxhub CVTE |
|---|---|
| Product Type | UC & Video Conferencing > Video Conferencing |
| Weight | 0.5 kg |
