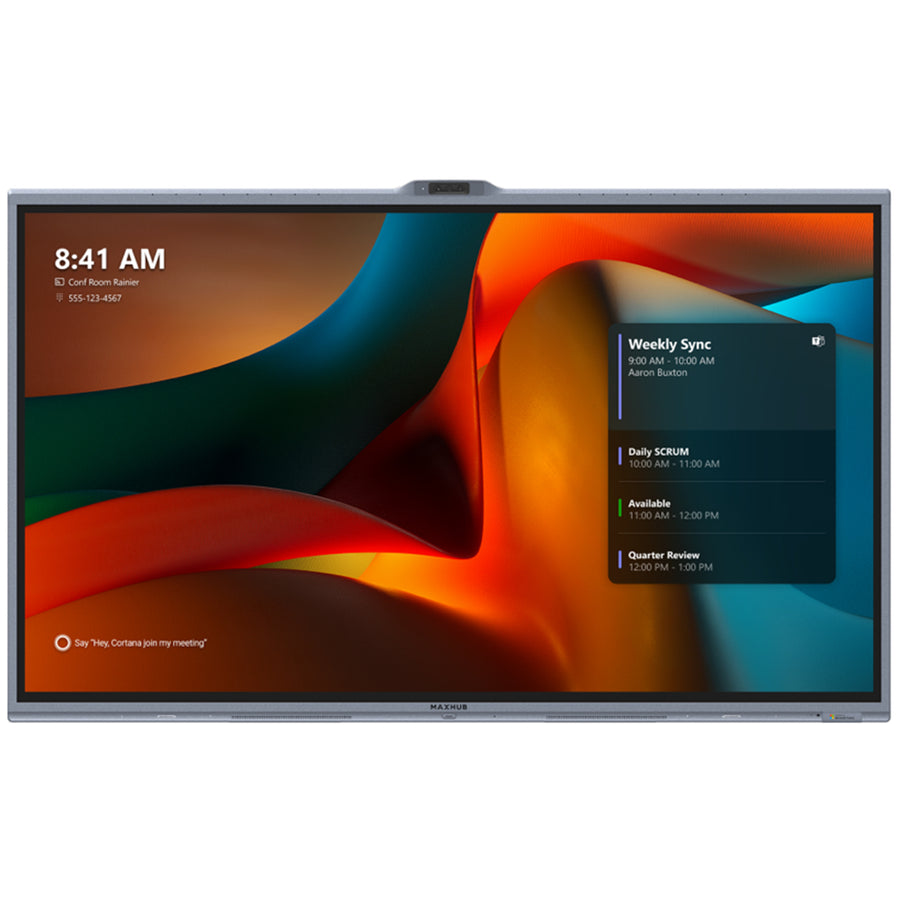

Maxhub CVTE MAXHUB XBoard V7 series V865T 86" Microsoft Teams Rooms Interactive Touch Display Screen size: 86" 4K Resolution display 50MP x 3 trident camera system 16-mic array, 15m pick up range IR recognition, 50 points touch 2 x 10W speaker + 20W su...
Features
The MAXHUB XBoard is a Windows-based, all-in-one collaboration solution designed for meeting rooms and huddle spaces. It consists of a high-resolution 4K LCD touch display, a triple-camera system, crystal-clear speakers and a 16-microphone array. As a certified Microsoft Teams Room device, the MAXHUB XBoard oers seamless colloboration and immersive video conferencing experiences.
Professional 4K Display
High color accuracy, ?E=1.5 Wide color gamut, NTSC 90% Non-glare technology, 25% haze
Seamless Collaboration
Built-in touch display and Microsoft whiteboard for real-time collaboration
Triple-Camera System
Equipped with one wide-view lens and two tele-view lens to provide clear view for all room participants
AI-Powered Video Technology
- Auto framing
- Speaker tracking
- Multi-speaker tracking
- Intelligent focus
Premium Audio
Built-in 16-beamforming microphone array,Built-in stereo speakersAI-powered noise reduction Full-duplex communication
Flexible Content Share
Wired 4K content share via HDMI * Wireless content share via wireless dongle, MAXHUB Share app, Airplay
BYOD Mode
Plug-and-play , an accessible way to switch between Teams Rooms mode and BYOD mode
Secured and Managed
- Windows 11 IOT
- MAXHUB Pivot Support
Specifications
Technical Specifications
| Model | V865T |
|---|---|
| Screen Size (Inch) | 86 |
| Aspect Ratio | 16:9 |
| Panel | IPS |
| Backlight | DLED |
| Brightness (Typ.) | 350 nits |
| Glass | Zero parallax3mm thickness9H Tempered |
| Surface Technology | 25% hazeNon-glare technology |
| Resolution | 3840 × 2160 |
| Refresh Rate | 60Hz |
| Contrast Ratio | 1200:1 (typ.) |
| Viewing Angle (H × V) | 178° / 178° |
| Color Gamut | 90% NTSC |
| Display Orientation | Landscape |
| Response Time | 8 ms |
| Life Time | >50,000 hours |
| Operation Hours (Hour / Day) | 16 / 7 |
| Display Color | 1.07 B (10 bit) |
| Color Accuracy | Delta E = 1.5 |
| Ambient light sensor | Motion Sensor |
| Pixel Pitch | 0.4935 (H) x 0.4935 (V) mm0.0194 (H) x 0.0194 (V) inch |
| Display Area | 1895.04 (H) × 1065.96 (V) mm74.61(H) × 41.97(V) inch |
| Power Supply | 100-240V~ 50/60Hz 5.0A |
| Standby Power | = 0.5 W |
| Power Consumption (Typ.) | 275 W |
| Power Consumption (Max.) | 465 W |
| Touch Technology | Intelligent Touchscreen Technology(infrared recognition) |
| Touch Point | 50 points touch |
| Object Recognition Range | = 1.5 mm (0.06 inch) |
| Accuracy | ± 0.5 mm (0.02 inch) |
| Response Time | = 2.5 ms |
| Writing Height | = 1 mm (0.04 inch) |
| Dimension (W × H × D) | 1957 × 1180.1 × 103 mm77 × 46.5 × 4.1 inch |
| Shipping Dimension (W × H × D) | 2110 × 1283 × 225 mm83.1 × 50.5 × 8.9 inc |
| Thickness of machine and wall mount | 130 mm (5.12 inch) |
| Wall-hanging Screw Spec | M8 × 25 mm (0.98 inch) |
| VESA | 800 × 400 mm31.5 × 15.8 inch |
| Net Weight | 58 kg / 127.9 lbs |
| Gross Weight | 78.5 kg / 173.1 lbs |
| Connectivity | HDMI In (2.0) × 2USB-A 2.0 × 1Touch (USB-B 2.0) × 1Audio In × 1Audio Out × 1RS232 × 1Mic In (RJ45) × 1Wireless Access Point |
| Wide Camera | 50MP × 1DFOV 99°, HFOV 86° |
| Telephoto Camera | 50MP × 2DFOV 68° (combined), HFOV 63° (combined) |
| Zoom | 5x hybrid zoom |
| Privacy Shutter | Yes |
| AI Features | Auto FramingSpeaker TrackingMultiple-speaker TrackingIntelligent Focus |
| Sound Channel | 2.1 |
| Speaker Power | 2 × 10W + 20W |
| Quantity | 16-mic array |
| Pick-up Angle | 180° |
| Pick-up Range | Best distance - 8m / 26.2ftMaximum distance 15m / 49.2ft |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -20°C~60°C |
| Operating Humidity | 10%~90% RH |
| Storage Humidity | 10%~90% RH |
| Altitude | Below 5000 meters |
| Brand | Maxhub CVTE |
|---|---|
| Product Type | PC Peripherals > Monitors |
| Weight | 74.55 kg |
