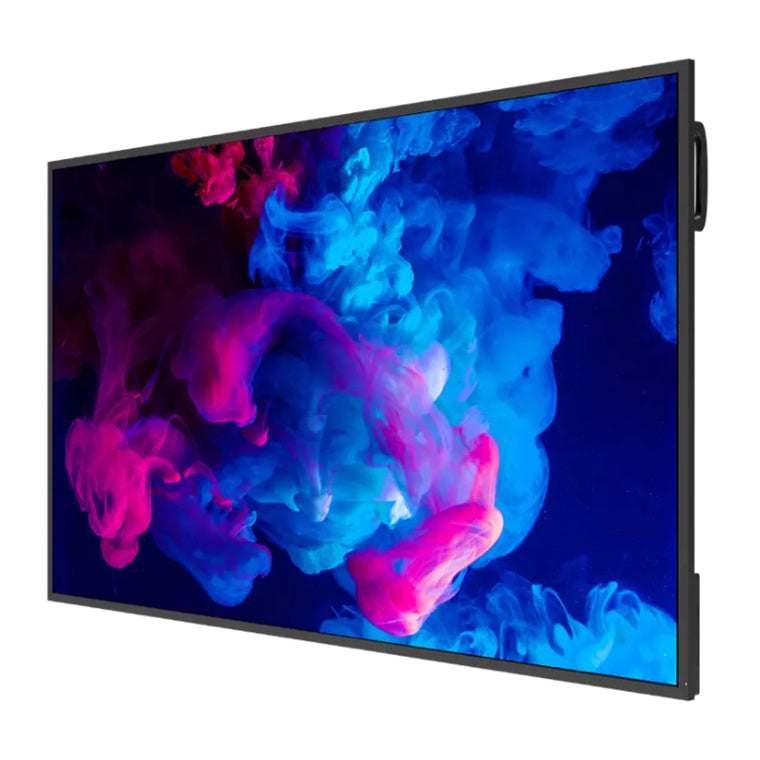

MAXHUB ND98CMB COMMERCIAL DISP
MAXHUB ND98CMB COMMERCIAL DISP
Overview
<b>CMB SERIES</b><br>Your Perfect Solution for Engaging Meetings and Captivating Commercial Displays.<br><br><b>PROFESSIONAL-GRADE COLOR, CALIBRATED & MANAGED</b><br>True to your imagination, precise in its presentation.<br><br><b>4K CLARITY. 24/7 RELIABILITY. FLEXIBLE SIZES.</b><br>Engineered for mission-critical environments, delivering stunning visuals and uninterrupted performance around the clock. We offer a wide range of screen sizes from 43'' to 98'', meeting diverse needs for different spaces and usage scenarios.<br><br><b>THE ULTIMATE MICROSOFT TEAMS ROOMS COMPANION</b><br>Engineered for seamless integration. Designed with a dedicated Meeting Mode, this display is the perfect partner for Microsoft Teams Rooms. It automatically wakes and sleeps in sync with your MTR system and can be managed directly from the console, delivering a truly streamlined and professional meeting experience.<br><br><b>CONNECT. MOUNT. COLLABORATE.</b><br>Engineered for hassle-free collaboration. Our multiple-size displays feature side-ported dongle pairing for effortless connectivity. They offer versatile mounting with an optional XBar series wall plate and a standard VESA bracket designed to securely hold any brand of video bar. Simplify your meeting space with purpose-built design.<br><br><b>ENDURING PERFORMANCE, ELEGANTLY ENGINEERED</b><br>Go beyond the ordinary with a display crafted for continuous commercial performance. It merges an elegant, minimalist aesthetic—featuring ultra-narrow bezels and a 95% screen-to-body ratio—with a rugged premium full-metal chassis engineered to withstand demanding environments. Inside, commercial-grade hardware and IP5X dust-resistant construction ensure flawless 24/7 operation day after day. Backed by an exceptional 100,000-hour lifespan, it offers unparalleled reliability and immersive visual clarity, year after year.
Technical Specifications
| Panel type | ADS |
|---|---|
| LED backlight | Y |
| LED backlighting type | Direct-LED |
| Display diagonal | 98 |
| Display technology | LED |
| Display resolution | 3840 x 2160 |
| Display brightness | 500 |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178 |
| Viewing angle, vertical | 178 |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.562 x 0.562 |
| Active display area (W x H) | 2158.85 x 1214.35 |
| Panel life | 50000 |
| Native refresh rate | 60 |
| Haze rate | 25 |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| USB port | Y |
| USB ports quantity | 4 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C,USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Y |
| USB Power Delivery up to | 65 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Ethernet LAN (RJ-45) ports | 2 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232 interface | Y |
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| RMS rated power | 32 |
| Audio output channels | 2.0 |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat screen |
| VESA mounting | Y |
| Panel mounting interface | 800 x 400 |
| Bezel width (bottom) | 17.9 |
| Bezel width (side) | 17.9 |
| Bezel width (top) | 17.9 |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP5X |
| Power consumption (typical) | 175 |
| Power consumption (standby) | 0.4 |
| Power consumption (max) | 337 |
| Power consumption (economy mode) | 143 |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 143 |
| AC input voltage | 100-240 |
| AC input frequency | 50/60 |
| Built-in processor | Y |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | A73 |
| Internal memory | 4 |
| Internal storage capacity | 32 |
| Operating system installed | Android |
| Operating system version | Android 14.0 |
| Display width | 2198.9 |
| Display depth | 68.6 |
| Display height | 1254.6 |
| Display weight | 53900 |
| Package width | 2360 |
| Package depth | 280 |
| Package height | 1425 |
| Package weight | 80100 |
| Remote control included | Y |
| Cables included | AC,HDMI |
| Mounting kit | Y |
| Wi-Fi module included | Y |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -20 - 60 |
| Storage relative humidity (H-H) | 10 - 90 |
| Certification | Energy Star |
| Ambient light sensor | Y |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Wi-Fi | Y |
| Wi-Fi standards | Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n),802.11a,Wi-Fi 6 (802.11ax) |
| Wall mountable | Y |
| Sustainability certificates | ENERGY STAR |
| Power supply type | Internal |
