MG-11090 - Magewell Pro Capture Quad SDI
MG-11090 - Magewell Pro Capture Quad SDI
Features

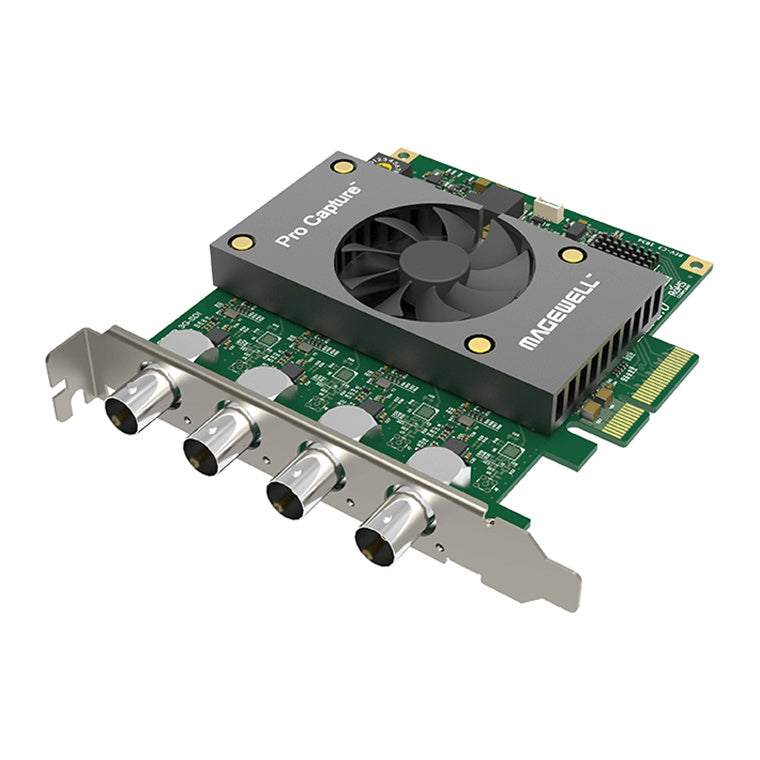

The Magewell Pro Capture Quad SDI is a high-performance PCIe capture card designed to simultaneously capture video from up to four SDI sources. This card is ideal for professional applications requiring multi-channel video capture, such as live broadcasting, video conferencing, and medical imaging.
Input and Output Interfaces

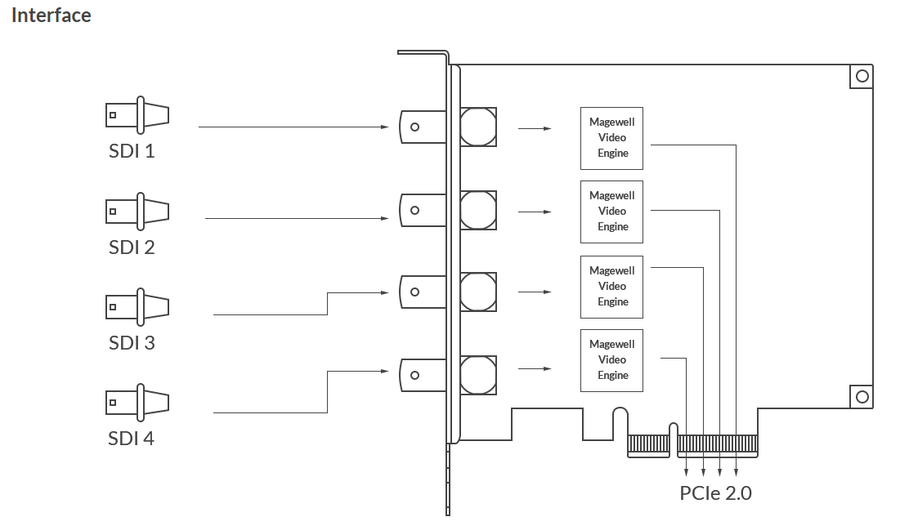

Equipped with four SD/HD/3G/2K SDI input interfaces, the Pro Capture Quad SDI supports video resolutions up to 2048×1080 pixels. The host interface utilizes PCIe Gen2 x4, ensuring high-speed data transfer and compatibility with a wide range of systems.
Advanced Video Processing Capabilities
The card features 10-bit video processing, offering functionalities such as deinterlacing, cropping, color adjustment, color space conversion, up/down conversion, aspect ratio conversion, and on-screen display (OSD). These capabilities allow for precise control over video quality and format, catering to diverse professional requirements.
Comprehensive Signal Detection and Support
The Pro Capture Quad SDI automatically detects input signal formats and supports time code and closed caption extraction. It accommodates various SDI standards, including SD, HD, 3Ga, 3Gb, 3Gb-DL, and 3Gb-DS, as well as 2K (2048×1080) modes. The card also supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 color sampling, with 10/12-bit color depth, ensuring compatibility with a broad spectrum of video sources.
Software Compatibility and Development Support
Compatible with Windows, Linux, and Mac operating systems, the Pro Capture Quad SDI offers universal drivers and updatable firmware. It includes the Capture Express software and supports over 50 other applications, such as VLC, OBS, and vMix. For developers, Magewell provides SDKs for Windows, Linux, and Mac, facilitating integration into custom applications.
Additional Features and Reliability
The card supports multiple capture streams, low latency mode, and the use of multiple devices on one host. It is designed for continuous 24/7 operation, featuring high-speed memory, LED status indicators, and a rotary switch for easy configuration.
Specifications
Technical Specifications
| Recommended OS | Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and aboveLinux x86, x64 & ARM architecture, with 2.6.35 and aboveMac OS X 10.9 and abovemacOS 10.12 and above |
|---|---|
| Supported APIs | WindowsDirectShowDirectKSWave API/DirectSound/WASAPILinuxV4L2ALSAmacOSAVCaptureSessionAudioUnit |
| Supported Software | VLCVirtualDubOBSXSplitvMixVidBlasterWirecastMicrosoft Media EncoderAdobe Flash Media EncoderAny other DirectShow/V4L2/AVCaptureSession encoding/streaming software |

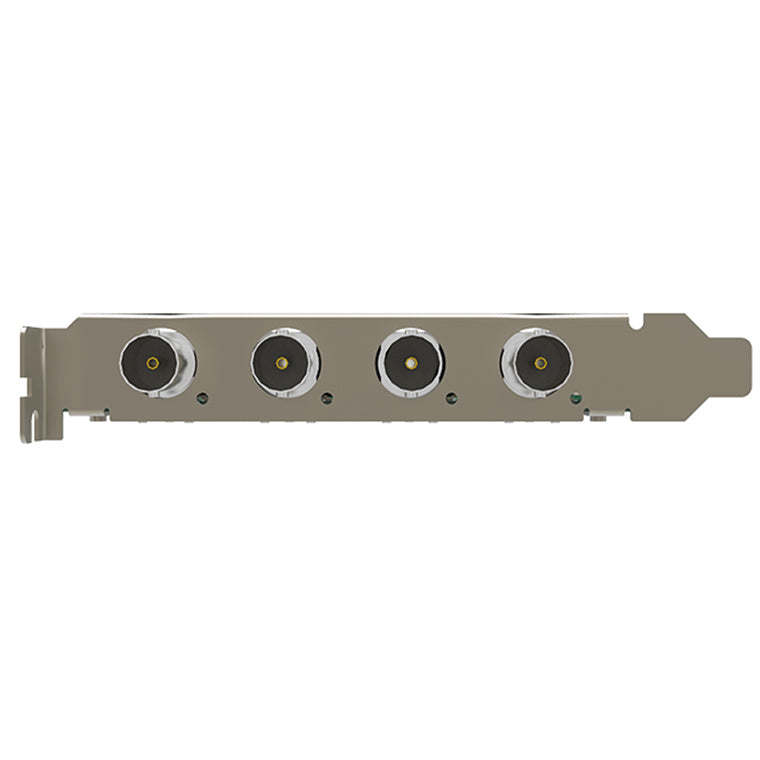

| Input Interfaces | 4x BNCSD/HD/3G SDI |
| Host Interfaces | PCIe Gen2 x4 |
| Input Features | Support for input video resolutions up to 2048x1080 pixels |
| SDI Specific Features | Integrated cable equalizer extending the cable length as follows:up to 330m for SD-SDI signalsup to 190m for HD-SDI signalsup to 150m for 3G-SDI signalsSupport for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standardsSupport for 2K (2048x1080) modeSupport for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color samplingSupport for 10/12-bit color depthSupport for extraction of SMPTE 352 payload identifierSupport for up to 8 (mono) audio channels at 48KHz (channels 1-8 from the 16 available in the SDI spec)Support for extraction of audio formation information & channel status dataLimited support of 3Gb-DS: only the first stream can be capturedLimited support for capture of the first link of dual link interfaces:YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60YCbCr 4:4:4 10-bit: captured as 4:2:2RGB 4:4:4: R/B sub-sampledSupport for Closed Caption via SDK |
| Video Capture Formats | Support for capture image resolutions up to 2048x2160 pixelsSupport for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps. )Support for 4:2:0 8-bit capture formats: NV12, I420, YV12Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVYSupport for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32Support for 4:4:4 10-bit capture formats: V410, Y410More capture formats are supported via Magewell Capture SDK |
| Video Processing Features | Two video processing pipelines with ~180Mpixels/s processing bandwidth for each oneFull 10-bit video processingVideo croppingVideo scalingVideo de-interlacingWeaveBlend top & bottom fieldTop field onlyBottom field onlyVideo aspect ratio conversionAuto or manual selection of input aspect ratioAuto or manual selection of capture aspect ratioThree aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)Video color format conversionAuto or manual selection of input color format & quantization rangeAuto or manual selection of capture color format, quantization range & saturation rangeSupport for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formatsSupport for Limited or Full quantization rangeSupport for Limited, Full & 'Extended gamut' saturation rangeVideo frame rate conversionVideo OSD compositionSupport for PNG OSD image (up to 2048x2160)Support for dynamic loading of RGBA OSD image via SDK |

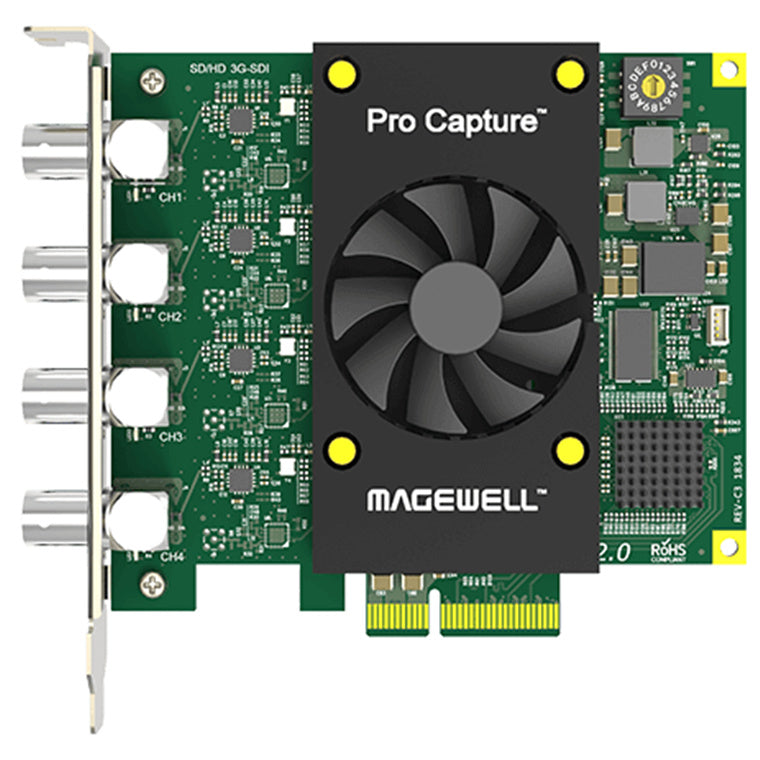

| Multiple Cards per System | Support for multiple cards plugged to one systemOn-board rotary switch to set card number, with 16 positions from 0 to FSystem hardware device tree will display "01: Pro Capture Quad SDI" when rotary switch is set to 1, and so onThe video and audio device names displayed in your software will include the card number (set by the rotary switch) |
| Multiple Capture Streams | Unlimited capture streams for any one input channelIndependent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream |
| Ultra Low Latency Support | Latency of 64 video linesPartial notification mode in SDK |
| Timestamp & A/V Synchronization | Hardware based 100ns high resolution clockAudio frames (192 audio samples) & video frames are stamped with hardware clockHardware clock can be synchronized across cards (via SDK) |
| Video Capture SG-DMA | ~400MB/s per channel DMA bandwidth in PCIe 2.0 system~200MB/s per channel DMA bandwidth in PCIe 1.0 systemSupport for auto detection of Intel tiled GPU surfaceSupport for DirectGMA for AMD video adapter chipsetsSupport for GPUDirect for Nvidia video adapter chipsets |
| SDK | Magewell Capture SDK for easy integration, maximum flexibility and performance |
| Windows Driver Tweaks | All options can be controlled by three levels of registry key: global level, product level and device levelVideo, Audio, Crossbar filter names can be customized via registry keys |
| Firmware Upgrade | Multiple cards in one system can be upgraded simultaneouslyCards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above. |
| LED Indicator | Status LEDs indicate the working state of each channel:Pulsing slowly: input signal unlockedOn: input signal lockedDouble blinks: memory failed or FPGA configuration failedOff: firmware or power supply abnormal |
| Form Factor | Normal profile PCIe x4 Add-on Card112.15mm x 102.92mm (without PCI bracket) |
| Power Consumption | Max current at 12V: ~ 0.77 AMax current at 3.3V: ~ 2.52 AMax power consumption: ~ 17.1 W |
| Working Environment | Operating temperature: 0 to 60 deg CStorage temperature: -20 to 70 deg CRelative Humidity: 5% to 90% non-condensing |
