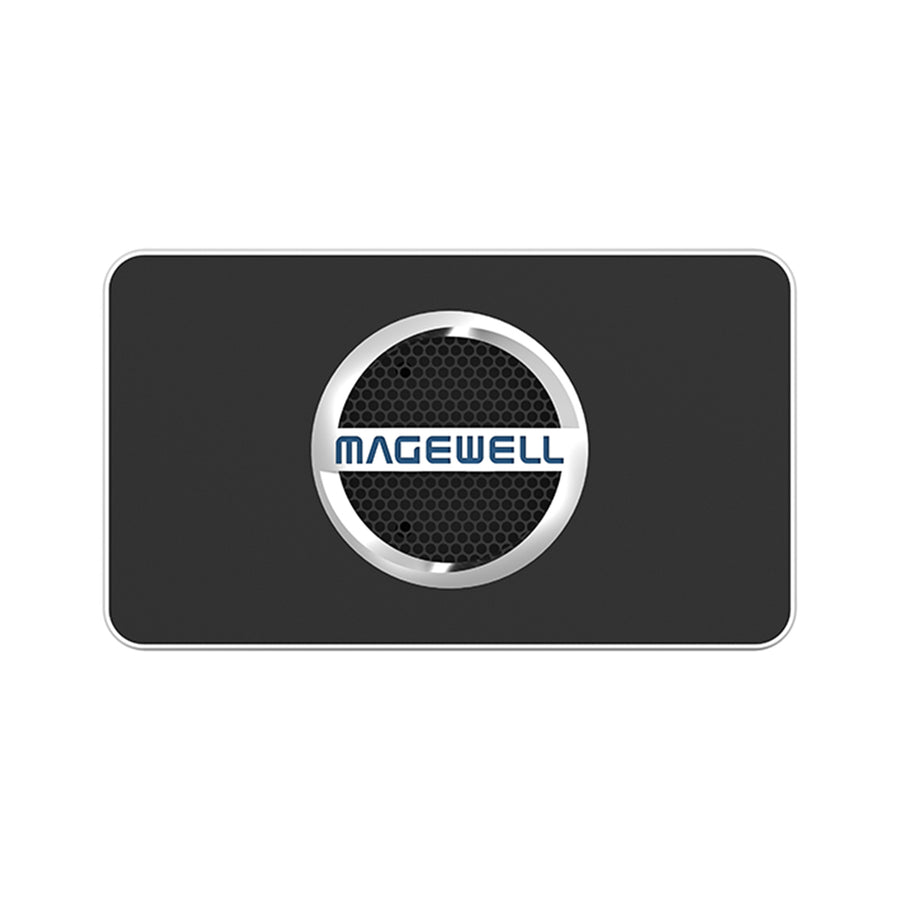

MG-32090 - Magewell USB Capture HDMI 4K Plus

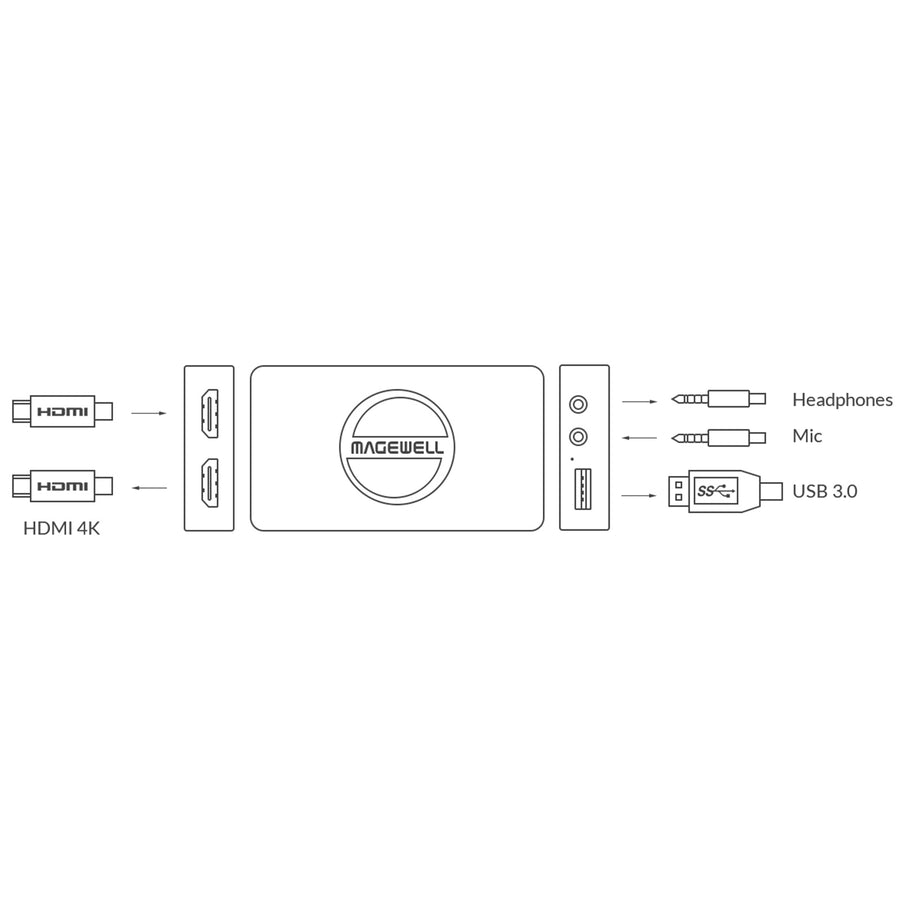

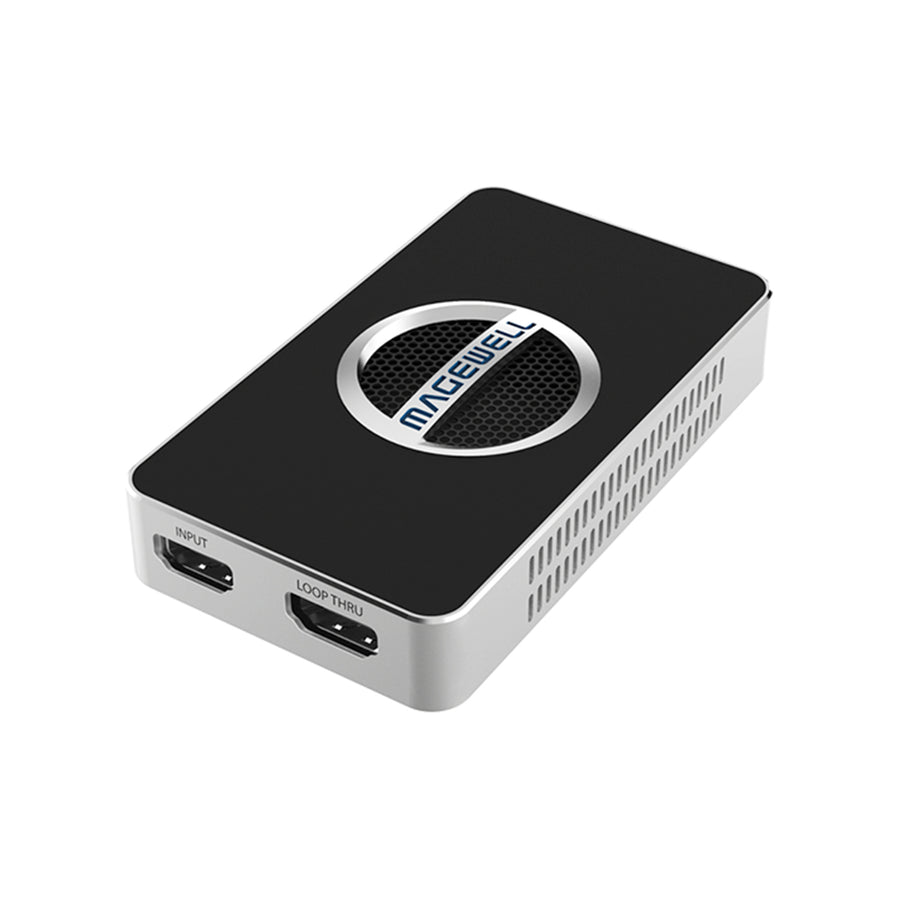

The Magewell USB Capture HDMI 4K Plus connects to your computer over a USB interface and lets you capture up to a 4K DCI resolution signal (4096 x 2160) with embedded audio via an HDMI 2.0 input. It allows you to capture from cameras, game consoles, and various other devices directly to your Windows, Mac, Linux, or Chrome computer. It also features an HDMI loop-through for local monitoring, and 3.5mm audio input and output for capturing external audio and extracting embedded audio.

The device also offers a variety of processing and other features, including resolution scaling and deinterlacing. It also has a status LED for displaying the status of the input, including idle, input signal locked, memory failed, or FPGA configuration.

Key Features

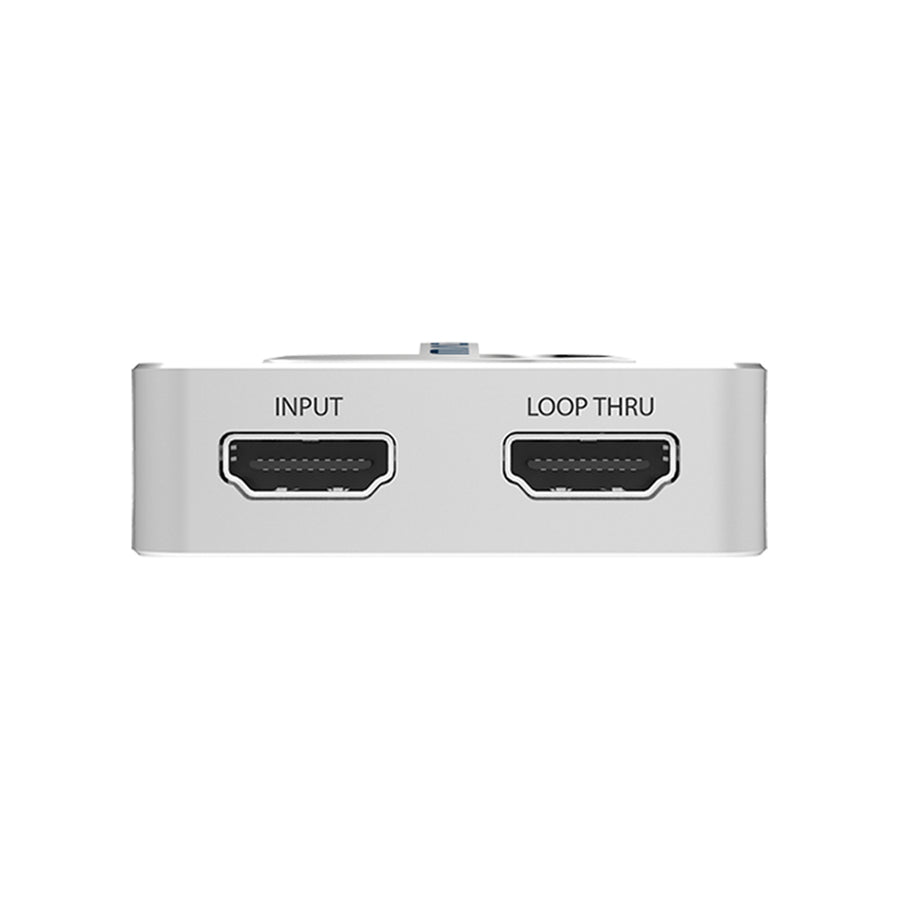

- HDMI 2.0/1.4 input and loop-through, audio in/out, USB 3.0 computer interface
- Capture up to 4096 x 2160, 4:4:4, 60 fps
- Compatible with Windows, Mac, Linux, and Chrome OS
- Plug-and-play operation
- UVC protocol support
- Up/down scaling
- Deinterlacing
- Image control
- Various output color spaces
- Firmware upgradeable
- Multiple devices on one host

Included USB Capture Utility V3

- Capture format setting
- Audio volume control
- Mirror and flip
- EDID editing and importing
- Firmware update
- Export diagnose report
- Other functions, such as cropping, deinterlacing, and device name setting

HDMI Specific Features

- 600 MHz HDMI receiver
- Adaptive HDMI equalizer
- Customized EDID
- Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry support
- Up to 4096 x 2160 4:4:4 60 fps input signals
- 2 channel ISC60958 audio streams
- Extraction of audio formation information and channel status data
- Extraction of video timing information
- Extraction of 3D format information
- Side-by-side half, top-and-bottom, and frame packing 3D mode

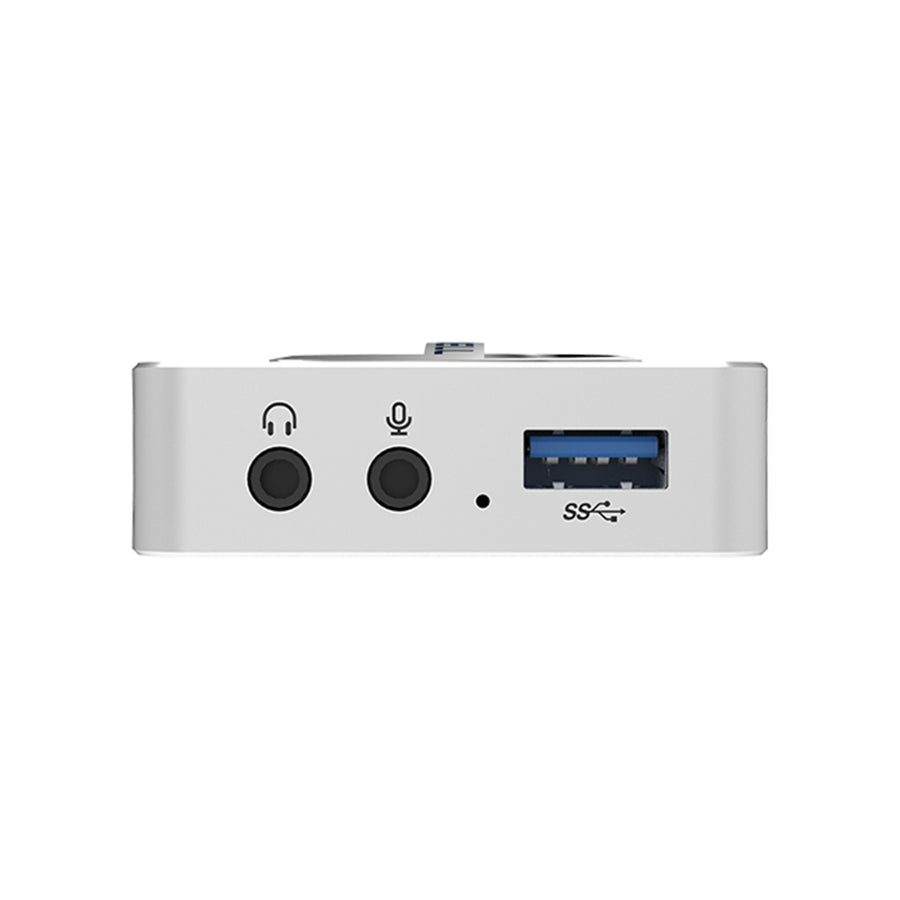

Analog Audio Features

- Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack
- Capture of analog audio via 3.5mm input jack (mic level)
- Playback audio via 3.5mm headphone jack

Video Capture Formats

- Capture resolutions up to 4096 x 2160
- Capture frame rates up to 120 fps (actual capture frame rate can be limited by USB bandwidth and internal working frequency; typical capture frame rates on the Intel USB 3.0 controller are as follows: 1920 x 1080 YUY2 at up to 90 fps, and 3840 x 2160 NV12 at up to 30 fps)
- NV12 and I420 4:2:0 8-bit (up to 4096 x 2160)
- YUY2 and UYVY 4:2:2 8-bit (up to 4096 x 2160)
- RGB24 and RGB32 4:4:4 8-bit (up to 2048 x 2160)
- Default capture formats are YUY2 and NV12; more capture formats can be set using the included USB Capture Utility software

Video Processing Features

- Video processing pipelines with 640 megapixels processing bandwidth
- Cropping
- Scaling
- Frame rate conversion
- Vertical flip and mirror

Video Deinterlacing

- Weave
- Blend top and bottom field
- Top field only
- Bottom field only

Aspect Ratio Conversion

- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)

Color Format Conversion

- Auto or manual selection of input color format and quantization range
- Auto or manual selection of capture color format, quantization range, and saturation range
- Support for RGB, YCbCr 601, and YCbCr 709 color formats
- Support for limited or full quantization range
- Support for limited, full, and extended gamut saturation range

Multiple Devices On One Computer

- Connect multiple units to one system
- Set the device serial number as the device name shown in the system using the USB Capture Utility

SDK

- USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
