Features

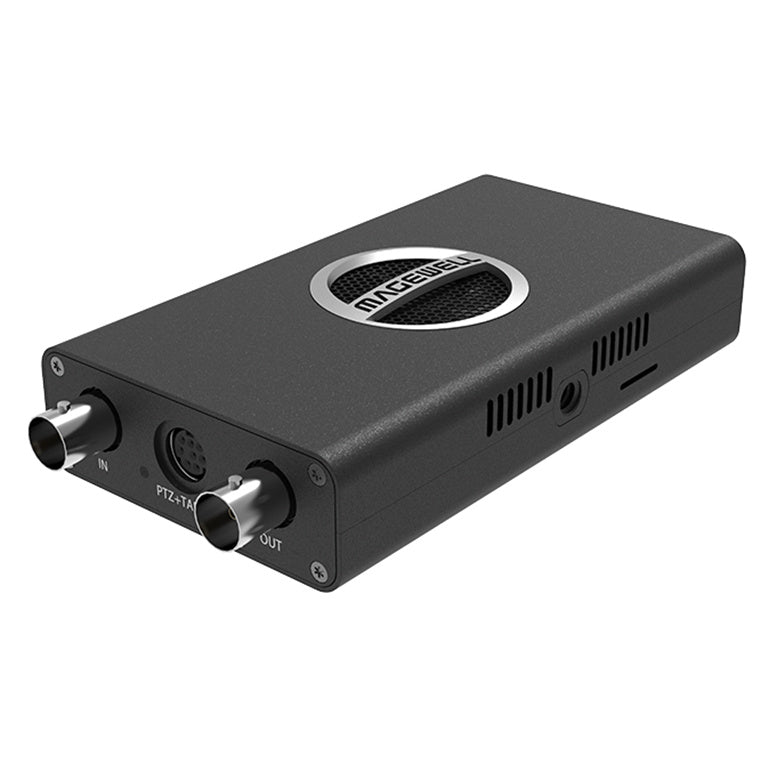

The Magewell Pro Convert SDI Plus is a high-performance device designed to convert SDI video signals into NDI® streams, facilitating seamless integration of traditional video equipment into IP-based workflows. This converter supports SDI input resolutions up to DCI 2K (2048 x 1080) at 60 frames per second, ensuring compatibility with a wide range of professional video formats.
Comprehensive Input and Output Options

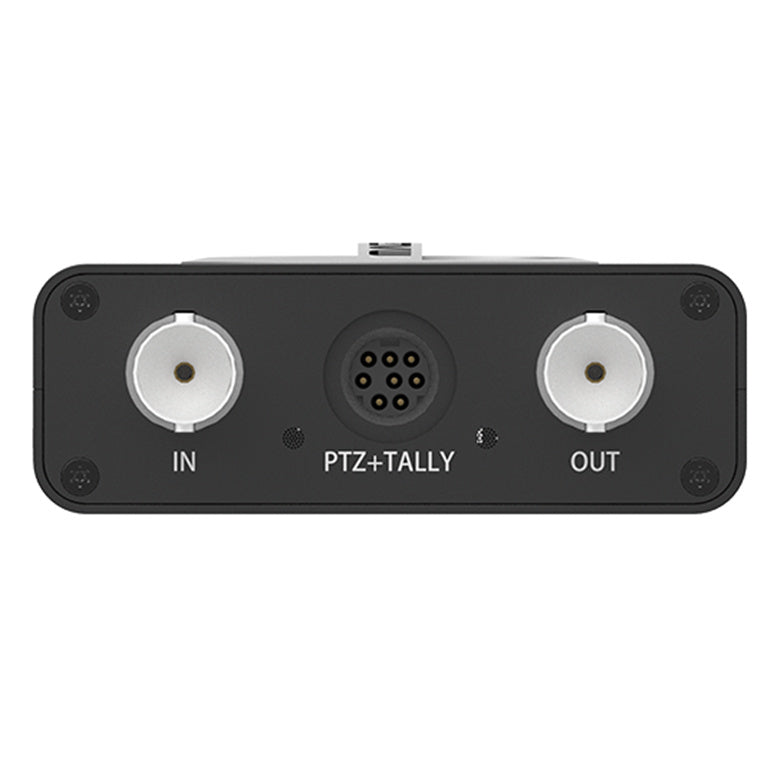

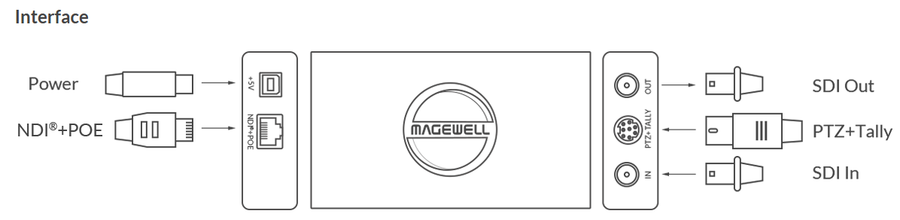

Equipped with a single SDI input and a loop-through output, the Pro Convert SDI Plus allows for simultaneous monitoring and streaming. The loop-through feature enables direct connection to local displays or recording devices without disrupting the signal flow. Additionally, the device supports 16 channels of embedded audio, ensuring that multi-channel audio is preserved during the conversion process.
Advanced NDI® Encoding Capabilities
Utilizing hardware-based encoding, the Pro Convert SDI Plus delivers low-latency, high-quality NDI® streams up to 2048 x 1080 at 60 fps with 4:2:2 8-bit color sampling. This ensures efficient transmission over IP networks while maintaining the integrity of the original video signal. The device is compatible with NDI 5.x, providing interoperability with a broad range of NDI®-enabled software and hardware solutions.
Flexible Power and Control Options

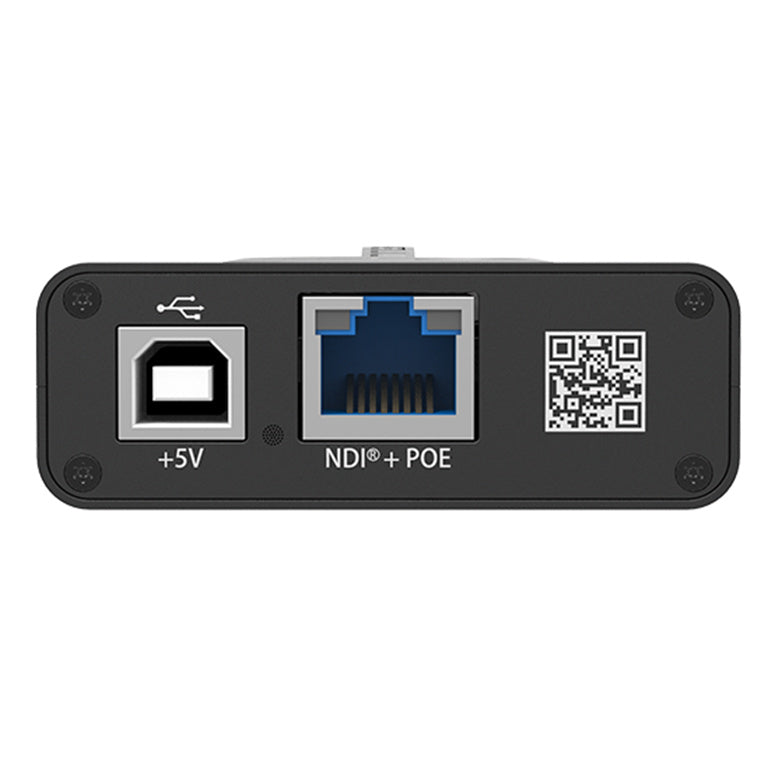

For ease of installation, the Pro Convert SDI Plus supports Power over Ethernet (PoE), allowing both power and data to be delivered through a single Ethernet cable. Alternatively, it can be powered via a 5V USB connection. The inclusion of a mini DIN-8 port facilitates PTZ camera control using protocols such as VISCA and PELCO, enabling remote operation of compatible cameras over the network.
User-Friendly Configuration and Management
The device features an intuitive web-based interface for configuration and monitoring, accessible through standard web browsers. Users can adjust settings related to video, audio, network, PTZ control, and tally indicators. Firmware updates and advanced configurations can also be managed via this interface, ensuring the device remains up-to-date with the latest features and improvements.
Specifications
Technical Specifications
| Input & Loop through Features | Max video input & loop through: 2048x1080 60fps. Supported resolutions include:2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/602048x1080i/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/601280x720p 50/59.94/60720x576 25p/50i (PAL SD)720x480 29.97p/59.94i (NTSC SD)Support RGB/RGBA/YUV/YUVA signals with 10/12-bit color depthSupport RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color samplingSupport RGB, YUV BT.601/709/2020 video input16-channel SDI embedded audio inputsSD/HD/3G-SDI BNC input & loop throughSupport SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standardsReceive 3G-SDI transmitted up to 200m (656ft) |
|---|---|
| NDI® Encoding Features | Encoding NDI High Bandwidth real-time stream at up to 2048x1080 60fps 4:2:2 8-bitOutput the same resolution as input or any custom resolution. Typical outputs include:2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/602048x1080i/1920x1080i 25/29.97/30/47.95/48/50/59.94/601280x720p 50/59.94/60Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rateEncoding 16-channel NDI-embedded audioSupport NDI 6.2 |
| Configuration Management | Register with Control HubRemote control via WebUI and Control HubProvide comprehensive information regarding the device and signals in real-timeAllow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connectionUpdate firmwareSupport USB RNDIS/ECMSupport IE/Edge/Firefox/Chrome/Safari/Opera web browsersProvide HTTP APIs |

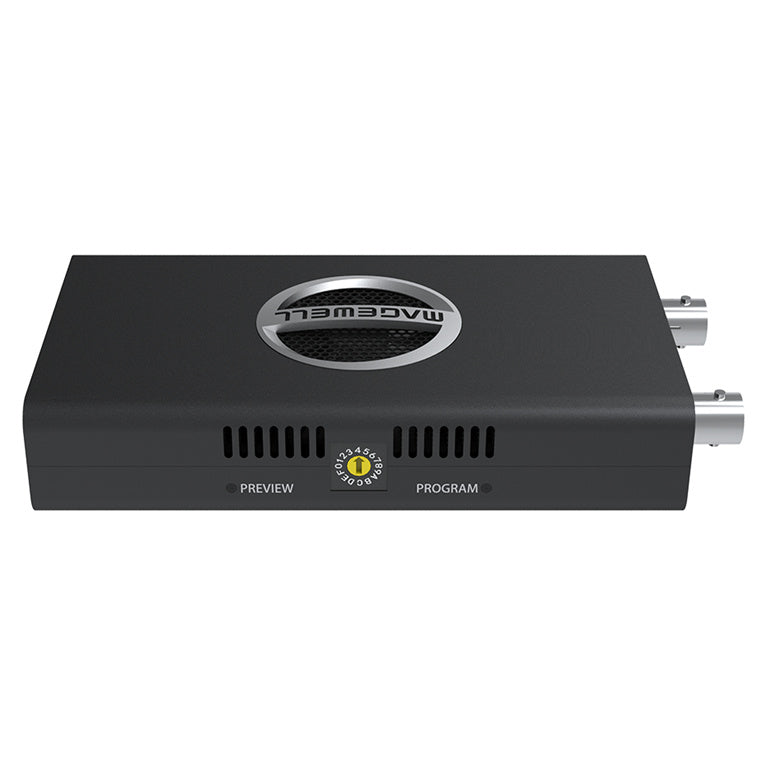

| On-board Control Buttons | 16 Position Rotary DIP Switch: set board-index from 0 to F |
| PTZ Control | Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDIMini-DIN-8 jack (shared with Tally light) |
| Network Interfaces | 10/100/1000Mbps EthernetIEEE 802.3af PoE |
| USB Interface | USB2.0 Type B5V/2.1A power supplyUSB RNDIS/ECM |
| Supported Products | NDI Studio MonitorOBSvMixAny other NDI-enabled product |
| LED Indicators | Status LEDs indicate:Power supply: on/offTally: preview/programInput signal: locked/unlockedLoop through signal: on/off |
| Form Factor | 117.5mm (L) x 66.7mm (W) x 23.4mm (H) |
| Screw Mounting Hole | 1/4-20 threaded hole |
| Power Consumption | 5V max current: ~1.5AMax power consumption: ~7W |
| Working Environment | Operating temperature: 0 to 45 deg CStorage temperature: -20 to 70 deg CRelative humidity: 5% to 90% non-condensing |
