MG-64060 - Magewell Pro Convert SDI TX

The Magewell Pro Convert SDI TX is a high-performance device designed to convert SDI signals into NDI® streams, facilitating seamless integration of traditional video equipment into IP-based workflows. This compact and robust encoder supports video resolutions up to 2048x1080 at 60 frames per second, ensuring high-quality transmission suitable for professional broadcasting and live streaming applications.

Comprehensive Input and Output Capabilities

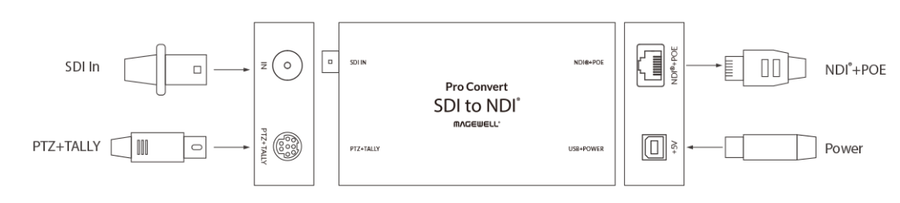

Equipped with a 3G-SDI input, the Pro Convert SDI TX accommodates a wide range of video formats, including SD, HD, and 3G-SDI standards. It supports various resolutions and frame rates, such as 2048x1080p at 60fps, 1920x1080i at 30fps, and 1280x720p at 60fps. The device also handles 16 channels of embedded audio, ensuring synchronized audio-visual output. On the output side, it delivers NDI streams over a Gigabit Ethernet interface, maintaining low latency and high fidelity.

Advanced Features for Enhanced Functionality

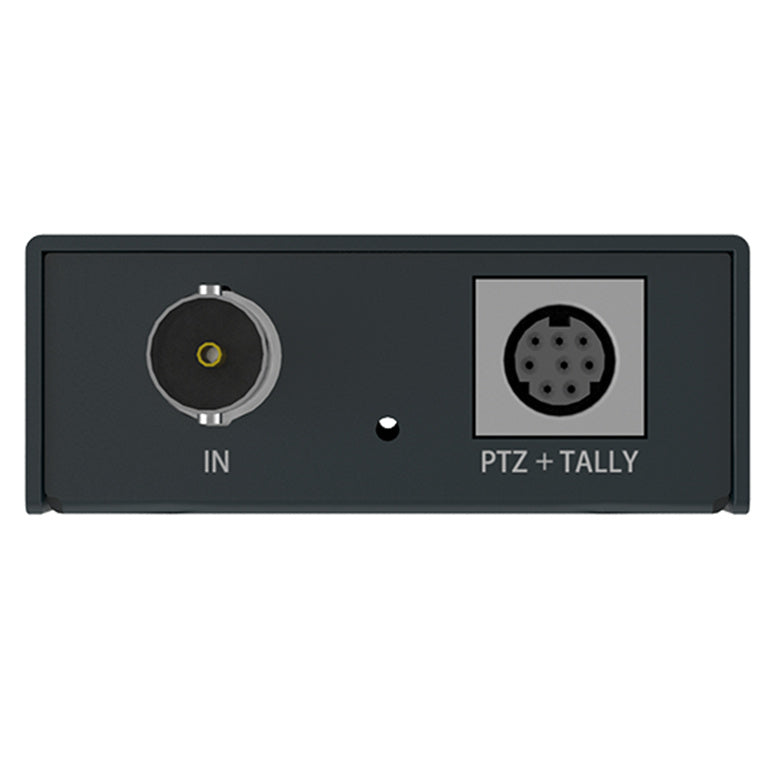

The Pro Convert SDI TX offers advanced features to optimize video processing. It includes deinterlacing, up/down scaling, and frame rate conversion, allowing users to tailor the output to specific requirements. The device supports color format conversion, accommodating RGB and YUV color spaces with various quantization and saturation ranges. Additionally, it provides PTZ camera control via a Mini-DIN-8 port, supporting protocols like VISCA and PELCO, enabling remote camera operations over IP networks.

User-Friendly Design and Control

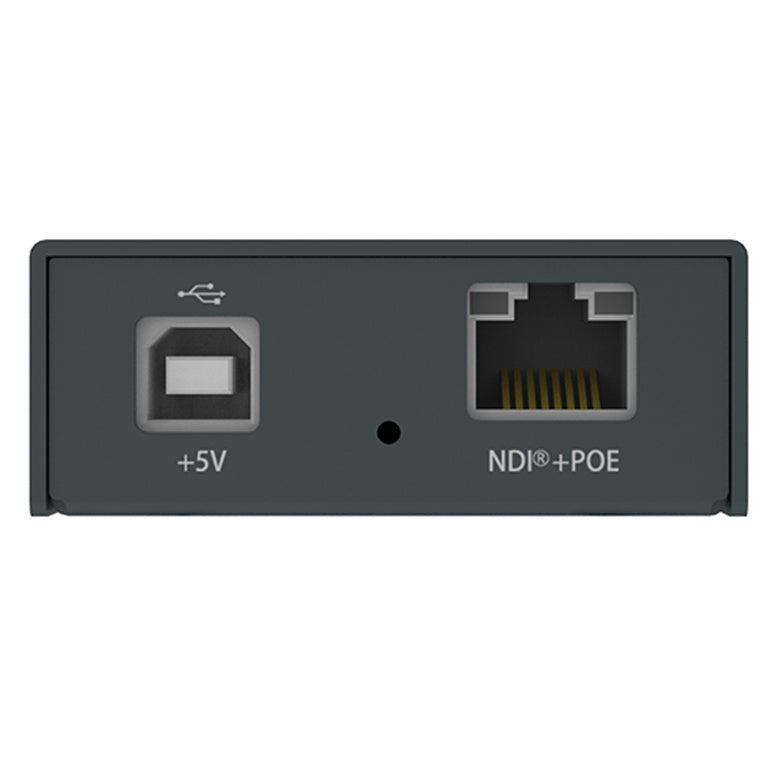

Designed with user convenience in mind, the Pro Convert SDI TX features a web-based interface for configuration and monitoring. Users can access device settings, update firmware, and monitor real-time status through standard web browsers. The device supports Power over Ethernet (PoE), simplifying installation by reducing the need for additional power supplies. For flexible mounting options, it includes a ¼-20 threaded hole, allowing secure attachment to various equipment setups.

Broad Compatibility and Integration

The Pro Convert SDI TX is compatible with a wide range of NDI-enabled software and hardware, including OBS Studio, vMix, and NewTek TriCaster. This broad compatibility ensures seamless integration into existing production environments. The device's compact form factor and robust build make it suitable for both studio and field applications, providing a reliable solution for converting SDI sources to NDI streams in diverse scenarios.
